Motorized heavy duty XL display and monitor stand with 50 cm of vertical travel

two columns silver anodized, floor plate

Item number: SCETADP

Product description

Motorized display & monitor stand with XL display mount. Designed specifically for use with touch screen displays, this motorized monitor stand features an extra wide display mount. The system comes standard with a pair of 2-tier columns which offer 20” of height adjustment.

A 0.3" thick, solid steel plate secures to the two motorized center columns. Designed for static, freestanding applications or to add stability to wall mount systems, secured to e.g. a stud wall. The floor plate features cut-outs/ handles for easy transportation. It comes powder coated in grey aluminum.

The unit comes flat-packed in 4 cartons and is courier-shippable.

Features

XL wide display & monitor stand with max. VESA 1200x600
Designed for use with IFPDs and LFDs up to 125 kg
Easy mounting of display thanks to "pull & release" brackets
Display mount with integrated cable management
Two synchonized columns offering 50 cm of vertical travel, incl. collision protection
Wired remote is standard included
Extra stability thanks to the floor plate and four wall mount brackets

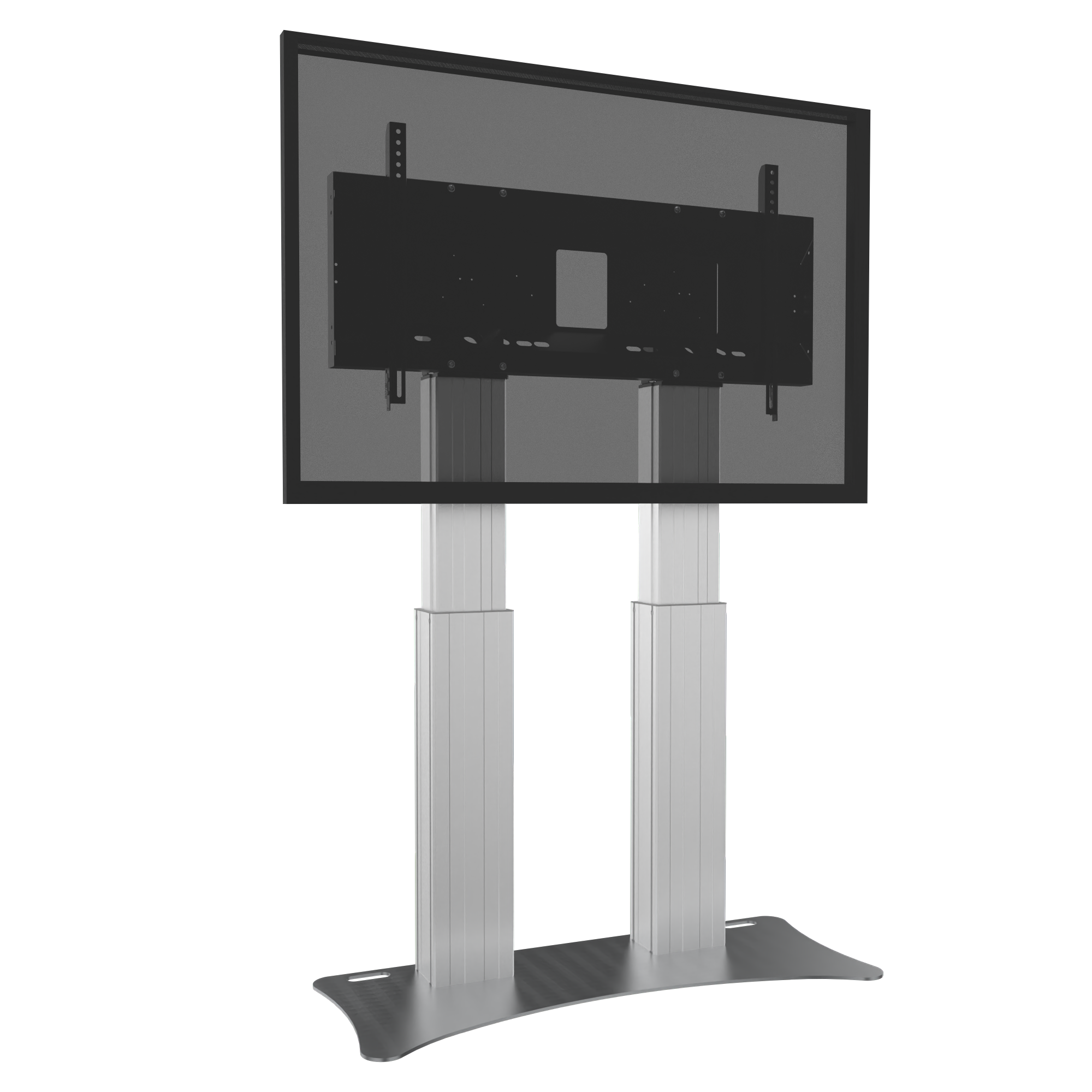

Product image Motorized heavy duty XL display and monitor stand with 50 cm of vertical travel SCETADP

Item number	SCETADP
Vesa horizontal	400 mm - 1200 mm
Vesa vertical	200 mm - 600 mm
Vertical travel	50 cm
Center to floor distance	1208 mm - 1708 mm	47.6" - 67.2"
Load capacity	250 kg	551.2 lbs
Width	1290 mm	50.8"
Height	1528 mm - 2028 mm	60.2" - 79.8"
Depth	530 mm	20.9"
Warranty	5 years limited warranty
Frame color	RAL 9005 deep black
Column color	Silver anodized
Base color	RAL 9006 white aluminum
Packages	Package dimensions WxHxD	Package weight
AFSCETAN12	1300 x 450 x 160 mm / 51.2 x 17.7 x 6.3"	17 kg / 37.5 lbs
CCE70-WSYNC
PSTSCETAD2	1120 x 30 x 590 mm / 44.1 x 1.2 x 23.2"	21,8 kg / 48.1 lbs

Productimage Video conference camera top shelf LITE series for displays from 65 - 86 inch

Productimage 2 galvanized adjustable wall mounting brackets

Productimage 2 galvanized wall mounting brackets

Display mount XL for displays for 2 pylon columns with max. VESA 1200 x 600

This XL frame accommodates monitors with max. VESA 1200 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.

Quick snap lock

With the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.

Remote control of height adjustment

The electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.

8 mm strong floor plate

The 8 mm strong base plate allows the mounting of our monitor mounts on lightweight walls or a freestanding installation in the room. The weight of the monitor is transmitted through the column to the floor plate and thus to the floor, maximizing stability.

7 cm (2.76 inch) Z-brackets

By default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm (2.76 inch). Further wall mounting solutions are available as accessories.

Wall mounting kit

The system includes a wall mounting set consisting of: two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm, Two sliding blocks incl. nut to attach the brackets to the column, four floor leveling feet and 3 cable clips.
