Electrically height-adjustable TV trolley, mobile monitor stand, 50 cm stroke, incl. collision protection

Silver anodized column, V-shaped rolling frame
Item number: SCETAVXLK

Product description

Electrically height-adjustable mobile monitor stand & TV trolley suitable for use with all touchscreen monitors from 70"-120" screen diagonal.

The SCETAVXLK mobile monitor stand is known for its stability and versatility and has been one of Conen Mounts' worldwide bestsellers for many years. The monitor stand is designed for intensive daily use and the secure mounting of touchscreen displays up to 120" screen diagonal or 136 kg. The SCETAVXLK mobile mounting system is equipped with a central pylon column and 50 cm stroke, including collision protection.

The option of connecting numerous accessories such as PC trays, transport handles and whiteboard side wings further increases user-friendliness and improves the range of applications in the training sector.

The product is delivered disassembled in three packages. All packaging units are suitable for parcel service.


Features

  • Mobile heavy-duty stand for (interactive) displays up to 120"
  • Extremely easy mounting thanks to suspension rails with quick-release device
  • Display frame offers integrated cable management outlets
  • A wide selection of accessories is available
  • The motor system is concealed in the central aluminum lifting column and offers a height adjustment range of 50 cm, including collision protection
  • A cable control unit with two buttons is included in the scope of delivery
  • The robust V-shaped castor frame is designed for intensive daily use

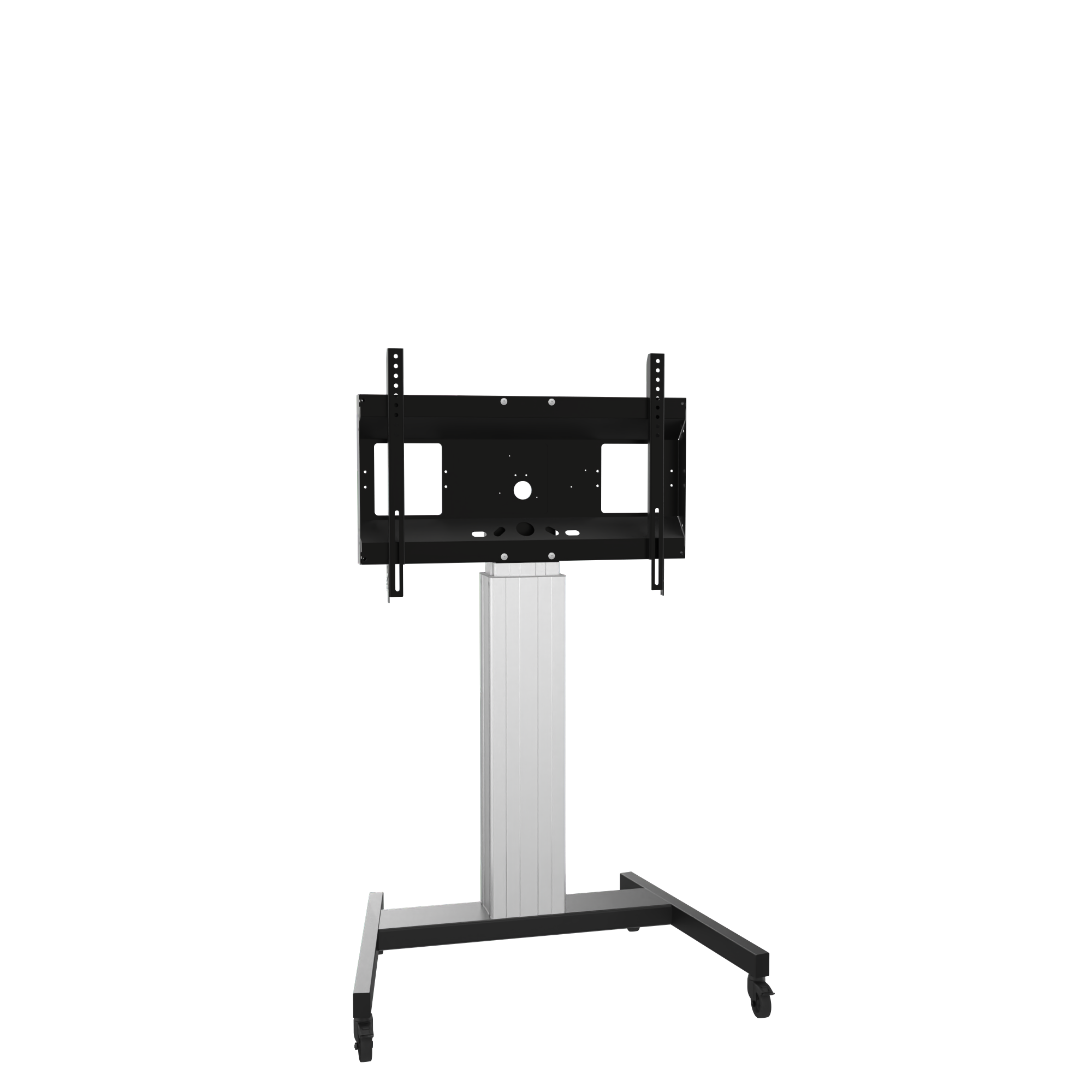

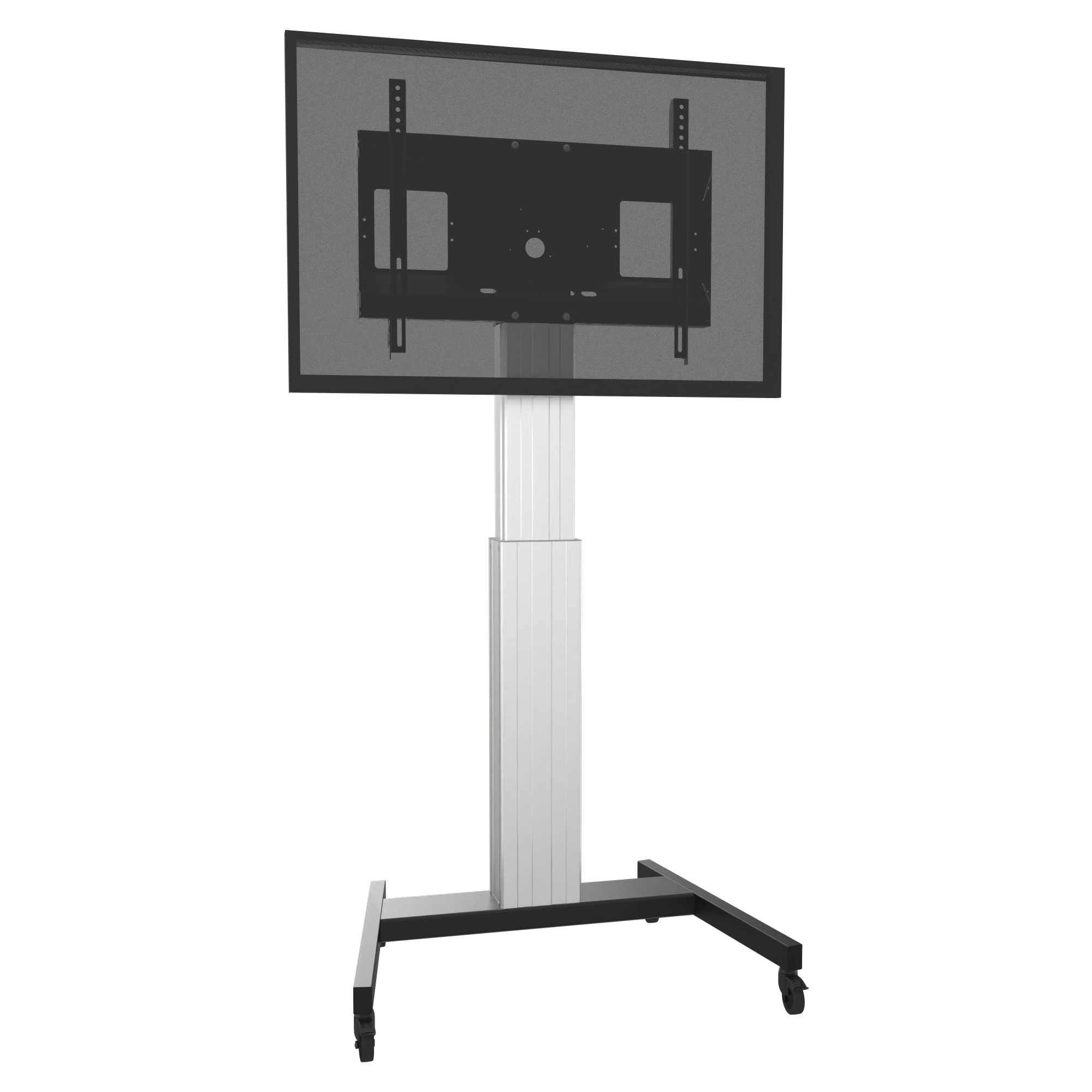

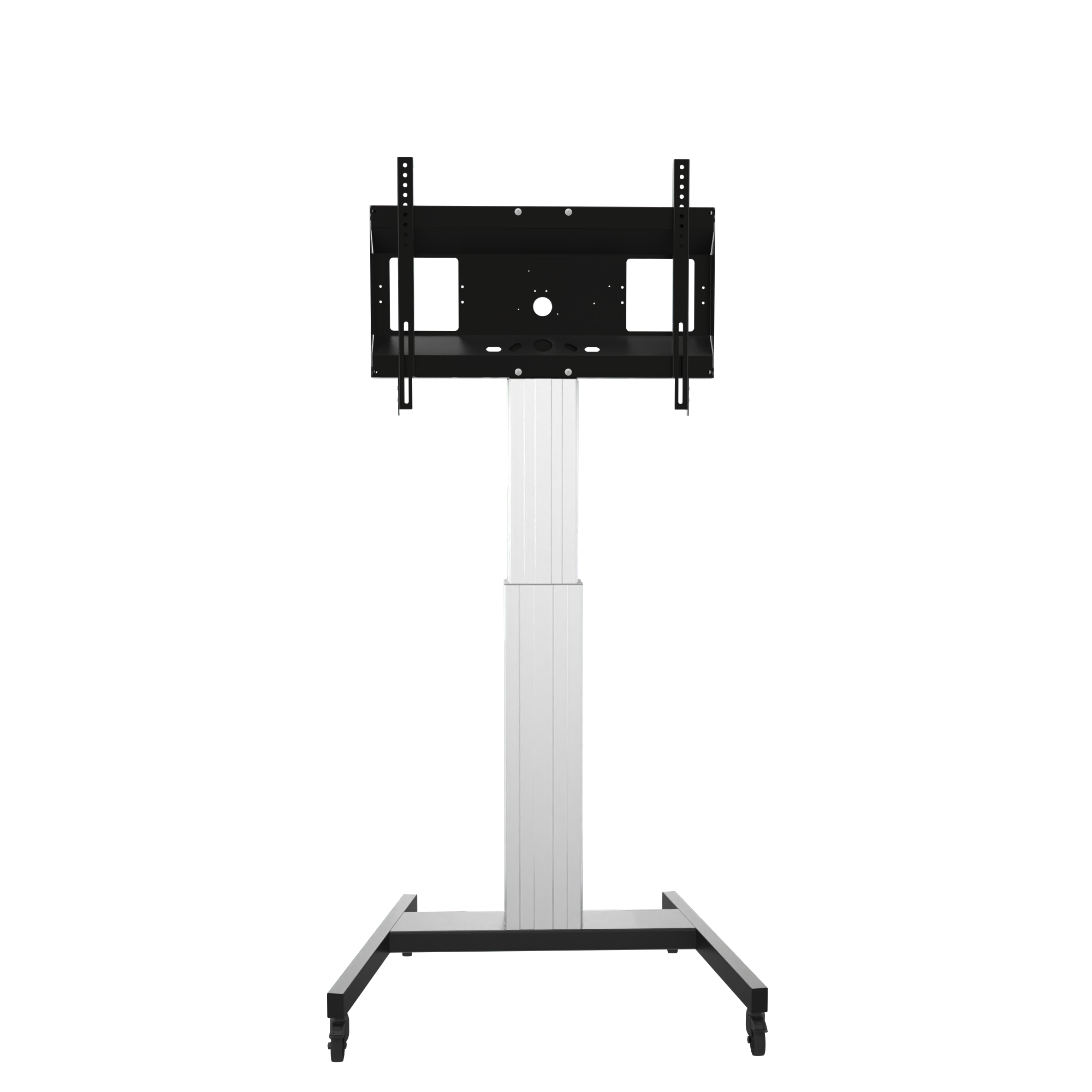

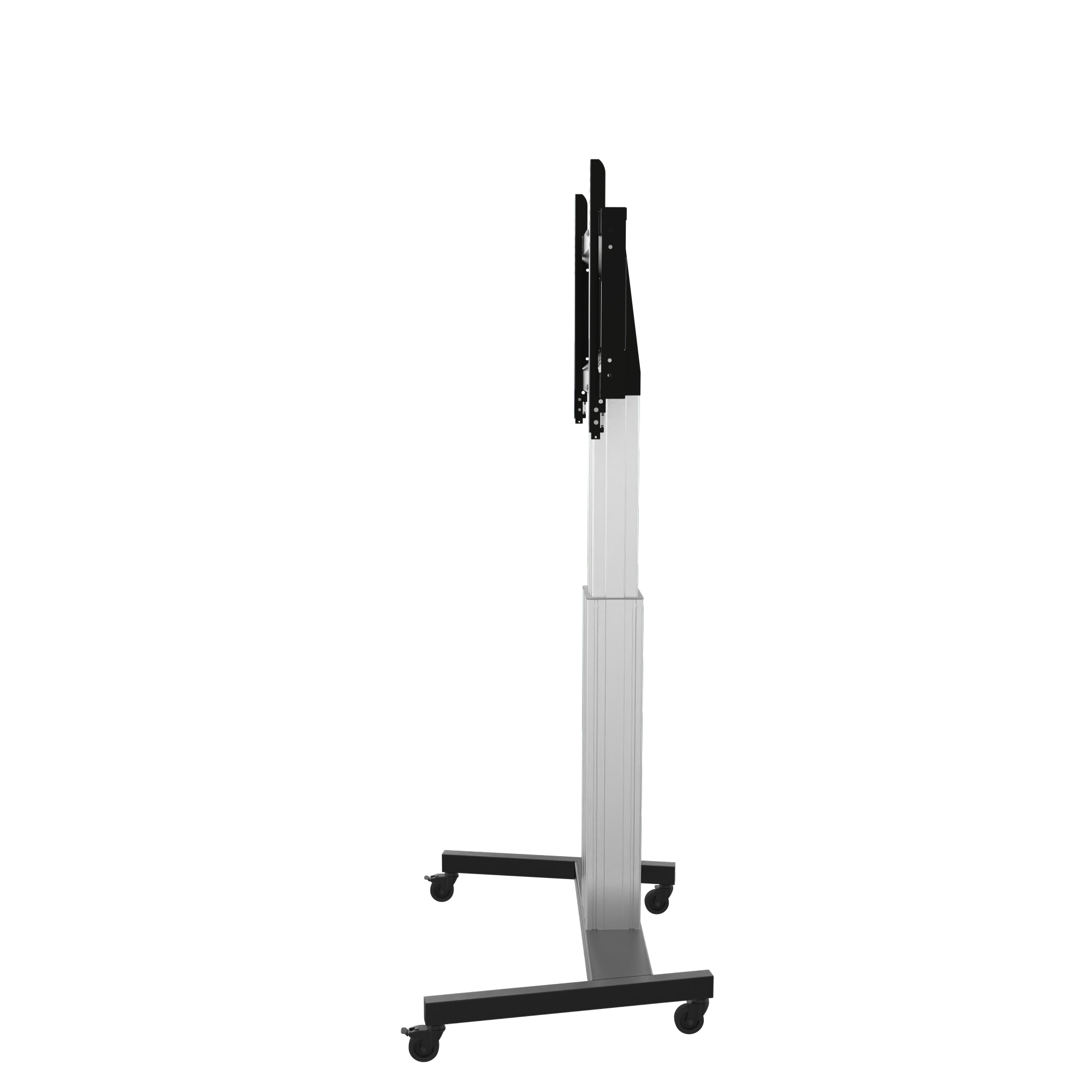

Product image Electrically height-adjustable TV trolley, mobile monitor stand, 50 cm stroke, incl. collision protection SCETAVXLK
Product image Electrically height-adjustable TV trolley, mobile monitor stand, 50 cm stroke, incl. collision protection SCETAVXLK Product image Electrically height-adjustable TV trolley, mobile monitor stand, 50 cm stroke, incl. collision protection SCETAVXLK Product image Electrically height-adjustable TV trolley, mobile monitor stand, 50 cm stroke, incl. collision protection SCETAVXLK Product image Electrically height-adjustable TV trolley, mobile monitor stand, 50 cm stroke, incl. collision protection SCETAVXLK Product image Electrically height-adjustable TV trolley, mobile monitor stand, 50 cm stroke, incl. collision protection SCETAVXLK
Request a quotation!
Icon display mounts
Display mount
Icon mobile stand
Mobile
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
299.8 lbsIcon maximal VESA
Max. Vesa
1200 x 600
Item numberSCETAVXLK
Vesa horizontal400 mm - 1200 mm
Vesa vertical200 mm - 600 mm
Frame for all55" - 100"
Vertical travel50 cm

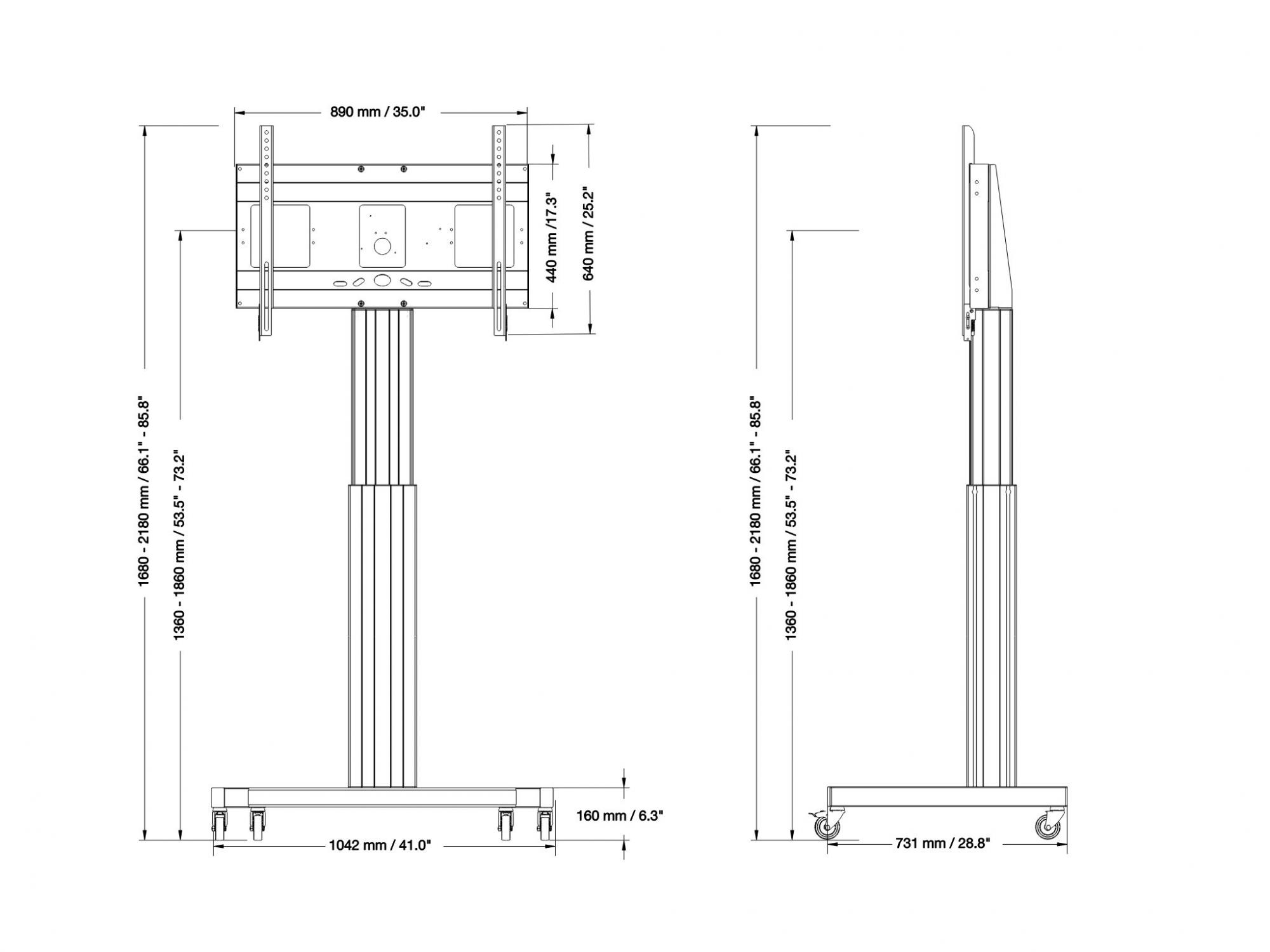

Center to floor distance 1360 mm - 1860 mm53.5" - 73.2"
Load capacity136 kg 299.8 lbs
Height 1680 mm - 2180 mm66.1" - 85.8"
Weight 57 kg125.7 lbs
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorSilver anodized
Base colorRAL 9005 deep black
Packages Package dimensions WxHxD Package weight
AFSCETAN121300 x 450 x 160 mm / 51.2 x 17.7 x 6.3"17 kg / 37.5 lbs
MST-SCETA-VB1140 x 780 x 150 mm / 44.9 x 30.7 x 5.9"24,2 kg / 53.4 lbs
Total weight 41,2 kg / 90.9 lbs
Display mount for displays with max. VESA 800 x 600
Detail image Display mount for displays with max. VESA 800 x 600 SCETAVXLKThis frame accommodates monitors with max. VESA 800 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
Quick snap lock
Detail image Quick snap lock SCETAVXLKWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Remote control of height adjustment
Detail image Remote control of height adjustment SCETAVXLKThe electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.
V-mobile stand
Detail image V-mobile stand SCETAVXLKOur black V chassis has 4 smooth castors, two of which are lockable to fix the monitor stand in place. Due to the special V shape even wheelchair users can approach very close to the display.
Castor V-mobile stand
Detail image Castor V-mobile stand SCETAVXLKThe smooth-running castors on our V-chassis make it easy to move the mobile monitor stand even with heavy displays. The castors have a diameter of 75 mm.
