Electrically height-adjustable & tiltable TV trolley, mobile monitor stand, 50 cm stroke

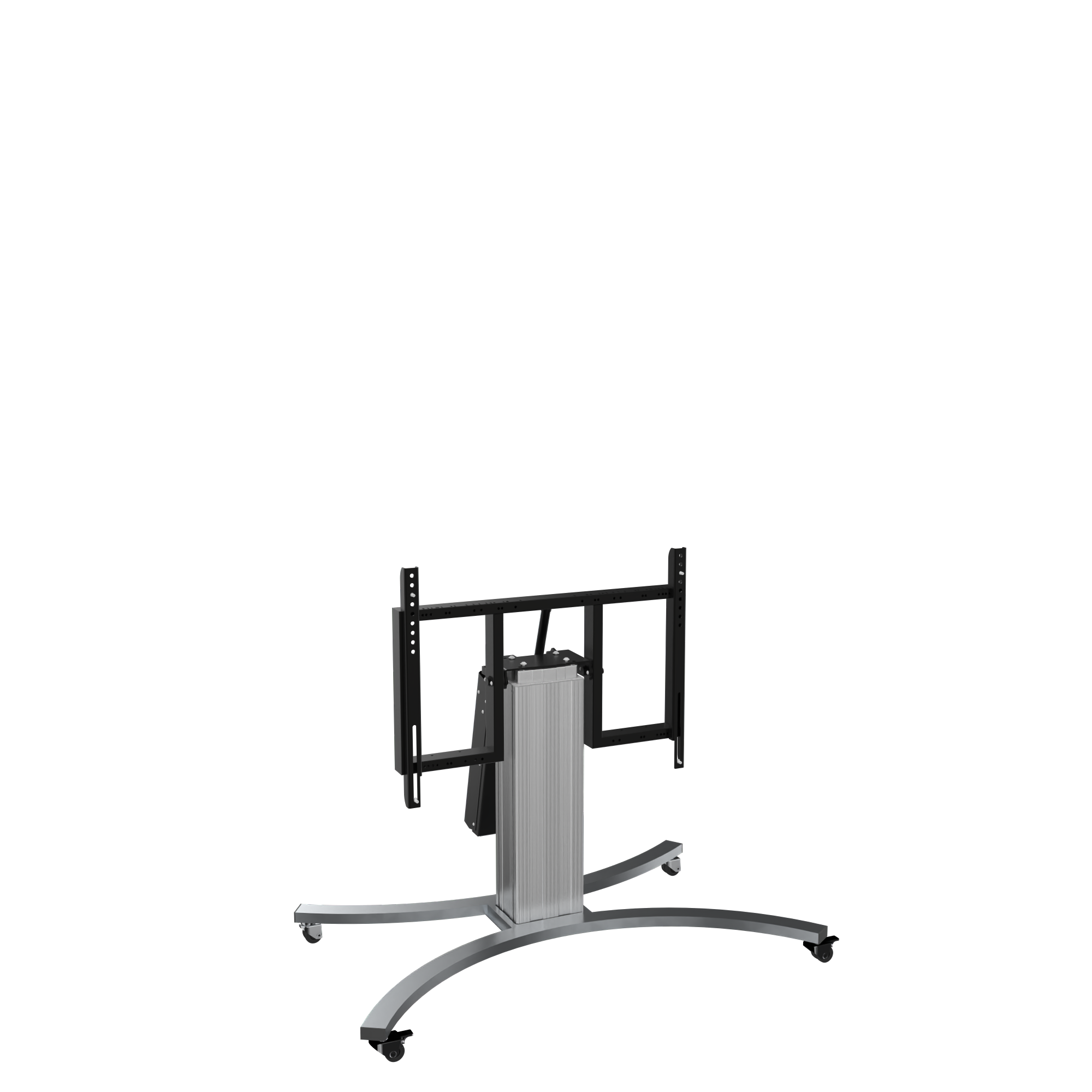

Silver anodized column, with collision protection, C-shaped rolling frame (lowered)
Item number: SCETTACBRK

Product description

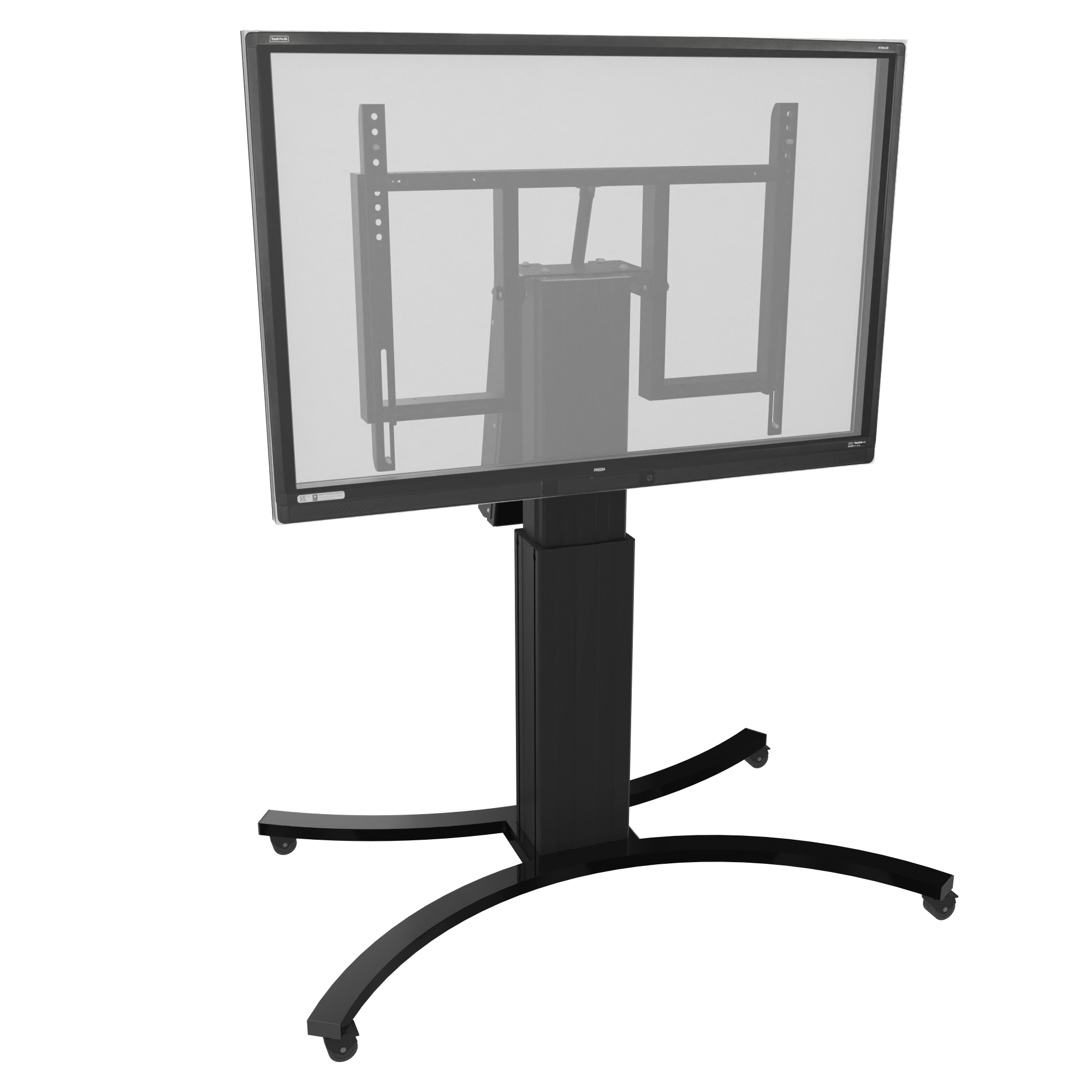

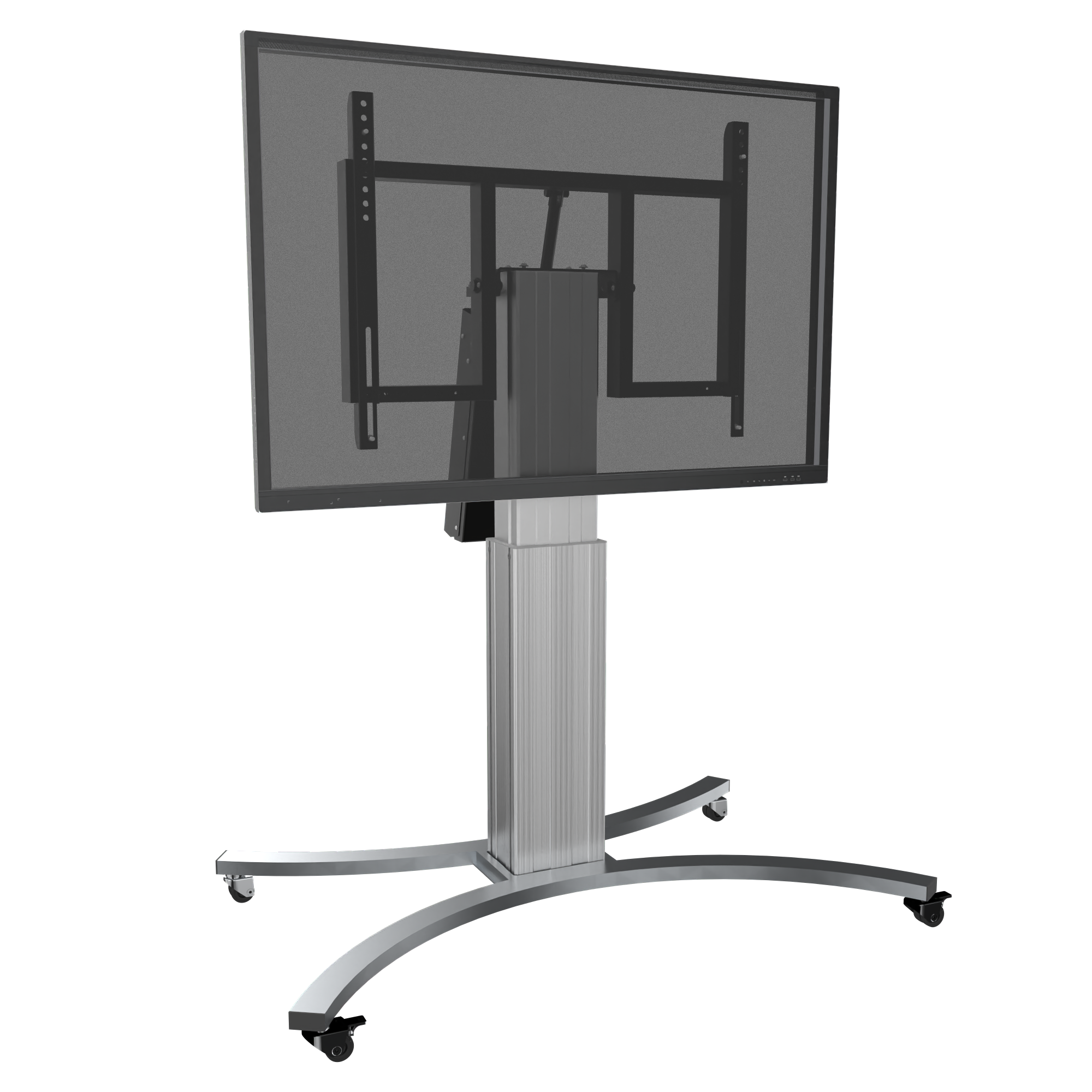

Electrically height-adjustable and tiltable TV trolley to accommodate touchscreen monitors from 55" - 75" screen diagonal.

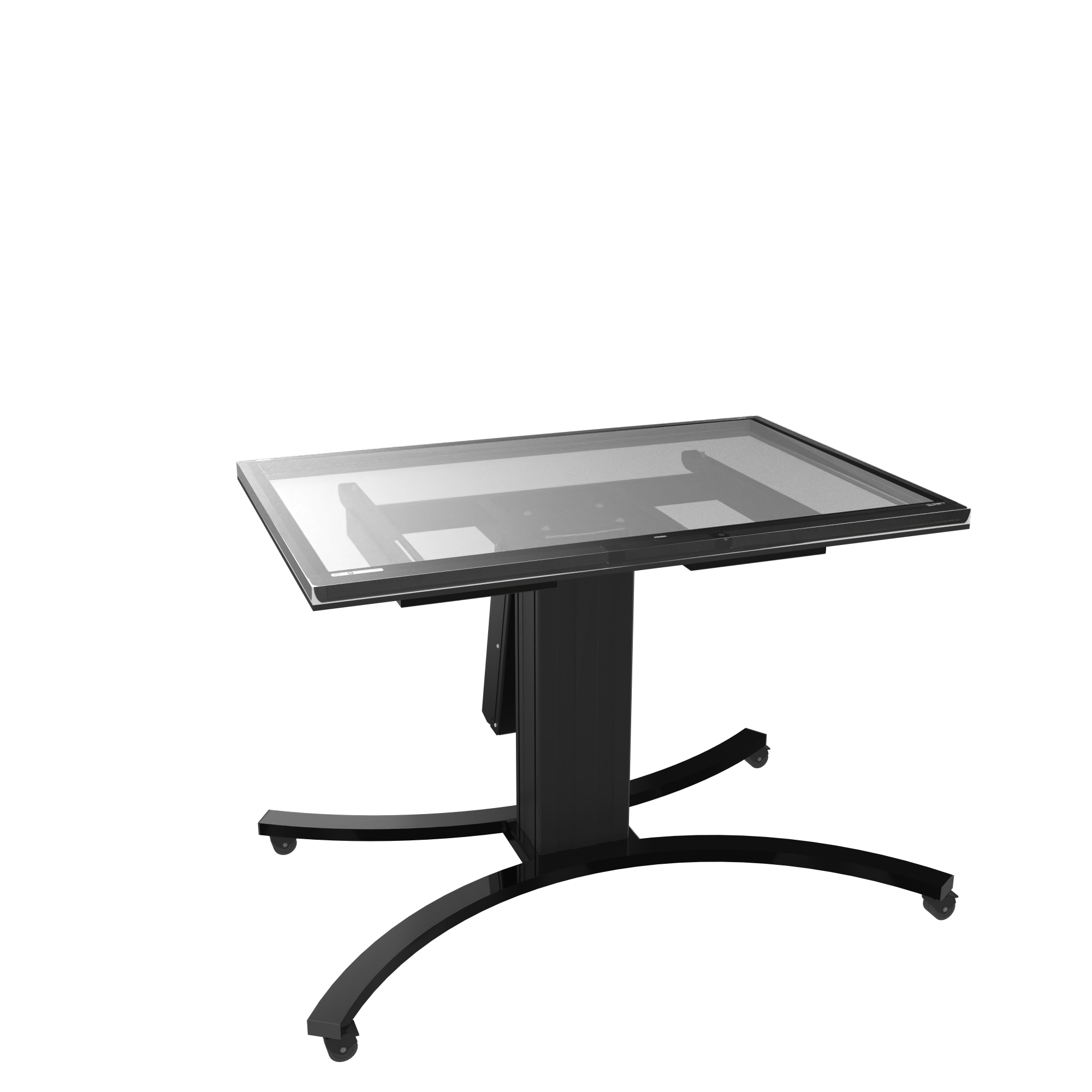

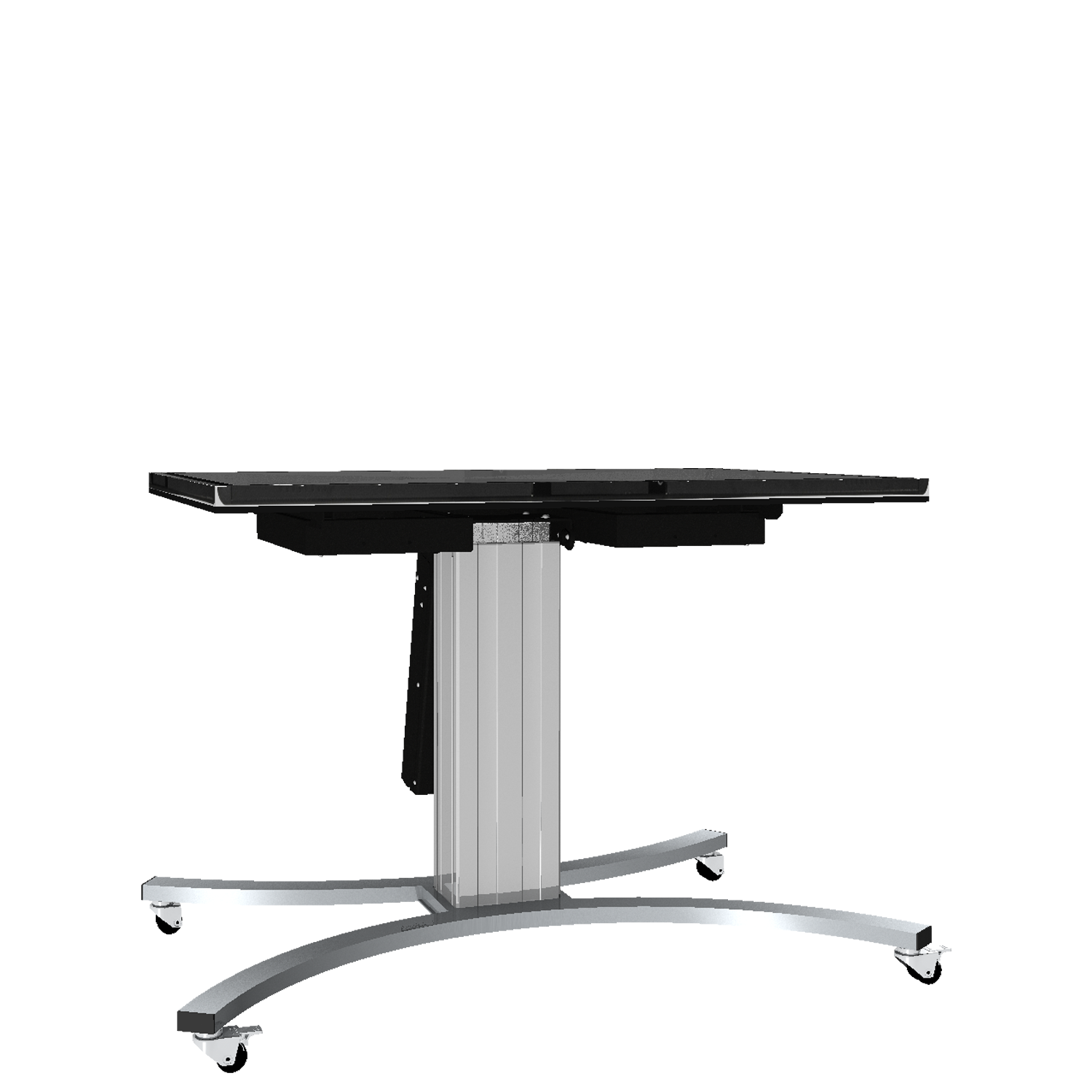

Conen Mounts "SCETTACBRK" is mobile, height-adjustable and tiltable and is one of the best-selling monitor stands. The system was developed for use in universities, hotels and companies for collaboration in small groups. The mobile monitor stand offers 50 cm height adjustment and 0-90° tilt - both adjustments are electric. The mobile stand allows the use of any touchscreen monitor from 55"-75" screen diagonal in panel mode or as a table system or in any position in between. The system can be adjusted simultaneously or sequentially in height and angle and can be stopped in any position. The four rubberized smooth-running castors make it easy to move the system between different rooms and once again make the TV trolley the ideal solution for working environments where a high degree of flexibility is required.

The TV trolley comes disassembled in three packaging units and can be shipped by parcel service.


Features

  • Mobile TV trolley, electrically height-adjustable and electrically tiltable
  • Compatible with touchscreen monitors from 55" - 75" screen diagonal and up to VESA 800x600
  • Motorized height adjustment 50 cm
  • Safety through collision protection - if the system runs into an object, it first stops and then immediately moves back 3 cm
  • Can be used in any position between 0-90°
  • A cable control unit with four buttons is included in the scope of delivery
Product image Electrically height-adjustable & tiltable TV trolley, mobile monitor stand, 50 cm stroke SCETTACBRK
Product image Electrically height-adjustable & tiltable TV trolley, mobile monitor stand, 50 cm stroke SCETTACBRK Product image Electrically height-adjustable & tiltable TV trolley, mobile monitor stand, 50 cm stroke SCETTACBRK Product image Electrically height-adjustable & tiltable TV trolley, mobile monitor stand, 50 cm stroke SCETTACBRK Product image Electrically height-adjustable & tiltable TV trolley, mobile monitor stand, 50 cm stroke SCETTACBRK Product image Electrically height-adjustable & tiltable TV trolley, mobile monitor stand, 50 cm stroke SCETTACBRK Product image Electrically height-adjustable & tiltable TV trolley, mobile monitor stand, 50 cm stroke SCETTACBRK Product image Electrically height-adjustable & tiltable TV trolley, mobile monitor stand, 50 cm stroke SCETTACBRK Product image Electrically height-adjustable & tiltable TV trolley, mobile monitor stand, 50 cm stroke SCETTACBRK

Icon display mounts
Display mount
Icon mobile stand
Mobile
Icon table system
Table system
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
299.8 lbs
Icon maximal VESA
Max. Vesa
800 x 600
Item numberSCETTACBRK
Vesa horizontal400 mm - 800 mm
Vesa vertical200 mm - 600 mm
Vertical travel50 cm

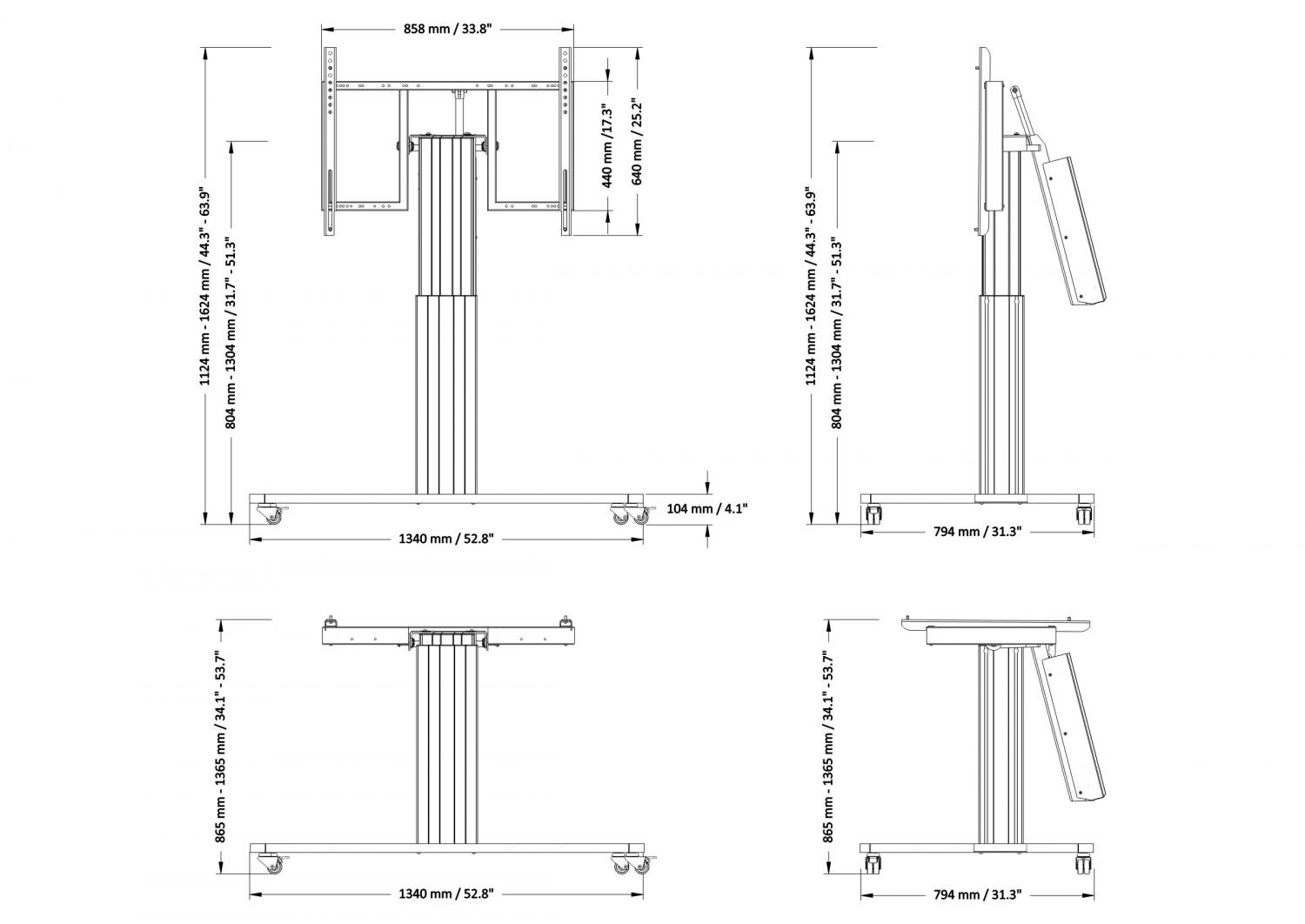

Center to floor distance 804 mm - 1304 mm31.7" - 51.3"
Load capacity136 kg 299.8 lbs
Width 1340 mm52.8"
Height 1124 mm - 1624 mm44.3" - 63.9"
Depth 794 mm31.3"
Weight 61 kg134.5 lbs
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorSilver anodized
Base colorRAL 9006 white aluminum
Packages Package dimensions WxHxD Package weight
AF-SCETTA890 x 770 x 480 mm / 35 x 30.3 x 18.9"26,8 kg / 59.1 lbs
AF-SCETTAK890 x 770 x 480 mm / 35 x 30.3 x 18.9"26,8 kg / 59.1 lbs
MST-SCETACBR1350 x 780 x 120 mm / 53.1 x 30.7 x 4.7"15,5 kg / 34.2 lbs
Total weight 69,1 kg / 152.4 lbs
Display mount for displays for table systems with max. VESA 800 x 600

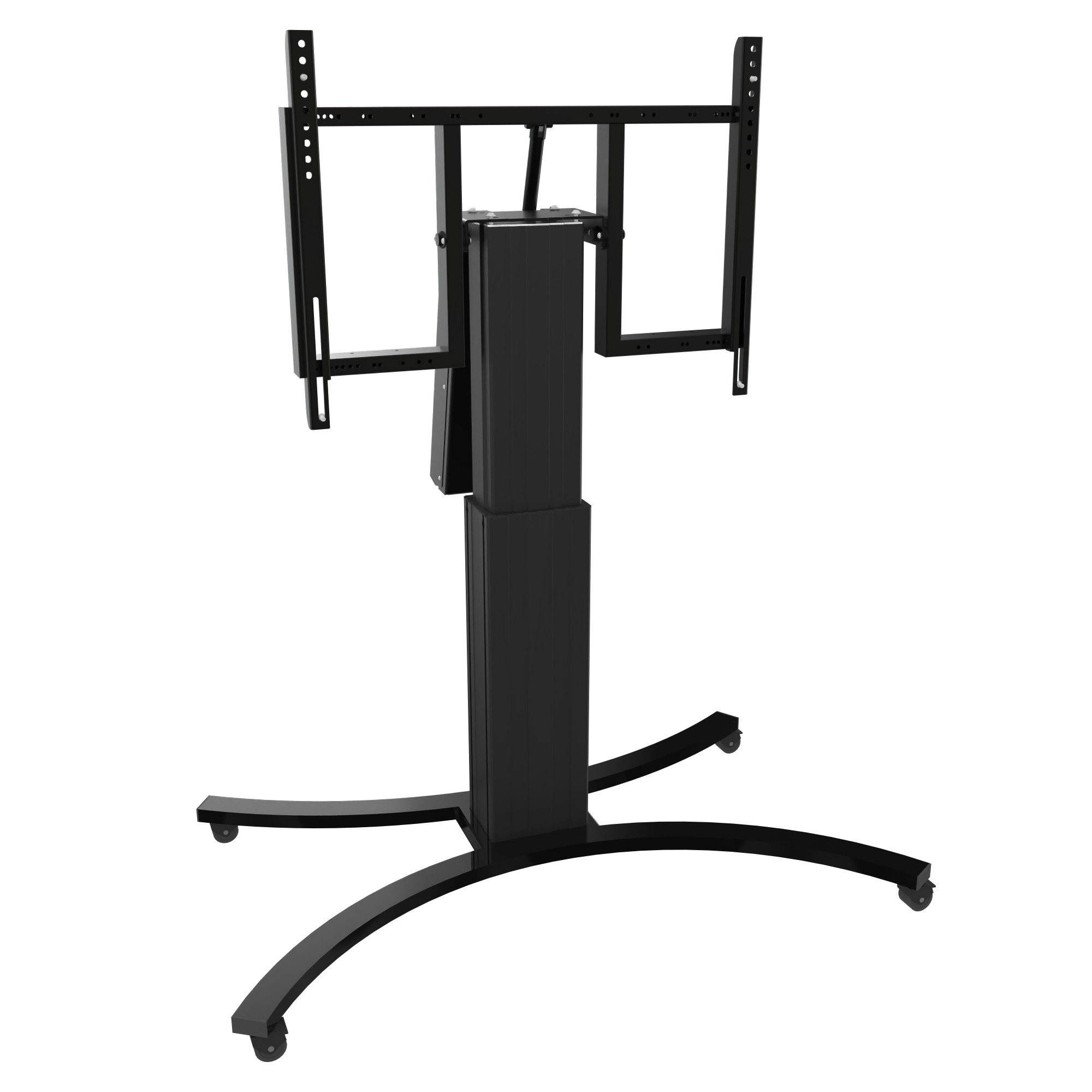

Detail image Display mount for displays for table systems with max. VESA 800 x 600 SCETTACBRKThis frame accommodates monitors with max. VESA 800 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
Remote control of height und tilt adjustment
Detail image Remote control of height und tilt adjustment SCETTACBRKThe electrically height adjustable & tiltable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays. Two additional buttons control the slope of the system.
C-mobile stand
Detail image C-mobile stand SCETTACBRKOur silver C chassis has 4 smooth castors, two of which are lockable to fix the tv cart & mobile monitor stand in place. Due to the special C shape even wheelchair users can approach very close to the display.
Double-castor mobile stand
Detail image Double-castor mobile stand SCETTACBRKThe smooth-running wheels on our chassis make it easy to move the mobile monitor stand and flat screen tv cart even with heavy displays. The castors have a diameter of 50 mm.
