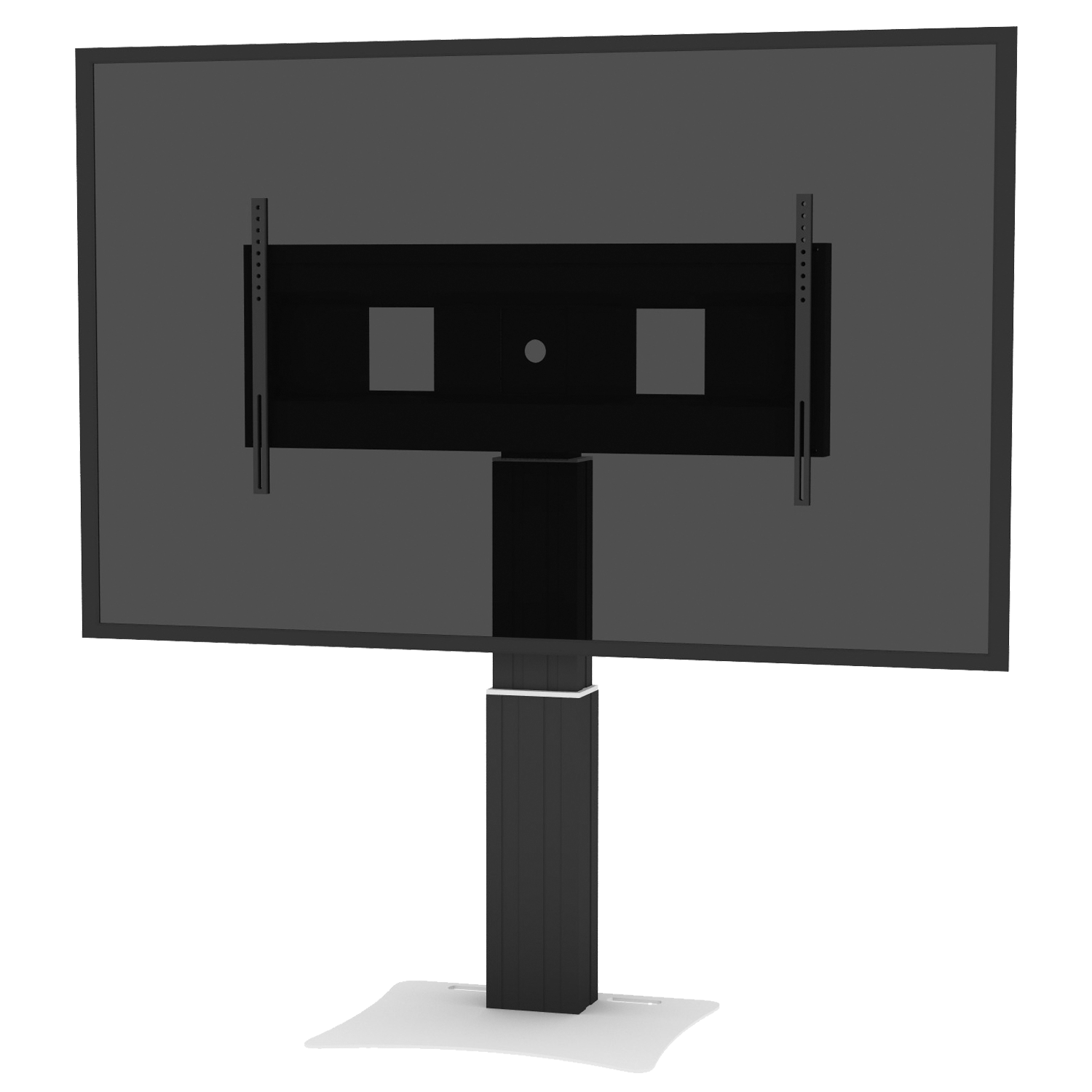

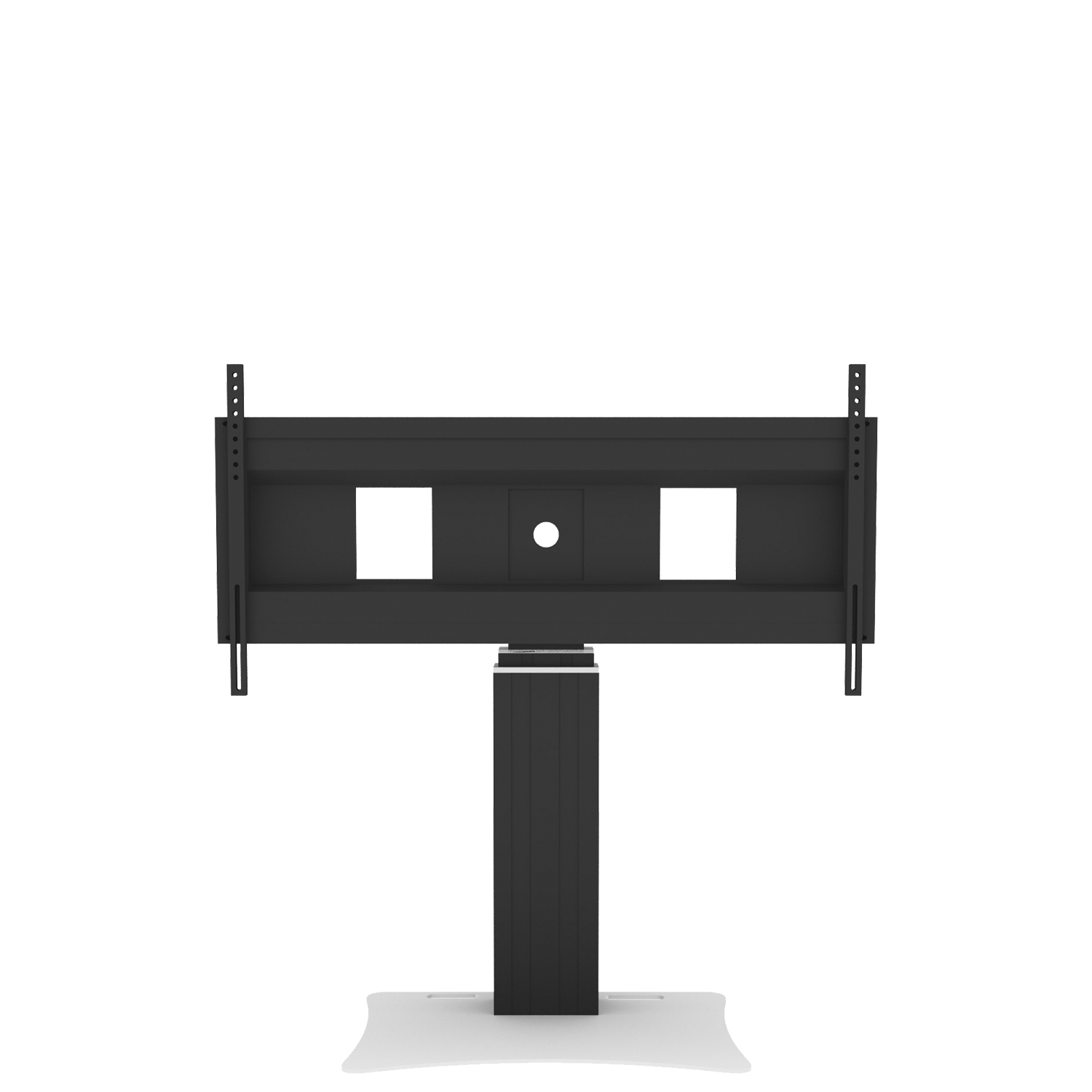

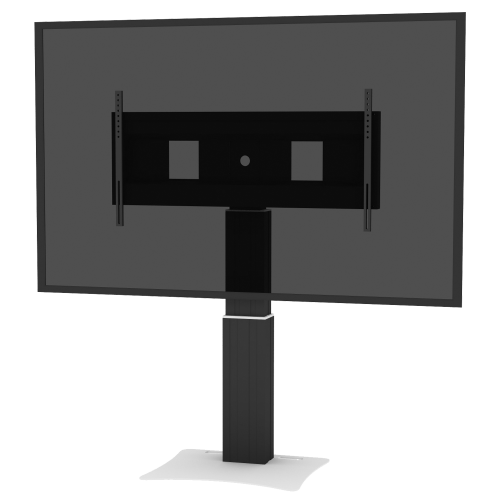

Electrically height-adjustable monitor stand & TV wall mount with XL display holder. Specially developed for mounting touchscreen monitors. The motorized height-adjustable TV wall mount is equipped with an extra wide frame for display mounting. The system comes with the 2-section Conen Mounts pylon column and 50 cm height adjustment, including collision protection.

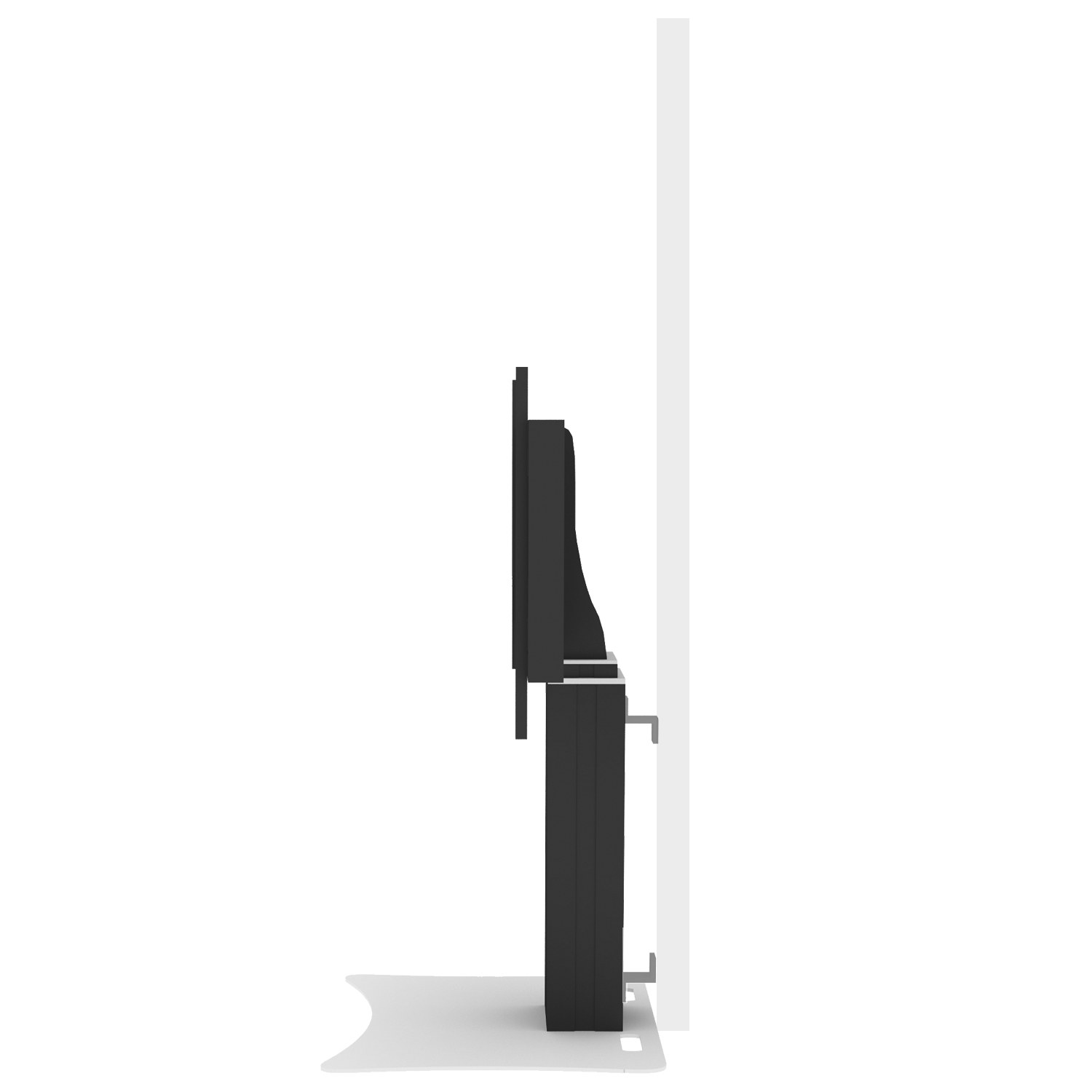

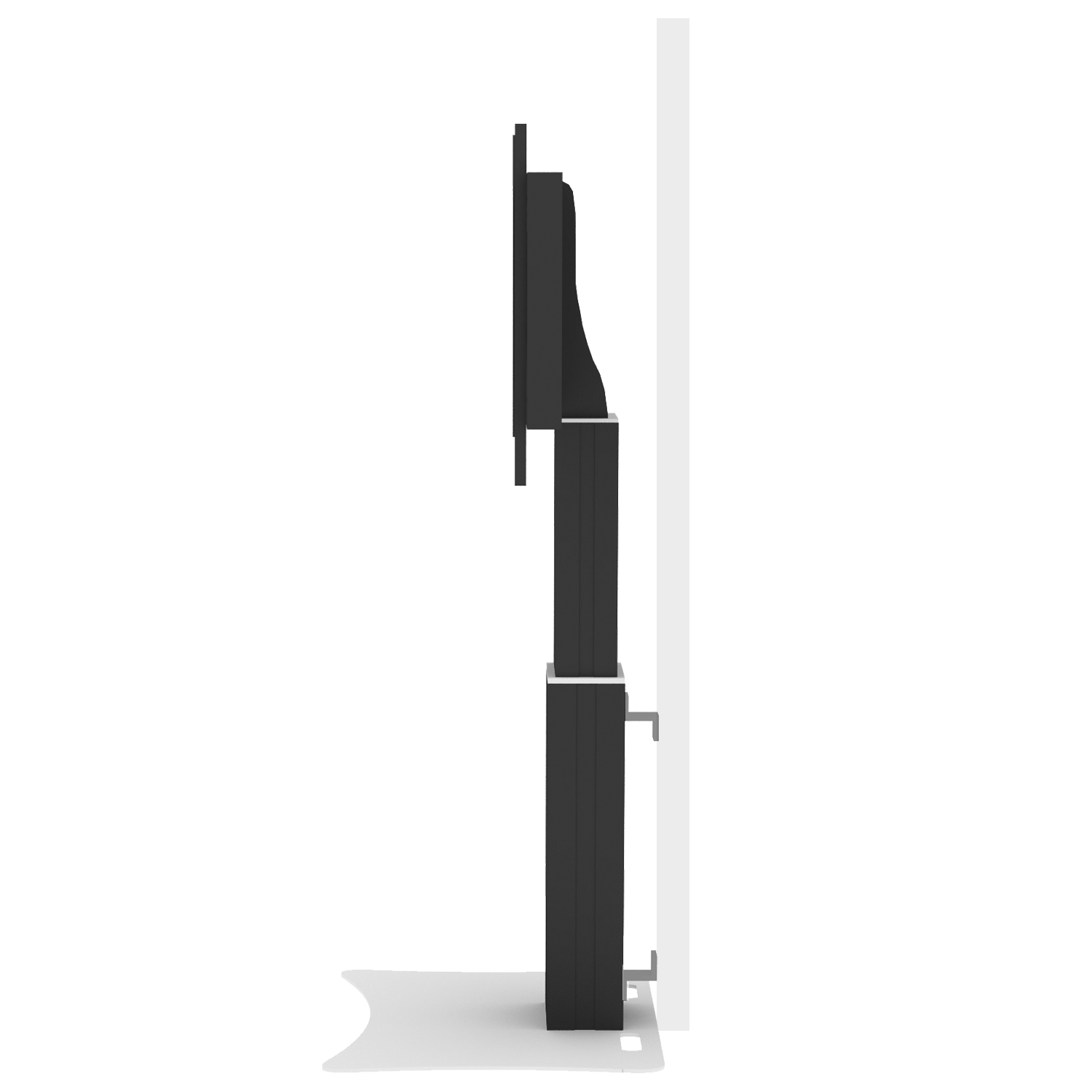

An 8 mm thick steel plate is attached under the pylon column. The monitor stand can be placed free-standing in the room or mounted on a lightweight wall. Recesses/handles in the base plate make handling easier. The plate is plastic powder-coated in black.
The system comes disassembled in three packages and can be shipped by courier service.
| Item number | SCEXLPLBK | |
| Vesa horizontal | 400 mm - 1200 mm | |
| Vesa vertical | 200 mm - 600 mm | |
| Vertical travel | 50 cm | |
| Center to floor distance | 988 mm - 1488 mm | 38.9" - 58.6" |
| Load capacity | 136 kg | 299.8 lbs |
| Width | 1290 mm | 50.8" |
| Height | 1308 mm - 1808 mm | 51.5" - 71.2" |
| Depth | 530 mm | 20.9" |
| Warranty | 5 years limited warranty | |
| Frame color | RAL 9005 deep black | |
| Column color | Black anodized | |
| Base color | RAL 9005 deep black | |
| Packages | Package dimensions WxHxD | Package weight |
| AFSCETAN12 | 1300 x 450 x 160 mm / 51.2 x 17.7 x 6.3" | 17 kg / 37.5 lbs |
| PSTSCETAB | 760 x 30 x 570 mm / 29.9 x 1.2 x 22.4" | 21,8 kg / 48.1 lbs |
| Total weight | 38,8 kg / 85.6 lbs | |
| Product sheet DE/EN SCEXLPLBK |
 |
 |
| Product sheet EN SCEXLPLBK |
|
|
| User manual general SCEXLPLBK |
|
|
