Electrically height-adjustable XL monitor wall mount, 50 cm stroke, incl. collision protection

Silver anodized column, center display 121.5 - 171.5 cm
Item number: SCEXLWK

Product description

Electrically height-adjustable monitor & TV wall mount with XL display holder. Specially developed for mounting touchscreen displays. The motorized height-adjustable monitor wall mount is equipped with an extra wide frame for display mounting. The system comes with the 2-section Conen Mounts pylon column and 50 cm height adjustment, including collision protection.

The product is also disassembled into 2 packages. Each of the packages can be couriered.


Features

  • XL monitor wall mount with max. VESA 1200x600
  • Developed for use with IFPDs and LFDs
  • Easy mounting of heavy devices thanks to suspension rails with quick-release fastener to secure the display
  • Display frame with preparation for cable management
  • Motor unit with 50 cm height adjustment is securely installed inside the pylon column, including collision protection
  • A cable control unit is included in the scope of delivery as standard
  • Suitable for mounting on solid walls
  • For mounting on lightweight walls, you can obtain our base plate (PSTSCETA), for example, at an extra charge

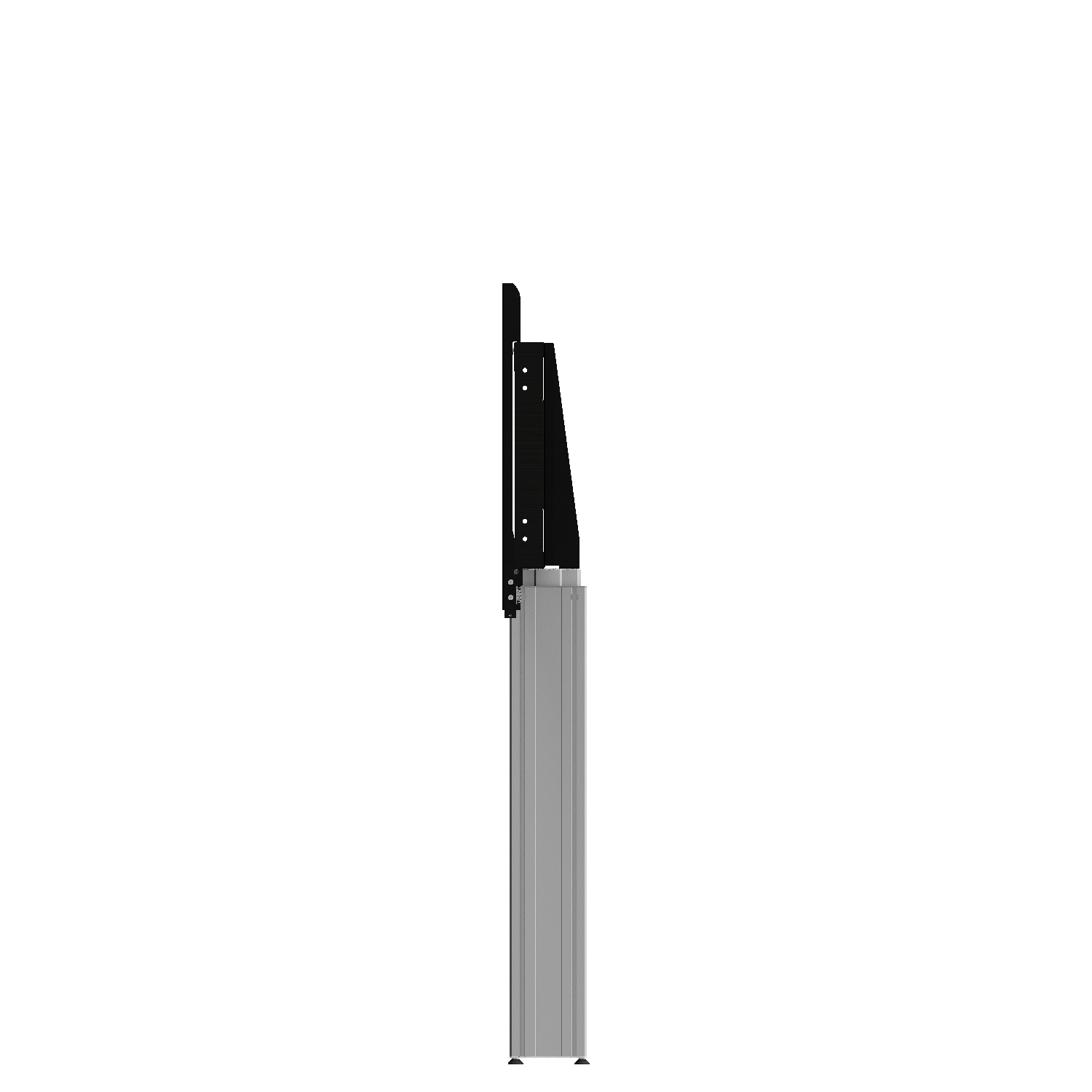

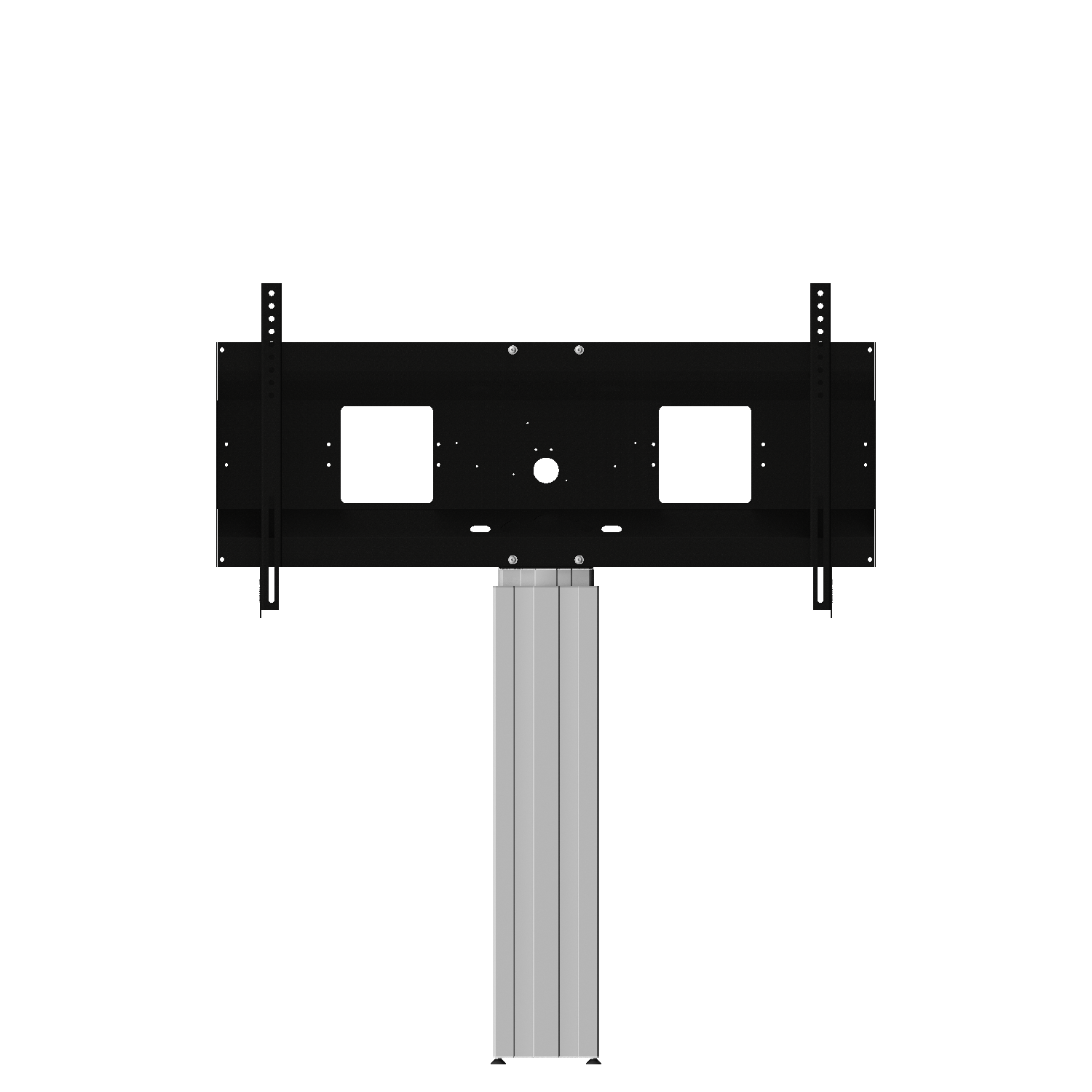

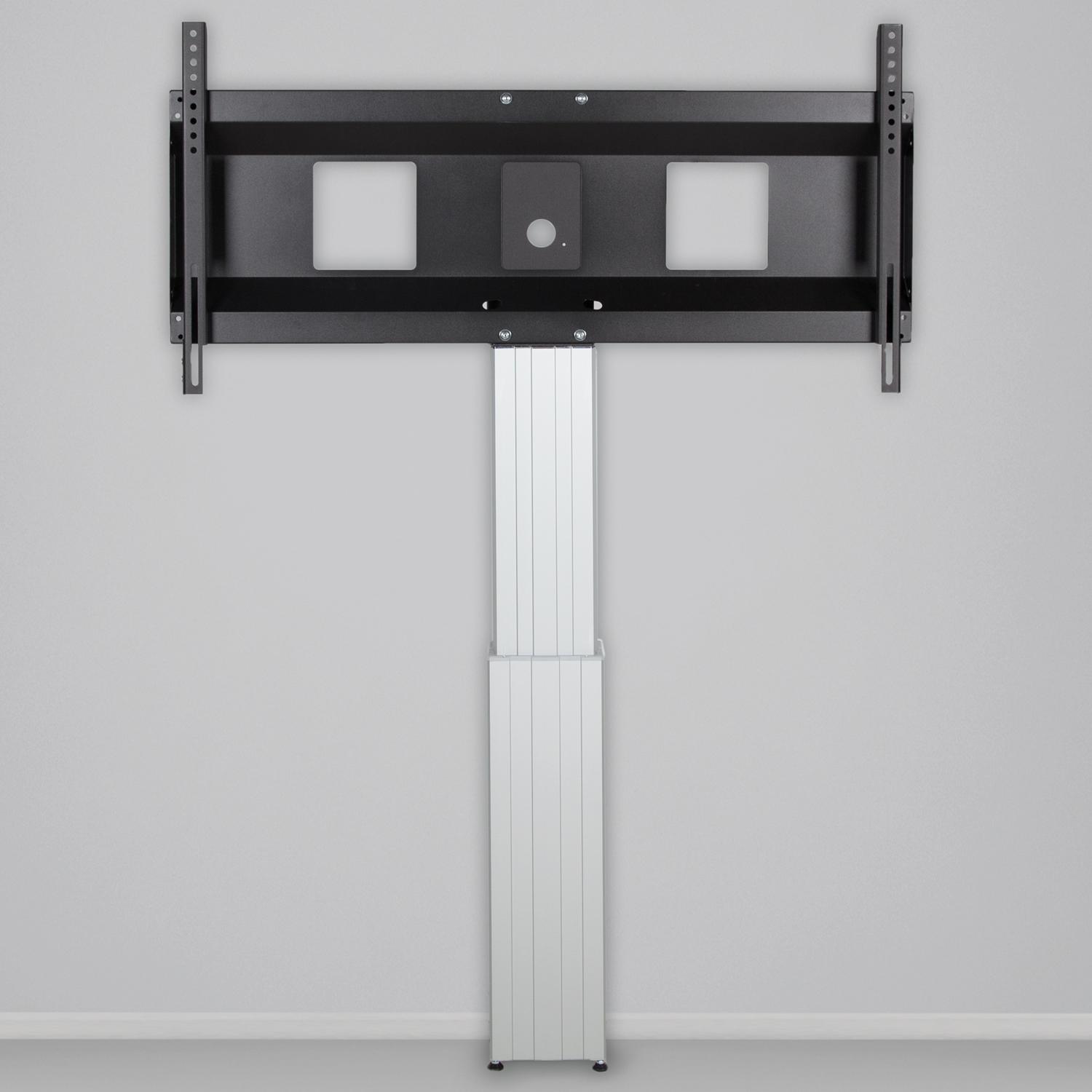

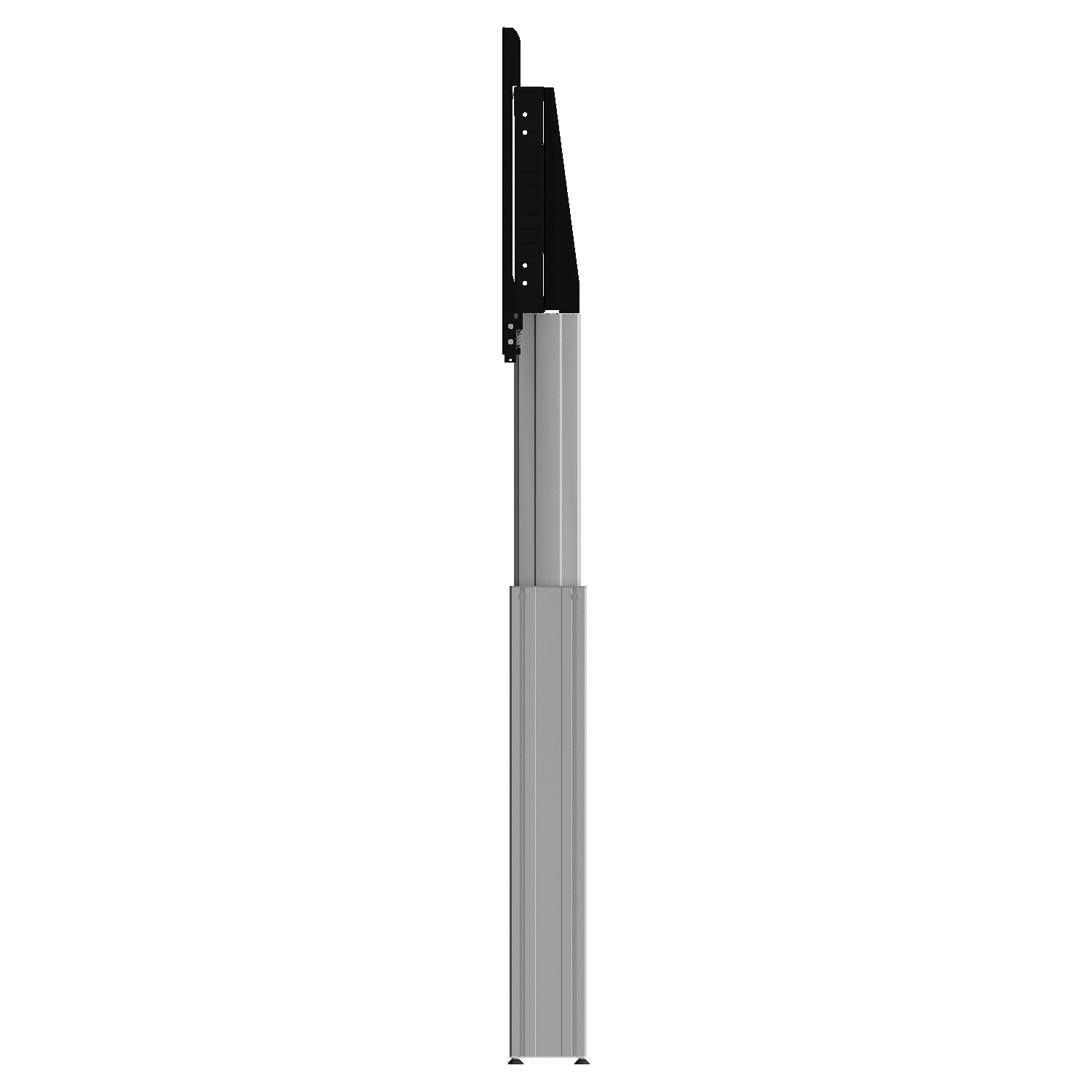

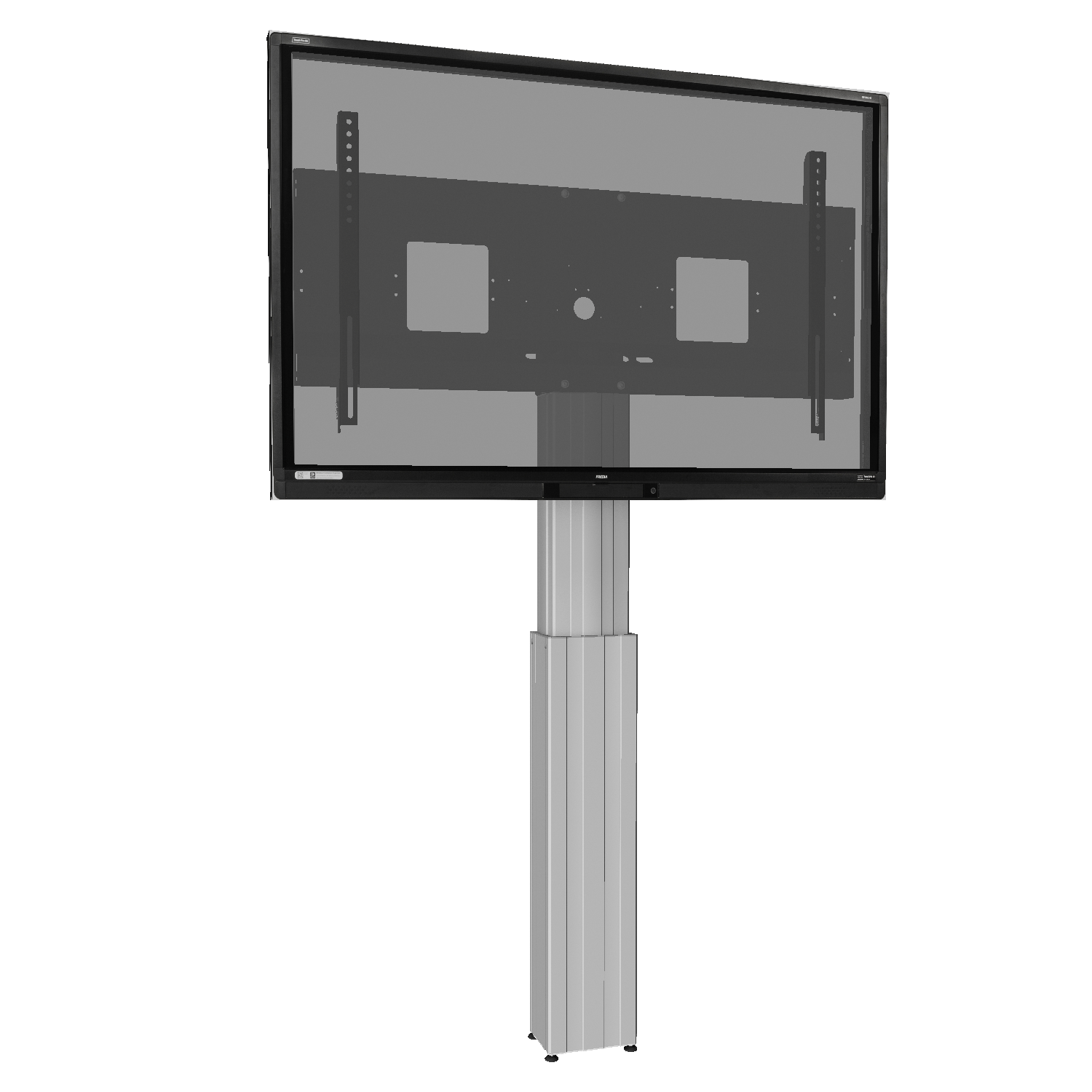

Product image Electrically height-adjustable XL monitor wall mount, 50 cm stroke, incl. collision protection SCEXLWK
Product image Electrically height-adjustable XL monitor wall mount, 50 cm stroke, incl. collision protection SCEXLWK Product image Electrically height-adjustable XL monitor wall mount, 50 cm stroke, incl. collision protection SCEXLWK Product image Electrically height-adjustable XL monitor wall mount, 50 cm stroke, incl. collision protection SCEXLWK Product image Electrically height-adjustable XL monitor wall mount, 50 cm stroke, incl. collision protection SCEXLWK Product image Electrically height-adjustable XL monitor wall mount, 50 cm stroke, incl. collision protection SCEXLWK Product image Electrically height-adjustable XL monitor wall mount, 50 cm stroke, incl. collision protection SCEXLWK Product image Electrically height-adjustable XL monitor wall mount, 50 cm stroke, incl. collision protection SCEXLWK Product image Electrically height-adjustable XL monitor wall mount, 50 cm stroke, incl. collision protection SCEXLWK Product image Electrically height-adjustable XL monitor wall mount, 50 cm stroke, incl. collision protection SCEXLWK
Request a quotation!
Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
299.8 lbsIcon maximal VESA
Max. Vesa
1200 x 600
Item numberSCEXLWK
Vesa horizontal400 mm - 1200 mm
Vesa vertical200 mm - 600 mm
Vertical travel50 cm

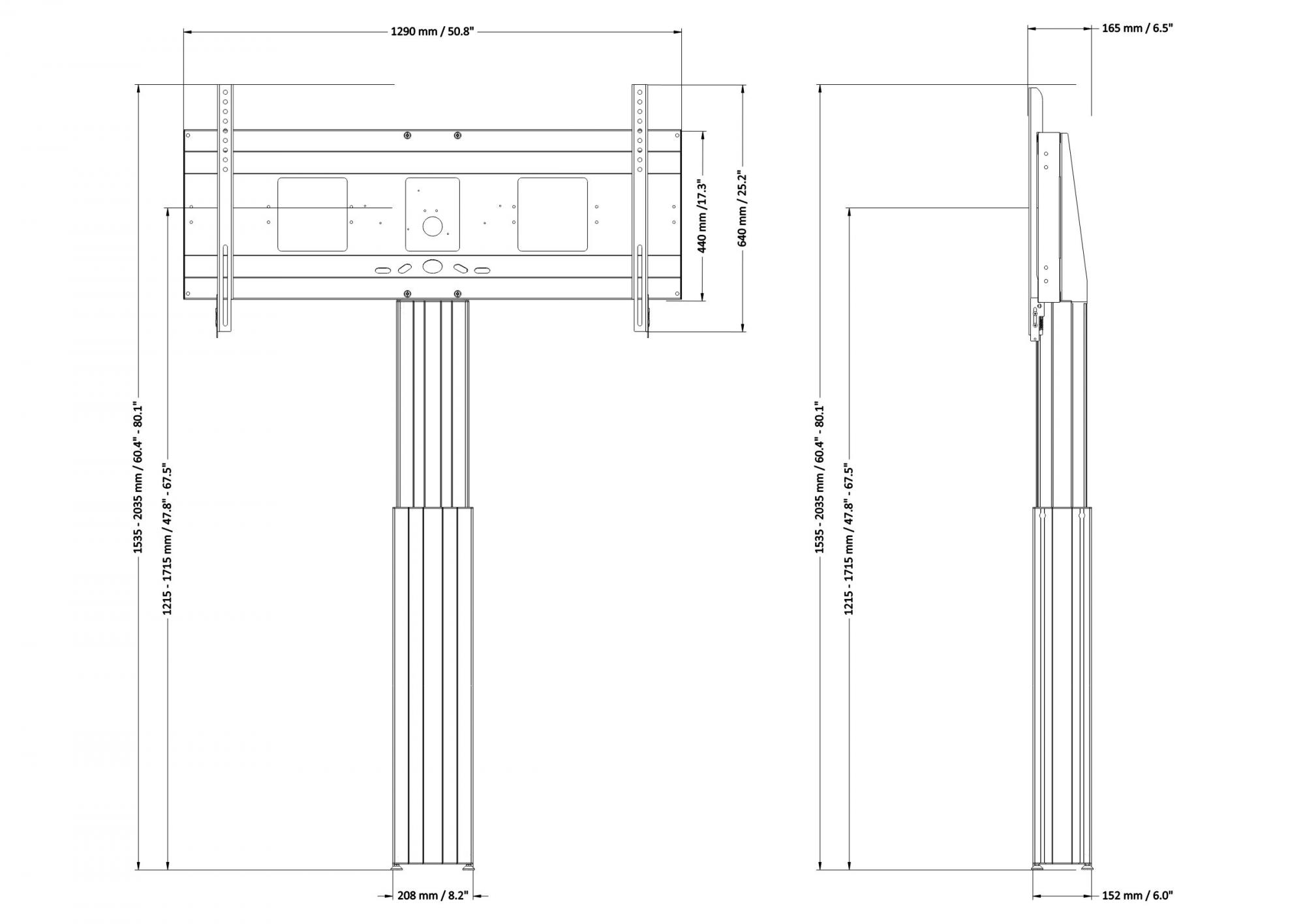

Center to floor distance 1215 mm - 1715 mm47.8" - 67.5"
Load capacity136 kg 299.8 lbs
Width 1290 mm50.8"
Height 1535 mm - 2035 mm60.4" - 80.1"
Depth 169 mm6.7"
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorSilver anodized
Packages Package dimensions WxHxD Package weight
AFSCETAN121300 x 450 x 160 mm / 51.2 x 17.7 x 6.3"17 kg / 37.5 lbs
CCE70K-EU1120 x 250 x 200 mm / 44.1 x 9.8 x 7.9"22 kg / 48.5 lbs
Total weight 39 kg / 86 lbs
Display mount XL for displays with max. VESA 1200 x 600
Detail image Display mount XL for displays with max. VESA 1200 x 600 SCEXLWKThis XL frame accommodates monitors with max. VESA 1200 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
Quick snap lock
Detail image Quick snap lock SCEXLWKWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Remote control of height adjustment
Detail image Remote control of height adjustment SCEXLWKThe electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.
Four leveling feet
Detail image Four leveling feet SCEXLWKThese four leveling feet allow you to level out any unevenness in the floor so that the monitor wall mount can transfer the weight of the monitor over the column to the floor. For this purpose, the individual ground leveling foot can be turned in or out.
7 cm (2.76 inch) Z-brackets
Detail image 7 cm (2.76 inch) Z-brackets SCEXLWKBy default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm (2.76 inch). Further wall mounting solutions are available as accessories.
Wall mounting kit
Detail image Wall mounting kit SCEXLWKThe system includes a wall mounting set consisting of: two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm, Two sliding blocks incl. nut to attach the brackets to the column, four floor leveling feet and 3 cable clips.
