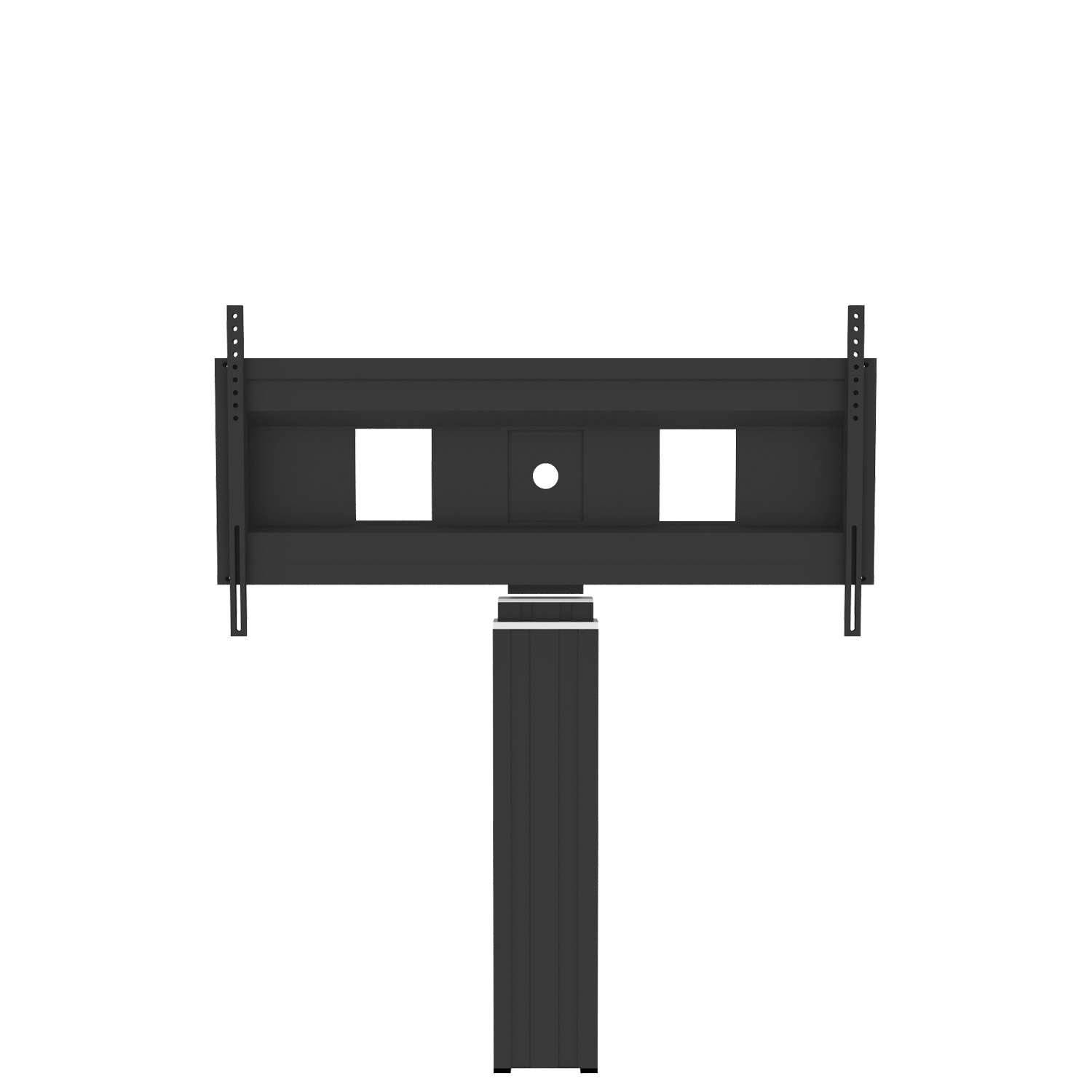

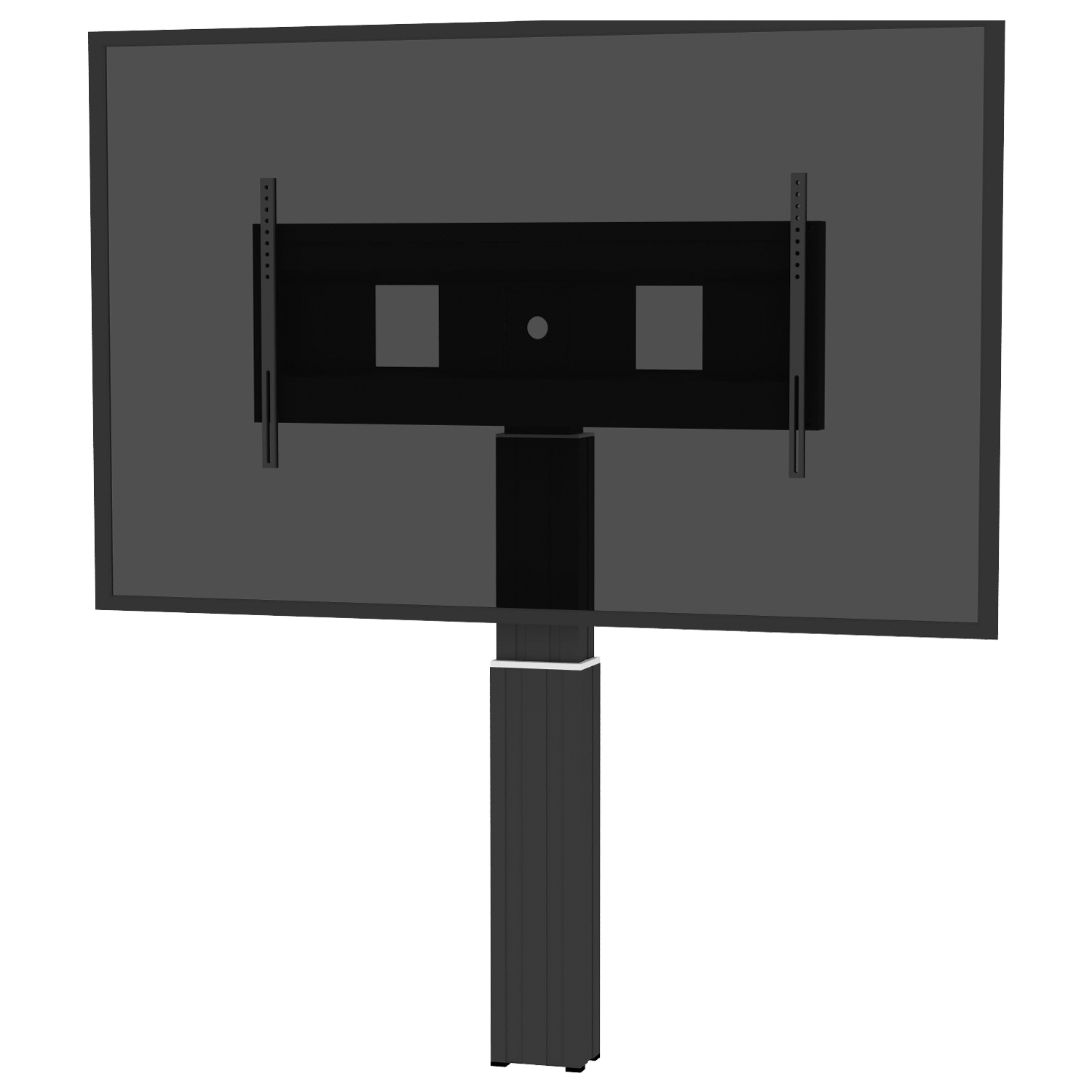

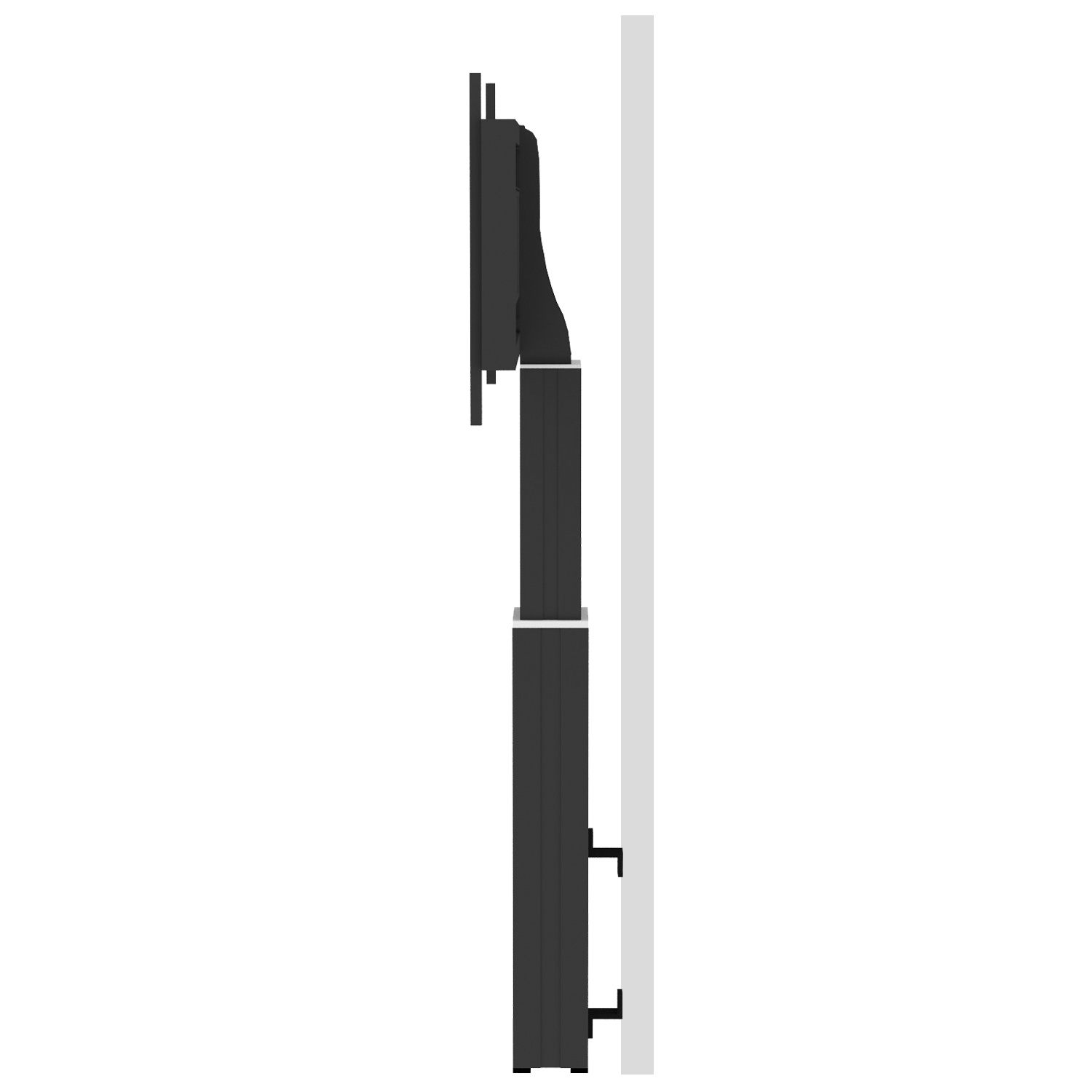

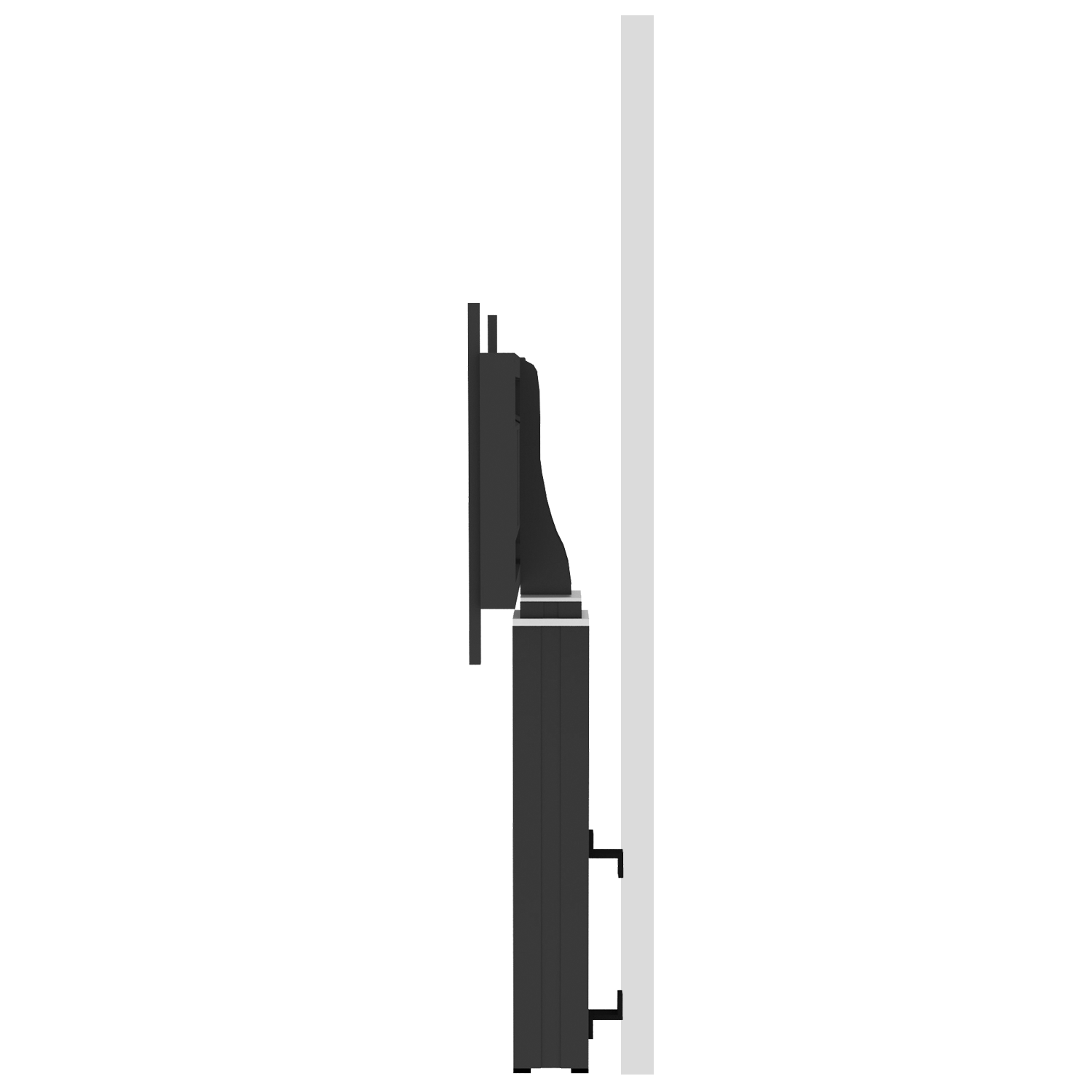

Electrically height-adjustable XL monitor wall mount, 50 cm stroke, incl. collision protection

Column black anodized, middle display 121.5 - 171.5 cm

Item number: SCEXLWBK

Product description

Electrically height-adjustable monitor & TV wall mount with XL display holder. Specially developed for mounting touchscreen displays. The motorized height-adjustable TV wall mount is equipped with an extra wide frame for display mounting. The system comes with the 2-section Conen Mounts pylon column and 50 cm height adjustment, including collision protection.

The product is also disassembled into 2 packages. Each of the packages can be couriered.

Features

XL monitor wall mount with max. VESA 1200x600
Developed for use with IFPDs and LFDs
Easy mounting of heavy devices thanks to suspension rails with quick-release fastener to secure the display
Display frame with preparation for cable management
Motor unit with 50 cm height adjustment is securely installed inside the pylon column, including collision protection
A cable control unit is included in the scope of delivery as standard
Suitable for mounting on solid walls
For mounting on lightweight walls, you can obtain our base plate (PSTSCETA), for example, at an extra charge

Product image Electrically height-adjustable XL monitor wall mount, 50 cm stroke, incl. collision protection SCEXLWBK

Item number	SCEXLWBK

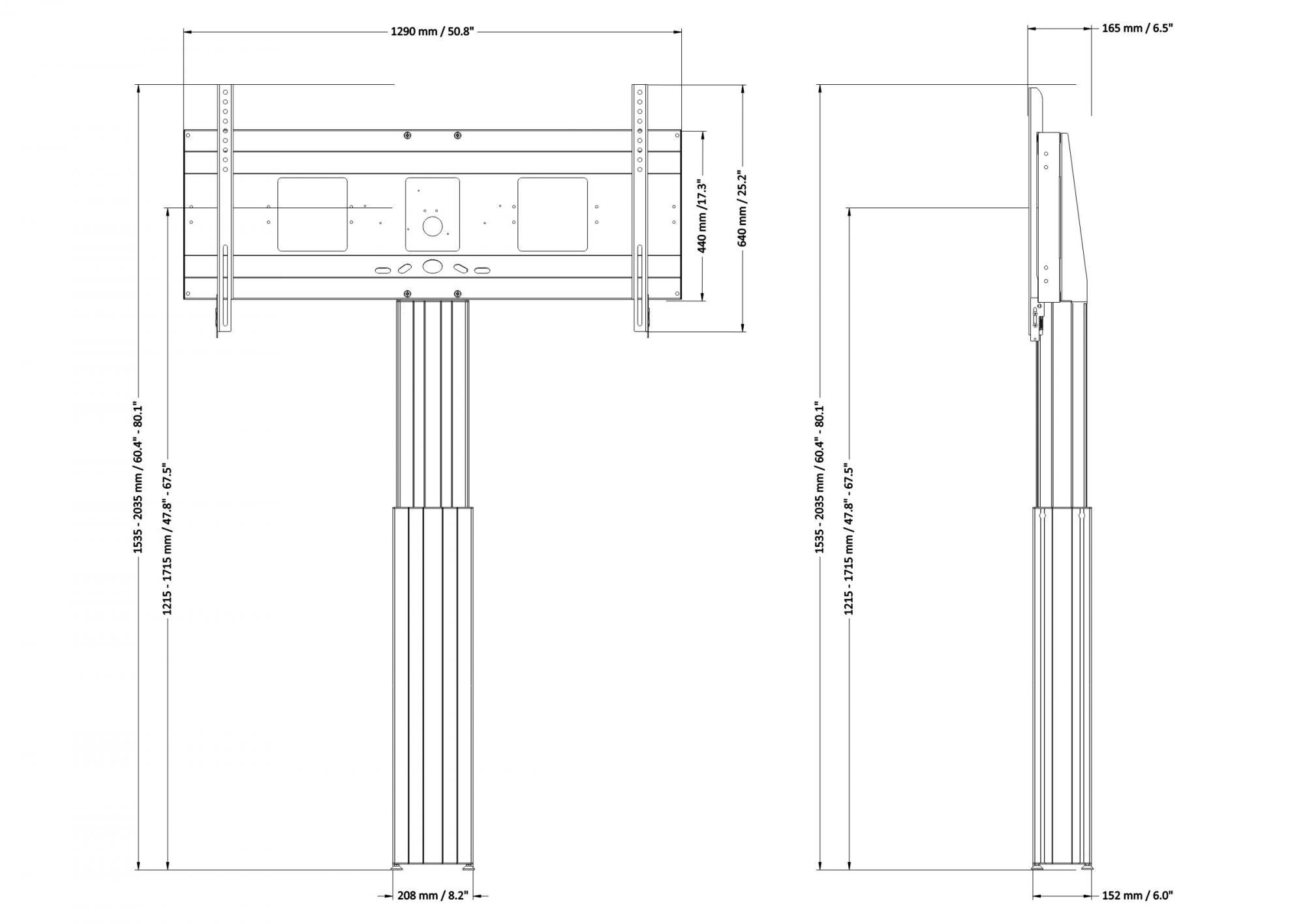

Vesa horizontal	400 mm - 1200 mm
Vesa vertical	200 mm - 600 mm
Vertical travel	50 cm
Center to floor distance	1215 mm - 1715 mm	47.8" - 67.5"
Load capacity	136 kg	299.8 lbs
Width	1290 mm	50.8"
Height	1535 mm - 2035 mm	60.4" - 80.1"
Depth	169 mm	6.7"
Warranty	5 years limited warranty
Frame color	RAL 9005 deep black
Column color	Black anodized

Productimage Floor plate for display mounts

Productimage Floor plate for display brackets

Productimage 2 galvanized wall mounting brackets

Productimage Foot remote control with 2 shifters in grey

Productimage Video conference camera top shelf LITE series for displays from 65 - 86 inch

Productimage 2 galvanized adjustable wall mounting brackets

Productimage Wall mounting set for Systems with one column

Display mount XL for displays with max. VESA 1200 x 600

This XL frame accommodates monitors with max. VESA 1200 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.

Quick snap lock

With the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.

Remote control of height adjustment

The electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.

Four leveling feet

These four leveling feet allow you to level out any unevenness in the floor so that the monitor wall mount can transfer the weight of the monitor over the column to the floor. For this purpose, the individual ground leveling foot can be turned in or out.

Wall mounting kit

The system includes a wall mounting set consisting of: two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm, Two sliding blocks incl. nut to attach the brackets to the column, four floor leveling feet and 3 cable clips.

7 cm (2.76 inch) Z-brackets

By default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm (2.76 inch). Further wall mounting solutions are available as accessories.

Product sheet DE/EN SCEXLWBK
Product sheet EN SCEXLWBK
User manual general SCEXLWBK
