Electrically height-adjustable XL monitor wall mount, 50 cm stroke, incl. collision protection

Column black anodized, middle display 99.5 - 149.5 cm
Item number: SCEXLWLBK

Product description

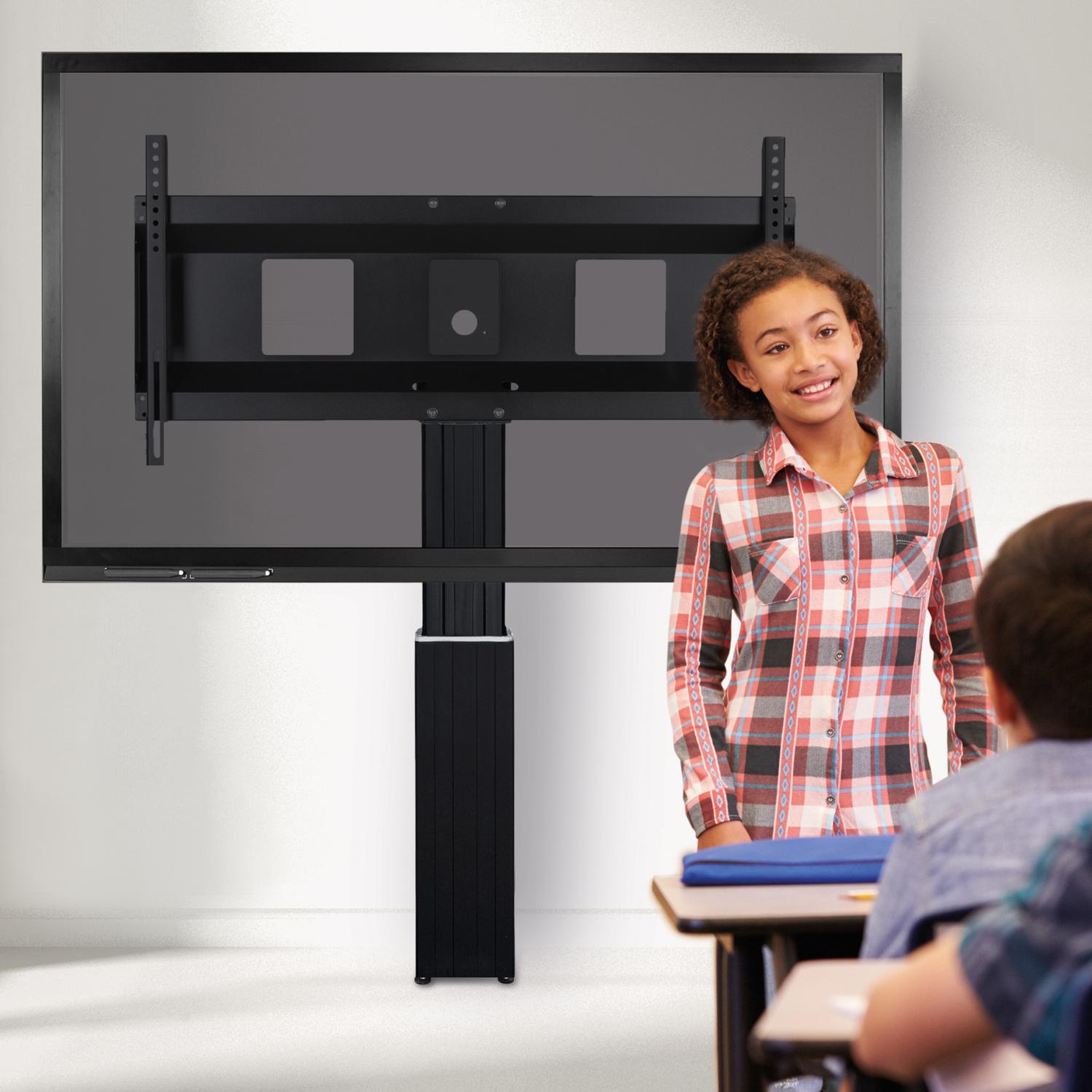

Electrically height-adjustable TV & monitor wall mount with XL display holder. Specially developed for mounting touchscreen monitors. The motorized height-adjustable TV wall mount is equipped with an extra wide frame for display mounting. The system comes with the 2-section Conen Mounts pylon column and 50 cm height adjustment, including collision protection.

The product is also disassembled into 2 packages. Each of the packages can be couriered.


Features

  • XL Monitor & TV wall mount with max. VESA 1200x600
  • Developed for use with IFPDs and LFDs
  • Easy mounting of heavy devices thanks to suspension rails with quick-release fastener to secure the display
  • Display frame with preparation for cable management
  • Motor unit with 50 cm height adjustment is securely installed inside the pylon column, including collision protection
  • A cable control unit is included in the scope of delivery as standard
  • Suitable for mounting on solid walls
  • For mounting on lightweight walls, for example, our base plate (PSTSCETA) is available at an extra charge

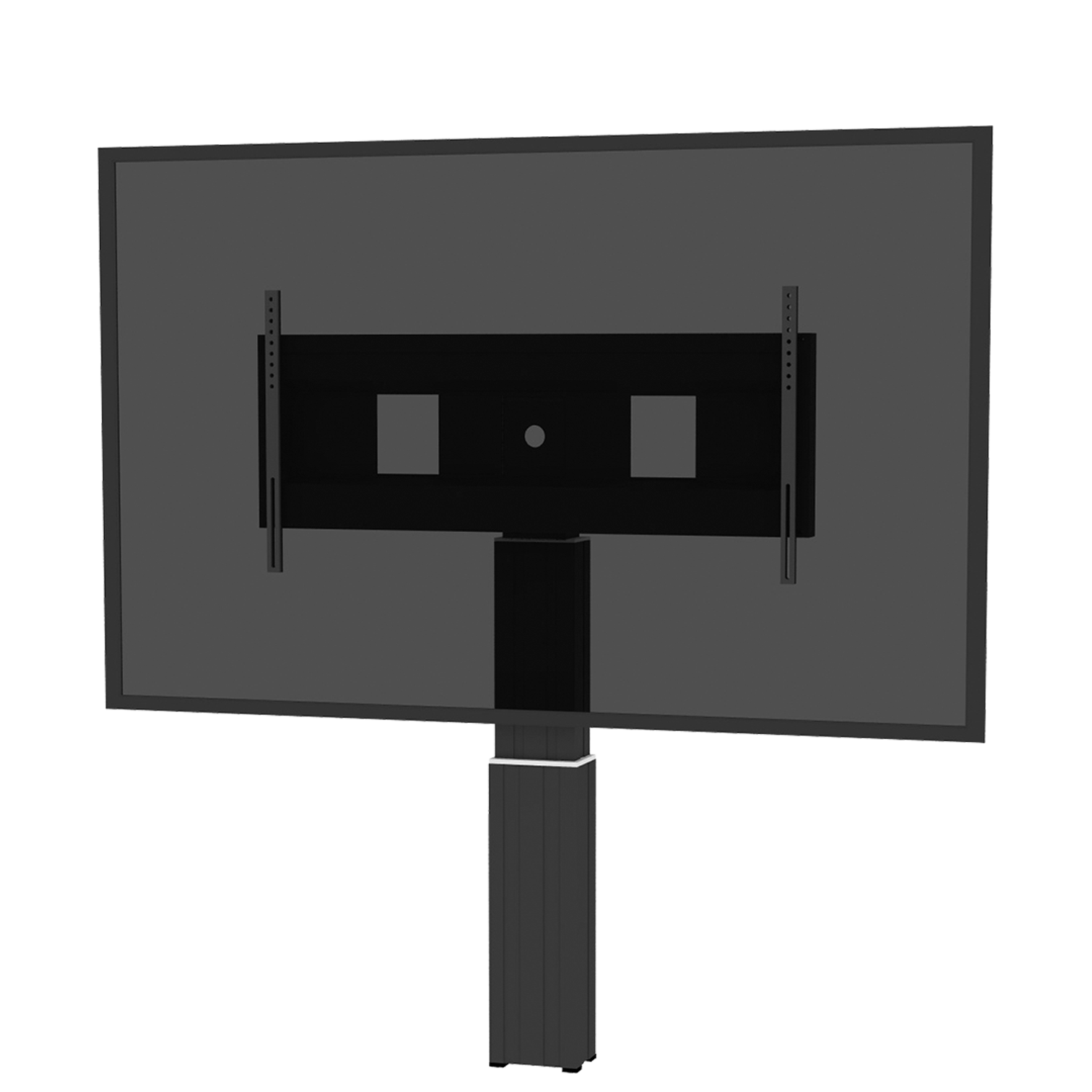

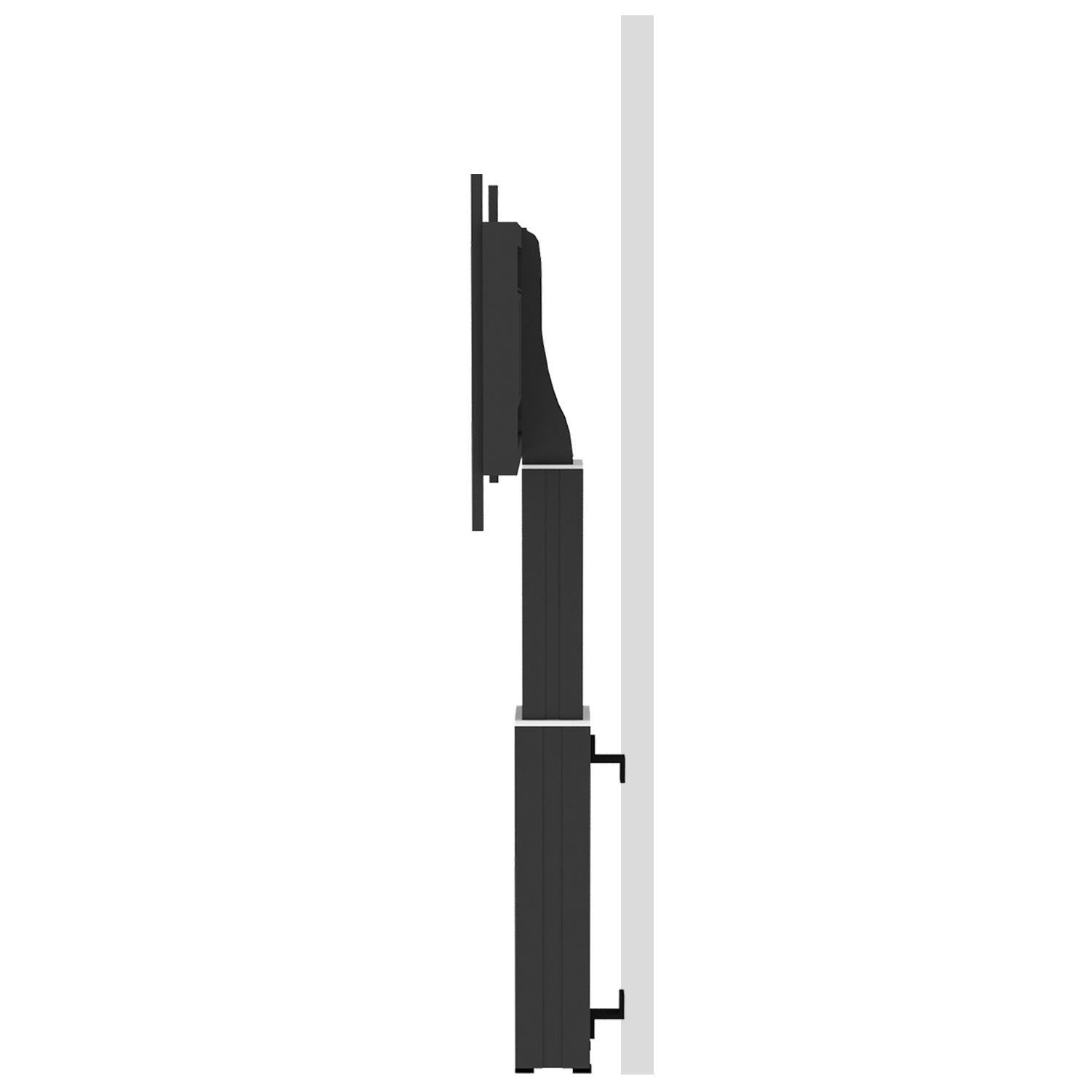

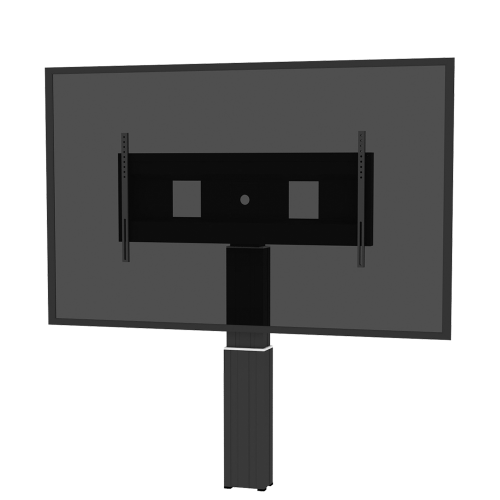

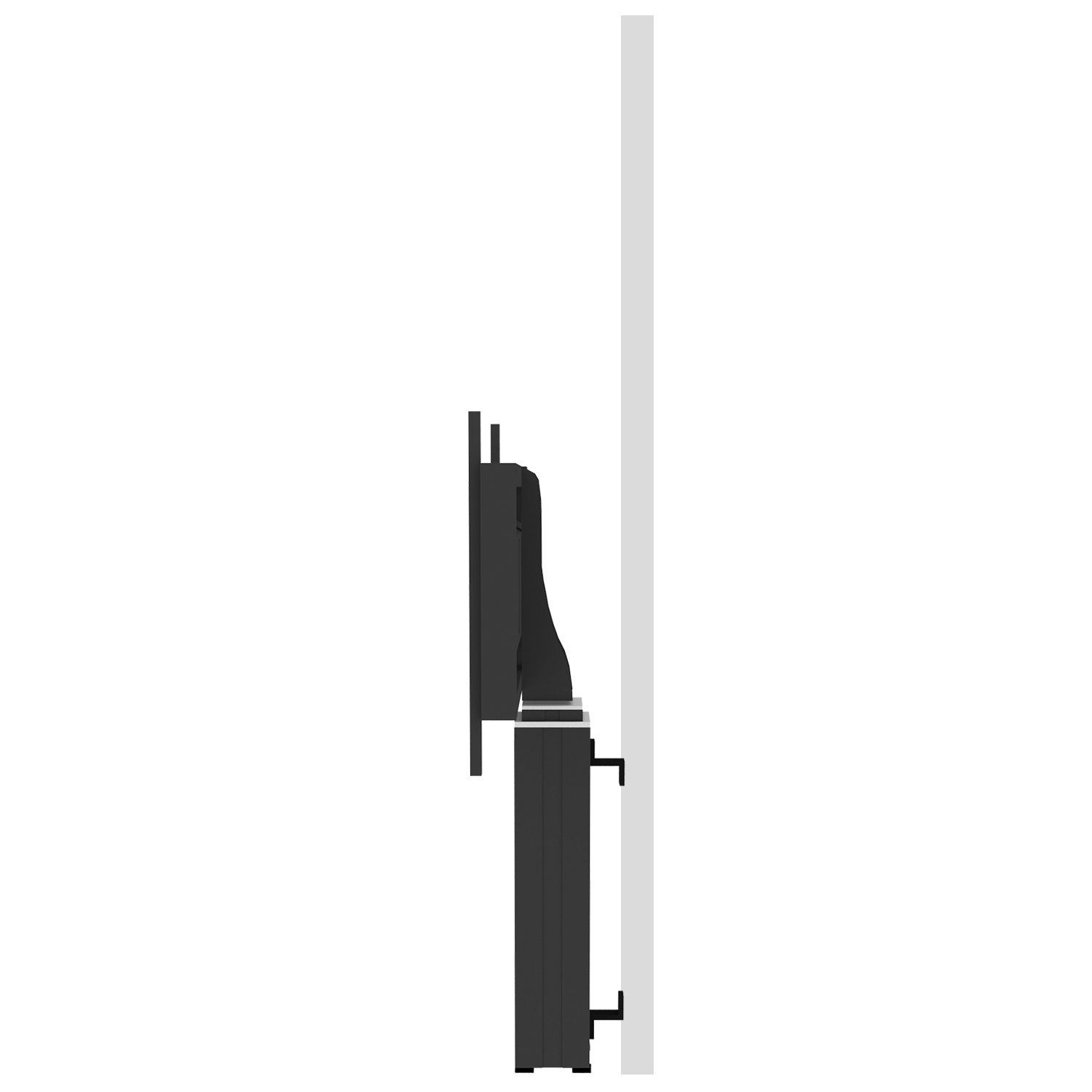

Product image Electrically height-adjustable XL monitor wall mount, 50 cm stroke, incl. collision protection SCEXLWLBK
Product image Electrically height-adjustable XL monitor wall mount, 50 cm stroke, incl. collision protection SCEXLWLBK Product image Electrically height-adjustable XL monitor wall mount, 50 cm stroke, incl. collision protection SCEXLWLBK Product image Electrically height-adjustable XL monitor wall mount, 50 cm stroke, incl. collision protection SCEXLWLBK Product image Electrically height-adjustable XL monitor wall mount, 50 cm stroke, incl. collision protection SCEXLWLBK Product image Electrically height-adjustable XL monitor wall mount, 50 cm stroke, incl. collision protection SCEXLWLBK
Request a quotation!
Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
299.8 lbsIcon maximal VESA
Max. Vesa
1200 x 600
Item numberSCEXLWLBK
Vesa horizontal400 mm - 1200 mm
Vesa vertical200 mm - 600 mm
Vertical travel50 cm
Center to floor distance 995 mm - 1495 mm39.2" - 58.9"
Load capacity136 kg 299.8 lbs
Width 1290 mm50.8"
Height 1315 mm - 1815 mm51.8" - 71.5"
Depth 165 mm6.5"
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorBlack anodized
Display mount XL for displays with max. VESA 1200 x 600
Detail image Display mount XL for displays with max. VESA 1200 x 600 SCEXLWLBKThis XL frame accommodates monitors with max. VESA 1200 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
Quick snap lock
Detail image Quick snap lock SCEXLWLBKWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Remote control of height adjustment
Detail image Remote control of height adjustment SCEXLWLBKThe electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.
Four leveling feet
Detail image Four leveling feet SCEXLWLBKThese four leveling feet allow you to level out any unevenness in the floor so that the monitor wall mount can transfer the weight of the monitor over the column to the floor. For this purpose, the individual ground leveling foot can be turned in or out.
Wall mounting kit
Detail image Wall mounting kit SCEXLWLBKThe system includes a wall mounting set consisting of: two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm, Two sliding blocks incl. nut to attach the brackets to the column, four floor leveling feet and 3 cable clips.
7 cm (2.76 inch) Z-brackets
Detail image 7 cm (2.76 inch) Z-brackets SCEXLWLBKBy default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm (2.76 inch). Further wall mounting solutions are available as accessories.
