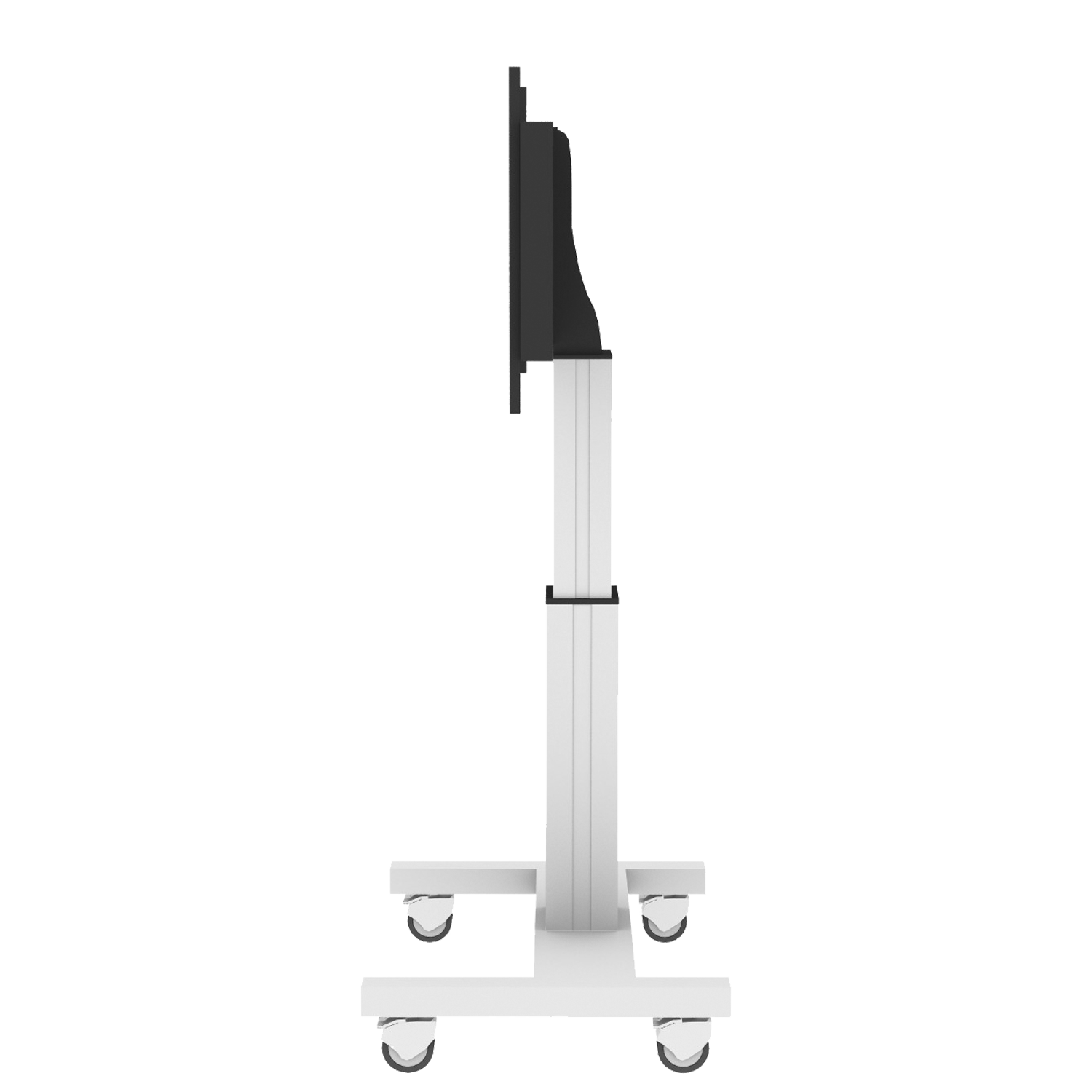

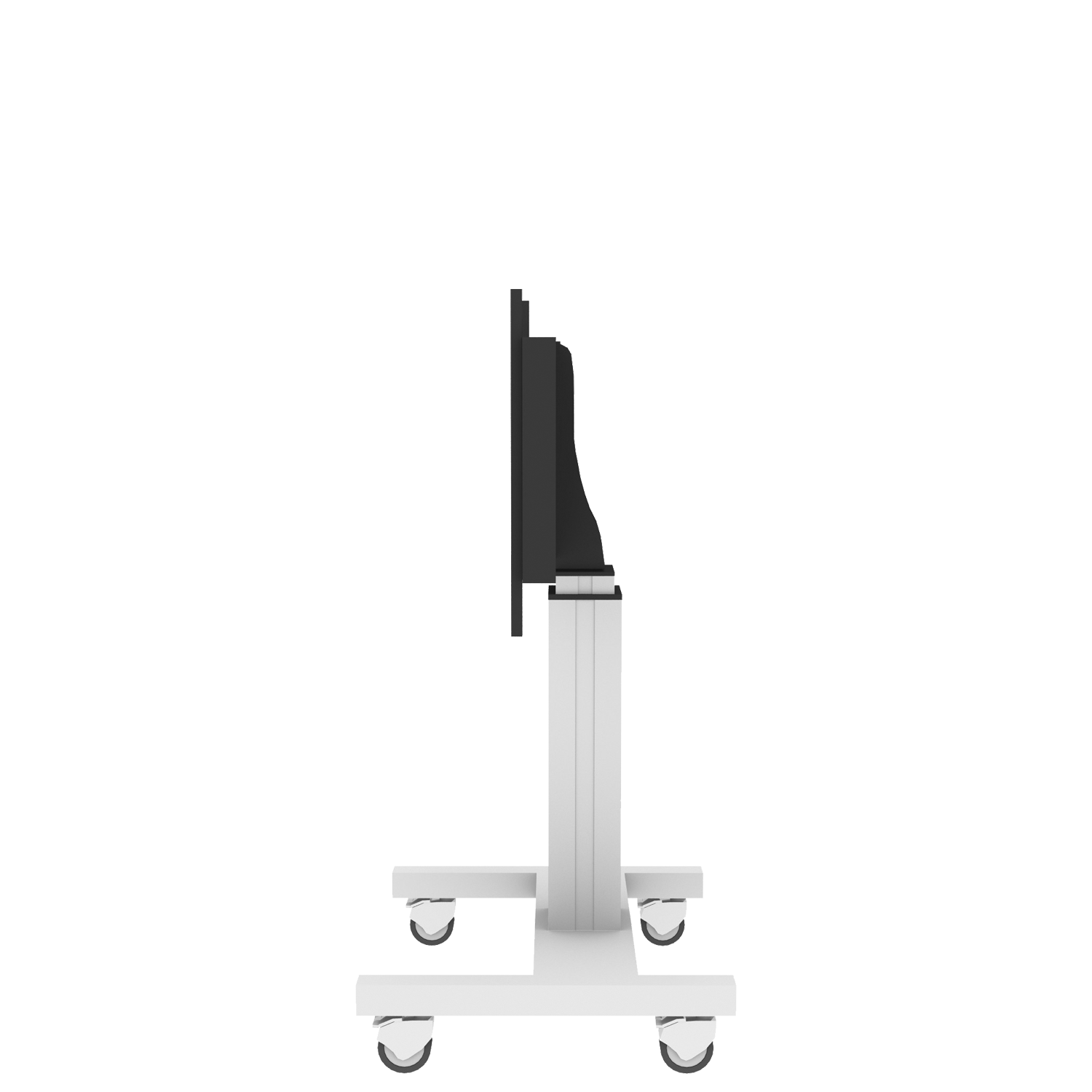

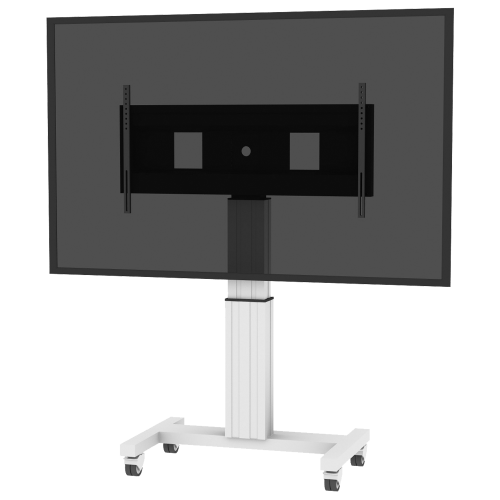

Electrically height-adjustable XL display stand, SCETA series, incl. anti-collision

Silver anodized column, with collision protection, H-shaped castor frame

Item number: SCEXLK

Product description

Electrically height-adjustable TV roll stand with XL frame for holding displays.

The TV roll stand was developed for use with interactive touchscreen monitors. The electrically height-adjustable mobile stand comes with an extra wide display holder. The mobile monitor stand is equipped with a 2-section pylon column with 50 cm height adjustment. Optional handles are available for mounting on the left and right of the display for easy and safe movement of the mobile stand.

The product comes in three packaging units and can be shipped by parcel service.

Features

XL TV roll stand with max. VESA 1200x600
Developed for use with LFDs and IFPDs
Quick and easy display mounting thanks to suspension rails with quick-release fastener
Display can be secured with a padlock
Mobile monitor stand with cable management
with collision protection
Motor system with 50 cm stroke securely installed in the central aluminum lifting column
A cable control unit with two buttons is included in the scope of delivery

Product image Electrically height-adjustable XL display stand, SCETA series, incl. anti-collision SCEXLK

Item number	SCEXLK
Vesa horizontal	400 mm - 1200 mm
Vesa vertical	200 mm - 600 mm
Vertical travel	50 cm
Center to floor distance	1110 mm - 1610 mm	43.7" - 63.4"
Load capacity	136 kg	299.8 lbs
Width	1290 mm	50.8"
Height	1430 mm - 1930 mm	56.3" - 76"
Depth	720 mm	28.3"
Weight	63 kg	138.9 lbs
Warranty	5 years limited warranty
Frame color	RAL 9005 deep black
Column color	Silver anodized
Base color	RAL 9006 white aluminum

Productimage Video conference camera top shelf LITE series for displays from 65 - 86 inch

Productimage Two large and sturdy handles including laptop shelf

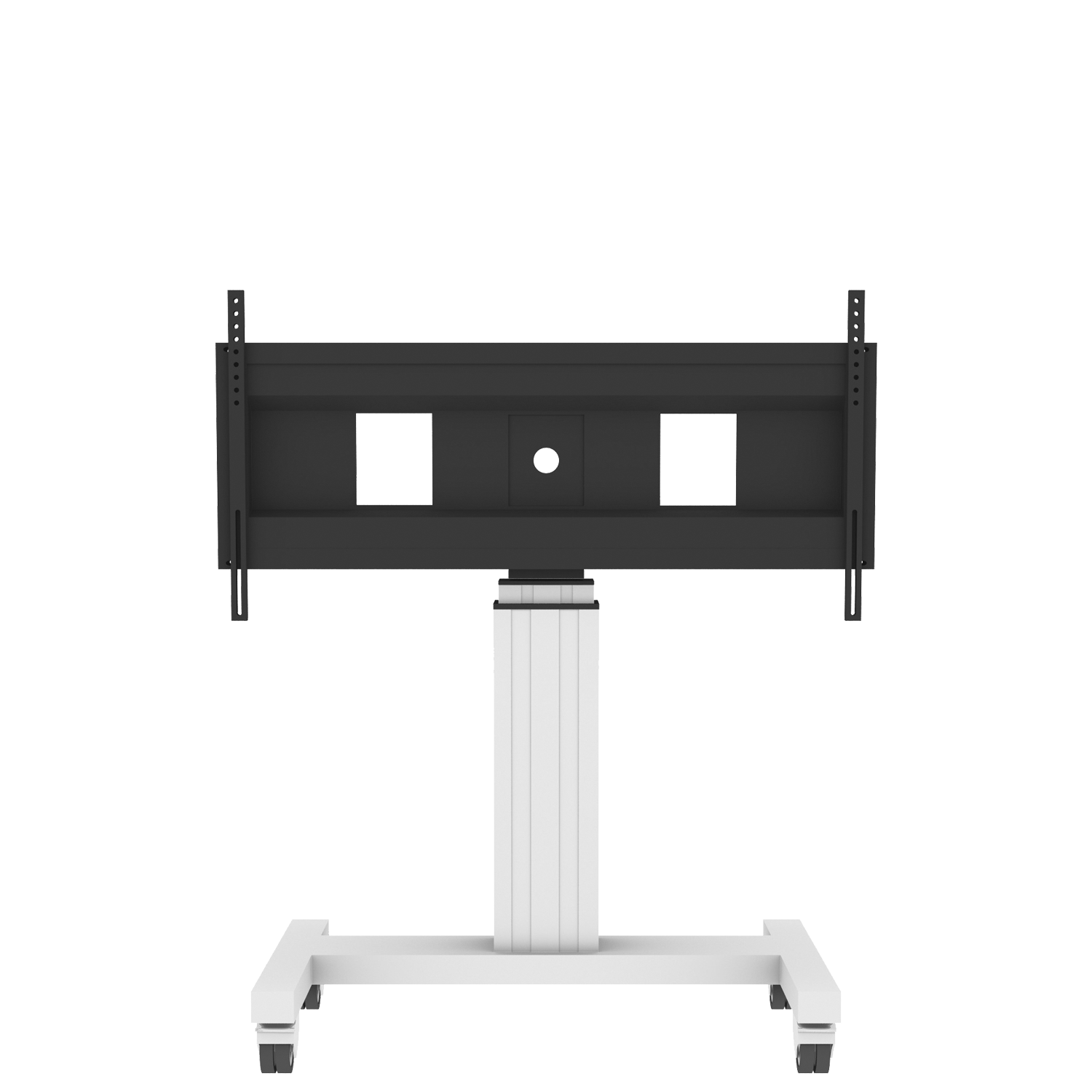

Display mount XL for displays with max. VESA 1200 x 600

This XL frame accommodates monitors with max. VESA 1200 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.

Quick snap lock

With the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.

Remote control of height adjustment

The electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.

H-mobile stand

Our white H chassis has 4 smooth castors, two of which are lockable to fix the tv cart & mobile monitor stand in place. Due to the special H shape even wheelchair users can approach very close to the display.

Double-castor mobile stand

The smooth-running wheels on our chassis make it easy to move the mobile monitor stand and flat screen tv cart even with heavy displays. The castors have a diameter of 50 mm.

Product sheet DE/EN SCEXLK
Product sheet EN SCEXLK
User manual general SCEXLK
