Height adjustable display and monitor stand, lite series with 70 cm of vertical travel

column silver, anti-collision, floor plate
Item number: RLI10070PK

Product description

Adjustable display & monitor stand for 42"-86" touch screen monitors.

The RLI10070PK monitor stand is designed for touch screen monitors up to 86". The units feature a sturdy monitor mount with integrated cable management and "pull & release" locking brackets for quick and easy mounting of the monitor.

The RLI10070PK monitor stand comes with a slim column that offers 70 cm of vertical travel.

A 0.3" thick, solid steel plate secures to the motorized center column. Designed for static, freestanding applications or to add stability to wall mount systems, secured to e.g. a stud wall. The floor plate features cut-outs/ handles for easy transportation. It comes powder coated in grey aluminum.

The unit comes flat-packed in 3 cartons and is courier-shippable.


Features

  • Heavy duty mount for touch screen monitors up to 86"
  • "Pull & release" brackets for easy mounting of the monitor
  • VESA pattern, max. 800 x 600
  • Integrated cable management
  • 70 cm of smooth motorized height adjustment, actuator 1500N, 47 mm/ 1.85" per second
  • Floor plate and 2 wall mounting brackets for extra stability
  • With anti-collision function
  • Quick and easy mounting to the wall
  • Wired remote control included

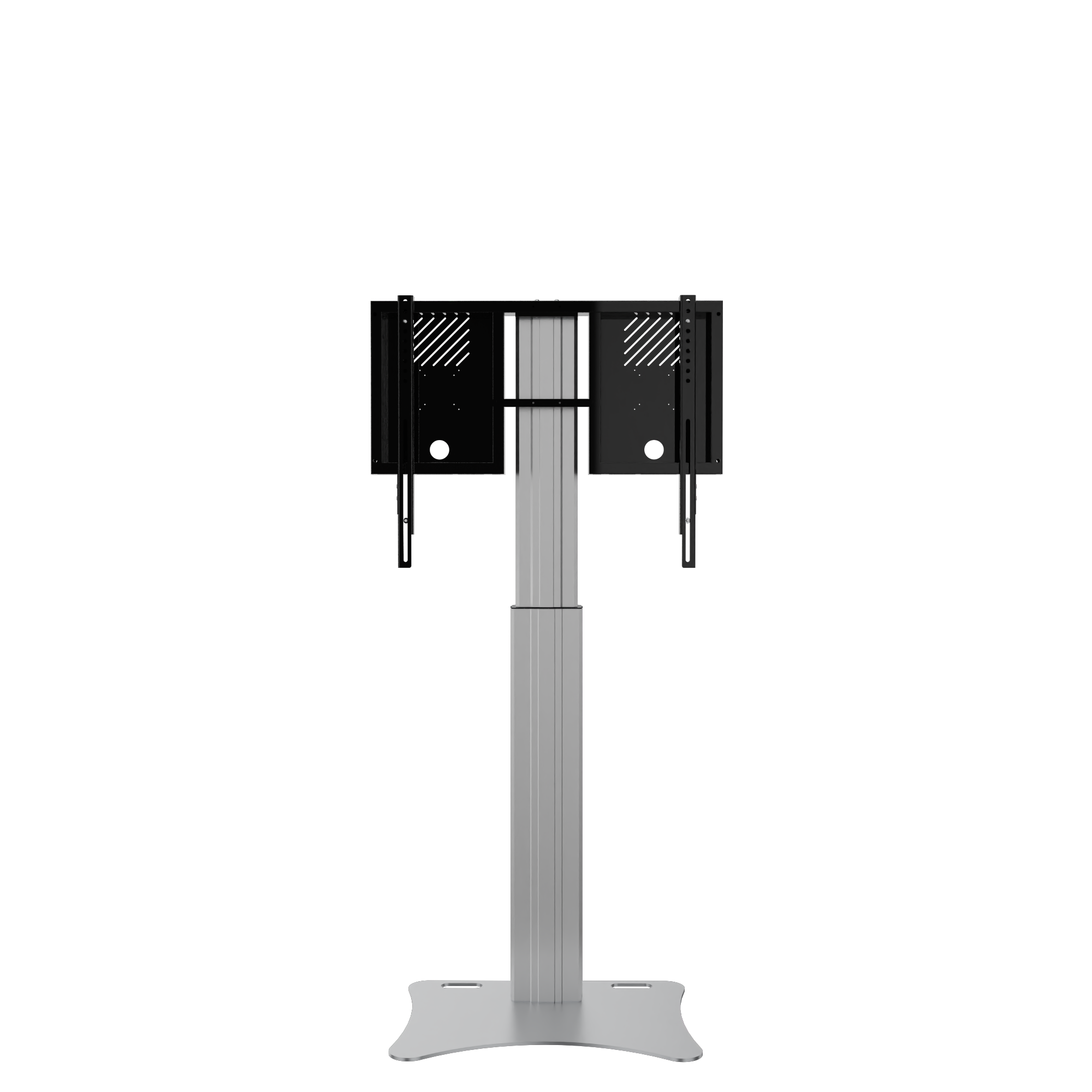

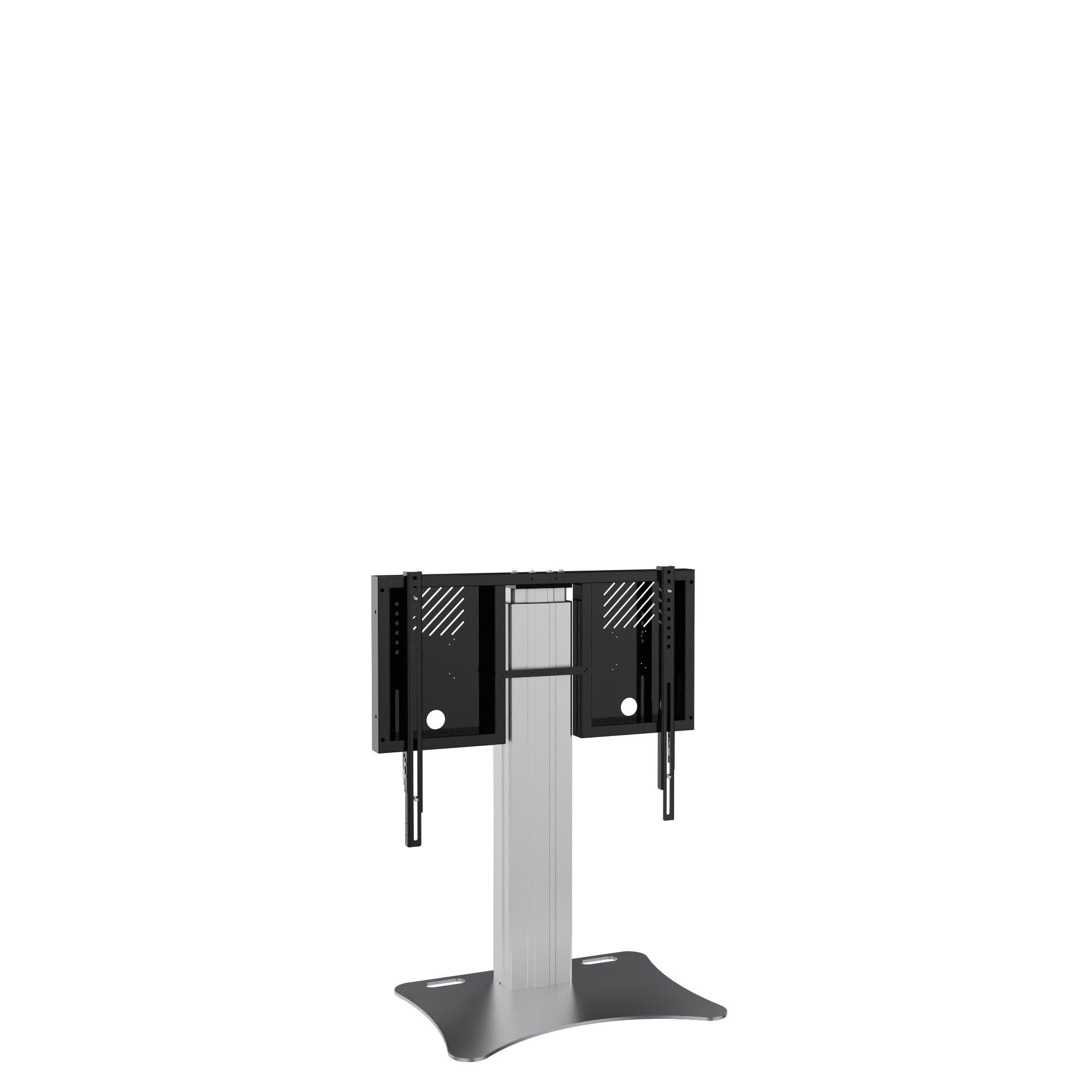

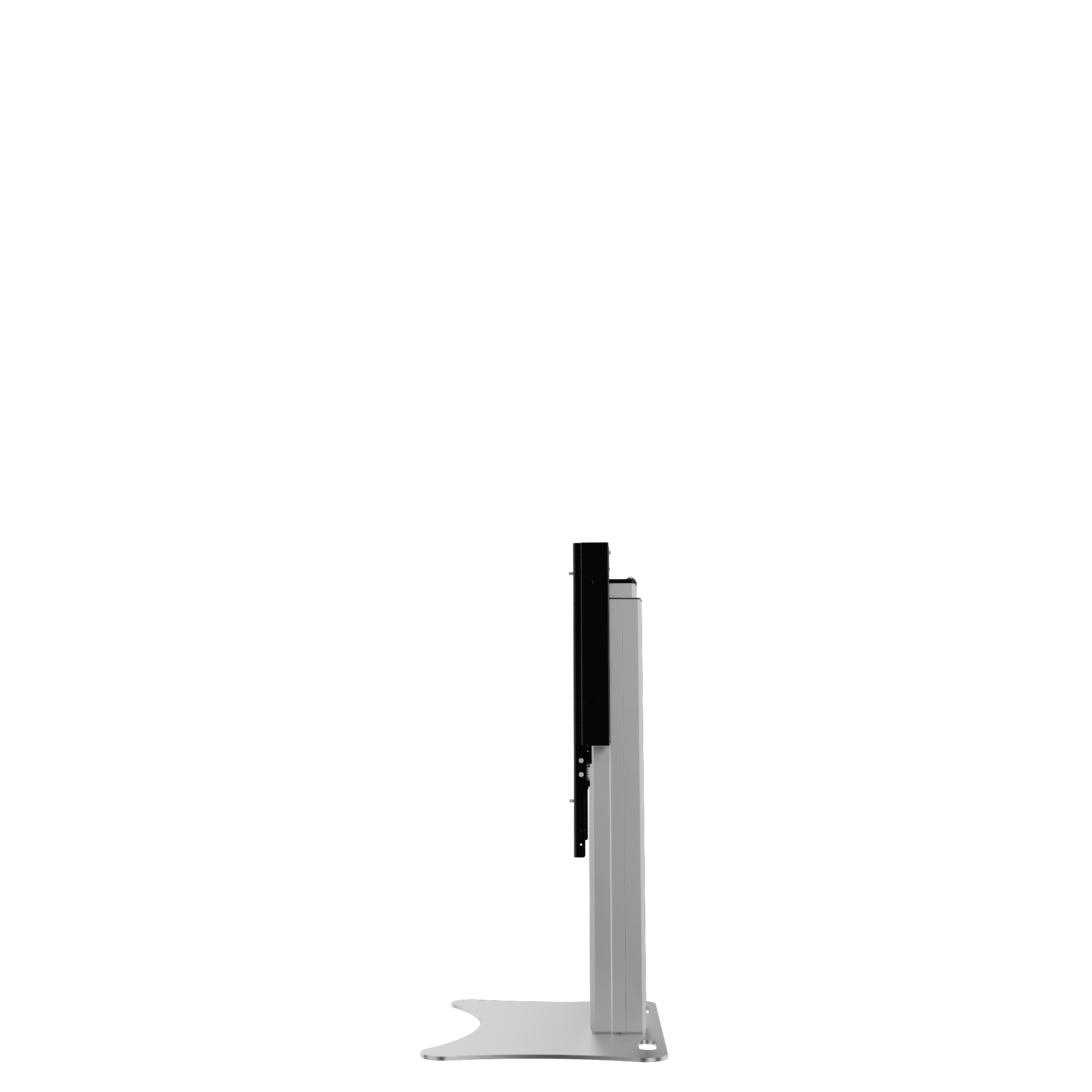

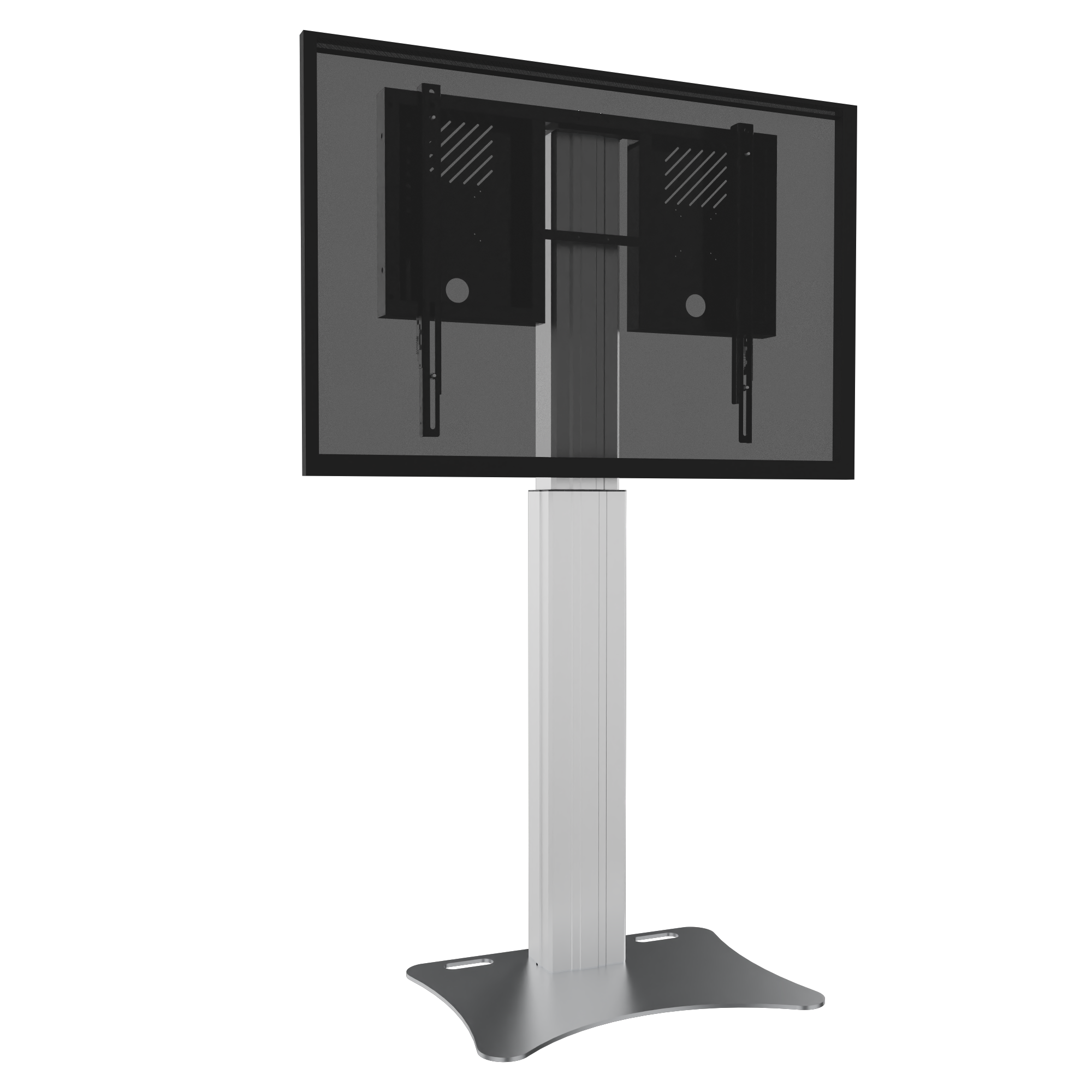

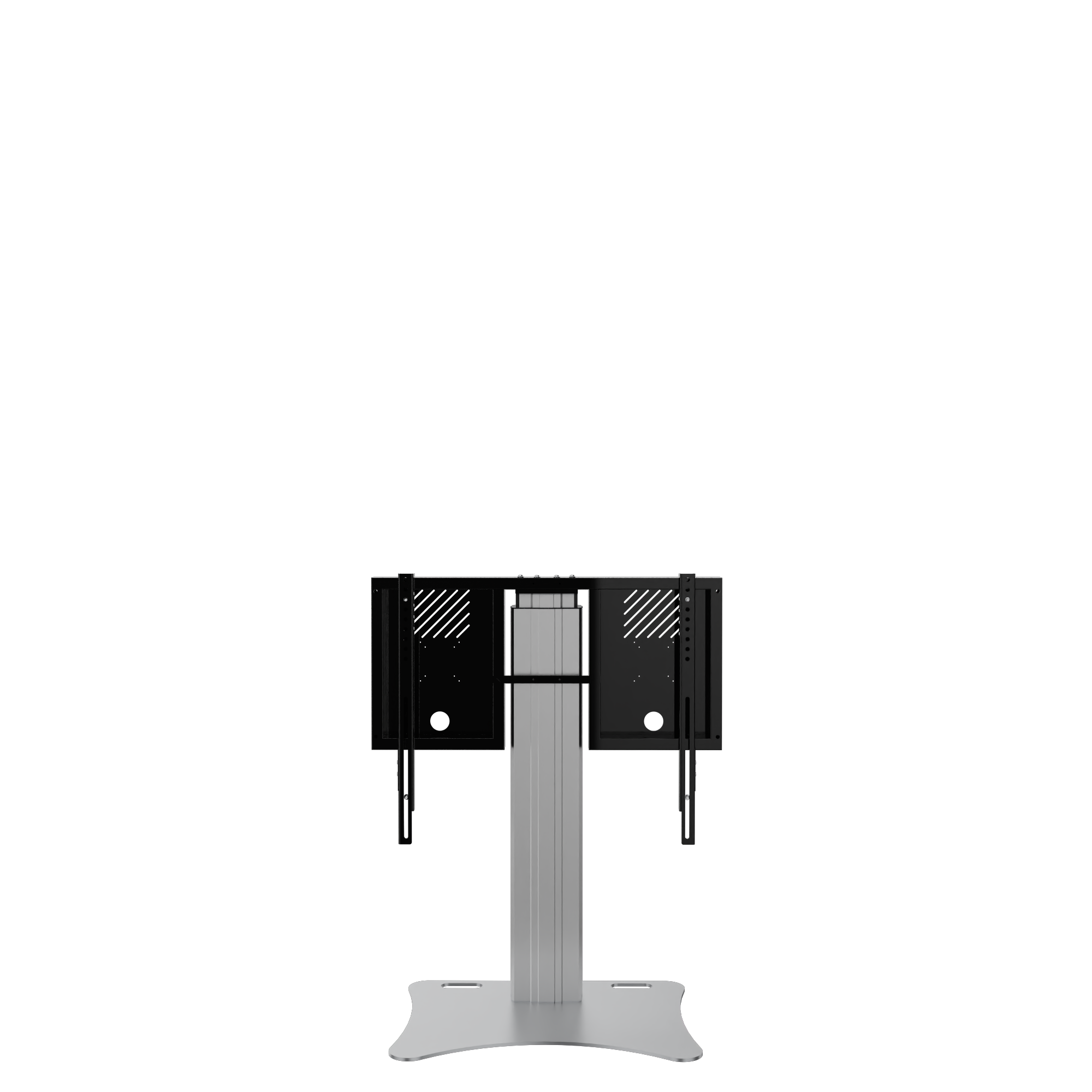

Product image Height adjustable display and monitor stand, lite series with 70 cm of vertical travel RLI10070PK
Product image Height adjustable display and monitor stand, lite series with 70 cm of vertical travel RLI10070PK Product image Height adjustable display and monitor stand, lite series with 70 cm of vertical travel RLI10070PK Product image Height adjustable display and monitor stand, lite series with 70 cm of vertical travel RLI10070PK Product image Height adjustable display and monitor stand, lite series with 70 cm of vertical travel RLI10070PK Product image Height adjustable display and monitor stand, lite series with 70 cm of vertical travel RLI10070PK Product image Height adjustable display and monitor stand, lite series with 70 cm of vertical travel RLI10070PK Product image Height adjustable display and monitor stand, lite series with 70 cm of vertical travel RLI10070PK

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
299.8 lbs
Icon maximal VESA
Max. Vesa
800 x 600

Accessories

Productimage Laptop side shelf Productimage Front shelf for LIGHT system Productimage Keyboard shelf for LITE series Productimage Universal PC bracket Productimage Two whiteboard side wings Productimage Video conference camera top shelf LITE series for displays from 65 - 86 inch

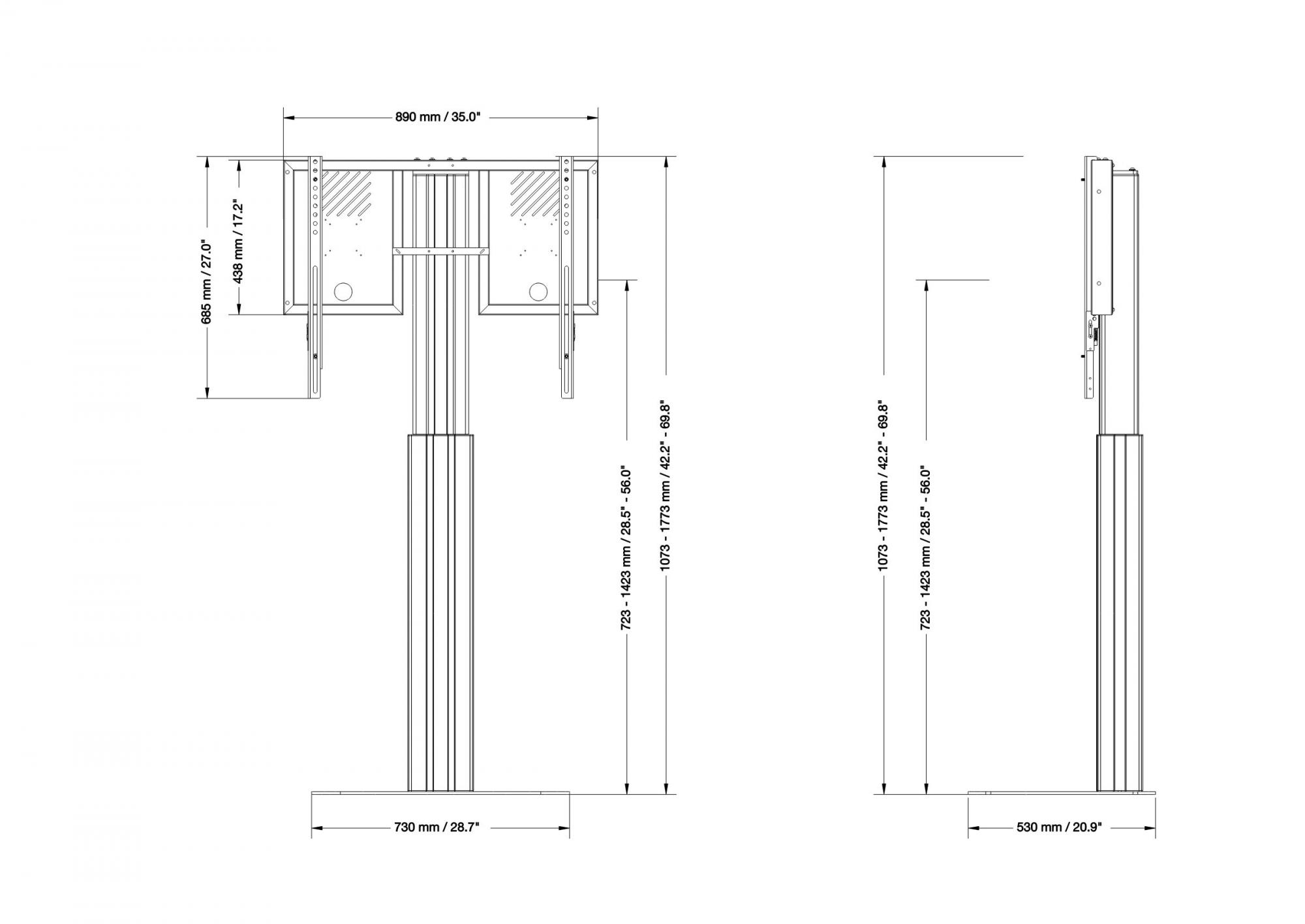

Product details

Item numberRLI10070PK
Vesa horizontal200 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all42" - 86"
Vertical travel70 cm
Center to floor distance 723 mm - 1423 mm28.5" - 56"
Load capacity136 kg 299.8 lbs
Width 890 mm35"
Height 1073 mm - 1773 mm42.2" - 69.8"
Depth 530 mm20.9"
Weight 42 kg92.6 lbs
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorSilver anodized
Base colorRAL 9006 white aluminum
Packages Package dimensions WxHxD Package weight
AFSCETARLI895 x 65 x 485 mm / 35.2 x 2.6 x 19.1"14 kg / 30.9 lbs
CCEL10070WK1190 x 195 x 245 mm / 46.9 x 7.7 x 9.6"23,3 kg / 51.4 lbs
PSTSCETALI750 x 20 x 600 mm / 29.5 x 0.8 x 23.6"21,8 kg / 48.1 lbs
Total weight 59,1 kg / 130.4 lbs
Display mount for displays with max. VESA 800 x 600
Detail image Display mount for displays with max. VESA 800 x 600 RLI10070PKThis frame accommodates monitors with max. VESA 800 x 600. The sturdy construction consists of 2 mm powder coated steel.
Quick snap lock
Detail image Quick snap lock RLI10070PKWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Remote control of height adjustment
Detail image Remote control of height adjustment RLI10070PKThe electrically height-adjustable tv & monitor stands come standard with a wired remote control. With two buttons, the monitor stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen monitors.
Four leveling feet
Detail image Four leveling feet RLI10070PKThese four leveling feet allow you to level out any unevenness in the floor so that the monitor wall mount can transfer the weight of the monitor over the column to the floor. For this purpose, the individual ground leveling foot can be turned in or out.
7 cm (2.76 inch) Z-brackets
Detail image 7 cm (2.76 inch) Z-brackets RLI10070PKBy default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm (2.76 inch). Further wall mounting solutions are available as accessories.
Wall mounting kit
Detail image Wall mounting kit RLI10070PKThe system includes a wall mounting set consisting of: two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm, Two sliding blocks incl. nut to attach the brackets to the column, four floor leveling feet and 3 cable clips.
