Height adjustable display and monitor stand, lite series with 90 cm of vertical travel

column silver, anti-collision, high model, floor plate
Item number: RLI12090PK

Product description

Height adjustable display and monitor stand for 55"-86" (interactive) touch screen monitors.

The RLI12090PK monitor stand is designed for touch screen monitors up to 86". The units feature a sturdy monitor mount with integrated cable management and "pull & release" locking brackets for quick and easy mounting of the monitor.

The RLI12090PK monitor stand comes with a slim column that offers unique 90 cm of vertical travel.

A 0.3" thick, solid steel plate secures to the motorized center column. Designed to add stability to wall mount systems, secured to e.g. a stud wall. The floor plate features cut-outs/ handles for easy transportation. It comes powder coated in grey aluminum.

The unit comes flat-packed in 3 cartons and is courier-shippable.


Features

  • Heavy duty mount for touch screen monitors up to 86"
  • "Pull & release" brackets for easy mounting of the monitor
  • VESA pattern, max. 800 x 600
  • Integrated cable management
  • 90 cm of smooth motorized height adjustment, actuator 1500N, 47 mm/ 1.85" per second
  • Floor plate and 2 wall mounting brackets for optimum stability
  • With anti-collision function
  • Quick and easy mounting to the wall
  • Wired remote control included

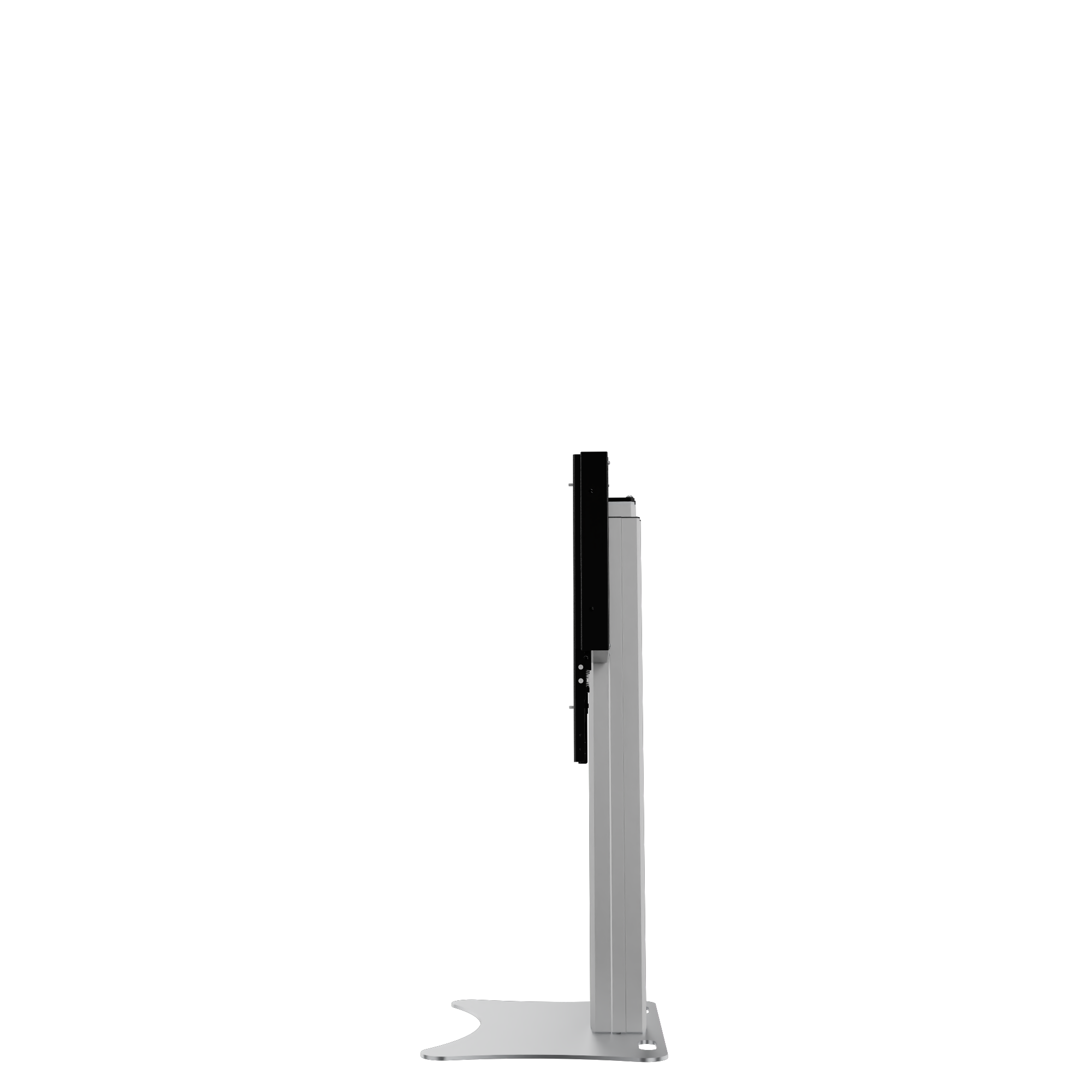

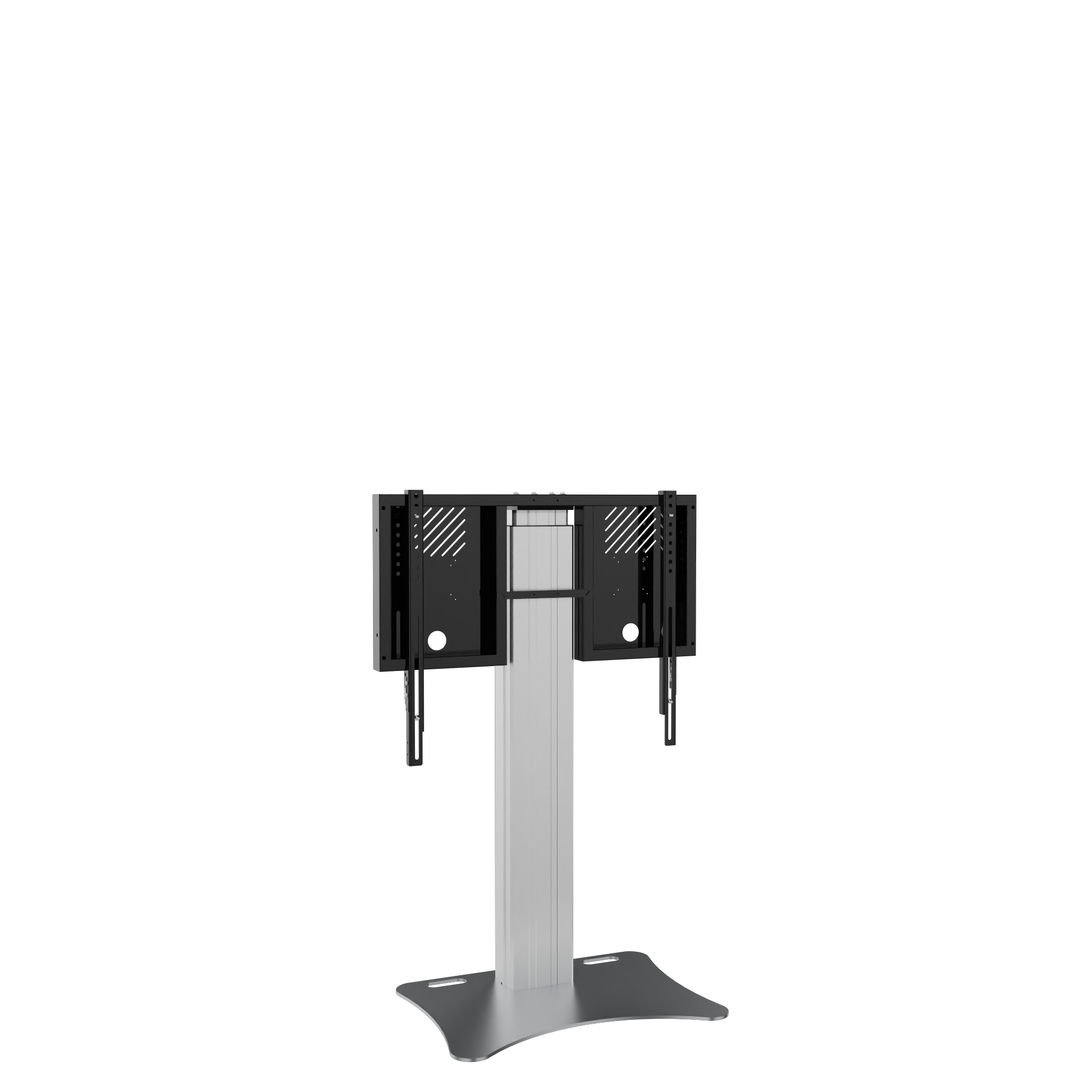

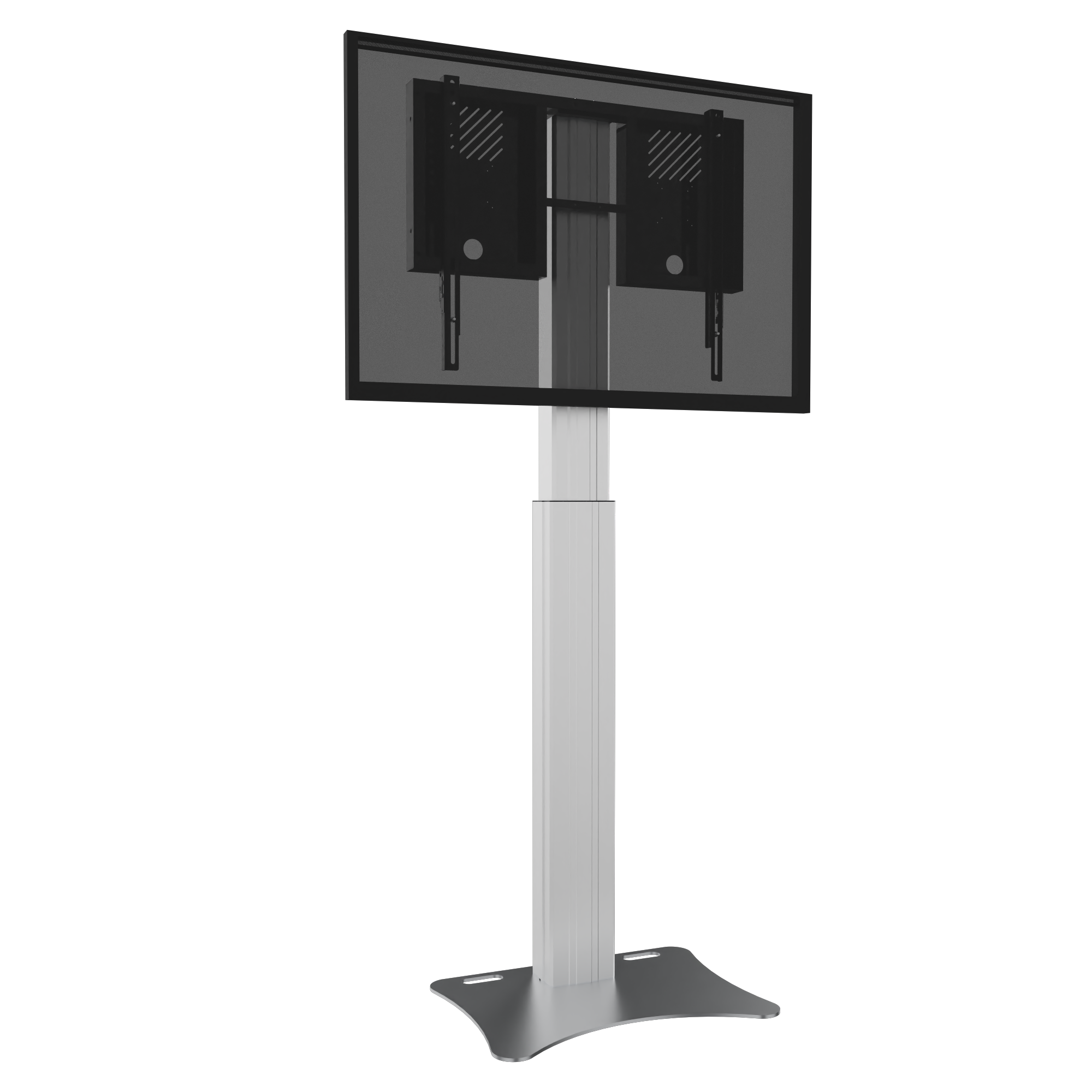

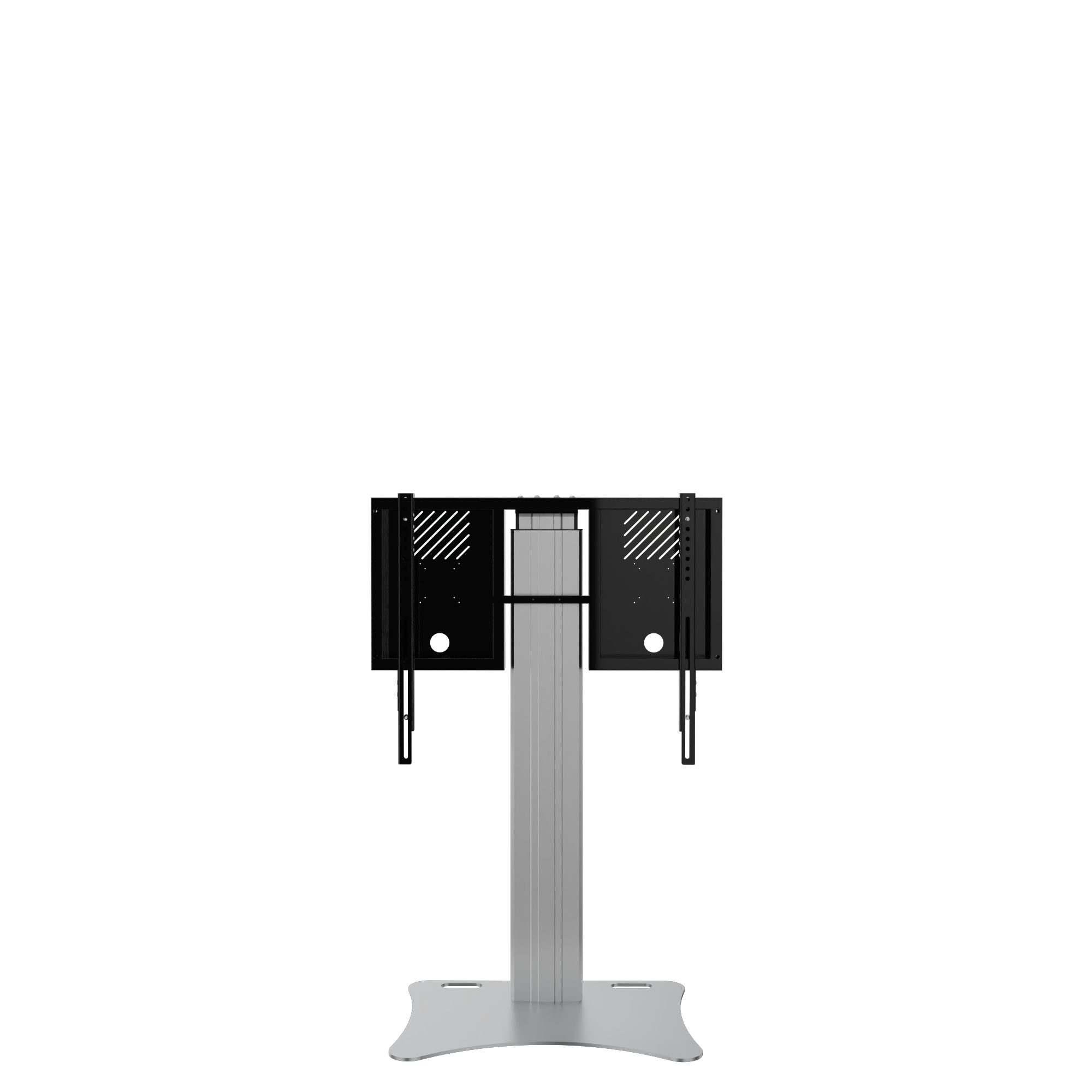

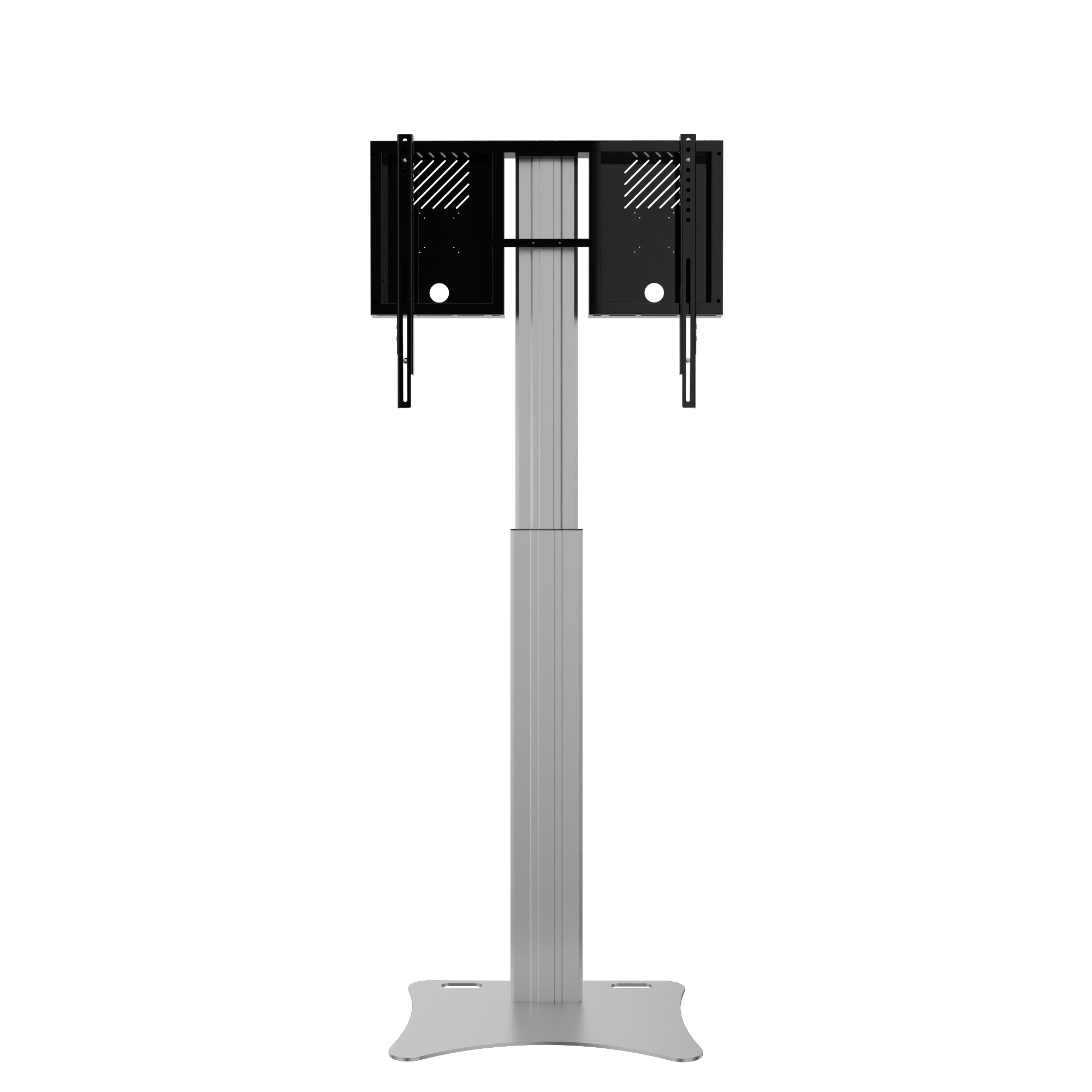

Product image Height adjustable display and monitor stand, lite series with 90 cm of vertical travel RLI12090PK
Product image Height adjustable display and monitor stand, lite series with 90 cm of vertical travel RLI12090PK Product image Height adjustable display and monitor stand, lite series with 90 cm of vertical travel RLI12090PK Product image Height adjustable display and monitor stand, lite series with 90 cm of vertical travel RLI12090PK Product image Height adjustable display and monitor stand, lite series with 90 cm of vertical travel RLI12090PK Product image Height adjustable display and monitor stand, lite series with 90 cm of vertical travel RLI12090PK Product image Height adjustable display and monitor stand, lite series with 90 cm of vertical travel RLI12090PK Product image Height adjustable display and monitor stand, lite series with 90 cm of vertical travel RLI12090PK

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
299.8 lbs
Icon maximal VESA
Max. Vesa
800 x 600
Item numberRLI12090PK

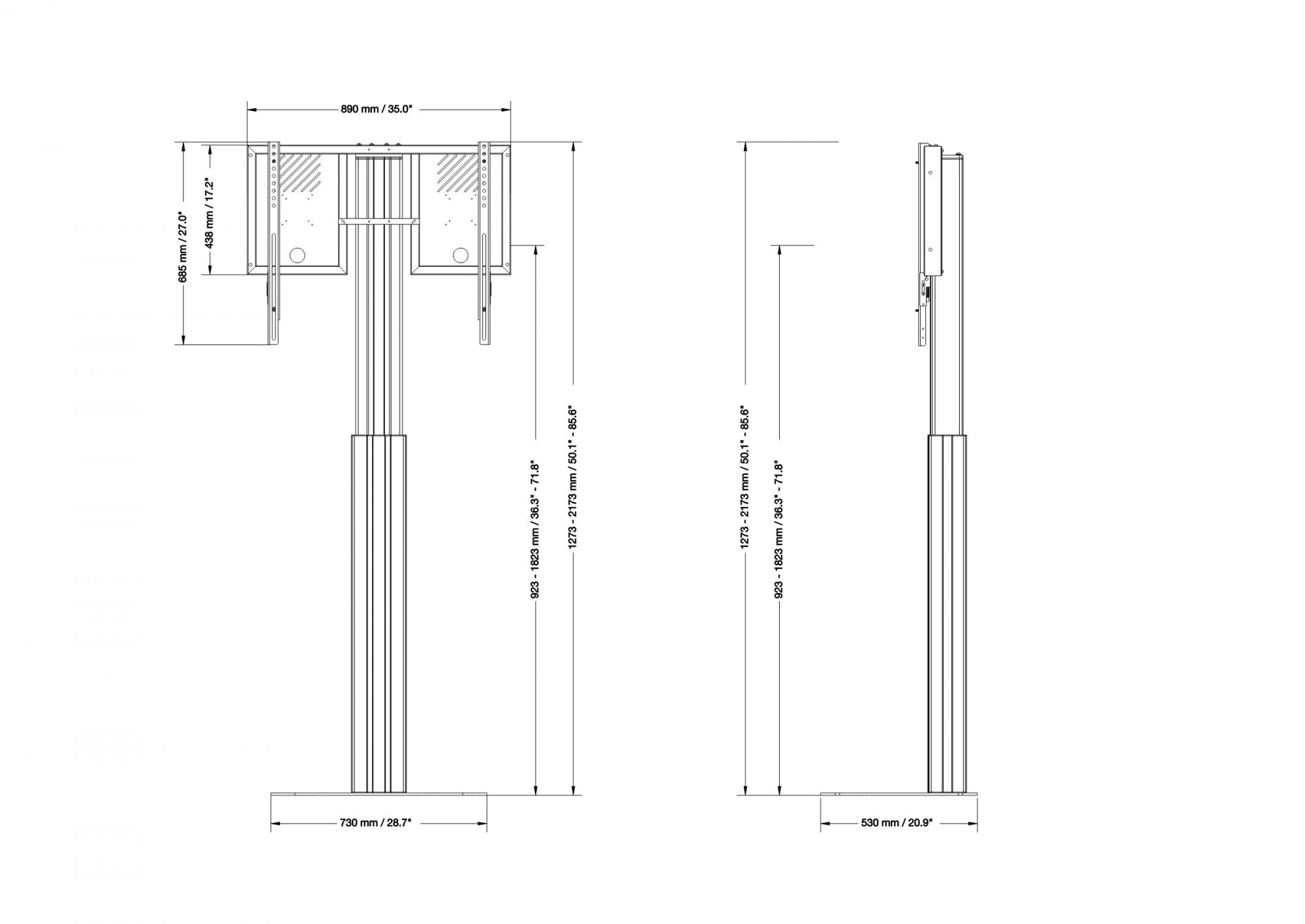

Vesa horizontal300 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all55" - 86"
Vertical travel90 cm
Center to floor distance 923 mm - 1823 mm36.3" - 71.8"
Load capacity136 kg 299.8 lbs
Width 890 mm35"
Height 1273 mm - 2173 mm50.1" - 85.6"
Depth 530 mm20.9"
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorSilver anodized
Base colorRAL 9006 white aluminum
Packages Package dimensions WxHxD Package weight
AFSCETARLI895 x 65 x 485 mm / 35.2 x 2.6 x 19.1"14 kg / 30.9 lbs
CCEL12090WK1390 x 195 x 245 mm / 54.7 x 7.7 x 9.6"27,6 kg / 60.8 lbs
PSTSCETALI750 x 20 x 600 mm / 29.5 x 0.8 x 23.6"21,8 kg / 48.1 lbs
Total weight 63,4 kg / 139.8 lbs
Display mount for displays with max. VESA 800 x 600
Detail image Display mount for displays with max. VESA 800 x 600 RLI12090PKThis frame accommodates monitors with max. VESA 800 x 600. The sturdy construction consists of 2 mm powder coated steel.
Quick snap lock
Detail image Quick snap lock RLI12090PKWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Remote control of height adjustment
Detail image Remote control of height adjustment RLI12090PKThe electrically height-adjustable tv & monitor stands come standard with a wired remote control. With two buttons, the monitor stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen monitors.
8 mm strong floor plate
Detail image 8 mm strong floor plate RLI12090PKThe 8 mm strong base plate allows the mounting of our monitor mounts on lightweight walls or a freestanding installation in the room. The weight of the monitor is transmitted through the column to the floor plate and thus to the floor, maximizing stability.
7 cm (2.76 inch) Z-brackets
Detail image 7 cm (2.76 inch) Z-brackets RLI12090PKBy default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm (2.76 inch). Further wall mounting solutions are available as accessories.
Wall mounting kit
Detail image Wall mounting kit RLI12090PKThe system includes a wall mounting set consisting of: two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm, Two sliding blocks incl. nut to attach the brackets to the column, four floor leveling feet and 3 cable clips.
