Height adjustable mobile tv and monitor stand, lite series with 50 cm of vertical travel

column silver anodized
Item number: SCETAVLI

Product description

Height adjustable mobile tv & monitor stand for 42"-86" (interactive) touch screen monitors.

The SCETAVLI is designed for touch screen monitors up to 86”. The units features a monitor mount with "pull & release" locking brackets for quick and easy mounting of the monitor and offers 50 cm / 20” of vertical travel.

The unit comes flat-packed in 2 cartons and is courier-shippable.


Features

  • Mount for touch screen monitors up to 86"
  • "Pull & release" brackets for easy mounting of the monitor
  • VESA pattern, max. 800 x 600
  • Integrated cable management
  • 50 cm of smooth motorized height adjustment
  • Robust V-style base designed to withstand intensive daily use
Product image Height adjustable mobile tv and monitor stand, lite series with 50 cm of vertical travel SCETAVLI
Product image Height adjustable mobile tv and monitor stand, lite series with 50 cm of vertical travel SCETAVLI Product image Height adjustable mobile tv and monitor stand, lite series with 50 cm of vertical travel SCETAVLI Product image Height adjustable mobile tv and monitor stand, lite series with 50 cm of vertical travel SCETAVLI Product image Height adjustable mobile tv and monitor stand, lite series with 50 cm of vertical travel SCETAVLI Product image Height adjustable mobile tv and monitor stand, lite series with 50 cm of vertical travel SCETAVLI Product image Height adjustable mobile tv and monitor stand, lite series with 50 cm of vertical travel SCETAVLI

Icon display mounts
Display mount
Icon mobile stand
Mobile
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
299.8 lbs
Icon maximal VESA
Max. Vesa
800 x 600

Accessories

Productimage Laptop side shelf Productimage Front shelf for LIGHT system Productimage Universal PC bracket Productimage Keyboard shelf for CCELW-AF and SCETAVLI series

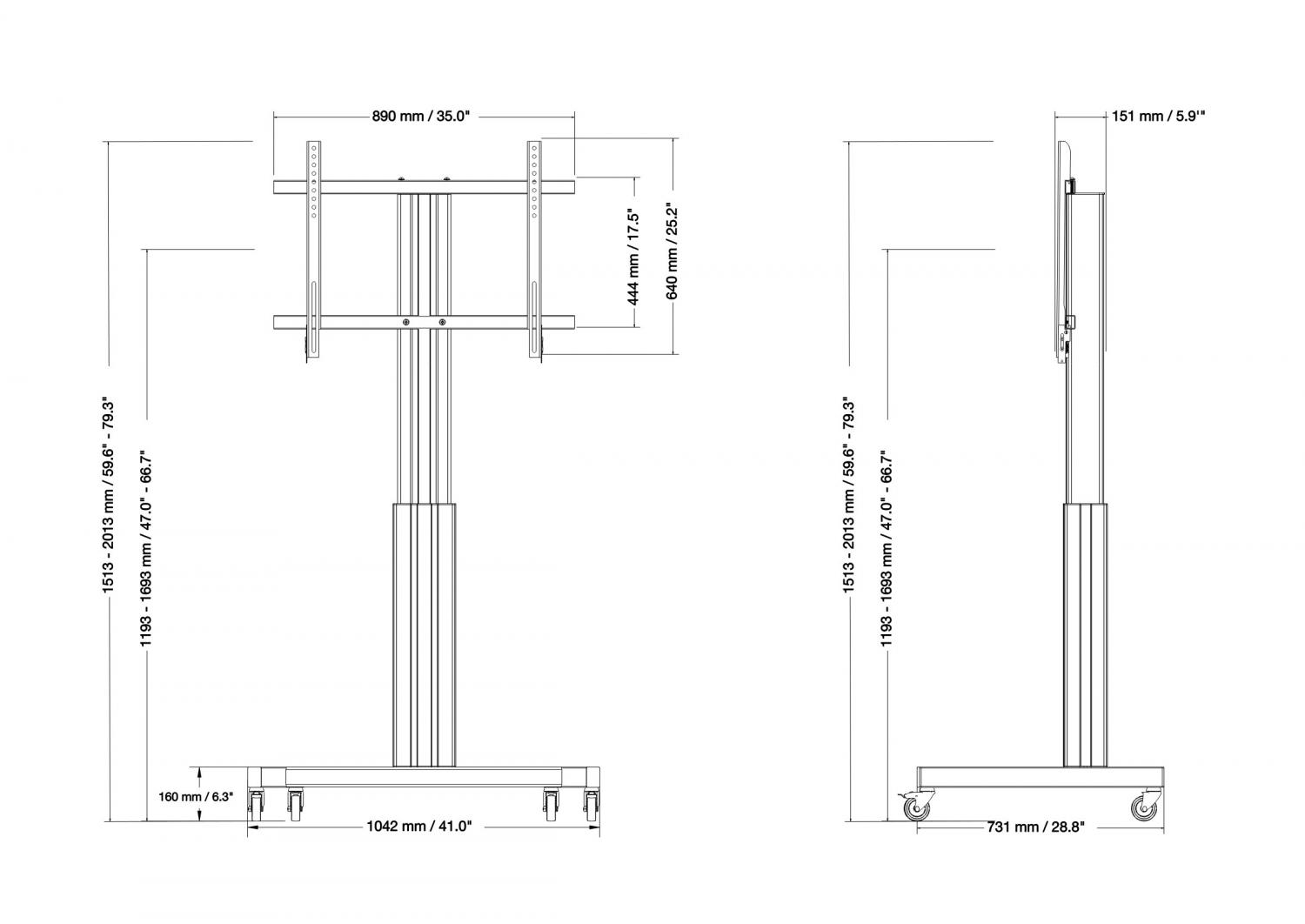

Product details

Item numberSCETAVLI
Vesa horizontal200 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all42" - 86"
Vertical travel50 cm
Center to floor distance 1193 mm - 1693 mm47" - 66.7"
Load capacity136 kg 299.8 lbs
Width 1042 mm41"
Height 1513 mm - 2013 mm59.6" - 79.3"
Depth 731 mm28.8"
Weight 37,3 kg82.1 lbs
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorSilver anodized
Base colorRAL 9005 deep black
Packages Package dimensions WxHxD Package weight
CCELW-AF1350 x 230 x 210 mm / 53.1 x 9.1 x 8.3"27 kg / 59.5 lbs
MST-SCETAVLI1130 x 140 x 780 mm / 44.5 x 5.5 x 30.7"15,5 kg / 34.2 lbs
Total weight 42,5 kg / 93.7 lbs
Display mount for displays with max. VESA 800 x 600
Detail image Display mount for displays with max. VESA 800 x 600 SCETAVLIThis frame accommodates monitors with max. VESA 800 x 600. The sturdy construction consists of 2 mm powder coated steel.
Quick snap lock
Detail image Quick snap lock SCETAVLIWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Remote control of height adjustment
Detail image Remote control of height adjustment SCETAVLIThe electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.
V-mobile stand
Detail image V-mobile stand SCETAVLIOur black V chassis has 4 smooth castors, two of which are lockable to fix the monitor stand in place. Due to the special V shape even wheelchair users can approach very close to the display.
Castor V-mobile stand
Detail image Castor V-mobile stand SCETAVLIThe smooth-running castors on our V-chassis make it easy to move the mobile monitor stand even with heavy displays. The castors have a diameter of 75 mm.
