Height adjustable mobile tv and monitor stand, lite series with 70 cm of vertical travel

column black, anti-collision, high model, C-style base
Item number: RLI10070CBK

Product description

Height adjustable mobile tv and monitor stand for 42"-86" (interactive) touch screen monitors.

The mobile monitor stand is designed to withstand intensive daily use and to safely support touch screen monitors up to 86" or 136 kg. The RLI10070CBK features a slim center column, offering 70 cm of smooth motorized height adjustment.

For user convenience and to enhance the teaching experience the stand allows for several accessories to be mounted, including PC shelves, handles and whiteboard side wings.

Product ships flat-packed. Cartons are courier shippable.


Features

  • Heavy duty mobile monitor stand for monitors up to 86"
  • Easy mounting of display thanks to "pull & release" brackets
  • Display mount with integrated cable management
  • Wide range of accessories available
  • Actuator safely concealed in center column offering 70 cm of vertical travel, 1500N, 47 mm/ 1.85" per second
  • Wired remote is standard included
  • Robust C-style base designed to withstand intensive daily use
  • With anti-collision function

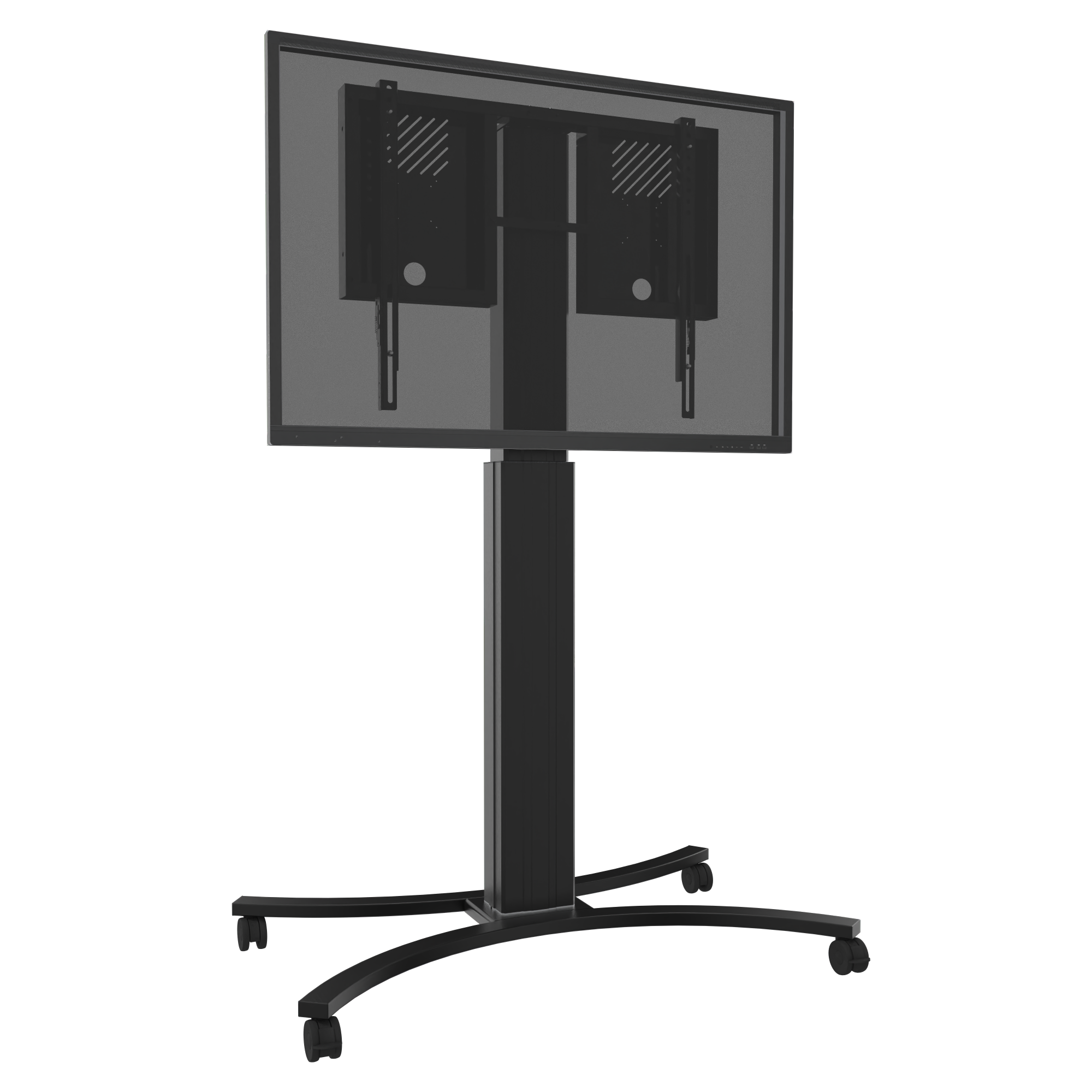

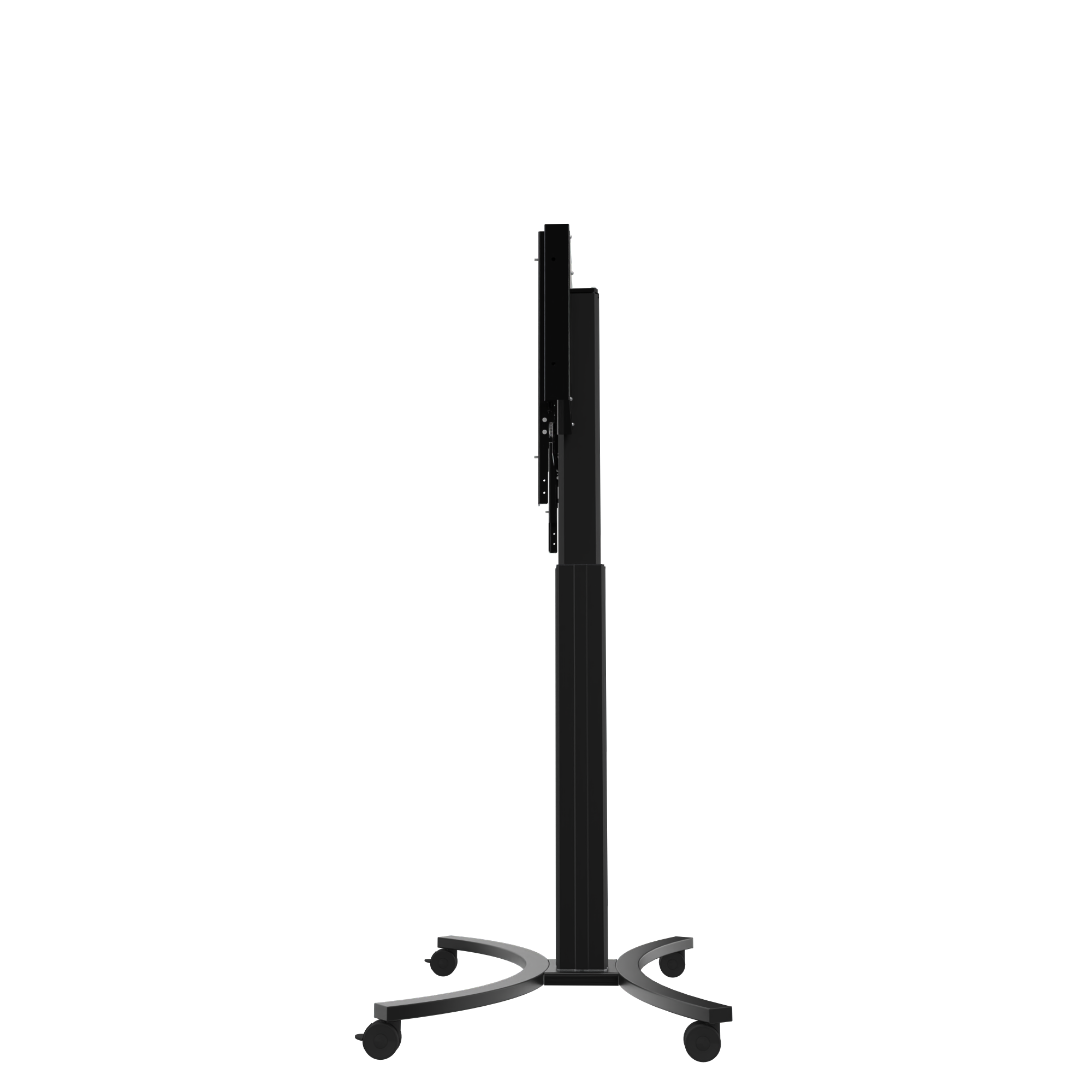

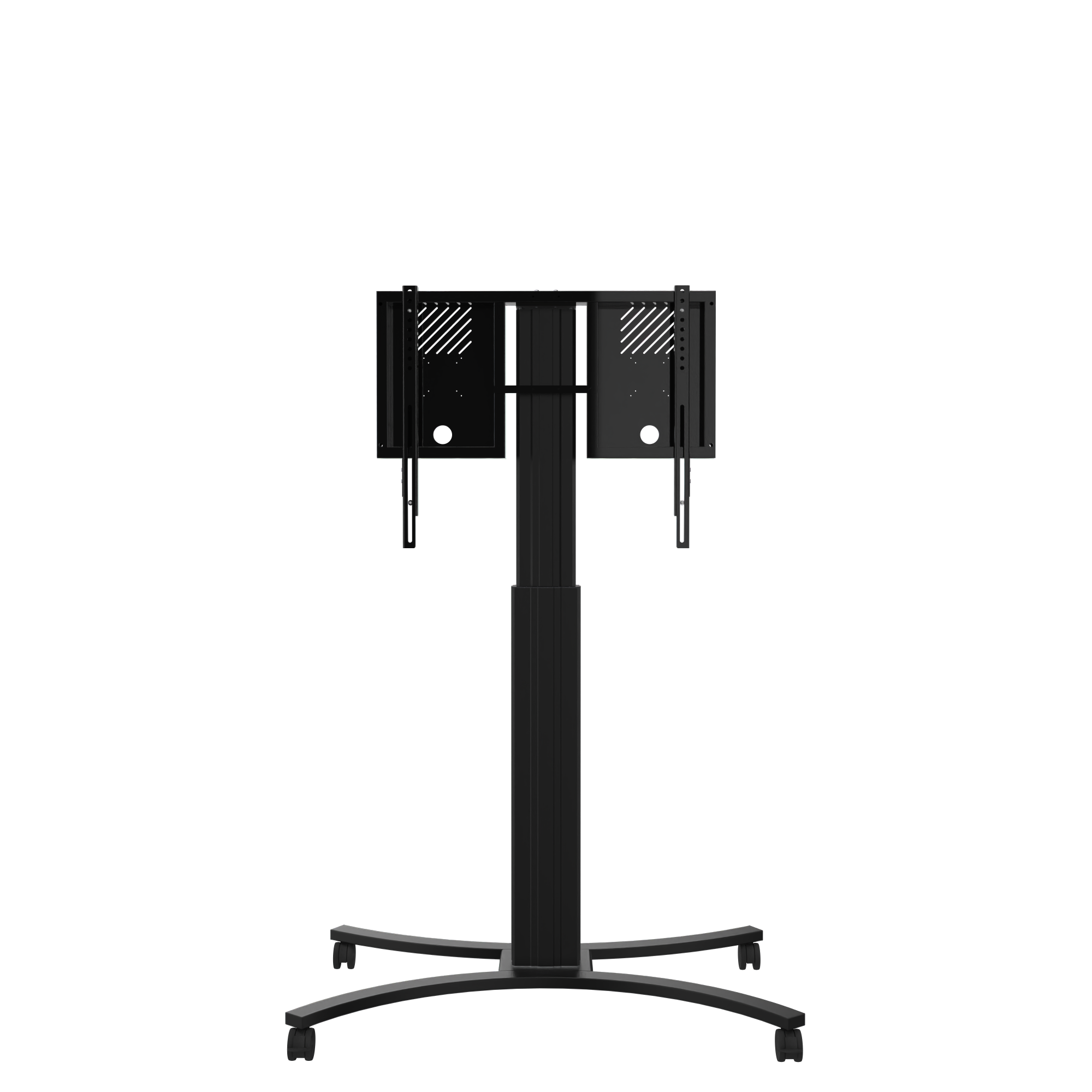

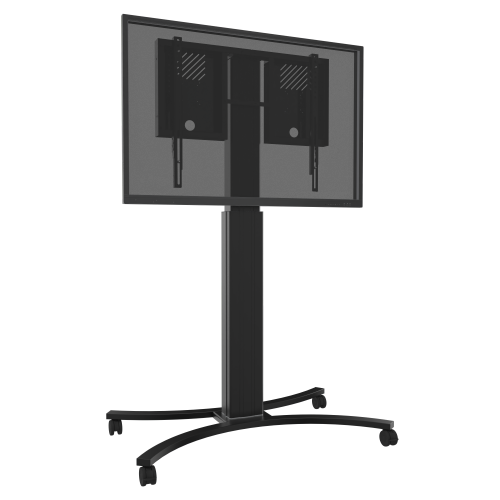

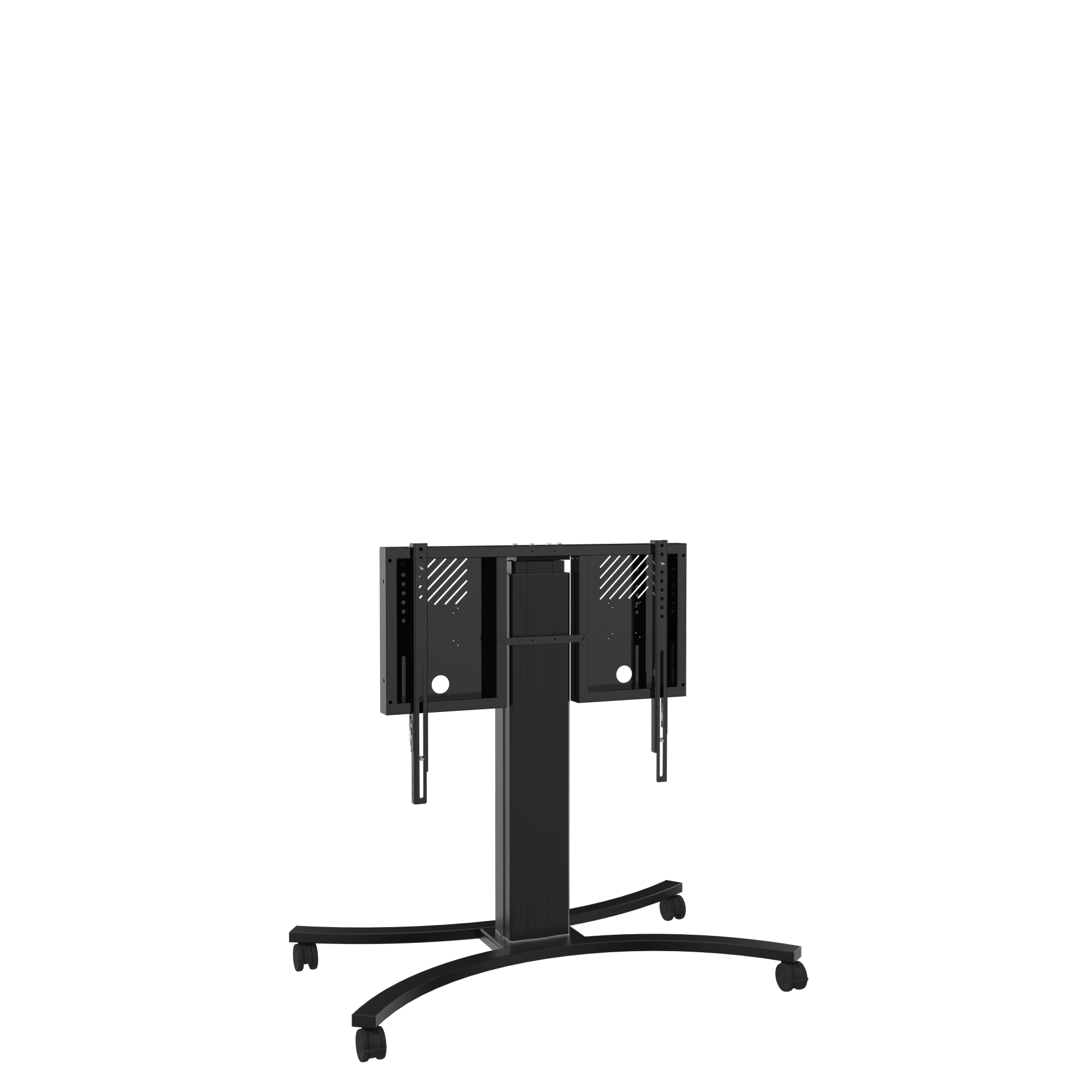

Product image Height adjustable mobile tv and monitor stand, lite series with 70 cm of vertical travel RLI10070CBK
Product image Height adjustable mobile tv and monitor stand, lite series with 70 cm of vertical travel RLI10070CBK Product image Height adjustable mobile tv and monitor stand, lite series with 70 cm of vertical travel RLI10070CBK Product image Height adjustable mobile tv and monitor stand, lite series with 70 cm of vertical travel RLI10070CBK Product image Height adjustable mobile tv and monitor stand, lite series with 70 cm of vertical travel RLI10070CBK Product image Height adjustable mobile tv and monitor stand, lite series with 70 cm of vertical travel RLI10070CBK

Icon display mounts
Display mount
Icon mobile stand
Mobile
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
299.8 lbs
Icon maximal VESA
Max. Vesa
800 x 600

Accessories

Productimage Laptop side shelf Productimage Front shelf for LIGHT system Productimage Keyboard shelf for LITE series Productimage Universal PC bracket Productimage Two whiteboard side wings Productimage Video conference camera top shelf LITE series for displays from 65 - 86 inch

Product details

Item numberRLI10070CBK
Vesa horizontal200 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all42" - 86"
Vertical travel70 cm

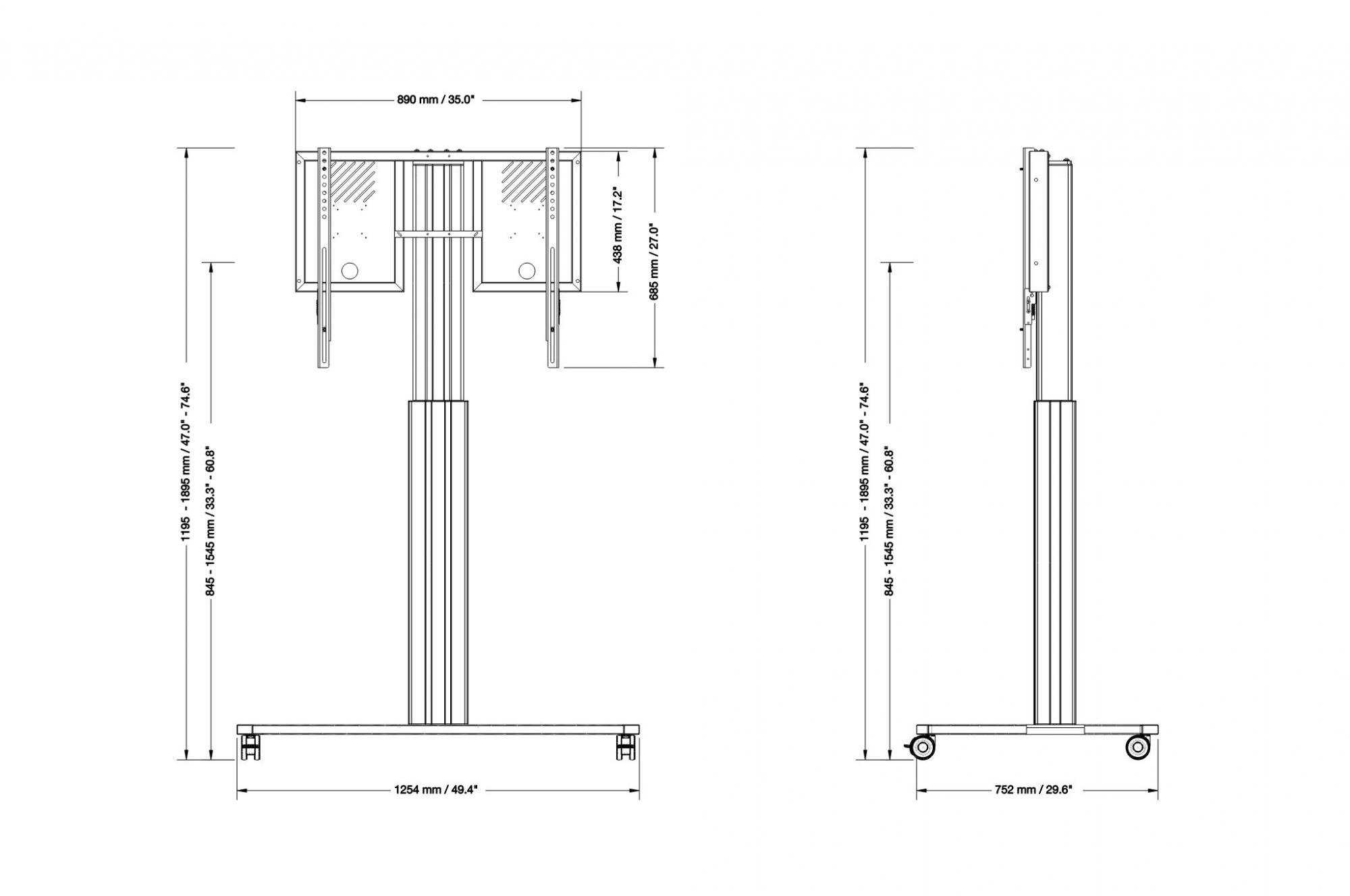

Center to floor distance 845 mm - 1545 mm33.3" - 60.8"
Load capacity136 kg 299.8 lbs
Width 1254 mm49.4"
Height 1195 mm - 1895 mm47" - 74.6"
Depth 752 mm29.6"
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorBlack anodized
Base colorRAL 9005 deep black
Packages Package dimensions WxHxD Package weight
AFSCETARLI895 x 65 x 485 mm / 35.2 x 2.6 x 19.1"14 kg / 30.9 lbs
CCEL10070BK1190 x 195 x 245 mm / 46.9 x 7.7 x 9.6"22,3 kg / 49.2 lbs
MSTSCETACBLI1350 x 120 x 780 mm / 53.1 x 4.7 x 30.7"15,5 kg / 34.2 lbs
Total weight 51,8 kg / 114.3 lbs
Display mount for displays with max. VESA 800 x 600
Detail image Display mount for displays with max. VESA 800 x 600 RLI10070CBKThis frame accommodates monitors with max. VESA 800 x 600. The sturdy construction consists of 2 mm powder coated steel.
C-mobile stand Lite
Detail image C-mobile stand Lite RLI10070CBKOur black C chassis has 4 smooth castors, two of which are lockable to fix the tv cart & mobile monitor stand in place. Due to the special C shape even wheelchair users can approach very close to the display.
Quick snap lock
Detail image Quick snap lock RLI10070CBKWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Remote control of height adjustment
Detail image Remote control of height adjustment RLI10070CBKThe electrically height-adjustable tv & monitor stands come standard with a wired remote control. With two buttons, the monitor stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen monitors.
