Height adjustable monitor and TV wall mount, lite series with 50 cm of vertical travel

column silver anodized
Item number: CCELW-AFP

Product description

Height adjustable TV & monitor wall mount for 42"-86" (interactive) touch screen monitors.

The CCELW-AFP is designed for touch screen monitors up to 86”. The units feature a monitor mount with "pull & release" locking brackets for quick and easy mounting of the monitor.

The CCELW-AFP comes with a column that offers 50 cm of vertical travel.

A 0.3" thick, solid steel plate secures to the motorized center column. Designed for static, freestanding applications or to add stability to wall mount systems, secured to e.g. a stud wall. The floor plate features cut-outs/ handles for easy transportation. It comes powdercoated in grey aluminum.

Product ships flat-packed. Cartons are courier shippable.


Features

  • Mount for touch screen monitors up to 86"
  • "Pull & release" brackets for easy mounting of the monitor
  • VESA pattern, max. 800 x 600
  • Integrated cable management
  • 50 cm of smooth motorized height adjustment
  • Optimum stability thanks to the floor plate and 2 wall mount brackets

UL certificate
Product image Height adjustable monitor and TV wall mount, lite series with 50 cm of vertical travel CCELW-AFP
Product image Height adjustable monitor and TV wall mount, lite series with 50 cm of vertical travel CCELW-AFP Product image Height adjustable monitor and TV wall mount, lite series with 50 cm of vertical travel CCELW-AFP Product image Height adjustable monitor and TV wall mount, lite series with 50 cm of vertical travel CCELW-AFP Product image Height adjustable monitor and TV wall mount, lite series with 50 cm of vertical travel CCELW-AFP Product image Height adjustable monitor and TV wall mount, lite series with 50 cm of vertical travel CCELW-AFP

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon platform stand
Free-standing
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
299.8 lbs
Icon maximal VESA
Max. Vesa
800 x 600

Accessories

Productimage Laptop side shelf Productimage Front shelf for LIGHT system Productimage Universal PC bracket Productimage Keyboard shelf for CCELW-AF and SCETAVLI series

Product details

Item numberCCELW-AFP
Vesa horizontal200 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all42" - 86"

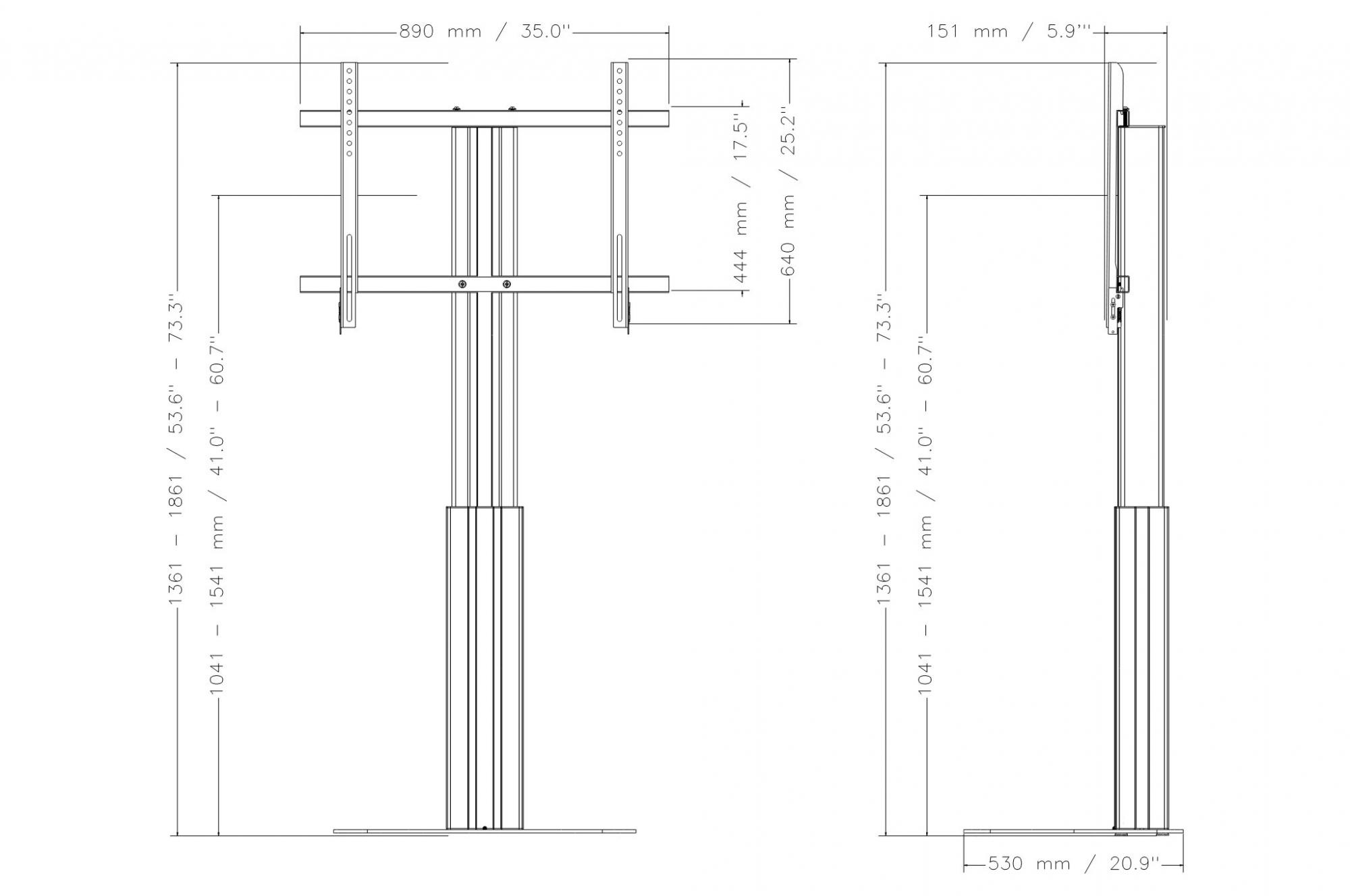

Vertical travel50 cm
Center to floor distance 1041 mm - 1541 mm41" - 60.7"
Load capacity136 kg 299.8 lbs
Width 890 mm35"
Height 1361 mm - 1861 mm53.6" - 73.3"
Depth 530 mm20.9"
Warranty5 years limited warranty
UL certificateUL Listed
Frame colorRAL 9005 deep black
Column colorSilver anodized
Base colorRAL 9006 white aluminum
Packages Package dimensions WxHxD Package weight
CCELW-AF1350 x 230 x 210 mm / 53.1 x 9.1 x 8.3"27 kg / 59.5 lbs
PSTSCETALI750 x 20 x 600 mm / 29.5 x 0.8 x 23.6"21,8 kg / 48.1 lbs
Total weight 48,8 kg / 107.6 lbs
Display mount for displays with max. VESA 800 x 600
Detail image Display mount for displays with max. VESA 800 x 600 CCELW-AFPThis frame accommodates monitors with max. VESA 800 x 600. The sturdy construction consists of 2 mm powder coated steel.
Quick snap lock
Detail image Quick snap lock CCELW-AFPWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Remote control of height adjustment
Detail image Remote control of height adjustment CCELW-AFPThe electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.
8 mm strong floor plate
Detail image 8 mm strong floor plate CCELW-AFPThe 8 mm strong base plate allows the mounting of our monitor mounts on lightweight walls or a freestanding installation in the room. The weight of the monitor is transmitted through the column to the floor plate and thus to the floor, maximizing stability.
7 cm (2.76 inch) Z-brackets
Detail image 7 cm (2.76 inch) Z-brackets CCELW-AFPBy default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm (2.76 inch). Further wall mounting solutions are available as accessories.
Wall mounting kit
Detail image Wall mounting kit CCELW-AFPThe system includes a wall mounting set consisting of: two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm, Two sliding blocks incl. nut to attach the brackets to the column, four floor leveling feet and 3 cable clips.
