Mobile motorized height adjustable monitor and TV cart, lite series with 50 cm of vertical travel

column black anodized
Item number: SCETAVLIB

Product description

Mobile motorized height adjustable TV & monitor wall mount for 42"-86" (interactive) touch screen monitors.

The SCETAVLIB is designed for touch screen monitors up to 86”. The units feature a monitor mount with "pull & release" locking brackets for quick and easy mounting of the monitor.

The SCETAVLIB comes with a column that offers 50 cm of vertical travel.

Product ships flat-packed. Cartons are courier shippable.


Features

  • Mount for touch screen monitors up to 86"
  • "Pull & release" brackets for easy mounting of the monitor
  • VESA pattern, max. 800 x 600
  • Integrated cable management
  • 50 cm of smooth motorized height adjustment
  • Robust V-style base designed to withstand intensive daily use
Product image Mobile motorized height adjustable monitor and TV cart, lite series with 50 cm of vertical travel SCETAVLIB
Product image Mobile motorized height adjustable monitor and TV cart, lite series with 50 cm of vertical travel SCETAVLIB Product image Mobile motorized height adjustable monitor and TV cart, lite series with 50 cm of vertical travel SCETAVLIB Product image Mobile motorized height adjustable monitor and TV cart, lite series with 50 cm of vertical travel SCETAVLIB Product image Mobile motorized height adjustable monitor and TV cart, lite series with 50 cm of vertical travel SCETAVLIB Product image Mobile motorized height adjustable monitor and TV cart, lite series with 50 cm of vertical travel SCETAVLIB Product image Mobile motorized height adjustable monitor and TV cart, lite series with 50 cm of vertical travel SCETAVLIB

Icon display mounts
Display mount
Icon mobile stand
Mobile
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon maximum load
Max. load
299.8 lbs
Icon maximal VESA
Max. Vesa
800 x 600

Accessories

Productimage Laptop side shelf Productimage Front shelf for LIGHT system Productimage Universal PC bracket Productimage Keyboard shelf for CCELW-AF and SCETAVLI series

Product details

Item numberSCETAVLIB
Vesa horizontal200 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all42" - 86"
Vertical travel50 cm

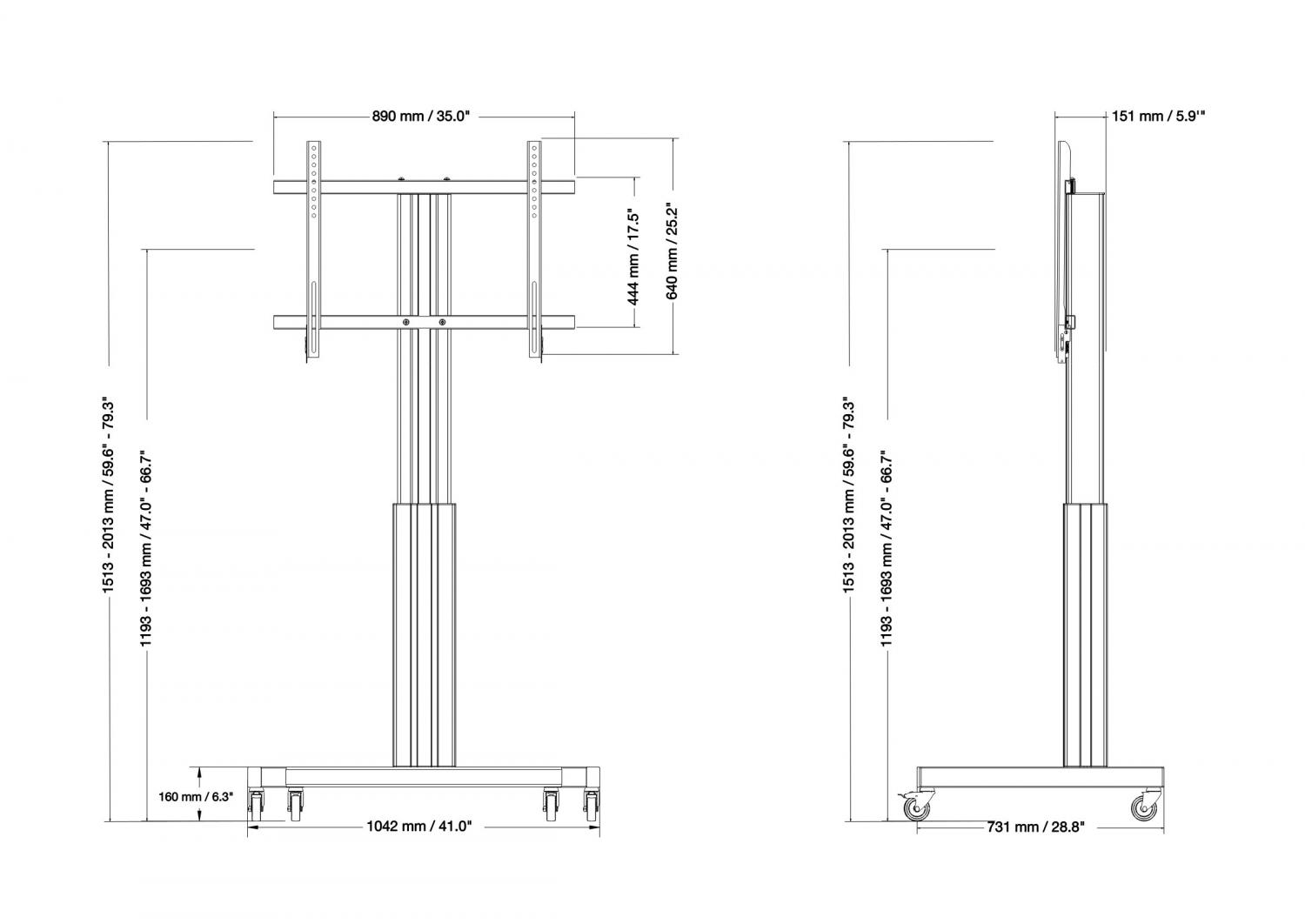

Center to floor distance 1193 mm - 1693 mm47" - 66.7"
Load capacity136 kg 299.8 lbs
Width 1042 mm41"
Height 1513 mm - 2013 mm59.6" - 79.3"
Depth 731 mm28.8"
Weight 37,3 kg82.1 lbs
Frame colorRAL 9005 deep black
Column colorBlack anodized
Base colorRAL 9005 deep black
Packages Package dimensions WxHxD Package weight
CCELW-AFB1350 x 230 x 210 mm / 53.1 x 9.1 x 8.3"27 kg / 59.5 lbs
MST-SCETAVLI1130 x 140 x 780 mm / 44.5 x 5.5 x 30.7"15,5 kg / 34.2 lbs
Total weight 42,5 kg / 93.7 lbs
Display mount for displays with max. VESA 800 x 600
Detail image Display mount for displays with max. VESA 800 x 600 SCETAVLIBThis frame accommodates monitors with max. VESA 800 x 600. The sturdy construction consists of 2 mm powder coated steel.
Quick snap lock
Detail image Quick snap lock SCETAVLIBWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Remote control of height adjustment
Detail image Remote control of height adjustment SCETAVLIBThe electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.
V-mobile stand
Detail image V-mobile stand SCETAVLIBOur black V chassis has 4 smooth castors, two of which are lockable to fix the monitor stand in place. Due to the special V shape even wheelchair users can approach very close to the display.
Castor V-mobile stand
Detail image Castor V-mobile stand SCETAVLIBThe smooth-running castors on our V-chassis make it easy to move the mobile monitor stand even with heavy displays. The castors have a diameter of 75 mm.
