Monitor stand and monitor wall mount, center of display 192 cm

column natural anodized, fixed height, floor plate

Product description

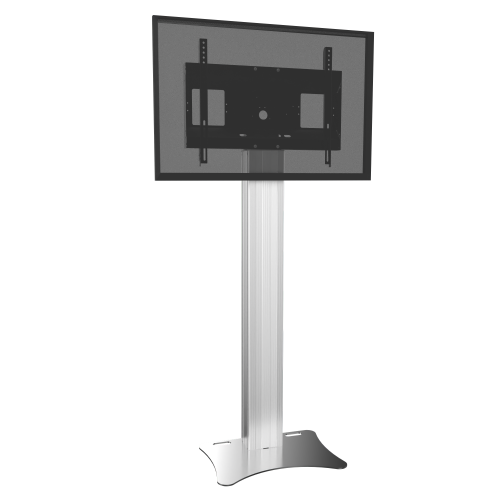

Fixed height monitor stand for 42"-100" touch screen displays.

For applications that do not necessarily require height adjustment or where price is key, Conen Mounts offers a series of fixed height solutions. The monitor stands feature a sturdy aluminum center column that comes in different heights. Mounted atop the center column is the display mount which allows for cables to be stowed away neatly behind the touch screen display.

A 0.3" thick, solid steel plate secures to the center column. Designed for static, freestanding applications or to add stability to wall mount systems, secured to e.g. a stud wall. The floor plate features cut-outs/ handles for easy transportation. It comes powder coated in grey aluminum.

The unit comes flat-packed in 3 cartons and is courier-shippable.


Features

  • Entry model, fixed height monitor stand
  • Mount with integrated VESA pattern, max. 800 x 600
  • Mount allows for cables to be neatly stowed behind the display
  • Safe and stylish design: with the stylish aluminum center column supporting the weight of the display
  • Comes standard with the floor plate and 2 wall mount brackets for secure mounting to the wall
Product image Monitor stand and monitor wall mount, center of display 192 cm SCETANHVP17
Product image Monitor stand and monitor wall mount, center of display 192 cm SCETANHVP17 Product image Monitor stand and monitor wall mount, center of display 192 cm SCETANHVP17 Product image Monitor stand and monitor wall mount, center of display 192 cm SCETANHVP17 Product image Monitor stand and monitor wall mount, center of display 192 cm SCETANHVP17 Product image Monitor stand and monitor wall mount, center of display 192 cm SCETANHVP17

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon fixed height
Fixed height
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
551.2 lbs
Icon maximal VESA
Max. Vesa
800 x 600

Accessories

Productimage Keyboard shelf Productimage Universal PC bracket Productimage Laptop side shelf Productimage Front shelf Productimage Side shelf for laptop Productimage Side shelf for laptop Productimage Side shelf for laptop Productimage Front shelf Productimage Front shelf Productimage Front shelf Productimage Video conference camera top shelf for displays from 75 - 86 inch Productimage Video conference camera top shelf for displays from 42 - 70 inch Productimage Lockable notebook cabinet Productimage U-shaped wall mount Productimage U-shaped wall mount Productimage 2 galvanized adjustable wall mounting brackets Productimage 2 galvanized wall mounting brackets Productimage Safety padlock 1 piece Productimage Safety padlock 4 pieces

Product details

Item numberSCETANHVP17
Vesa horizontal200 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all42" - 100"

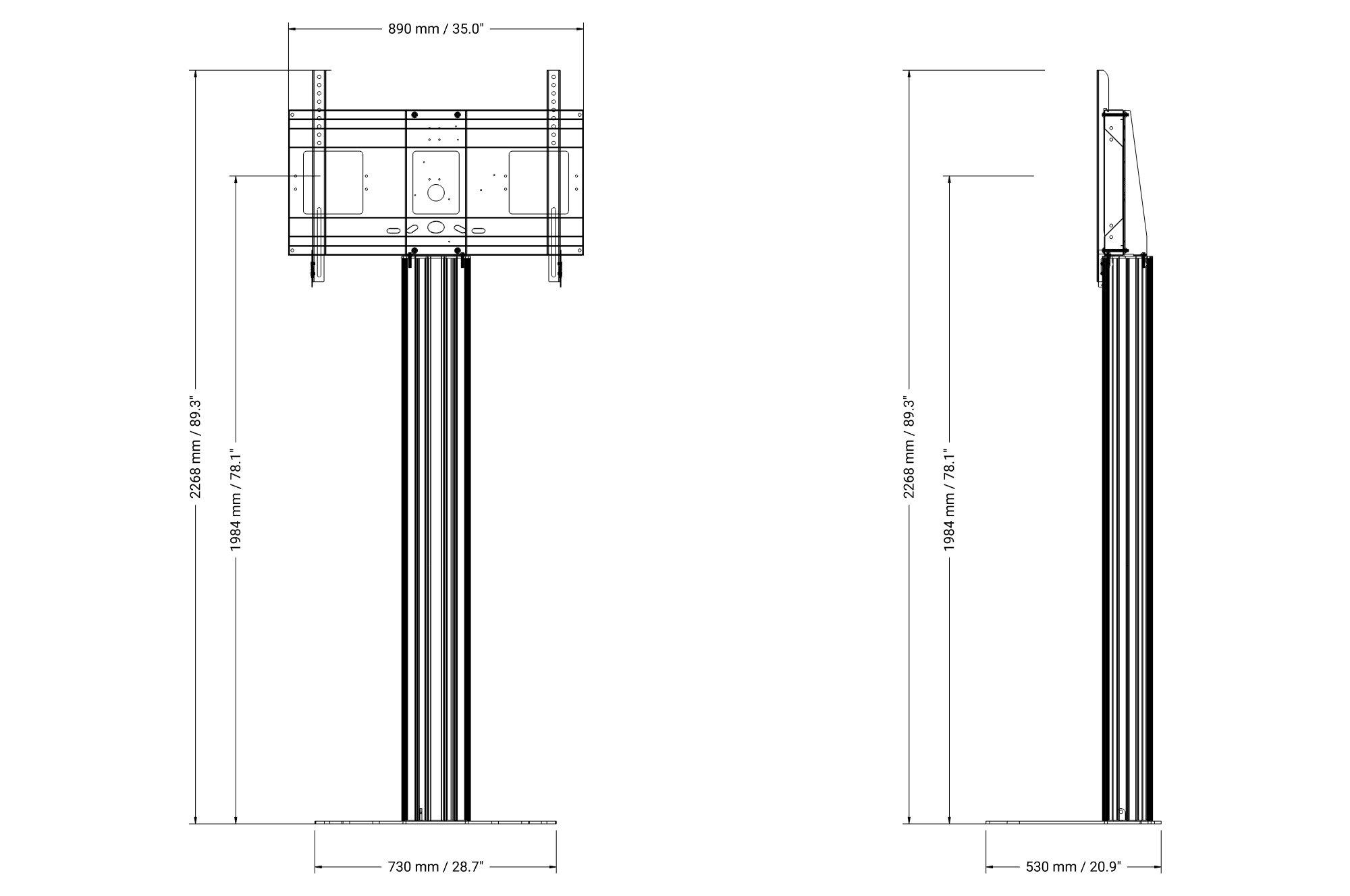

Center to floor distance 1920 mm75.6"
Load capacity250 kg 551.2 lbs
Warranty5 years warranty
Frame colorRAL 9005 deep black
Column colorNatural anodized
Chassis colorRAL 9006 white aluminum
Packages Package dimensions WxHxD Package weight
AF-SCETA-N900 x 160 x 450 mm / 35.4 x 6.3 x 17.7"13,6 kg / 30 lbs
CC170W1985 x 270 x 200 mm / 78.1 x 10.6 x 7.9"29,9 kg / 65.9 lbs
PSTSCETA750 x 20 x 600 mm / 29.5 x 0.8 x 23.6"21,8 kg / 48.1 lbs
Total weight 65,3 kg / 144 lbs
Display mount for 42" to 100" displays
Detail image Display mount for 42This frame accommodates 42 to 100 inch monitors. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
Quick snap lock
Detail image Quick snap lock SCETANHVP17With the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
8 mm strong floor plate
Detail image 8 mm strong floor plate SCETANHVP17The 8 mm strong base plate allows the mounting of our monitor mounts on lightweight walls or a freestanding installation in the room. The weight of the monitor is transmitted through the column to the floor plate and thus to the floor, maximizing stability.
2.76 inch Z-brackets
Detail image 2.76 inch Z-brackets SCETANHVP17By default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 2.76 inch (7 cm). Further wall mounting solutions are available as accessories.

Downloads

Product sheet DE/EN
SCETANHVP17
Image PDF download Image show PDF
Product sheet EN
SCETANHVP17
Image PDF download Image show PDF
User manual general
SCETANHVP17
Image PDF download Image show PDF

Catalog pages
