Monitor stand and monitor wall mount, center of display 142 cm

column silver anodized, fixed height, floor plate
Item number: SCETANHVP12

Product description

Fixed height monitor stand for 42"-100" touch screen displays.

For applications that do not necessarily require height adjustment or where price is key, Conen Mounts offers a series of fixed height solutions. The monitor stand feature a sturdy aluminum center column that comes in different heights. Mounted atop the center column is the display mount which allows for cables to be stowed away neatly behind the display.

A 0.3" thick, solid steel plate secures to the center column. Designed for static, freestanding applications or to add stability to wall mount systems, secured to e.g. a stud wall. The floor plate features cut-outs/ handles for easy transportation. It comes powder coated in grey aluminum.

The unit comes flat-packed in 3 cartons and is courier-shippable.


Features

  • Entry model, fixed height monitor stand
  • Mount with integrated VESA pattern, max. 800 x 600
  • Mount allows for cables to be neatly stowed behind the display
  • Safe and stylish design: with the stylish aluminum center column supporting the weight of the display
  • Comes standard with the floor plate and 2 wall mount brackets for secure mounting to the wall

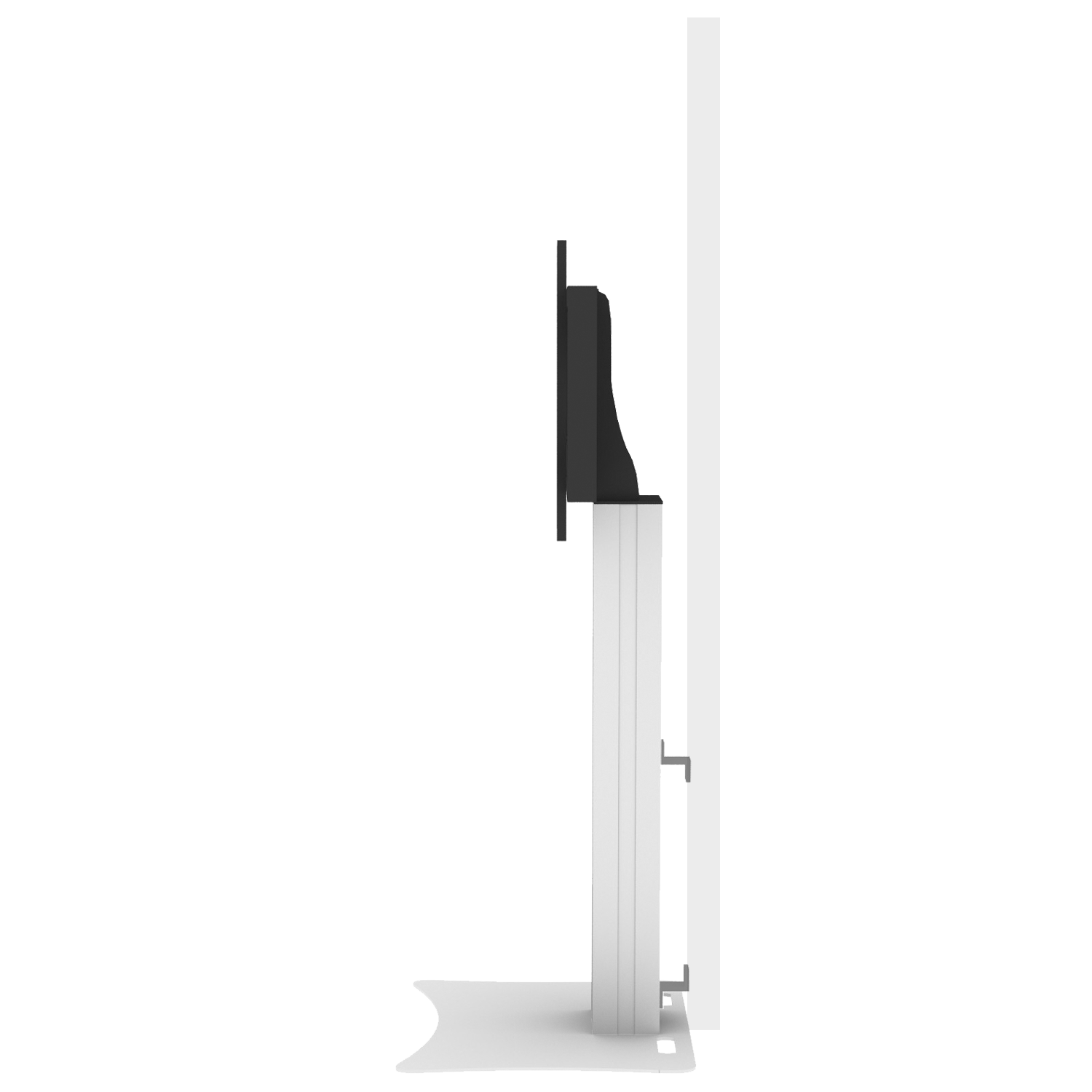

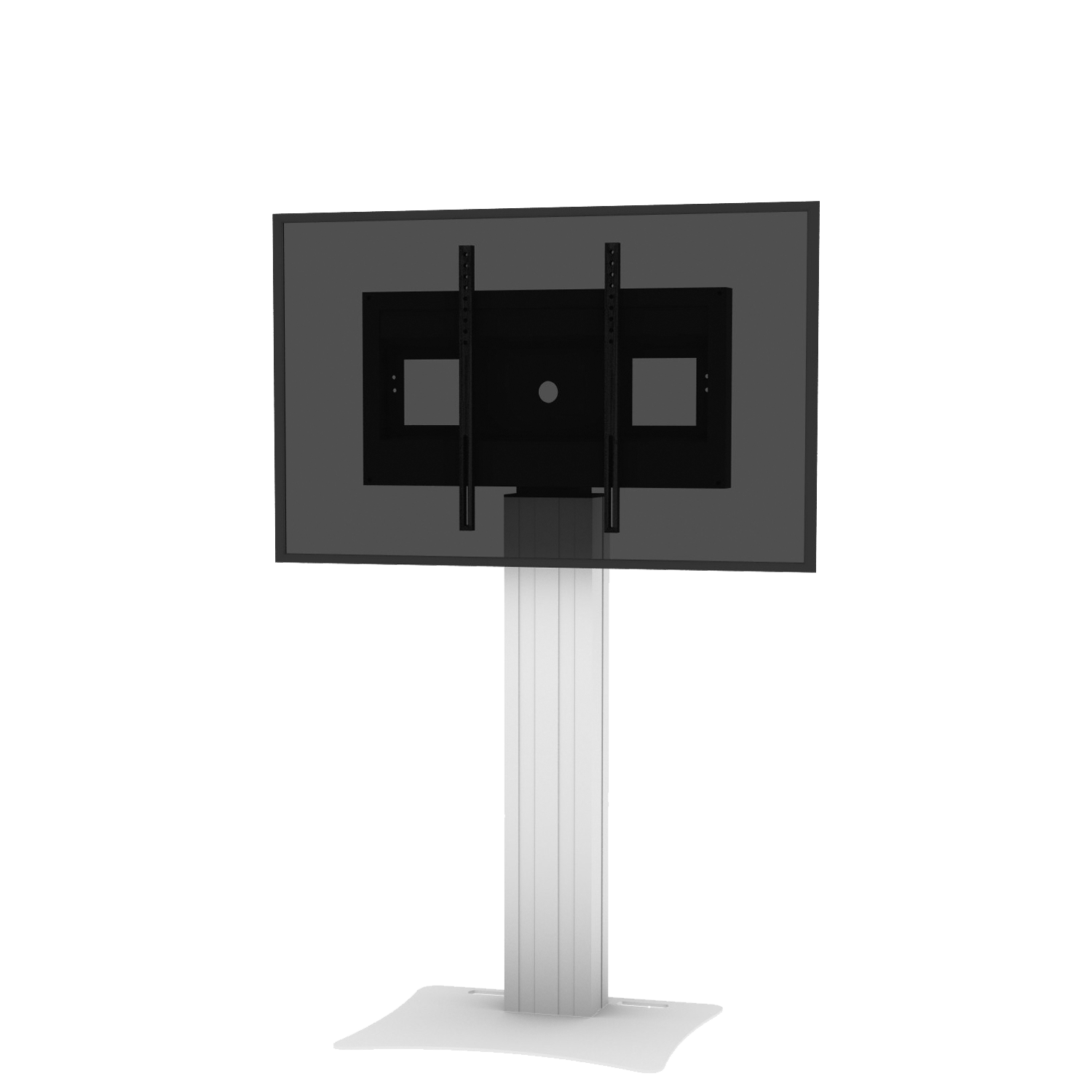

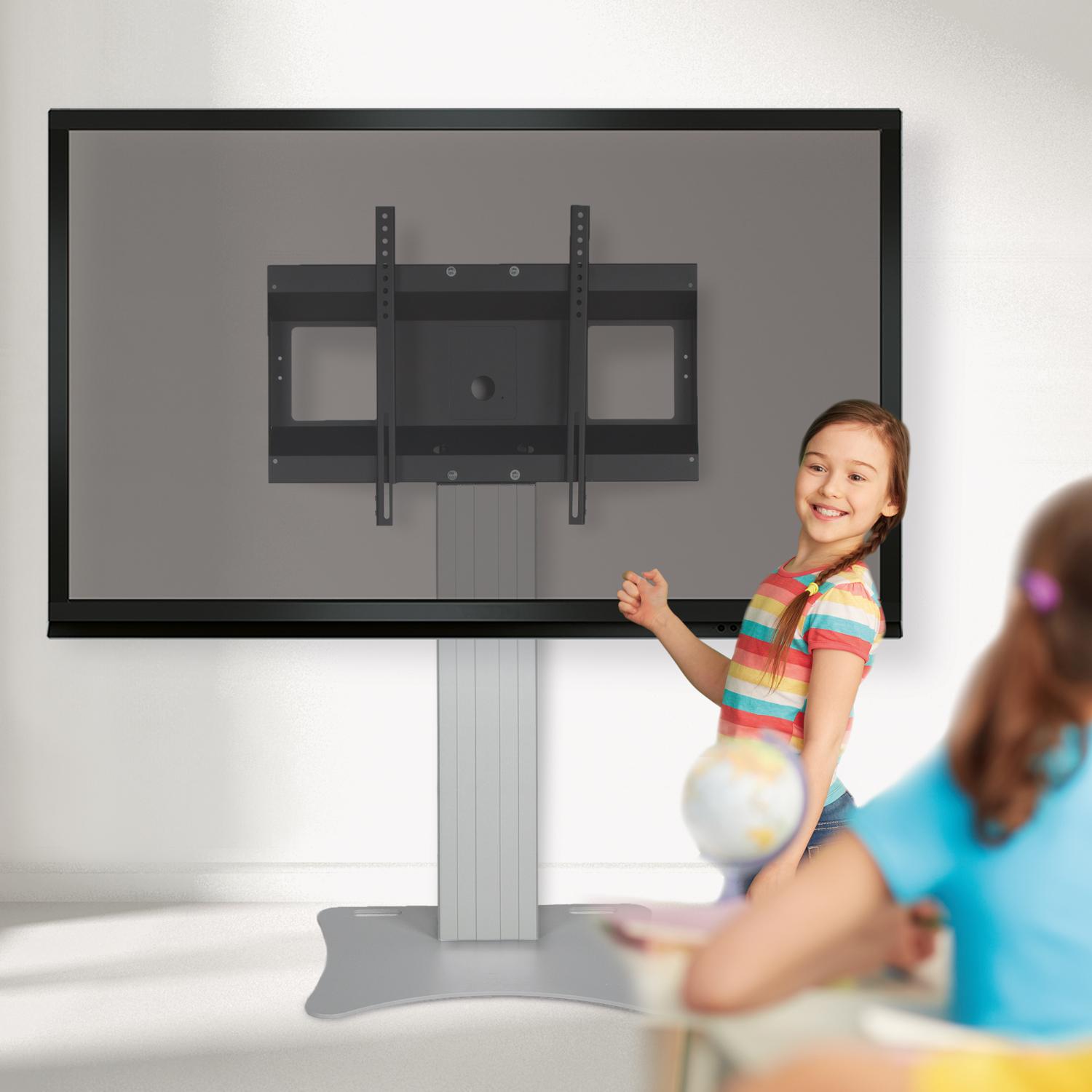

Product image Monitor stand and monitor wall mount, center of display 142 cm SCETANHVP12
Product image Monitor stand and monitor wall mount, center of display 142 cm SCETANHVP12 Product image Monitor stand and monitor wall mount, center of display 142 cm SCETANHVP12 Product image Monitor stand and monitor wall mount, center of display 142 cm SCETANHVP12

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon fixed height
Fixed height
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
551.2 lbs
Icon maximal VESA
Max. Vesa
800 x 600

Accessories

Productimage Laptop side shelf Productimage Side shelf for laptop Productimage Side shelf for laptop Productimage Front shelf Productimage Front shelf Productimage Front shelf Productimage Keyboard shelf Productimage Video conference camera top shelf for displays from 42 - 70 inch Productimage Video conference camera top shelf for displays from 75 - 86 inch Productimage Universal PC bracket Productimage Lockable notebook cabinet Productimage U-shaped wall mount Productimage U-shaped wall mount Productimage 2 galvanized wall mounting brackets Productimage 2 galvanized adjustable wall mounting brackets

Product details

Item numberSCETANHVP12
Vesa horizontal300 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all42" - 100"
Center to floor distance 1448 mm57"
Load capacity250 kg 551.2 lbs
Width 890 mm35"
Height 1768 mm69.6"
Depth 530 mm20.9"
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorSilver anodized
Base colorRAL 9006 white aluminum
Packages Package dimensions WxHxD Package weight
AF-SCETA-N900 x 160 x 450 mm / 35.4 x 6.3 x 17.7"13,6 kg / 30 lbs
CC120-W1485 x 270 x 220 mm / 58.5 x 10.6 x 8.7"21 kg / 46.3 lbs
PSTSCETA750 x 20 x 600 mm / 29.5 x 0.8 x 23.6"21,8 kg / 48.1 lbs
Total weight 56,4 kg / 124.4 lbs
Display mount for displays with max. VESA 800 x 600
Detail image Display mount for displays with max. VESA 800 x 600 SCETANHVP12This frame accommodates monitors with max. VESA 800 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
Quick snap lock
Detail image Quick snap lock SCETANHVP12With the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
8 mm strong floor plate
Detail image 8 mm strong floor plate SCETANHVP12The 8 mm strong base plate allows the mounting of our monitor mounts on lightweight walls or a freestanding installation in the room. The weight of the monitor is transmitted through the column to the floor plate and thus to the floor, maximizing stability.
7 cm (2.76 inch) Z-brackets
Detail image 7 cm (2.76 inch) Z-brackets SCETANHVP12By default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm (2.76 inch). Further wall mounting solutions are available as accessories.
Wall mounting kit
Detail image Wall mounting kit SCETANHVP12The system includes a wall mounting set consisting of: two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm, Two sliding blocks incl. nut to attach the brackets to the column, four floor leveling feet and 3 cable clips.
