Motorized display stand, 50 cm of vertical travel

column silver anodized, center of display 121 - 171 cm, floor plate
Item number: SCETAP

Product description

Motorized display stand for 42"-100" (interactive) flat-panel displays. Can be mounted to a wall.

The SCETAP is designed for flat panel displays up to 100”. The units feature a sturdy display mount with integrated cable management and "pull & release" locking brackets for quick and easy mounting of the display.

The SCETAP display stand comes with a column that offers 50 cm of vertical travel.

A 0.3" thick, solid steel plate secures to the motorized center column. Designed for static, freestanding applications or to add stability to wall mount systems, secured to e.g. a stud wall. The floor plate features cut-outs/ handles for easy transportation.

The unit comes flat-packed in 3 cartons and is courier-shippable.


Features

  • Heavy duty mount for displays up to 100"
  • "Pull & release" brackets for easy mounting of display
  • VESA pattern, max. 800 x 600
  • Integrated cable management
  • 50 cm of smooth motorized height adjustment
  • Optimum stability thanks to the floor plate and 2 wall mount brackets

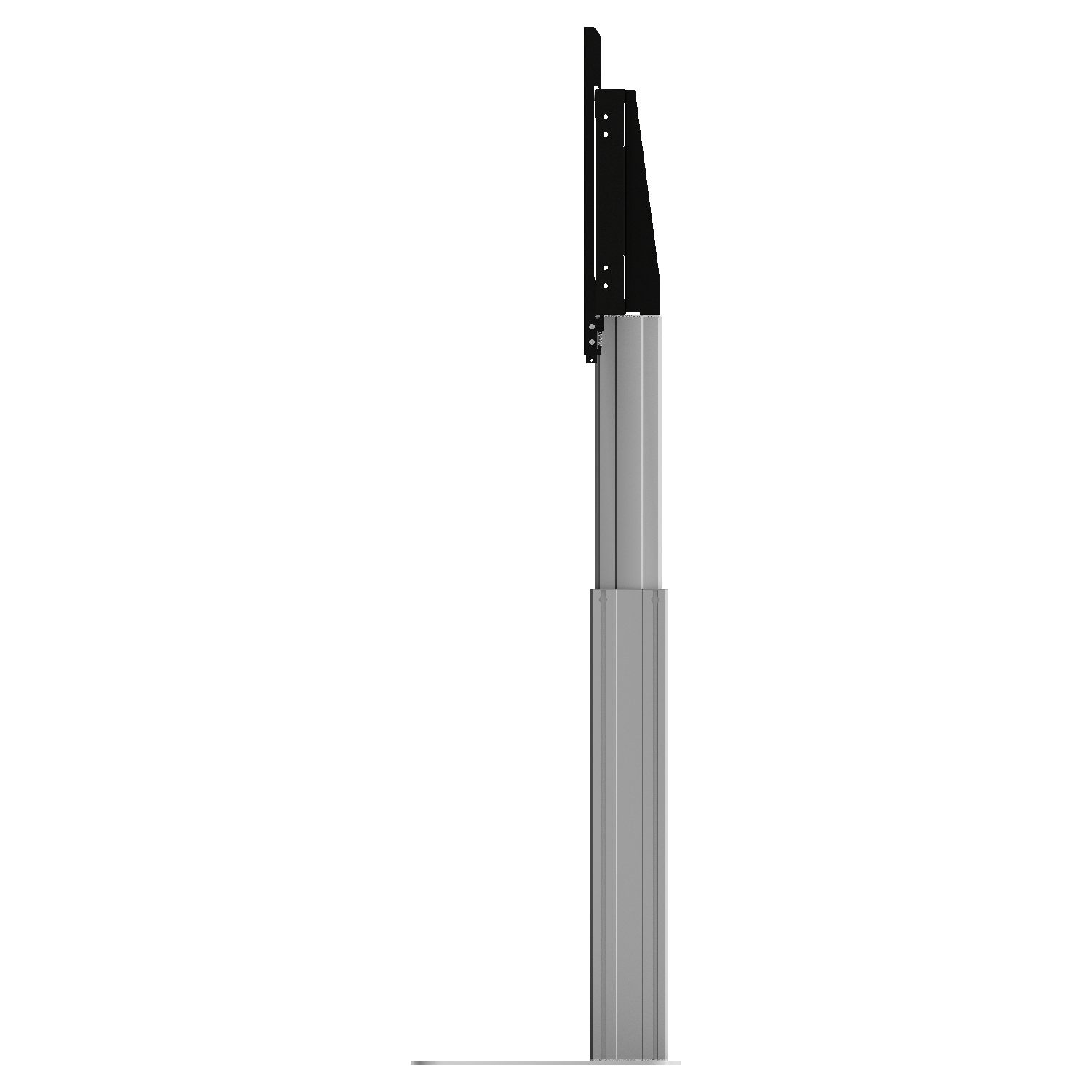

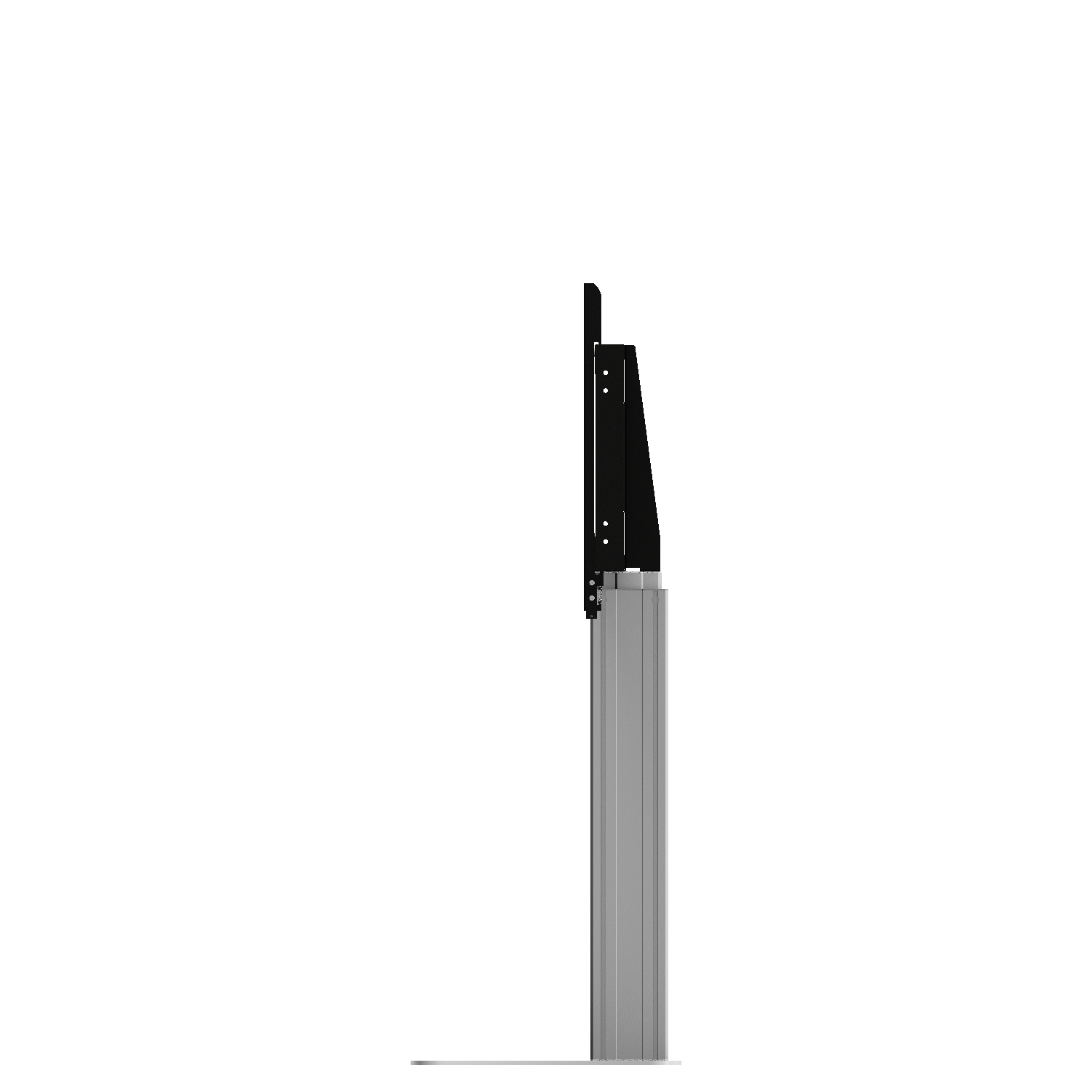

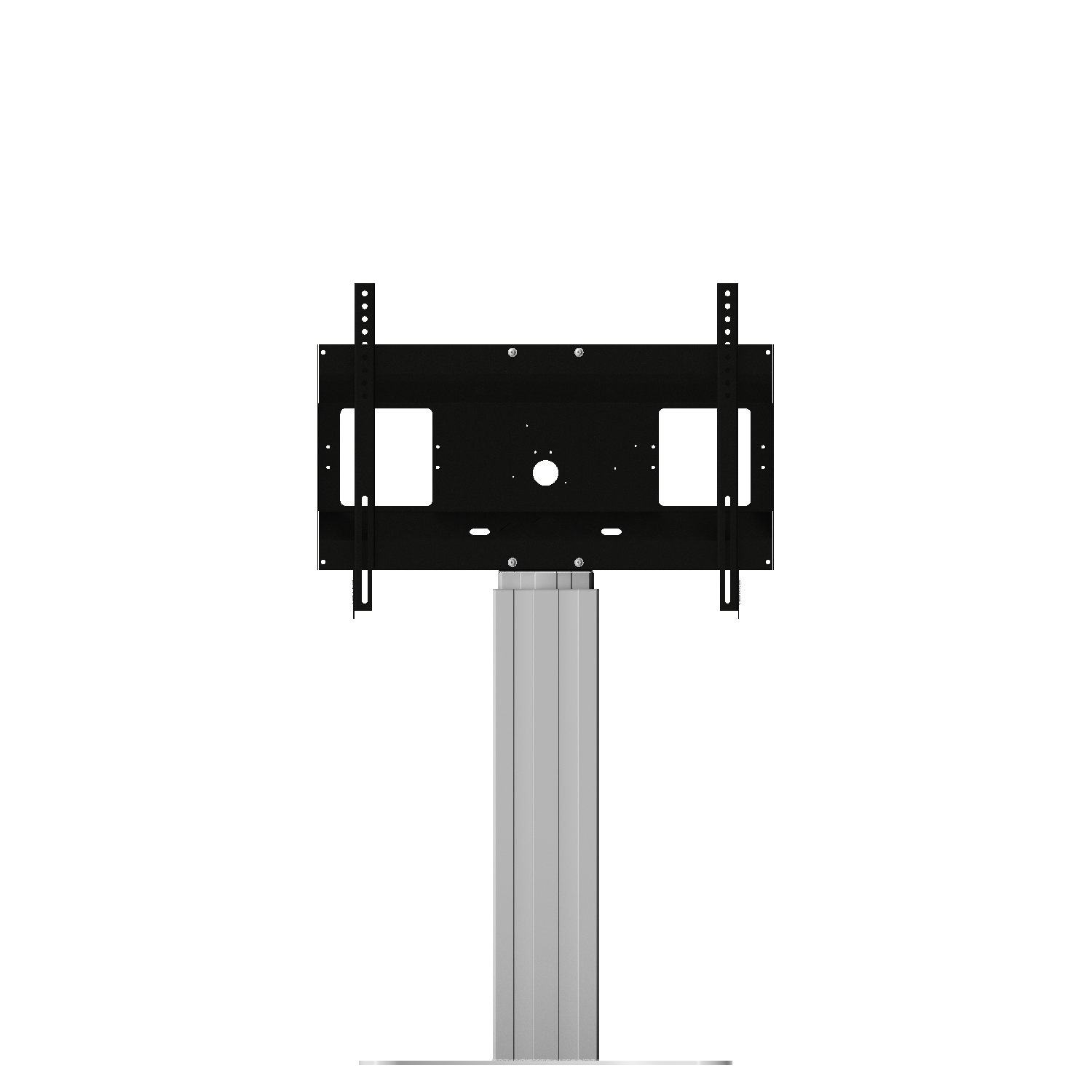

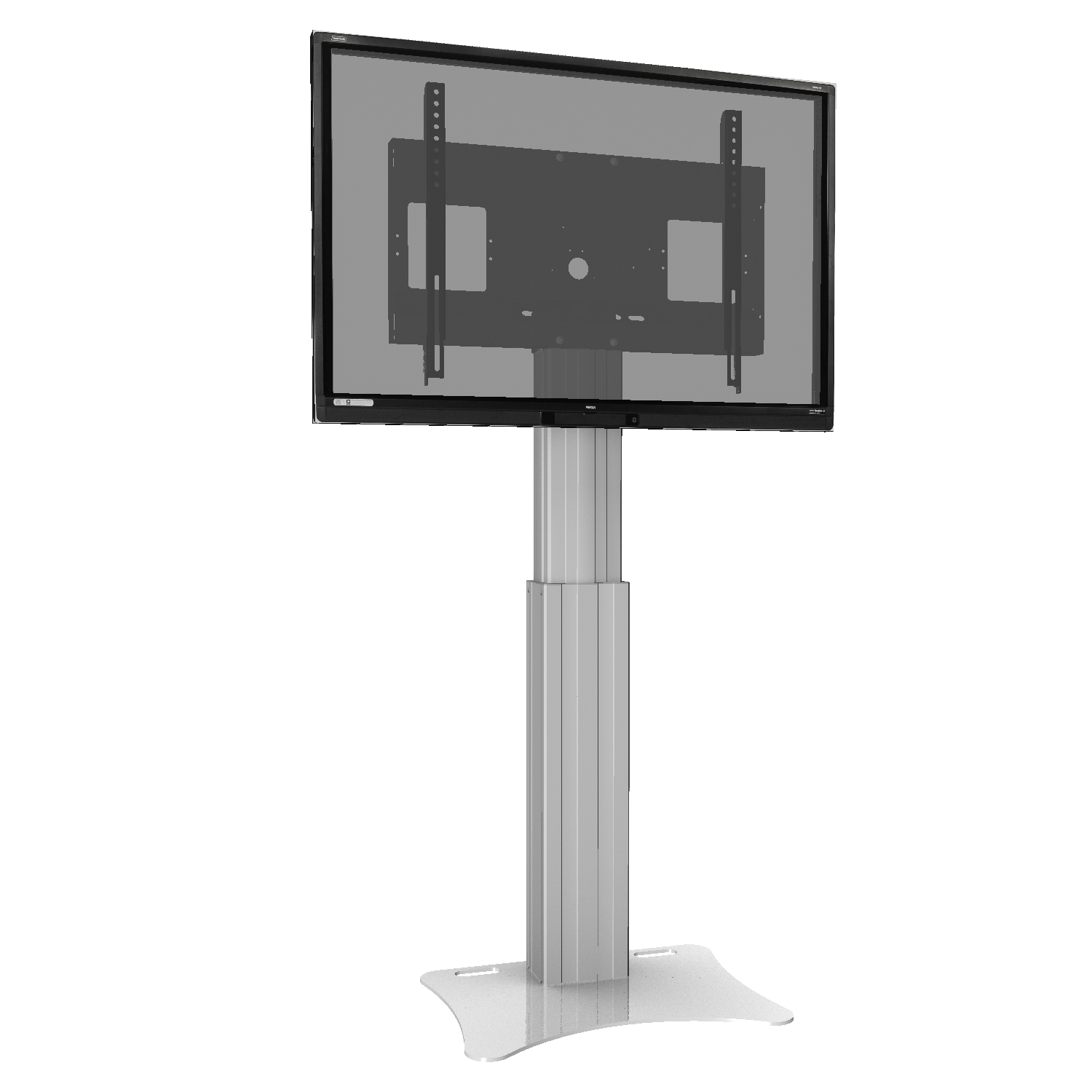

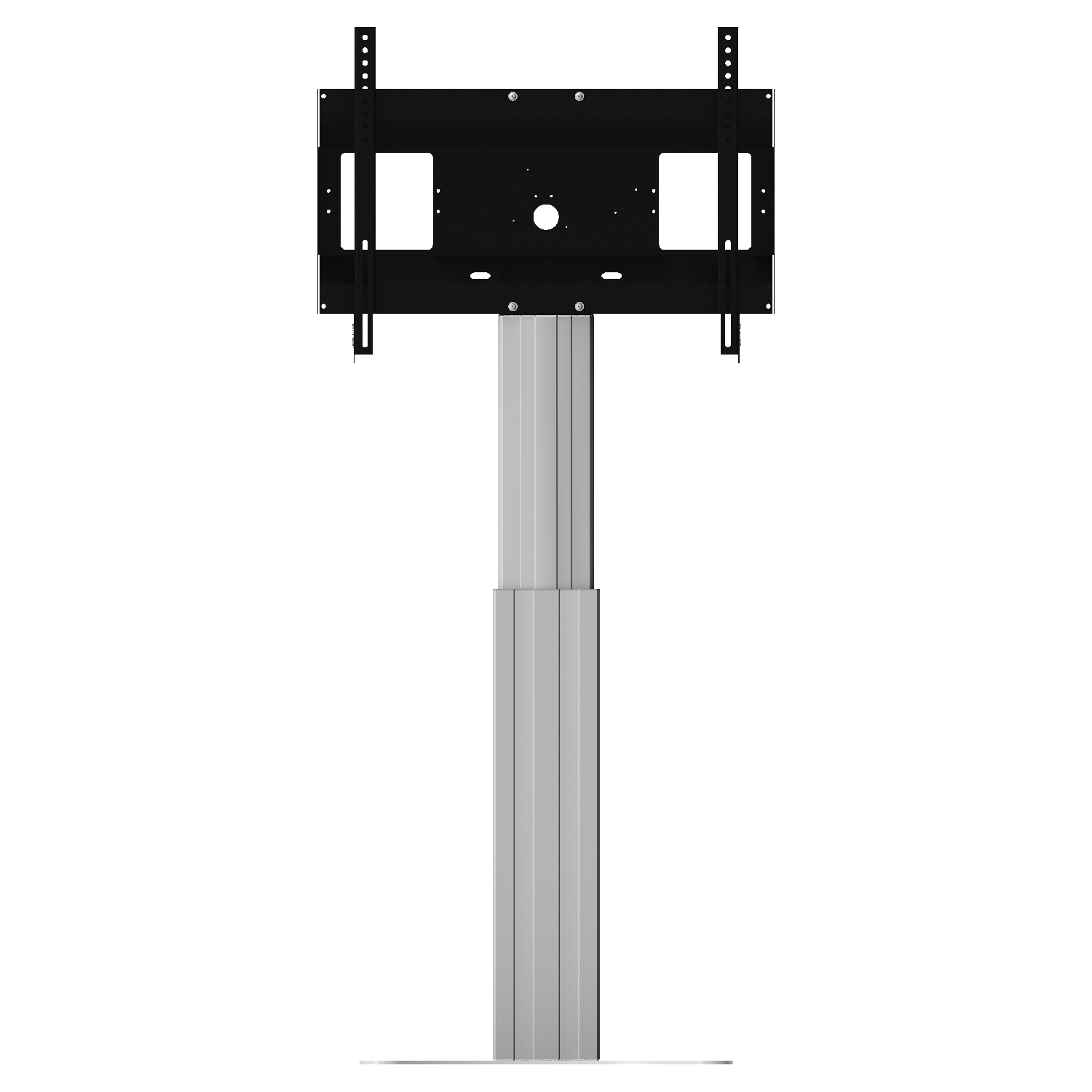

Product image Motorized display stand, 50 cm of vertical travel SCETAP
Product image Motorized display stand, 50 cm of vertical travel SCETAP Product image Motorized display stand, 50 cm of vertical travel SCETAP Product image Motorized display stand, 50 cm of vertical travel SCETAP Product image Motorized display stand, 50 cm of vertical travel SCETAP Product image Motorized display stand, 50 cm of vertical travel SCETAP Product image Motorized display stand, 50 cm of vertical travel SCETAP Product image Motorized display stand, 50 cm of vertical travel SCETAP

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon platform stand
Free-standing
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
299.8 lbs
Icon maximal VESA
Max. Vesa
800 x 600

Accessories

Productimage Laptop side shelf Productimage Side shelf for laptop Productimage Side shelf for laptop Productimage Front shelf Productimage Front shelf Productimage Front shelf Productimage Keyboard shelf Productimage Video conference camera top shelf for displays from 42 - 70 inch Productimage Video conference camera top shelf for displays from 75 - 86 inch Productimage Universal PC bracket Productimage Extender for 2-part height adjustable aluminum columns Productimage Lockable notebook cabinet Productimage Two whiteboard side wings Productimage Brackets and wing lock for locking the side wings in front of the display Productimage U-shaped wall mount Productimage U-shaped wall mount Productimage 2 galvanized wall mounting brackets Productimage 2 galvanized adjustable wall mounting brackets Productimage Foot remote control with 2 shifters in grey

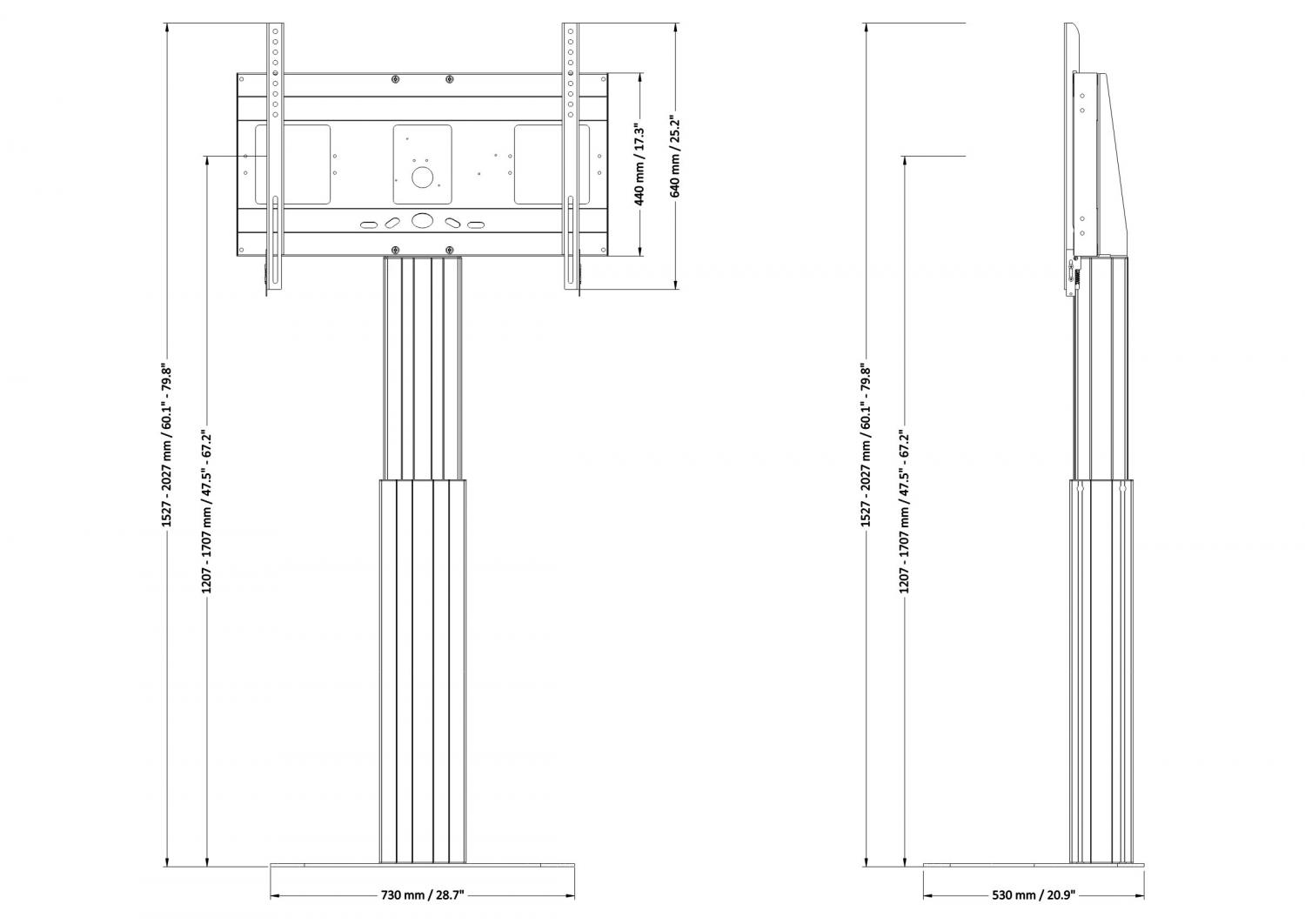

Product details

Item numberSCETAP
Vesa horizontal300 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all42" - 100"
Vertical travel50 cm
Center to floor distance 1207 mm - 1707 mm47.5" - 67.2"
Load capacity136 kg 299.8 lbs
Width 890 mm35"
Height 1527 mm - 2027 mm60.1" - 79.8"
Depth 530 mm20.9"
Weight 64 kg141.1 lbs
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorSilver anodized
Base colorRAL 9006 white aluminum
Packages Package dimensions WxHxD Package weight
AF-SCETA-N900 x 160 x 450 mm / 35.4 x 6.3 x 17.7"13,6 kg / 30 lbs
CCE70-W1180 x 270 x 200 mm / 46.5 x 10.6 x 7.9"23,1 kg / 50.9 lbs
PSTSCETA750 x 20 x 600 mm / 29.5 x 0.8 x 23.6"21,8 kg / 48.1 lbs
Total weight 58,5 kg / 129 lbs
Display mount for displays with max. VESA 800 x 600
Detail image Display mount for displays with max. VESA 800 x 600 SCETAPThis frame accommodates monitors with max. VESA 800 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
Quick snap lock
Detail image Quick snap lock SCETAPWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Remote control of height adjustment
Detail image Remote control of height adjustment SCETAPThe electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.
8 mm strong floor plate
Detail image 8 mm strong floor plate SCETAPThe 8 mm strong base plate allows the mounting of our monitor mounts on lightweight walls or a freestanding installation in the room. The weight of the monitor is transmitted through the column to the floor plate and thus to the floor, maximizing stability.
7 cm (2.76 inch) Z-brackets
Detail image 7 cm (2.76 inch) Z-brackets SCETAPBy default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm (2.76 inch). Further wall mounting solutions are available as accessories.
Wall mounting kit
Detail image Wall mounting kit SCETAPThe system includes a wall mounting set consisting of: two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm, Two sliding blocks incl. nut to attach the brackets to the column, four floor leveling feet and 3 cable clips.
