Motorized display stand with 70 cm of vertical travel

column black anodised, floor plate

Product description

Motorized display stand with extended 70 cm height adjustment. Can be mounted to a wall.

The SCETAP3535B stand is designed for large format displays up to 100”. The solution includes a sturdy display mount offering integrated cable management and featuring two "pull & lock" brackets for quick and easy mounting of the display.

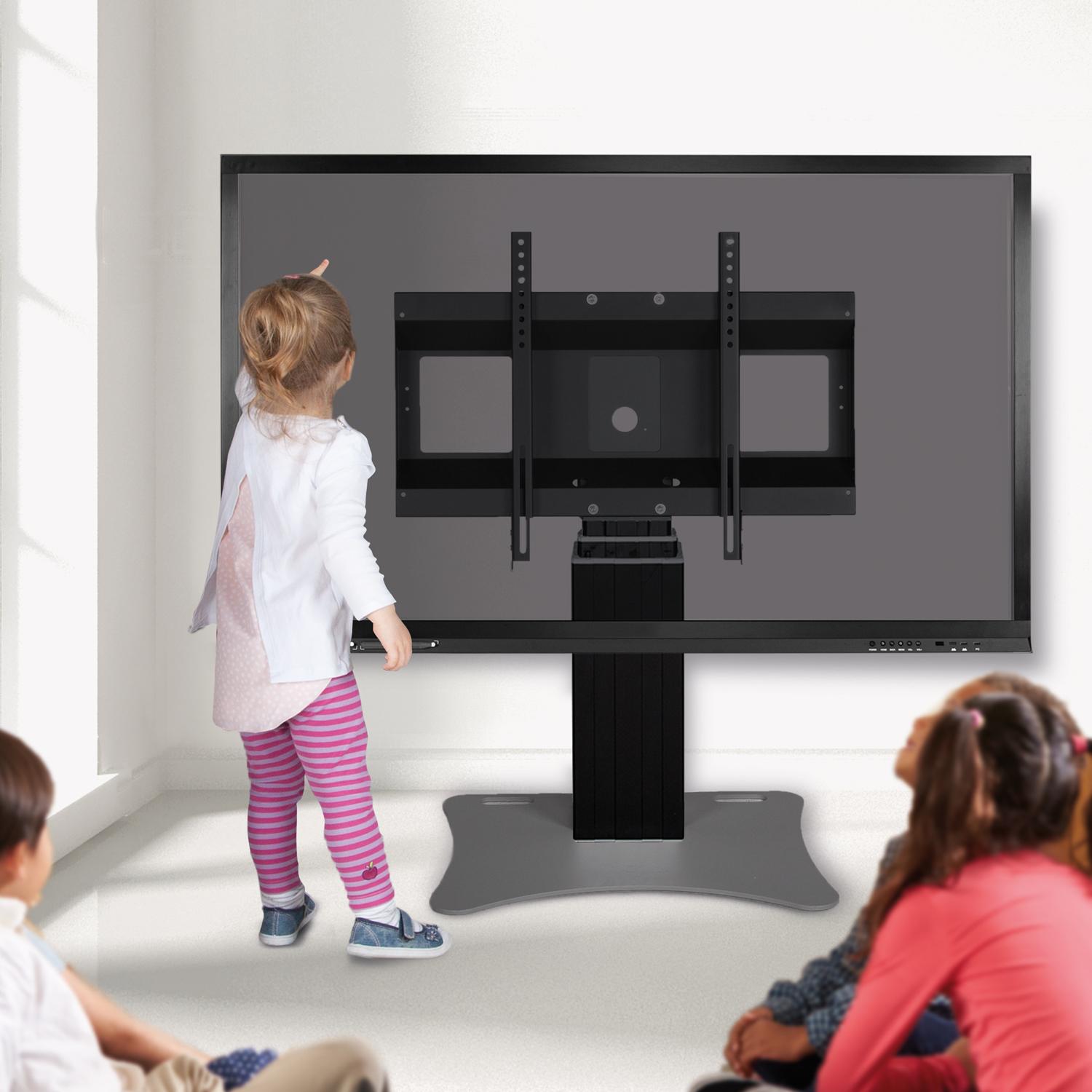

The SCETAP3535B display stand features a 3-tier column with extended 70 cm of height adjustment. It provides minimum clearance for small children or people in wheelchairs to access the display and maximum clearance for the teacher to present.

A 0.3" thick, solid steel plate secures to the motorized center column. Designed for static, freestanding applications or to add stability to wall mount systems, secured to e.g. a stud wall. The floor plate features cut-outs/ handles for easy transportation. It comes powdercoated in grey aluminum.

The unit comes flat-packed in 3 cartons and is courier shippable.


Features

  • Heavy duty mount for displays up to 100"
  • "Pull & release" brackets for easy mounting of display
  • VESA pattern, max. 800 x 600
  • Integrated cable management
  • 70 cm of smooth motorized height adjustment
  • Optimum stability thanks to the floor plate and 2 wall mount brackets

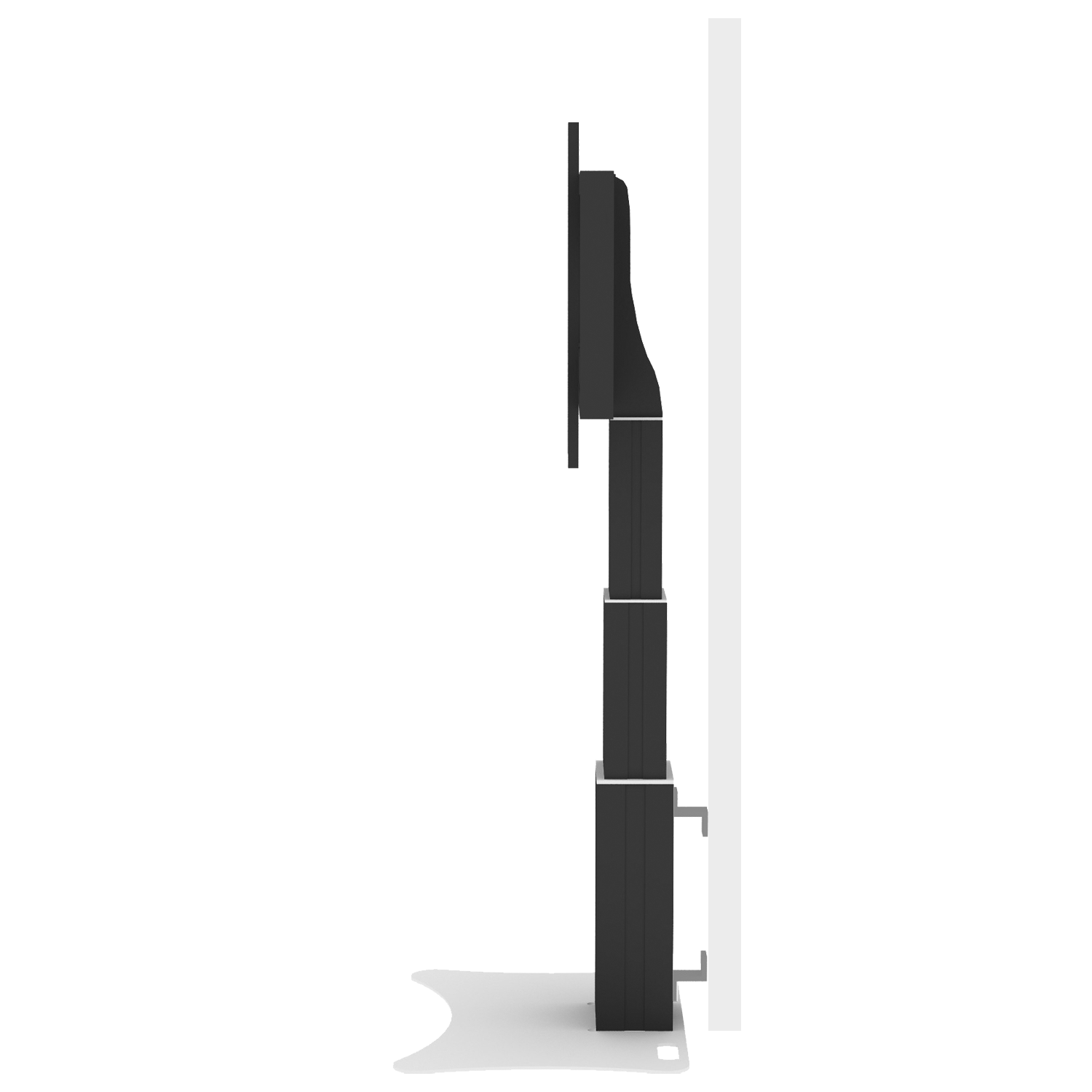

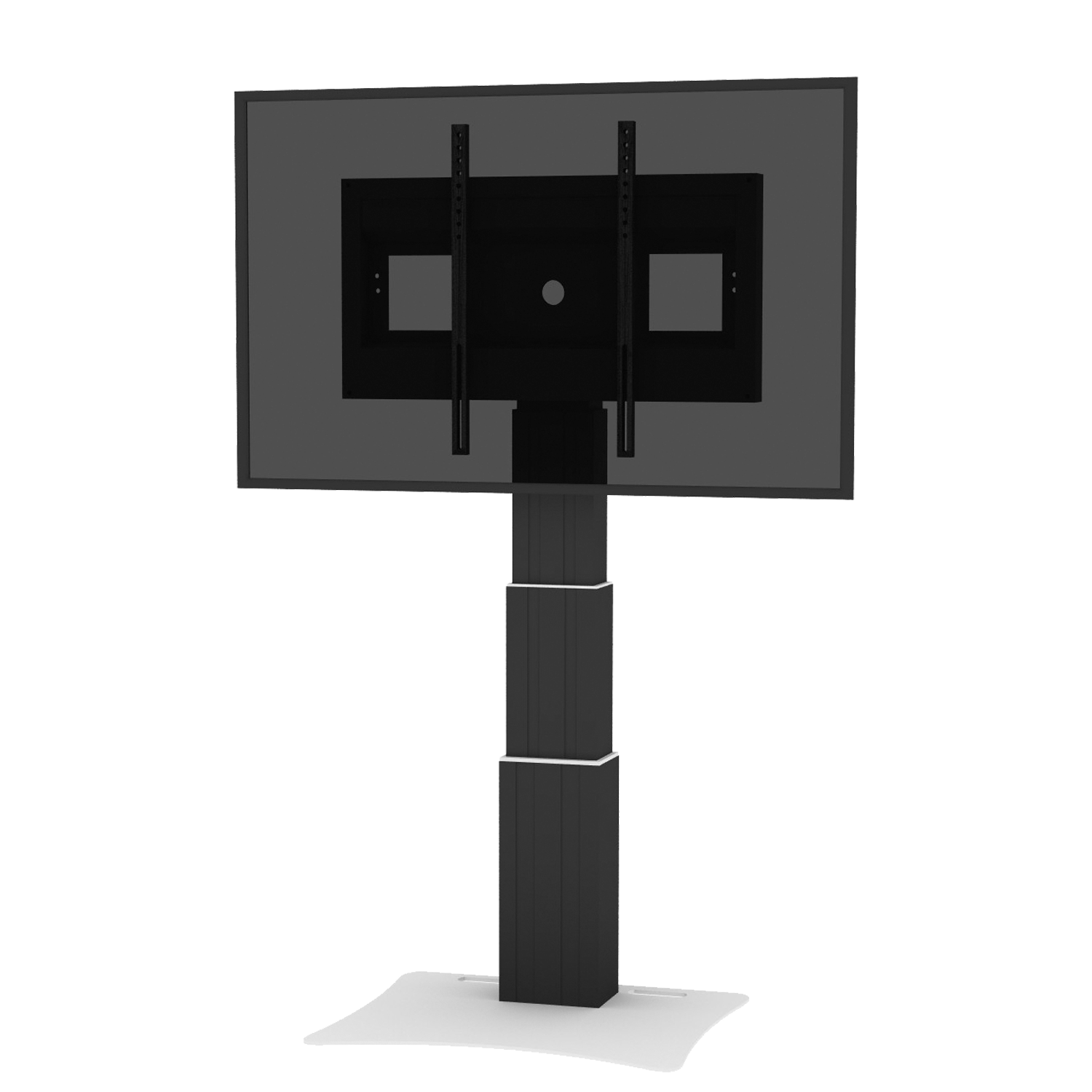

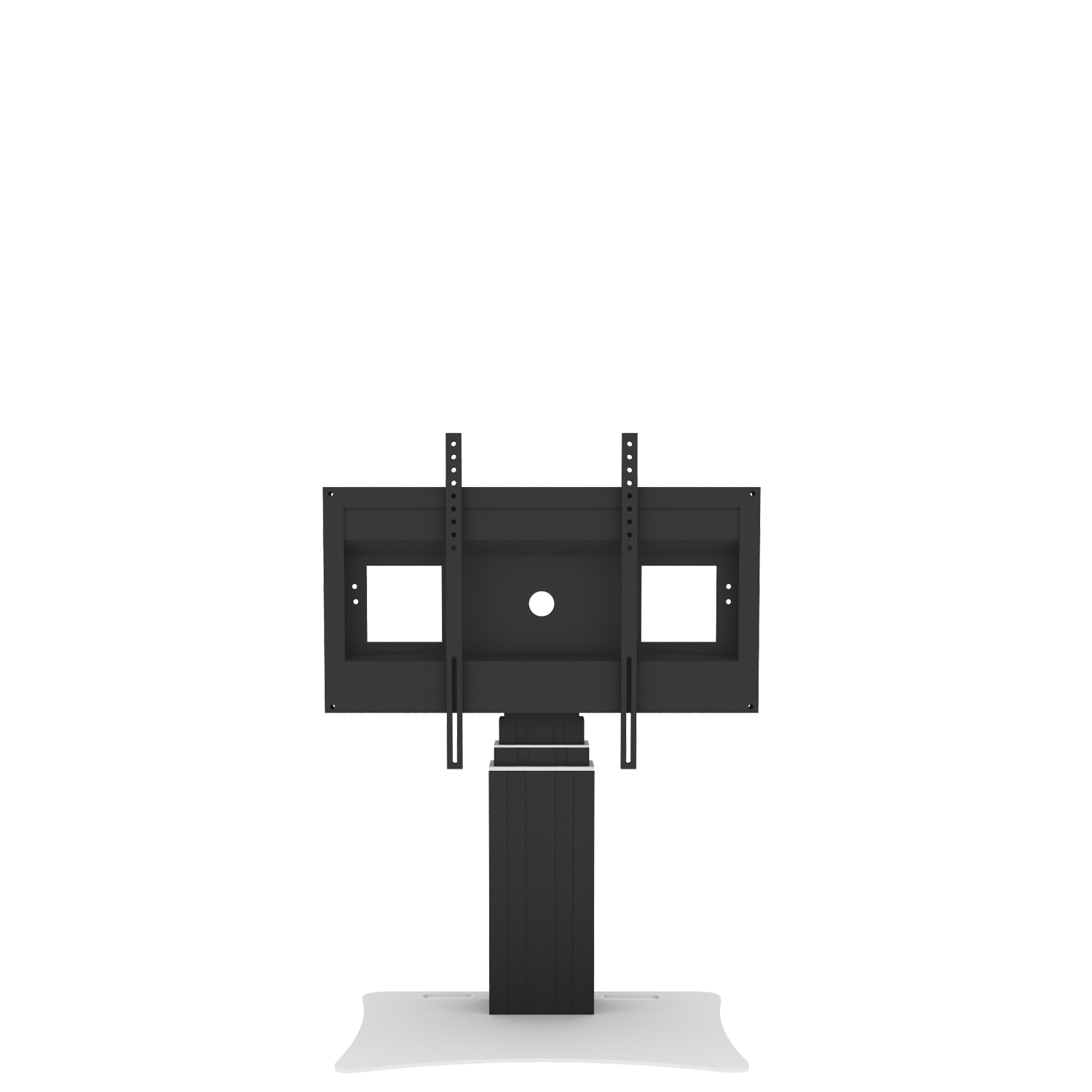

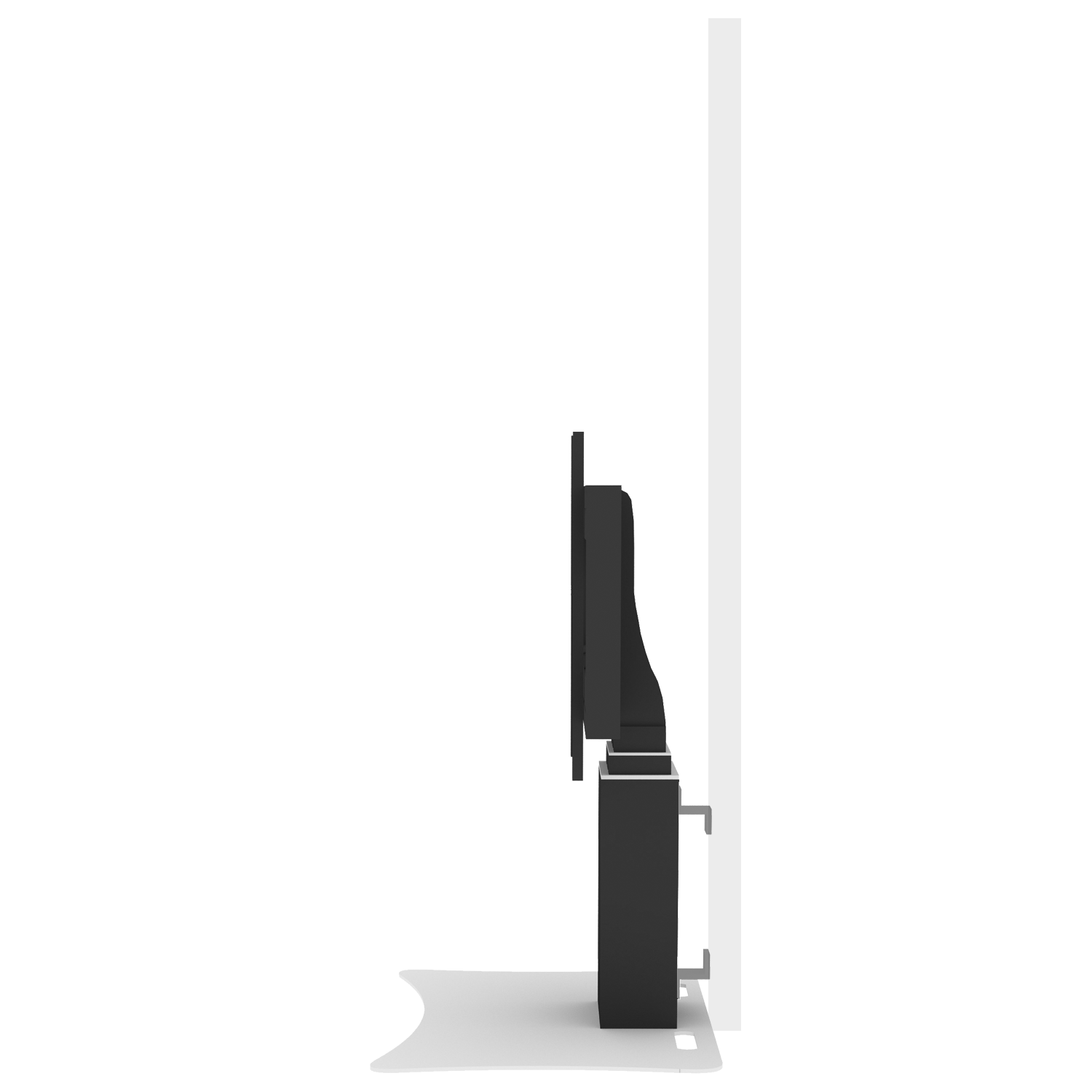

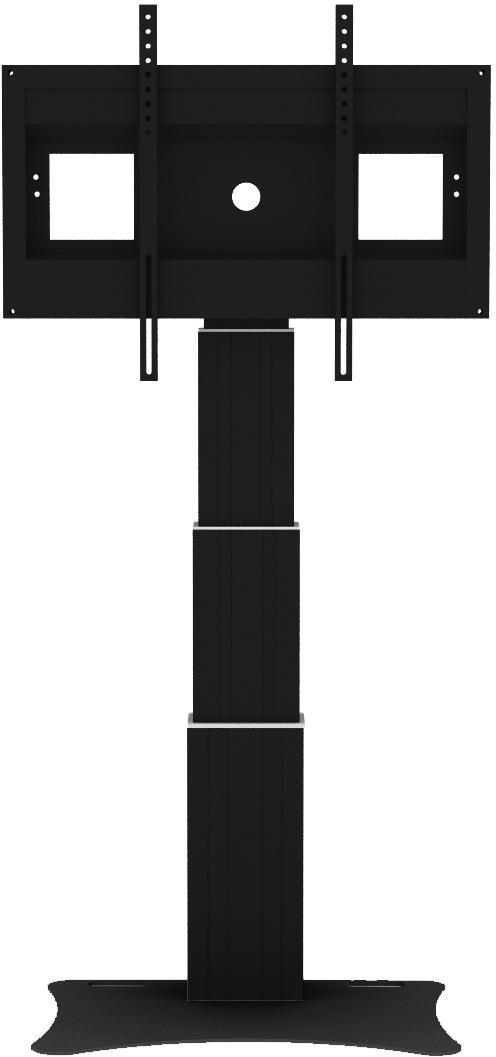

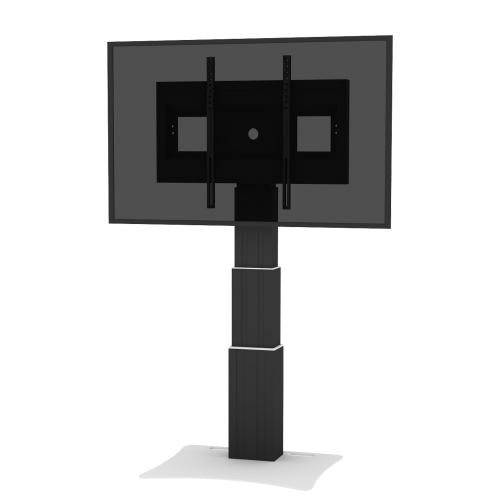

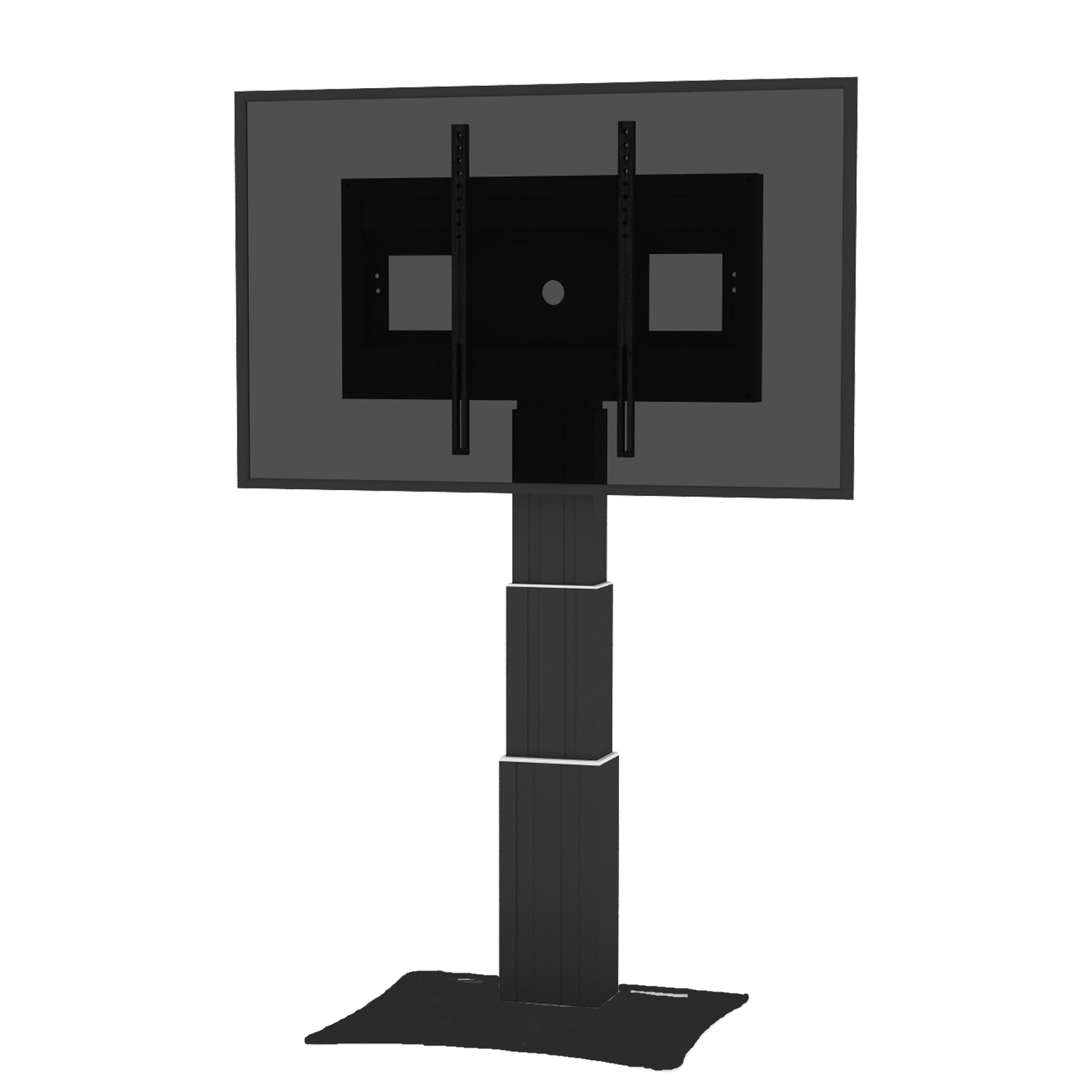

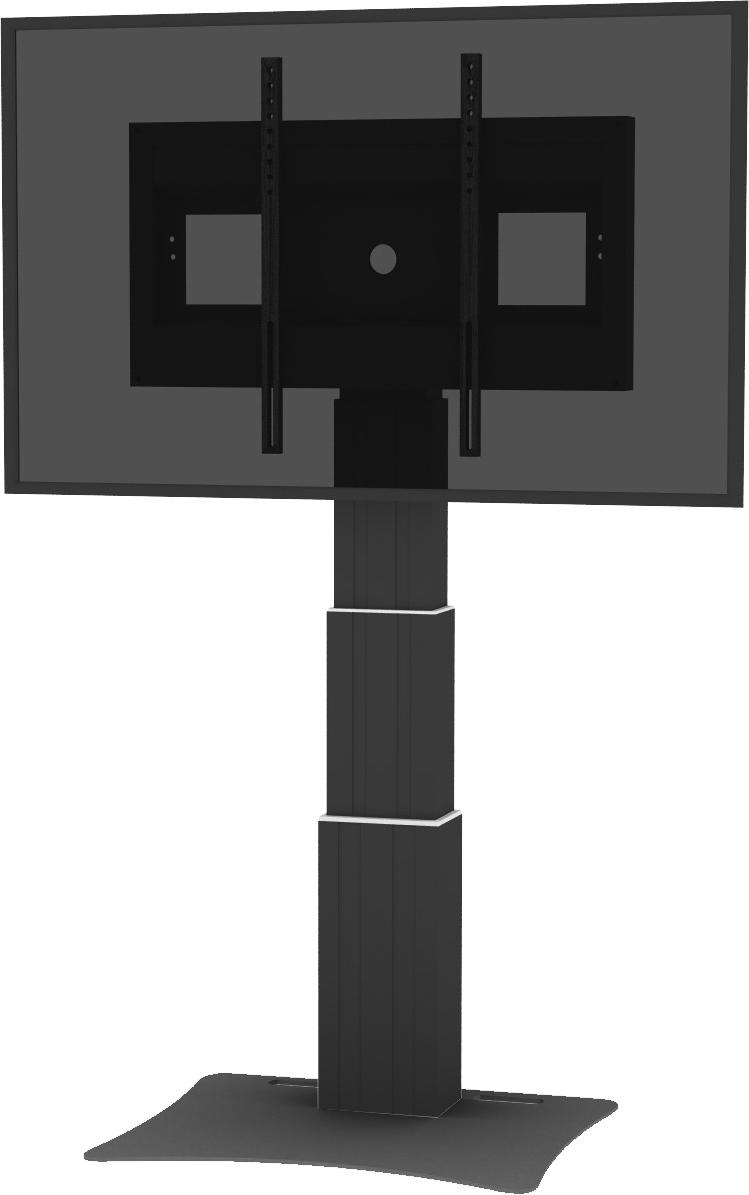

Product image Motorized display stand with 70 cm of vertical travel SCETAP3535B
Product image Motorized display stand with 70 cm of vertical travel SCETAP3535B Product image Motorized display stand with 70 cm of vertical travel SCETAP3535B Product image Motorized display stand with 70 cm of vertical travel SCETAP3535B Product image Motorized display stand with 70 cm of vertical travel SCETAP3535B Product image Motorized display stand with 70 cm of vertical travel SCETAP3535B

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon platform stand
Free-standing
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
330.7 lbs
Icon maximal VESA
Max. Vesa
800 x 600

Accessories

Productimage Keyboard shelf Productimage Universal PC bracket Productimage Laptop side shelf Productimage Front shelf Productimage Side shelf for laptop Productimage Side shelf for laptop Productimage Side shelf for laptop Productimage Front shelf Productimage Front shelf Productimage Front shelf Productimage Video conference camera top shelf for displays from 75 - 86 inch Productimage Video conference camera top shelf for displays from 42 - 70 inch Productimage Extender for 3-part height adjustable aluminum columns Productimage Two whiteboard side wings Productimage Lockable notebook cabinet Productimage Foot remote control with 2 shifters in grey Productimage U-shaped wall mount Productimage U-shaped wall mount Productimage 2 galvanized adjustable wall mounting brackets Productimage 2 galvanized wall mounting brackets Productimage Brackets and wing lock for locking the side wings in front of the display Productimage Safety padlock 1 piece Productimage Safety padlock 4 pieces

Product details

Item numberSCETAP3535B
Vesa horizontal200 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all42" - 100"

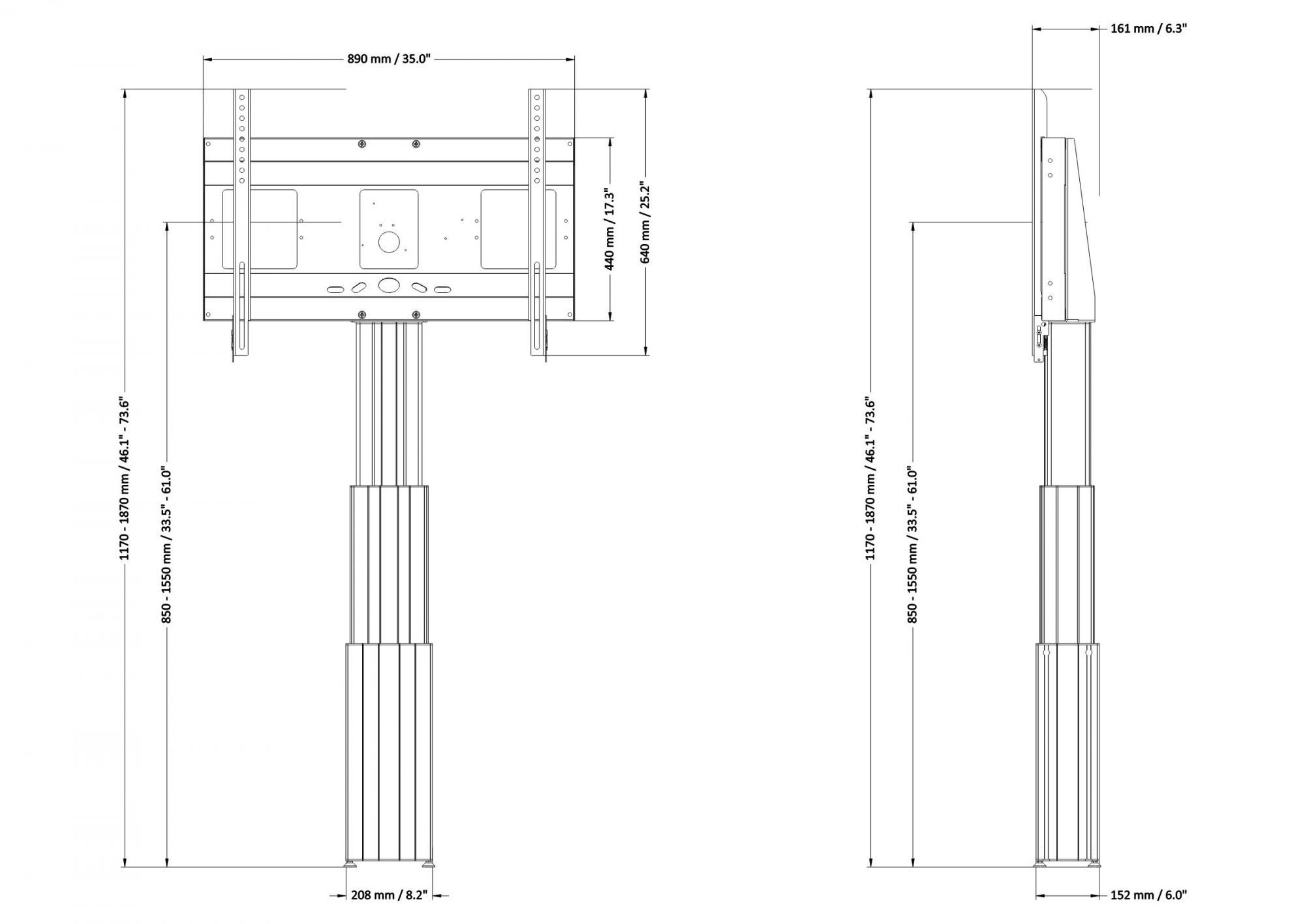

Center to floor distance 815 mm - 1515 mm32.1" - 59.6"
Load capacity150 kg 330.7 lbs
Warranty5 years warranty
Frame colorRAL 9005 deep black
Column colorBlack anodized
Chassis colorRAL 9006 white aluminum
Packages Package dimensions WxHxD Package weight
AF-SCETA-N900 x 160 x 450 mm / 35.4 x 6.3 x 17.7"13,6 kg / 30 lbs
CCE-3535WB760 x 270 x 220 mm / 29.9 x 10.6 x 8.7"24 kg / 52.9 lbs
PSTSCETA750 x 20 x 600 mm / 29.5 x 0.8 x 23.6"21,8 kg / 48.1 lbs
Total weight 59,4 kg / 131 lbs
Display mount for 42" to 100" displays
Detail image Display mount for 42This frame accommodates 42 to 100 inch monitors. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
Quick snap lock
Detail image Quick snap lock SCETAP3535BWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Remote control of height adjustment
Detail image Remote control of height adjustment SCETAP3535BThe electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.
8 mm strong floor plate
Detail image 8 mm strong floor plate SCETAP3535BThe 8 mm strong base plate allows the mounting of our monitor mounts on lightweight walls or a freestanding installation in the room. The weight of the monitor is transmitted through the column to the floor plate and thus to the floor, maximizing stability.
2.76 inch Z-brackets
Detail image 2.76 inch Z-brackets SCETAP3535BBy default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 2.76 inch (7 cm). Further wall mounting solutions are available as accessories.
