Motorized display wall mount, 50 cm of vertical travel

column silver anodized, center of display 121,5- 171,5 cm
Item number: SCETAW

Product description

Motorized display wall mount for 42"-100" (interactive) flat-panel displays.

The SCETAW is designed for flat panel displays up to 100”. The unit features a sturdy display mount with integrated cable management and "pull & release" locking brackets for quick and easy mounting of the display.

The SCETAW display wall mount comes with a column that offers 50 cm of vertical travel.

The unit comes flat-packed in 2 cartons and is courier-shippable.


Features

  • Heavy duty mount for displays up to 100"
  • "Pull & Release" brackets for easy mounting of display
  • VESA pattern, max. 800 x 600
  • Integrated cable management
  • 50 cm of smooth motorized height adjustment
  • 4 Levelling feet + 2 wall mounting brackets for maximum stability
Product image Motorized display wall mount, 50 cm of vertical travel SCETAW
Product image Motorized display wall mount, 50 cm of vertical travel SCETAW Product image Motorized display wall mount, 50 cm of vertical travel SCETAW Product image Motorized display wall mount, 50 cm of vertical travel SCETAW Product image Motorized display wall mount, 50 cm of vertical travel SCETAW Product image Motorized display wall mount, 50 cm of vertical travel SCETAW Product image Motorized display wall mount, 50 cm of vertical travel SCETAW Product image Motorized display wall mount, 50 cm of vertical travel SCETAW

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
299.8 lbs
Icon maximal VESA
Max. Vesa
800 x 600
Item numberSCETAW
Vesa horizontal300 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all42" - 100"
Vertical travel50 cm

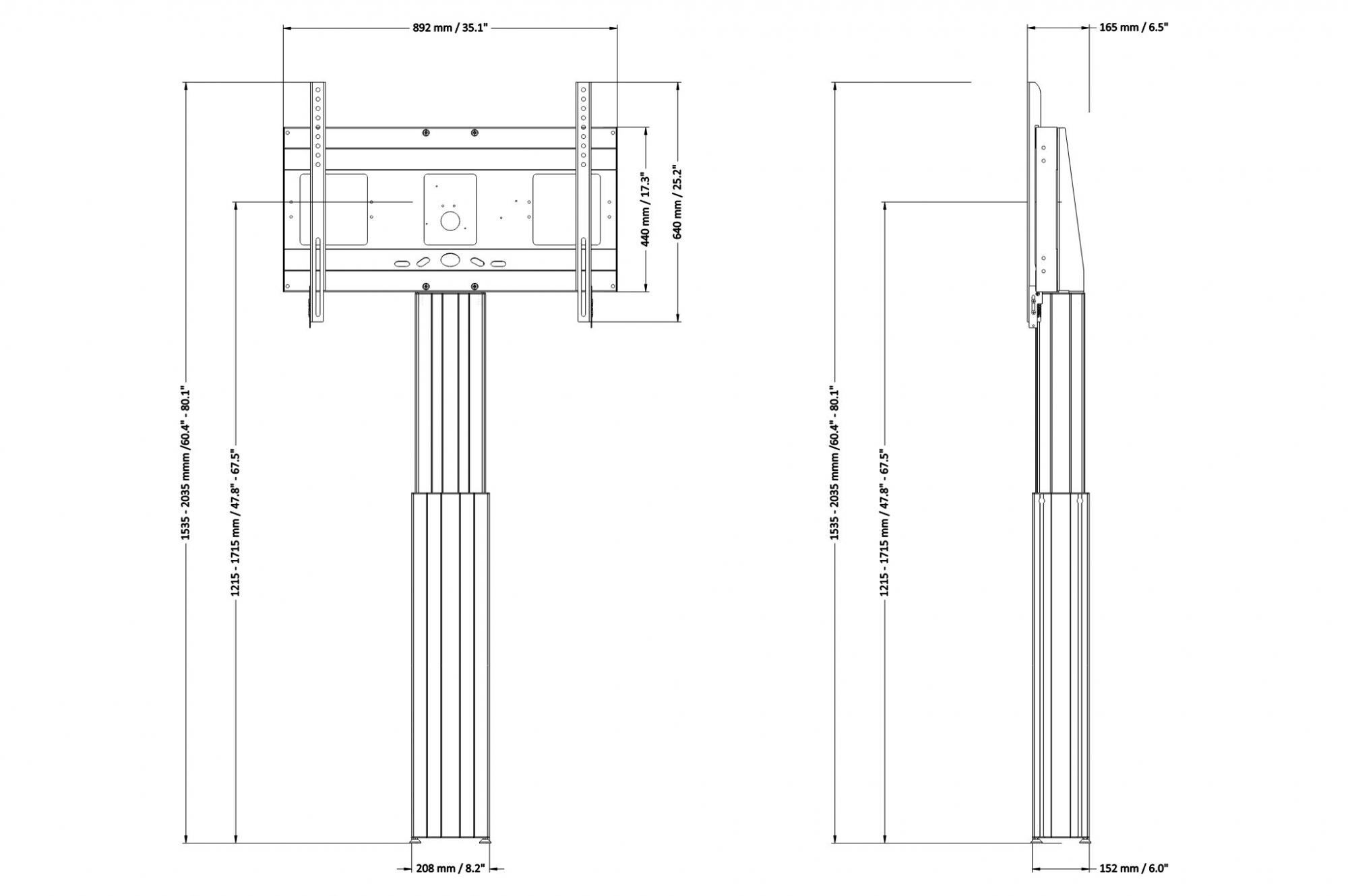

Center to floor distance 1215 mm - 1715 mm47.8" - 67.5"
Load capacity136 kg 299.8 lbs
Width 892 mm35.1"
Height 1535 mm - 2035 mm60.4" - 80.1"
Depth 165 mm6.5"
Weight 34,6 kg76.3 lbs
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorSilver anodized
Packages Package dimensions WxHxD Package weight
AF-SCETA-N900 x 160 x 450 mm / 35.4 x 6.3 x 17.7"13,6 kg / 30 lbs
CCE70-W1180 x 270 x 200 mm / 46.5 x 10.6 x 7.9"23,1 kg / 50.9 lbs
Total weight 36,7 kg / 80.9 lbs
Display mount for displays with max. VESA 800 x 600
Detail image Display mount for displays with max. VESA 800 x 600 SCETAWThis frame accommodates monitors with max. VESA 800 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
Quick snap lock
Detail image Quick snap lock SCETAWWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Remote control of height adjustment
Detail image Remote control of height adjustment SCETAWThe electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.
Four leveling feet
Detail image Four leveling feet SCETAWThese four leveling feet allow you to level out any unevenness in the floor so that the monitor wall mount can transfer the weight of the monitor over the column to the floor. For this purpose, the individual ground leveling foot can be turned in or out.
7 cm (2.76 inch) Z-brackets
Detail image 7 cm (2.76 inch) Z-brackets SCETAWBy default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm (2.76 inch). Further wall mounting solutions are available as accessories.
Wall mounting kit
Detail image Wall mounting kit SCETAWThe system includes a wall mounting set consisting of: two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm, Two sliding blocks incl. nut to attach the brackets to the column, four floor leveling feet and 3 cable clips.
