Motorized heavy duty XL flat screen tv & monitor cart with 70 cm of vertical travel

two columns silver anodized, H-style base
Item number: SCETAD3535

Product description

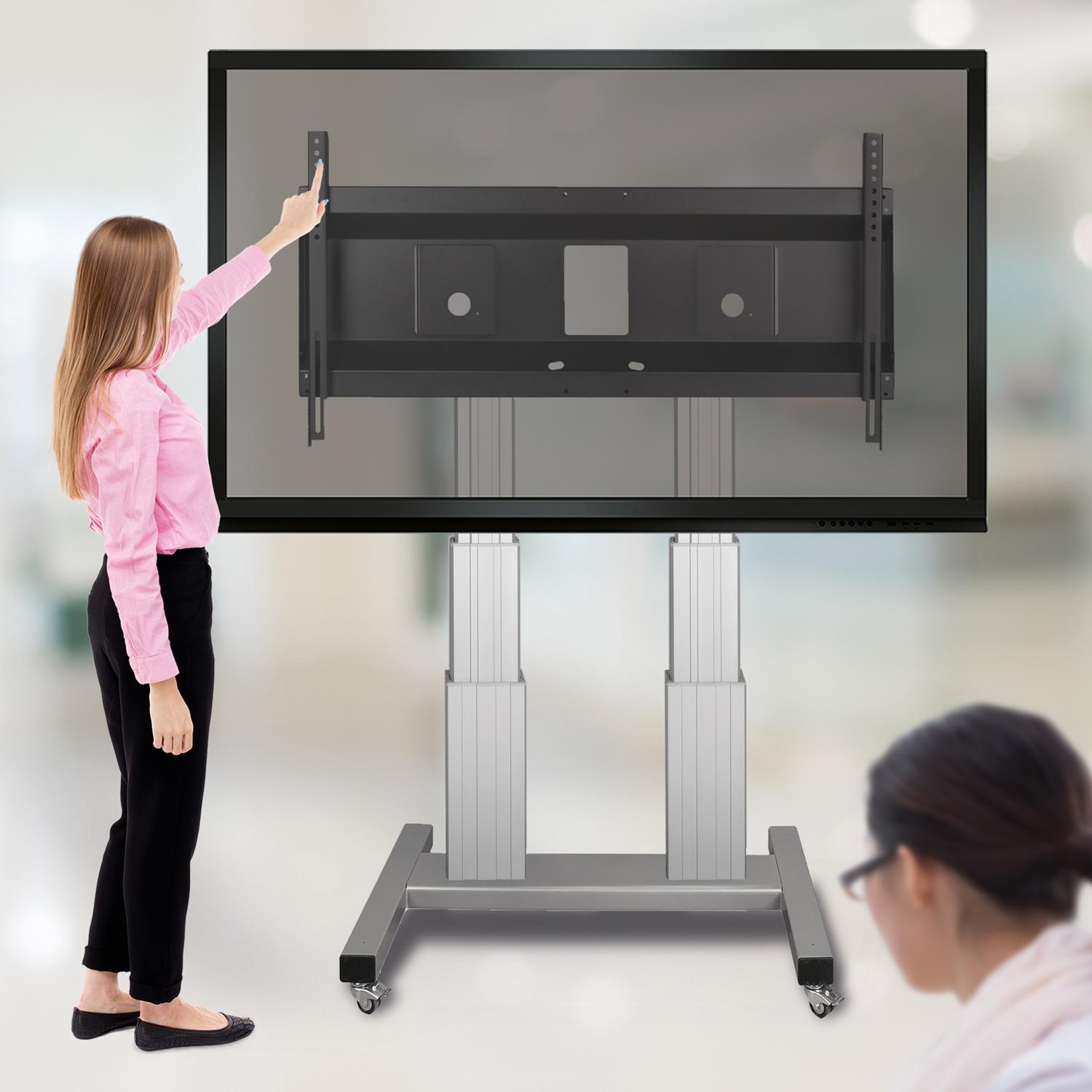

Motorized mobile flat screen tv cart with XL display mount.

Designed specifically for use with interactive touch screen displays, this motorized mobile tv cart features an extra wide display bracket. The mobile solution comes standard with two 3-tier columns which offer 70 cm of height adjustment. Large handles on each side of the display are optionally available for the mobile stand to increase mobility and to help protect the display in transport.

Product ships flat-packed. Cartons are courier shippable.


Features

  • XL wide monitor cart with max. VESA 1200x600
  • Designed for use with LFDs and IFPDs
  • Easy mounting of display thanks to "pull & release" brackets
  • Display mount with integrated cable management
  • Two synchonized columns offering 70 cm of vertical travel
  • Wired remote is standard included

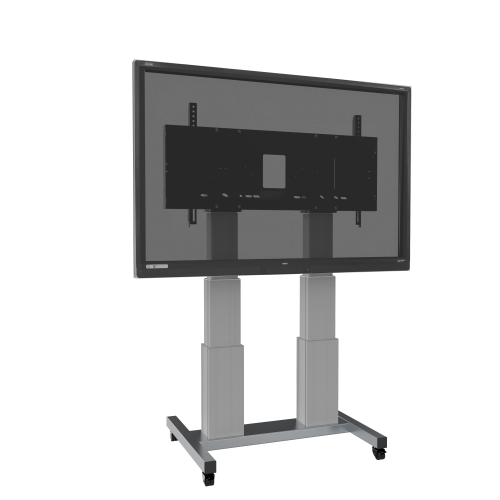

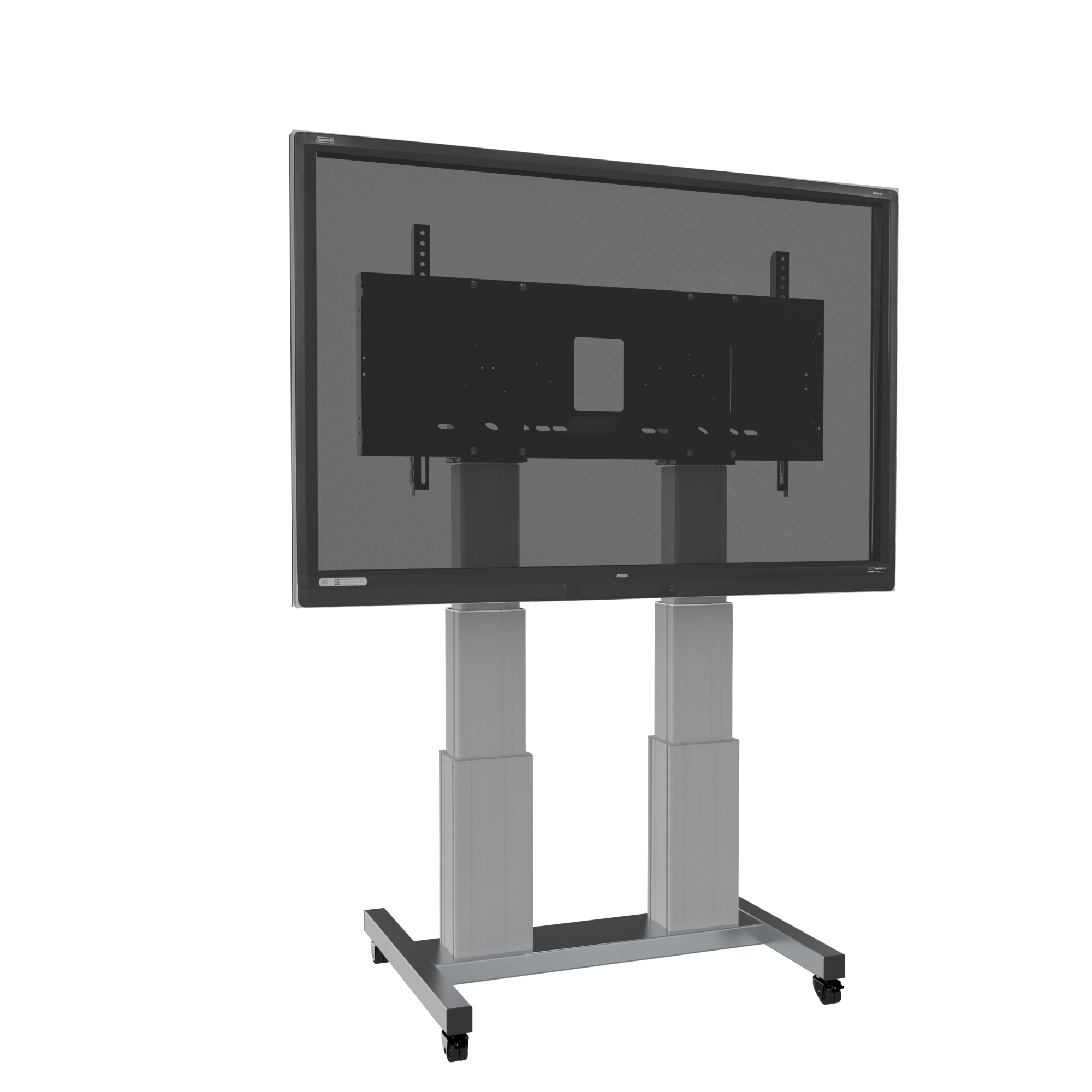

Product image Motorized heavy duty XL flat screen tv & monitor cart with 70 cm of vertical travel SCETAD3535
Product image Motorized heavy duty XL flat screen tv & monitor cart with 70 cm of vertical travel SCETAD3535 Product image Motorized heavy duty XL flat screen tv & monitor cart with 70 cm of vertical travel SCETAD3535 Product image Motorized heavy duty XL flat screen tv & monitor cart with 70 cm of vertical travel SCETAD3535 Product image Motorized heavy duty XL flat screen tv & monitor cart with 70 cm of vertical travel SCETAD3535 Product image Motorized heavy duty XL flat screen tv & monitor cart with 70 cm of vertical travel SCETAD3535

Icon display mounts
Display mount
Icon mobile stand
Mobile
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
551.2 lbs
Icon maximal VESA
Max. Vesa
1200 x 600
Item numberSCETAD3535
Vesa horizontal400 mm - 1200 mm
Vesa vertical200 mm - 600 mm
Frame for all70" - 120"
Vertical travel70 cm

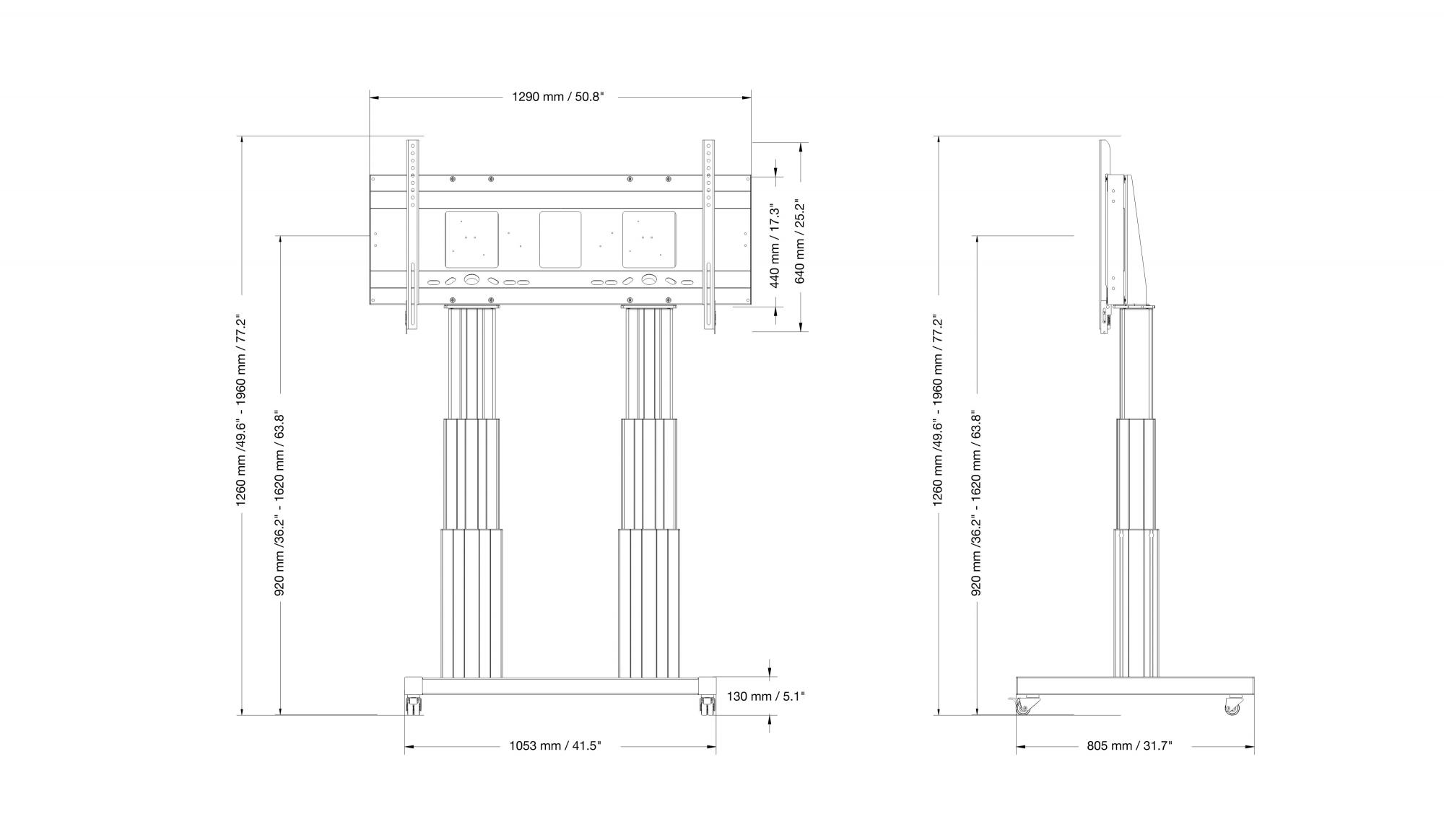

Center to floor distance 965 mm - 1665 mm38" - 65.6"
Load capacity250 kg 551.2 lbs
Width 1290 mm50.8"
Height 1285 mm - 1985 mm50.6" - 78.1"
Depth 720 mm28.3"
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorSilver anodized
Base colorRAL 9006 white aluminum
Packages Package dimensions WxHxD Package weight
AFSCETAN12D1295 x 160 x 450 mm / 51 x 6.3 x 17.7"18 kg / 39.7 lbs
MST-SCETA21130 x 745 x 210 mm / 44.5 x 29.3 x 8.3"26 kg / 57.3 lbs
Total weight 44 kg / 97 lbs
Display mount XL for displays for 2 pylon columns with max. VESA 1200 x 600
Detail image Display mount XL for displays for 2 pylon columns with max. VESA 1200 x 600 SCETAD3535This XL frame accommodates monitors with max. VESA 1200 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
Quick snap lock
Detail image Quick snap lock SCETAD3535With the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Remote control of height adjustment
Detail image Remote control of height adjustment SCETAD3535The electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.
H-mobile stand
Detail image H-mobile stand SCETAD3535Our white H chassis has 4 smooth castors, two of which are lockable to fix the tv cart & mobile monitor stand in place. Due to the special H shape even wheelchair users can approach very close to the display.
Double-castor mobile stand
Detail image Double-castor mobile stand SCETAD3535The smooth-running wheels on our chassis make it easy to move the mobile monitor stand and flat screen tv cart even with heavy displays. The castors have a diameter of 50 mm.
Product sheet DE/EN
SCETAD3535
Image PDF download Image show PDF
Product sheet EN
SCETAD3535
Image PDF download Image show PDF
User manual general
SCETAD3535
Image PDF download Image show PDF
