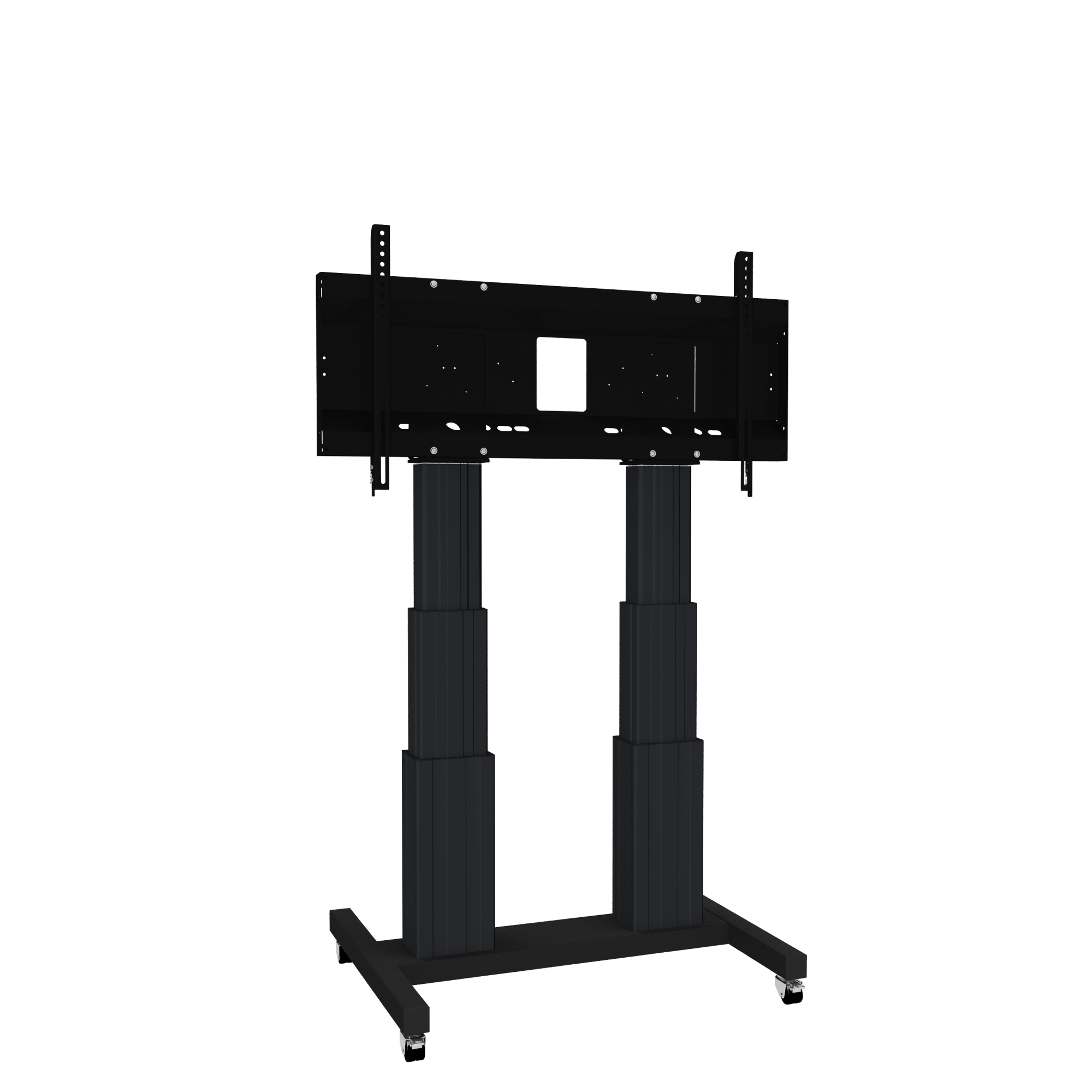

Motorized heavy duty XL flat screen tv & monitor cart with 70 cm of vertical travel

two columns black anodized, H-style base
Item number: SCETAD3535B

Product description

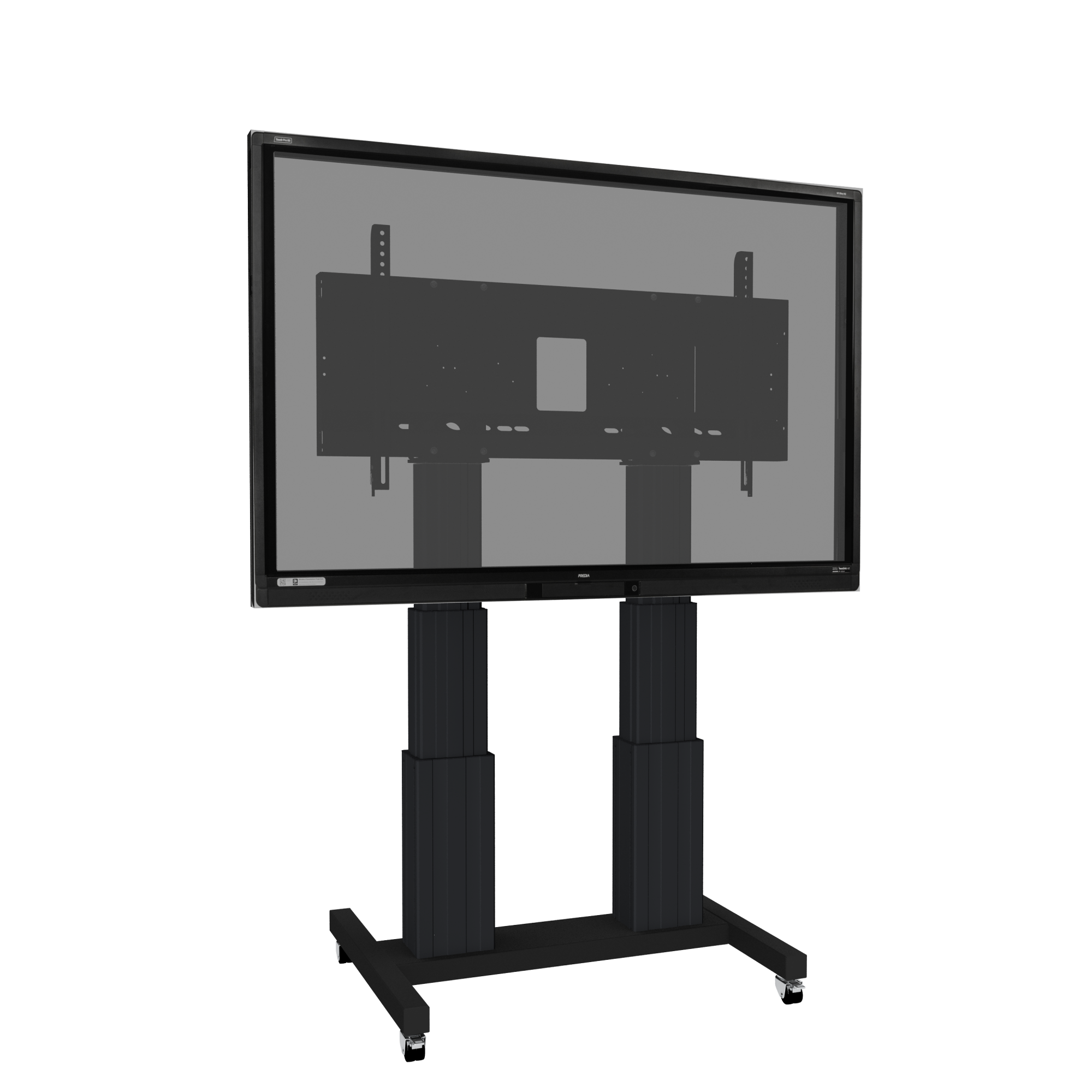

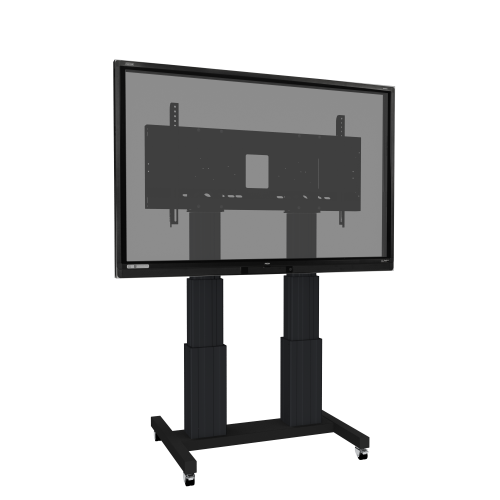

Motorized mobile display & monitor stand with XL display mount.

Designed specifically for use with interactive touch screen displays, this motorized mobile tv cart features an extra wide display bracket. The mobile solution comes standard with two 3-tier columns which offer 70 cm of height adjustment. Large handles on each side of the display are optionally available for the mobile stand to increase mobility and to help protect the display in transport.

Product ships flat-packed. Cartons are courier shippable.


Features

  • XL wide display tv cart with VESA 1200x600
  • Designed for use with LFDs and IFPDs
  • Easy mounting of display thanks to "pull & release" brackets
  • Monitor cart with integrated cable management
  • Two synchronized columns offering 70 cm of vertical travel
  • Wired remote is standard included
Product image Motorized heavy duty XL flat screen tv & monitor cart with 70 cm of vertical travel SCETAD3535B
Product image Motorized heavy duty XL flat screen tv & monitor cart with 70 cm of vertical travel SCETAD3535B Product image Motorized heavy duty XL flat screen tv & monitor cart with 70 cm of vertical travel SCETAD3535B Product image Motorized heavy duty XL flat screen tv & monitor cart with 70 cm of vertical travel SCETAD3535B Product image Motorized heavy duty XL flat screen tv & monitor cart with 70 cm of vertical travel SCETAD3535B Product image Motorized heavy duty XL flat screen tv & monitor cart with 70 cm of vertical travel SCETAD3535B Product image Motorized heavy duty XL flat screen tv & monitor cart with 70 cm of vertical travel SCETAD3535B

Icon display mounts
Display mount
Icon mobile stand
Mobile
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
551.2 lbs
Icon maximal VESA
Max. Vesa
1200 x 600

Accessories

Productimage Laptop side shelf Productimage Side shelf for laptop Productimage Side shelf for laptop Productimage Keyboard shelf Productimage Video conference camera top shelf for displays from 42 - 70 inch Productimage Video conference camera top shelf for displays from 75 - 86 inch Productimage Lockable mini PC bracket for frame mounting Productimage Two large and sturdy handles including laptop shelf Productimage Extender for 3-part height adjustable aluminum columns Productimage Lockable notebook cabinet Productimage Lockable wall brackets

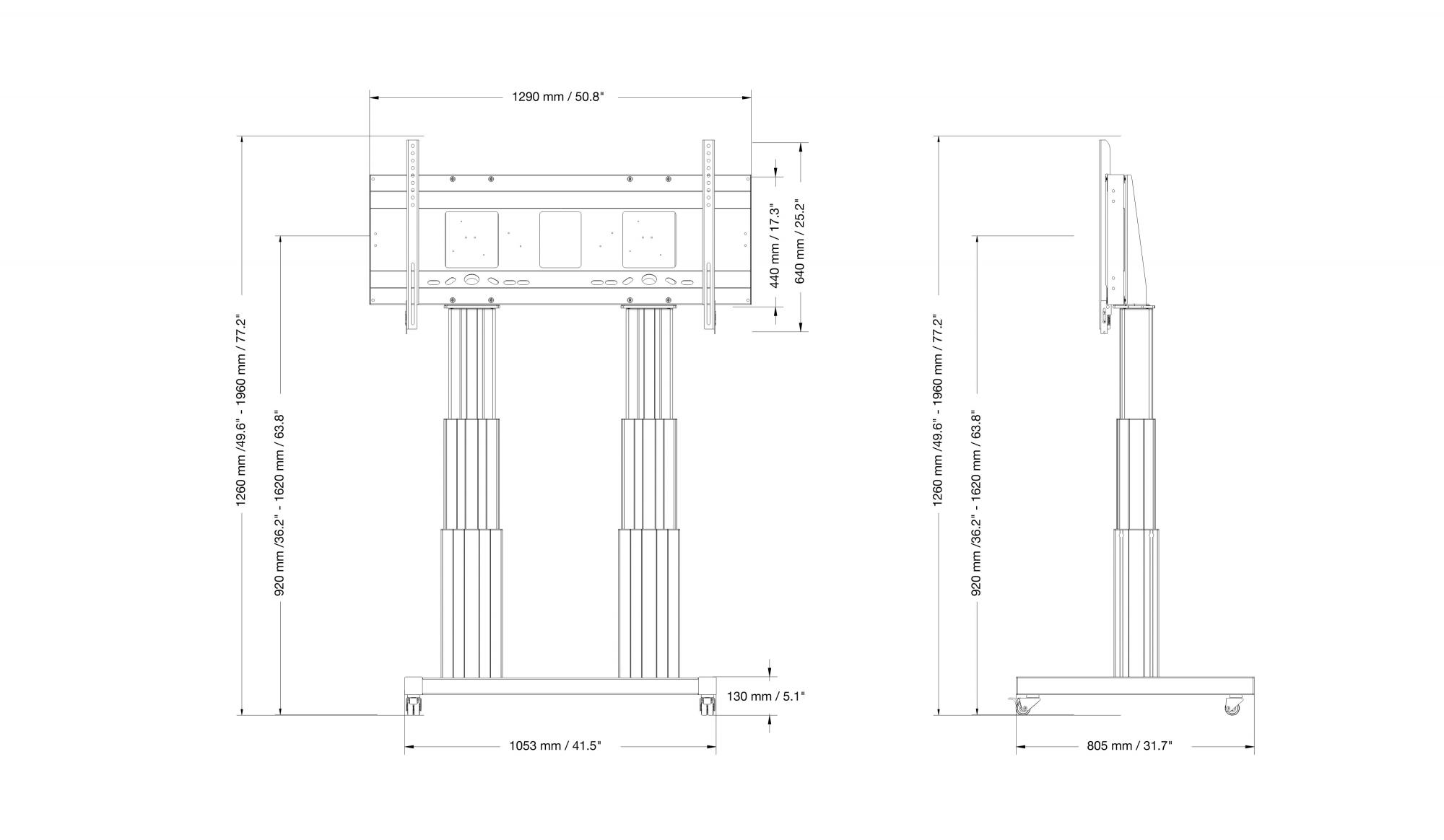

Product details

Item numberSCETAD3535B
Vesa horizontal400 mm - 1200 mm
Vesa vertical200 mm - 600 mm
Frame for all70" - 120"
Vertical travel70 cm
Center to floor distance 965 mm - 1665 mm38" - 65.6"
Load capacity250 kg 551.2 lbs
Width 1290 mm50.8"
Height 1285 mm - 1985 mm50.6" - 78.1"
Depth 720 mm28.3"
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorBlack anodized
Base colorRAL 9005 deep black
Packages Package dimensions WxHxD Package weight
AFSCETAN12D1295 x 160 x 450 mm / 51 x 6.3 x 17.7"18 kg / 39.7 lbs
MST-SCETA2B1130 x 745 x 210 mm / 44.5 x 29.3 x 8.3"26 kg / 57.3 lbs
Total weight 44 kg / 97 lbs
Display mount XL for displays for 2 pylon columns with max. VESA 1200 x 600
Detail image Display mount XL for displays for 2 pylon columns with max. VESA 1200 x 600 SCETAD3535BThis XL frame accommodates monitors with max. VESA 1200 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
Quick snap lock
Detail image Quick snap lock SCETAD3535BWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Remote control of height adjustment
Detail image Remote control of height adjustment SCETAD3535BThe electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.
H-mobile stand
Detail image H-mobile stand SCETAD3535BOur white H chassis has 4 smooth castors, two of which are lockable to fix the tv cart & mobile monitor stand in place. Due to the special H shape even wheelchair users can approach very close to the display.
Double-castor mobile stand
Detail image Double-castor mobile stand SCETAD3535BThe smooth-running wheels on our chassis make it easy to move the mobile monitor stand and flat screen tv cart even with heavy displays. The castors have a diameter of 50 mm.
