Motorized heavy duty XL monitor wall mount with 50 cm of vertical travel

two columns silver anodized

Item number: SCETADW

Product description

Motorized TV & monitor wall mount with XL display mount. Designed specifically for use with touch screen flat panels, this motorized wall mount features an extra wide display bracket. The system comes standard with two 2-tier columns which offer 20” of height adjustment.

Product ships flat-packed. Cartons are courier shippable.

Features

XL wide TV & monitor wall mount with max. VESA 1200x600
Designed for use with IFPDs and LFDs up to 250 kg
Easy mounting of display thanks to "pull & release" brackets
Display mount with integrated cable management
Two synchronized columns offering 50 cm of vertical travel
Wired remote is standard included

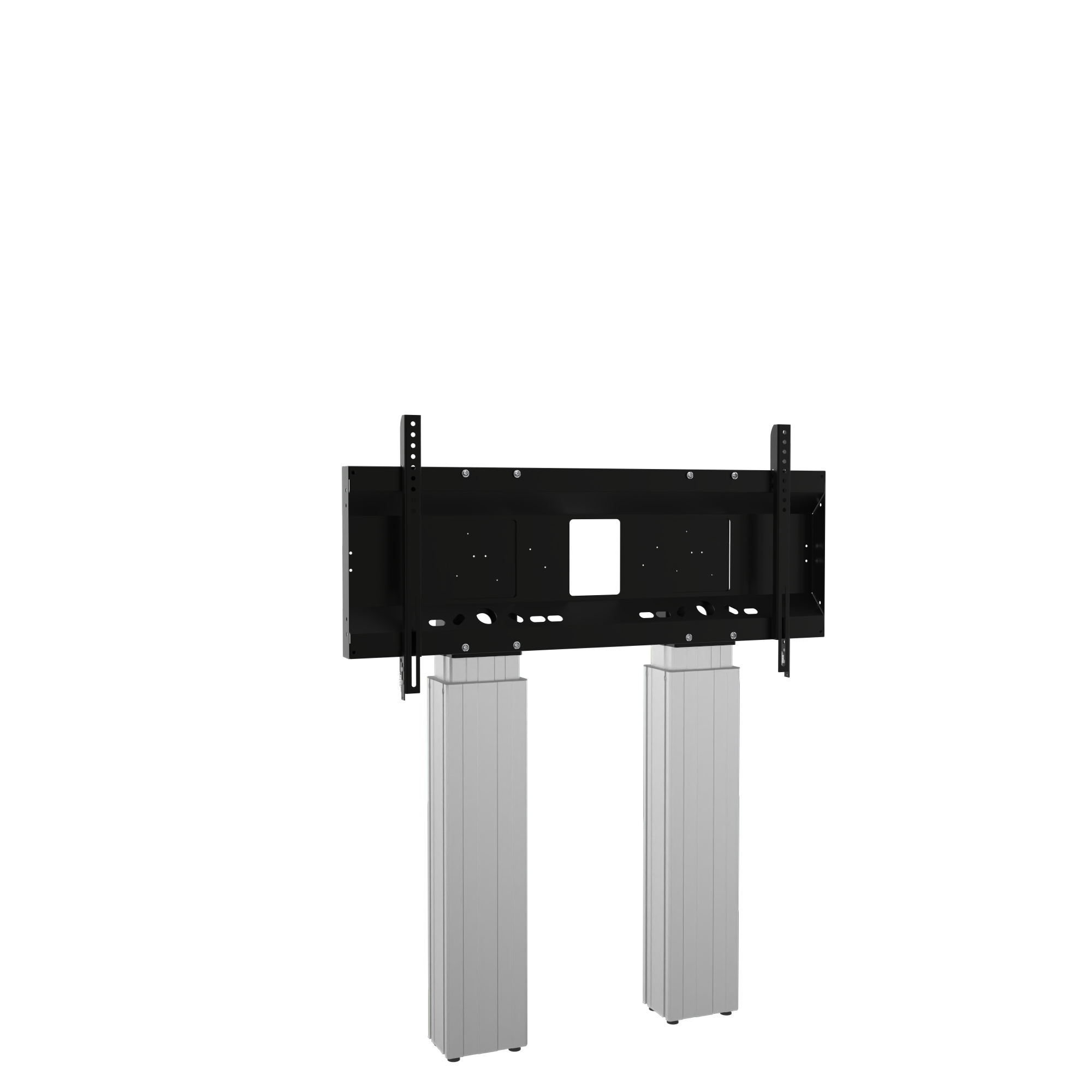

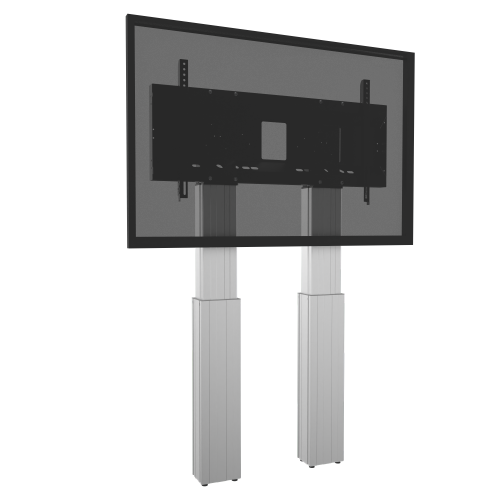

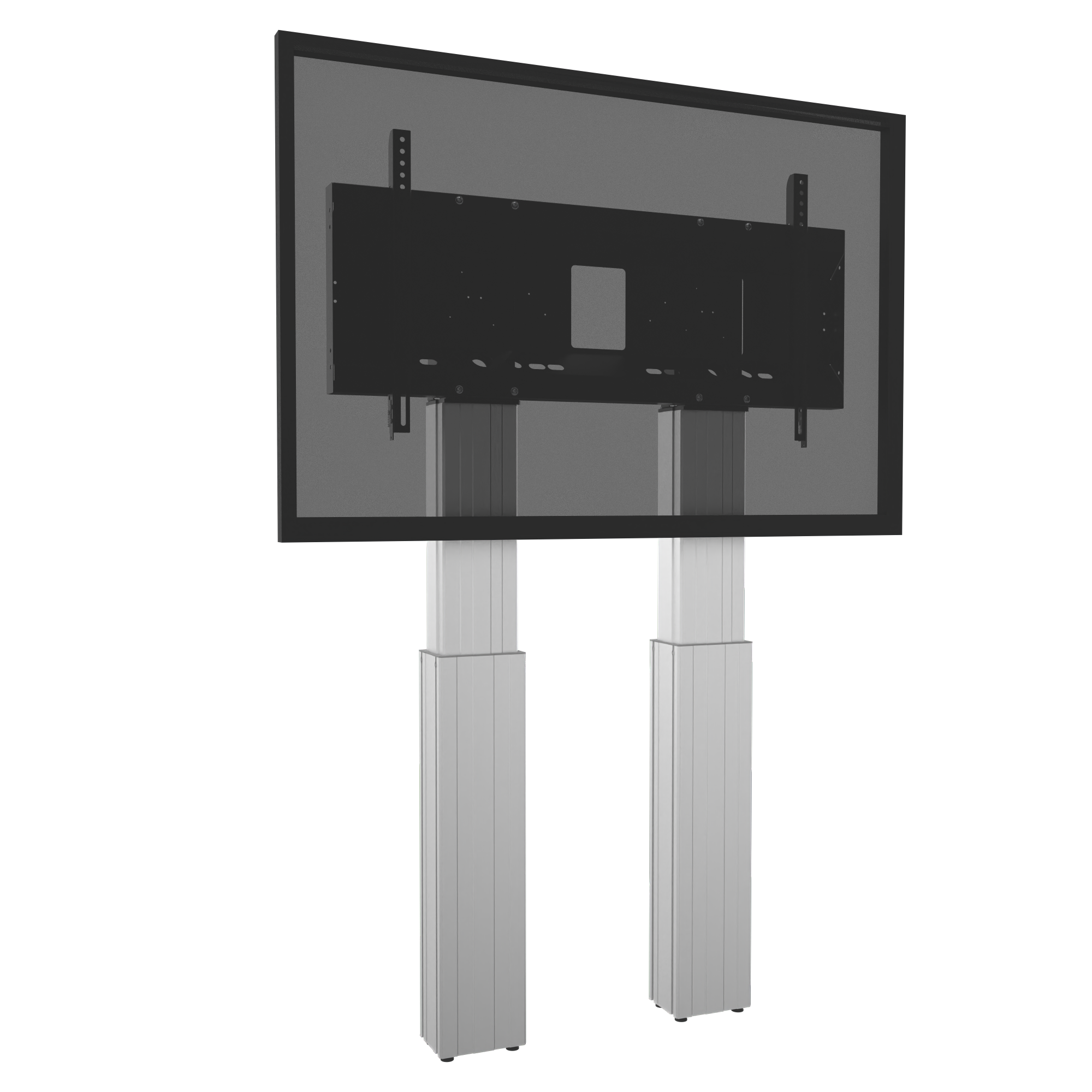

Product image Motorized heavy duty XL monitor wall mount with 50 cm of vertical travel SCETADW

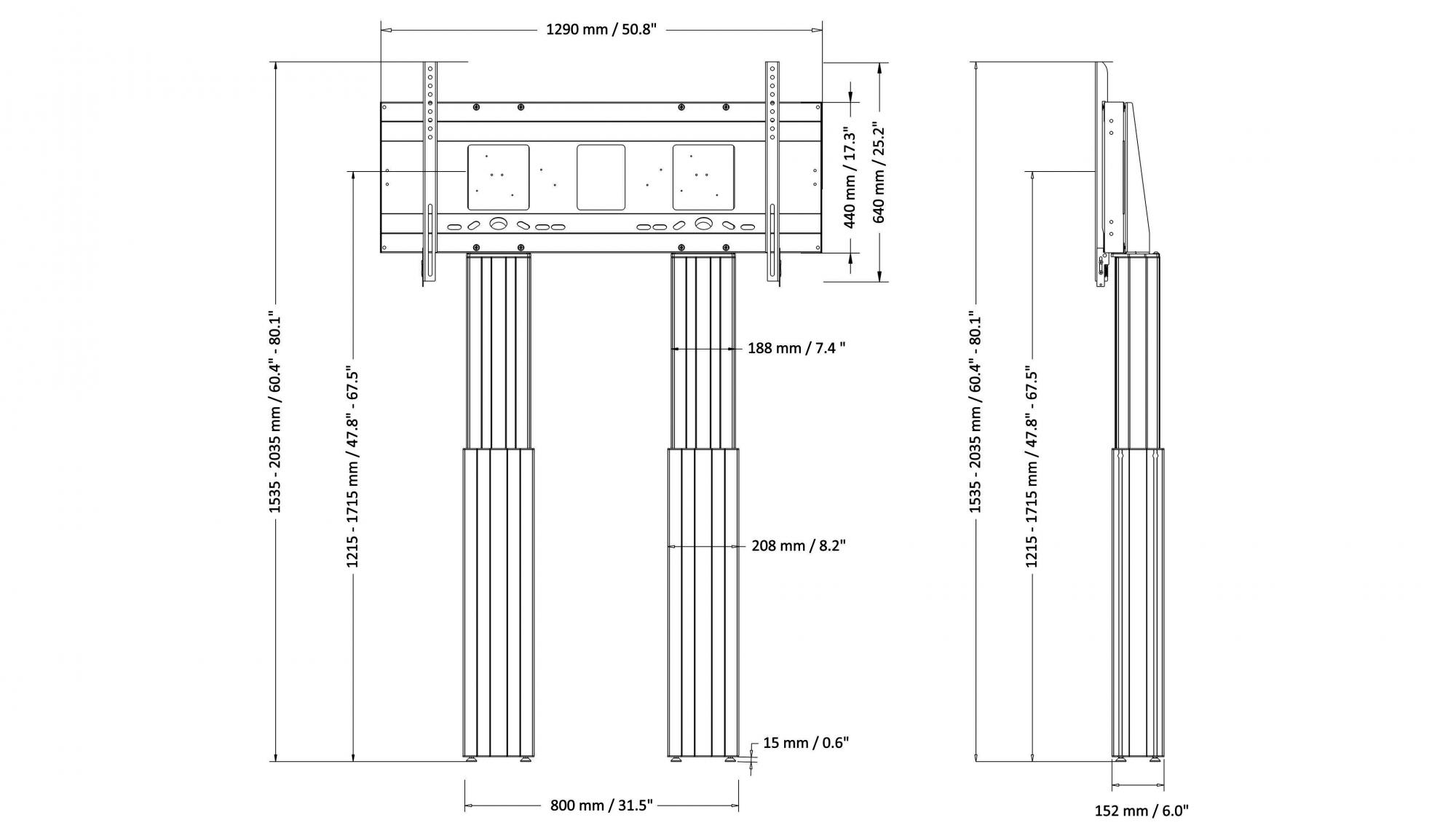

Item number	SCETADW
Vesa horizontal	400 mm - 1200 mm
Vesa vertical	200 mm - 600 mm
Frame for all	70" - 120"
Vertical travel	50 cm
Center to floor distance	1215 mm - 1715 mm	47.8" - 67.5"
Load capacity	250 kg	551.2 lbs
Width	1290 mm	50.8"
Height	1535 mm - 2035 mm	60.4" - 80.1"
Depth	169 mm	6.7"
Warranty	5 years limited warranty
Frame color	RAL 9005 deep black
Column color	Silver anodized
Packages	Package dimensions WxHxD	Package weight
AFSCETAN12	1300 x 450 x 160 mm / 51.2 x 17.7 x 6.3"	17 kg / 37.5 lbs
CCE70-WSYNC

Productimage Floor plate for display brackets

Productimage Wall mounting set for two-column-systems

Productimage 2 galvanized adjustable wall mounting brackets

Productimage Video conference camera top shelf LITE series for displays from 65 - 86 inch

Productimage 2 galvanized wall mounting brackets

Display mount XL for displays for 2 pylon columns with max. VESA 1200 x 600

This XL frame accommodates monitors with max. VESA 1200 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.

Quick snap lock

With the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.

Remote control of height adjustment

The electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.

Four leveling feet

These four leveling feet allow you to level out any unevenness in the floor so that the monitor wall mount can transfer the weight of the monitor over the column to the floor. For this purpose, the individual ground leveling foot can be turned in or out.

7 cm (2.76 inch) Z-brackets

By default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm (2.76 inch). Further wall mounting solutions are available as accessories.

Wall mounting kit

The system includes a wall mounting set consisting of: two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm, Two sliding blocks incl. nut to attach the brackets to the column, four floor leveling feet and 3 cable clips.
