Motorized heavy duty XL monitor wall mount with 50 cm of vertical travel

two columns black anodized
Item number: SCETADWB

Product description

Motorized TV & monitor wall mount with XL display mount. Designed specifically for use with touch screen flat panels, this motorized wall mount features an extra wide display bracket. The system comes standard with two 2-tier columns which offer 20” of height adjustment.

Product ships flat-packed. Cartons are courier shippable.


Features

  • XL wide monitor mount with max. VESA 1200x600
  • Designed for use with IFPDs and LFDs up to 250 kg
  • Easy mounting of display thanks to "pull & release" brackets
  • Display mount with integrated cable management
  • Actuator safely concealed in two columns offering 50 cm of vertical travel
  • Wired remote is standard included

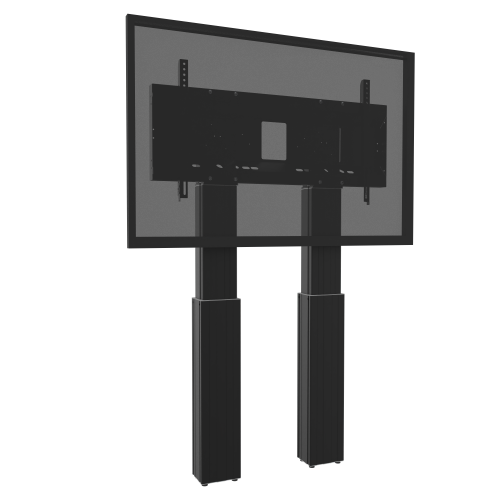

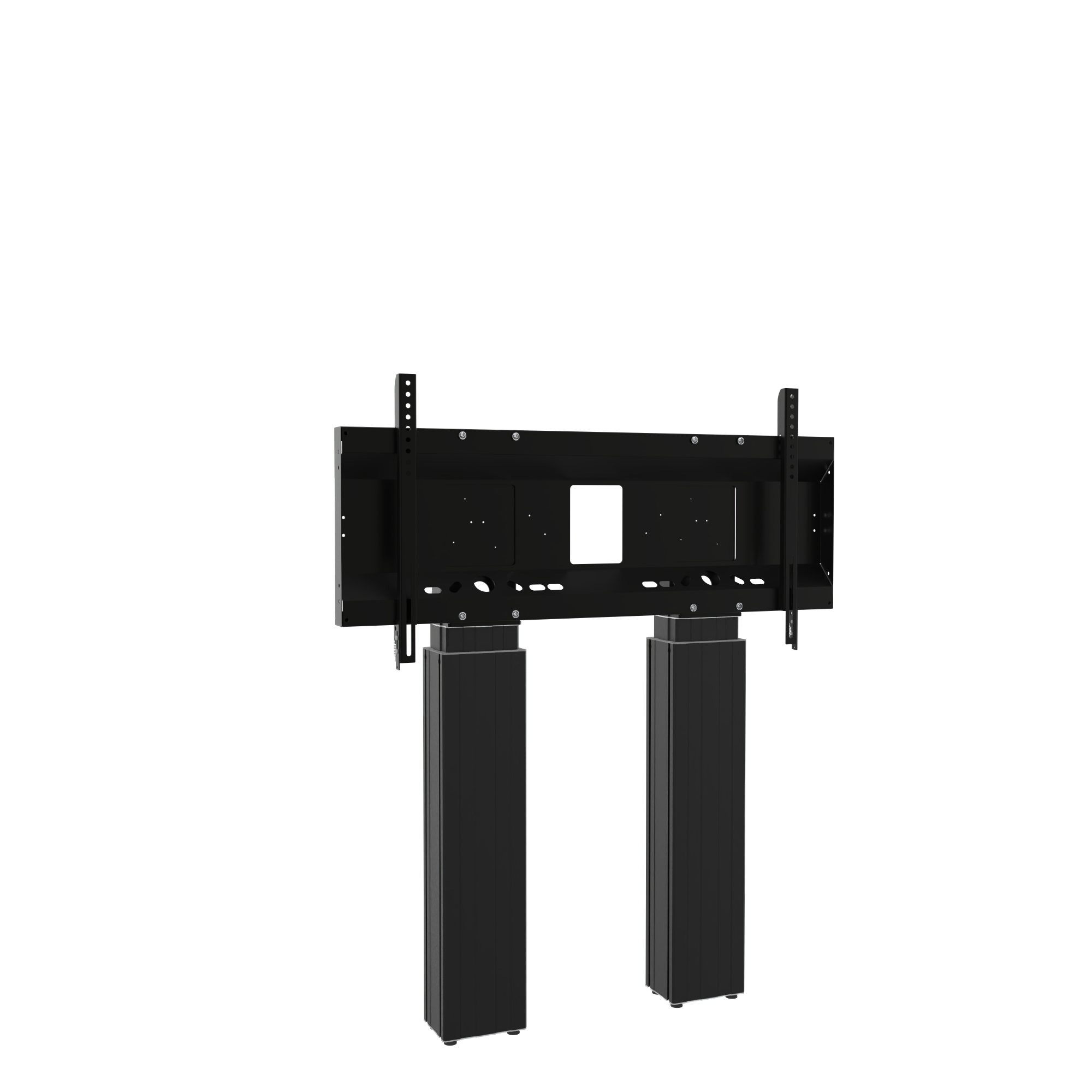

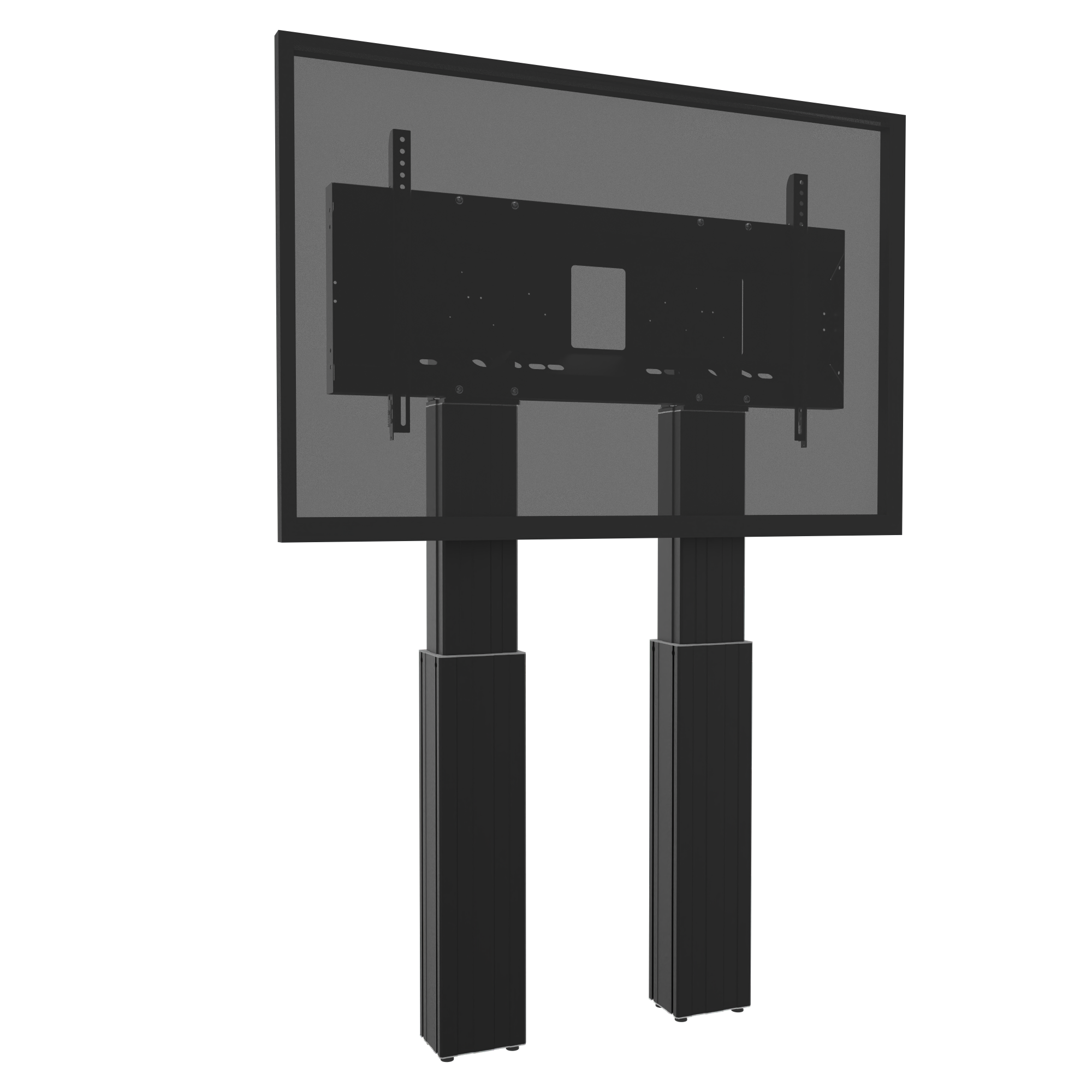

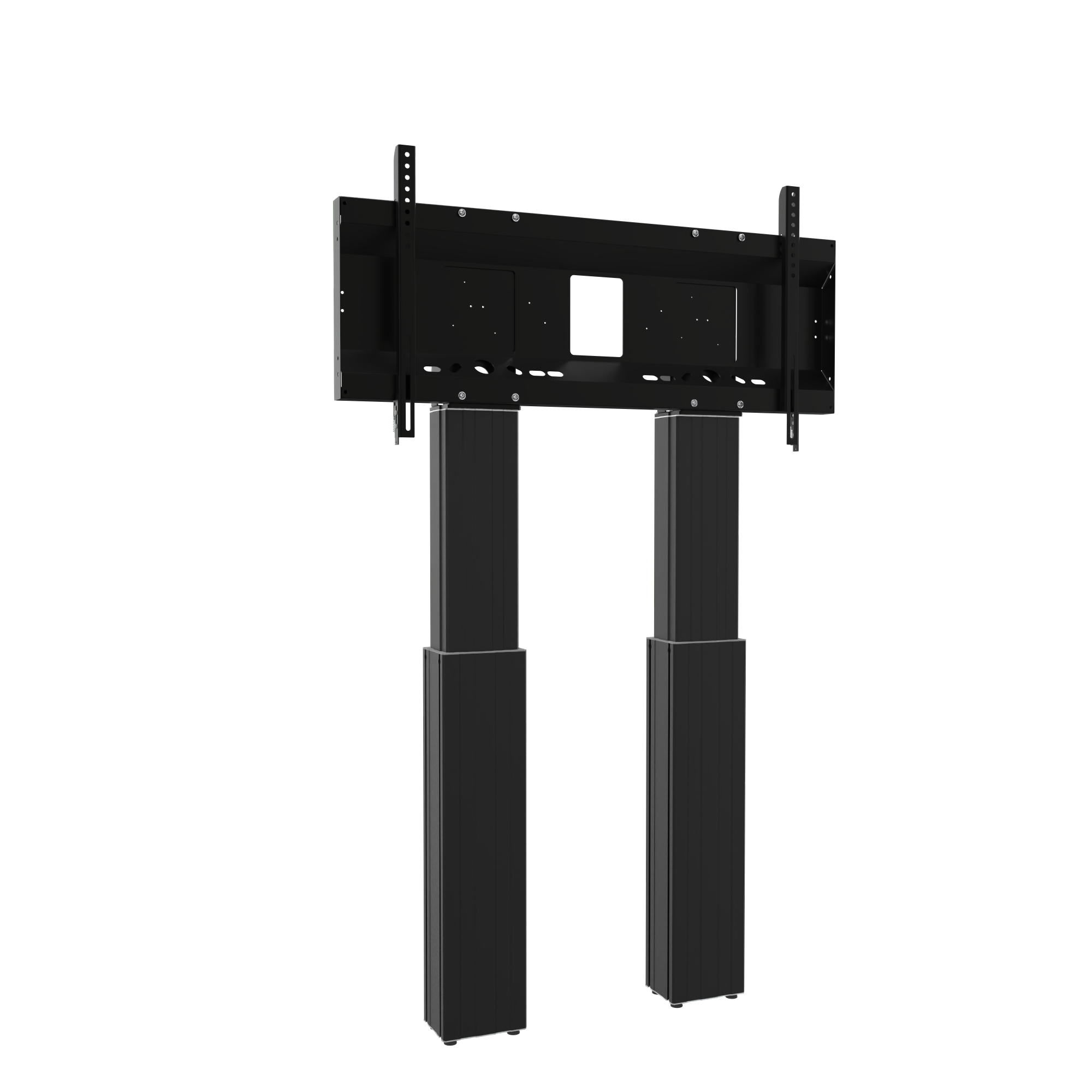

Product image Motorized heavy duty XL monitor wall mount with 50 cm of vertical travel SCETADWB
Product image Motorized heavy duty XL monitor wall mount with 50 cm of vertical travel SCETADWB Product image Motorized heavy duty XL monitor wall mount with 50 cm of vertical travel SCETADWB Product image Motorized heavy duty XL monitor wall mount with 50 cm of vertical travel SCETADWB

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
551.2 lbs
Icon maximal VESA
Max. Vesa
1200 x 600

Accessories

Productimage Laptop side shelf Productimage Side shelf for laptop Productimage Side shelf for laptop Productimage Video conference camera top shelf for displays from 42 - 70 inch Productimage Video conference camera top shelf for displays from 75 - 86 inch Productimage Extender for 2-part height adjustable aluminum columns Productimage Floor plate for display brackets Productimage U-shaped wall mount Productimage U-shaped wall mount Productimage Wall mounting set for two-column-systems Productimage 2 galvanized wall mounting brackets Productimage 2 galvanized adjustable wall mounting brackets

Product details

Item numberSCETADWB
Vesa horizontal400 mm - 1200 mm
Vesa vertical200 mm - 600 mm
Frame for all70" - 120"
Vertical travel50 cm

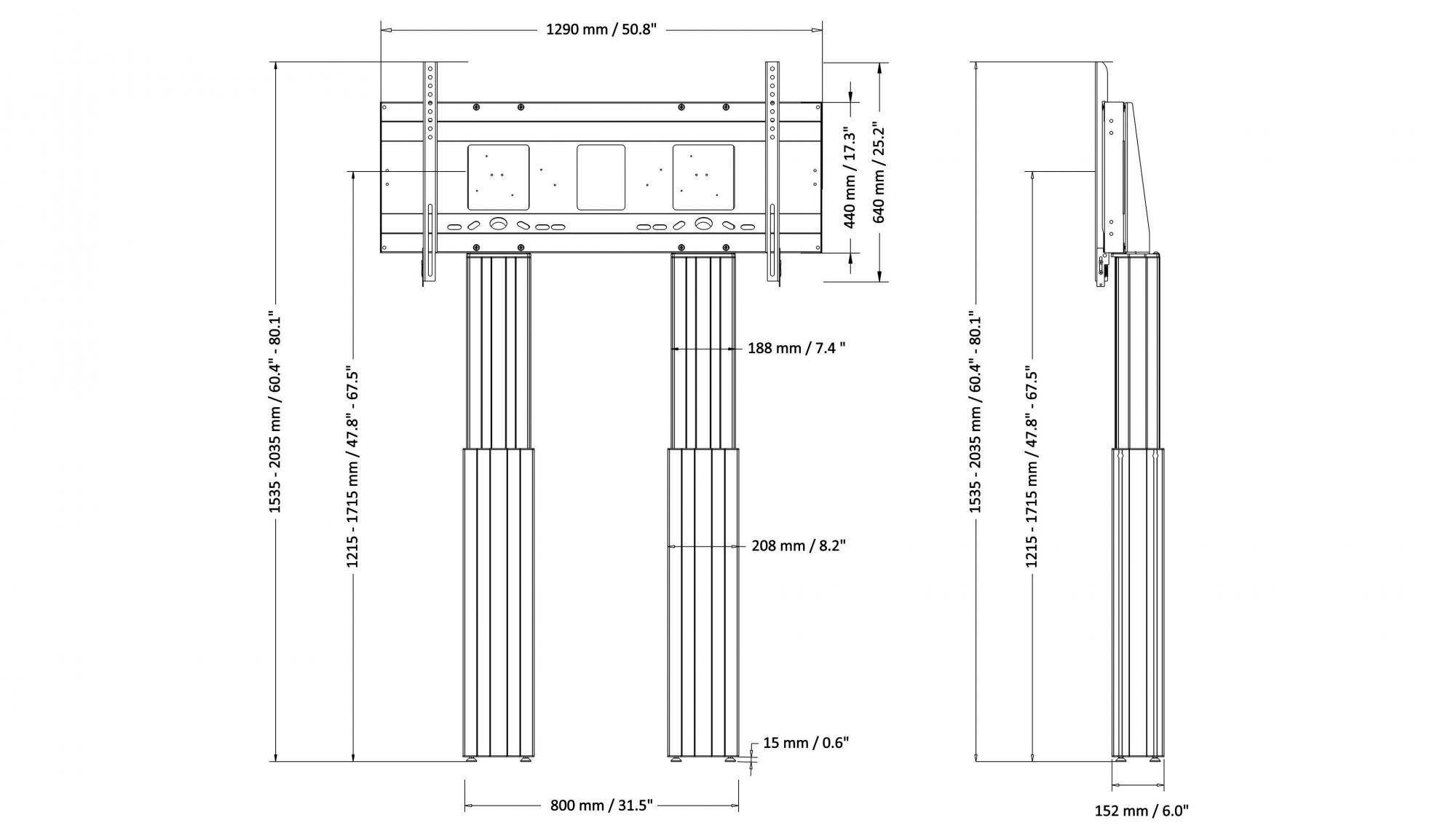

Center to floor distance 1215 mm - 1715 mm47.8" - 67.5"
Load capacity250 kg 551.2 lbs
Width 1290 mm50.8"
Height 1535 mm - 2035 mm60.4" - 80.1"
Depth 169 mm6.7"
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorBlack anodized
Packages Package dimensions WxHxD Package weight
AFSCETAN121300 x 450 x 160 mm / 51.2 x 17.7 x 6.3"17 kg / 37.5 lbs
CCE70B-WSYNC

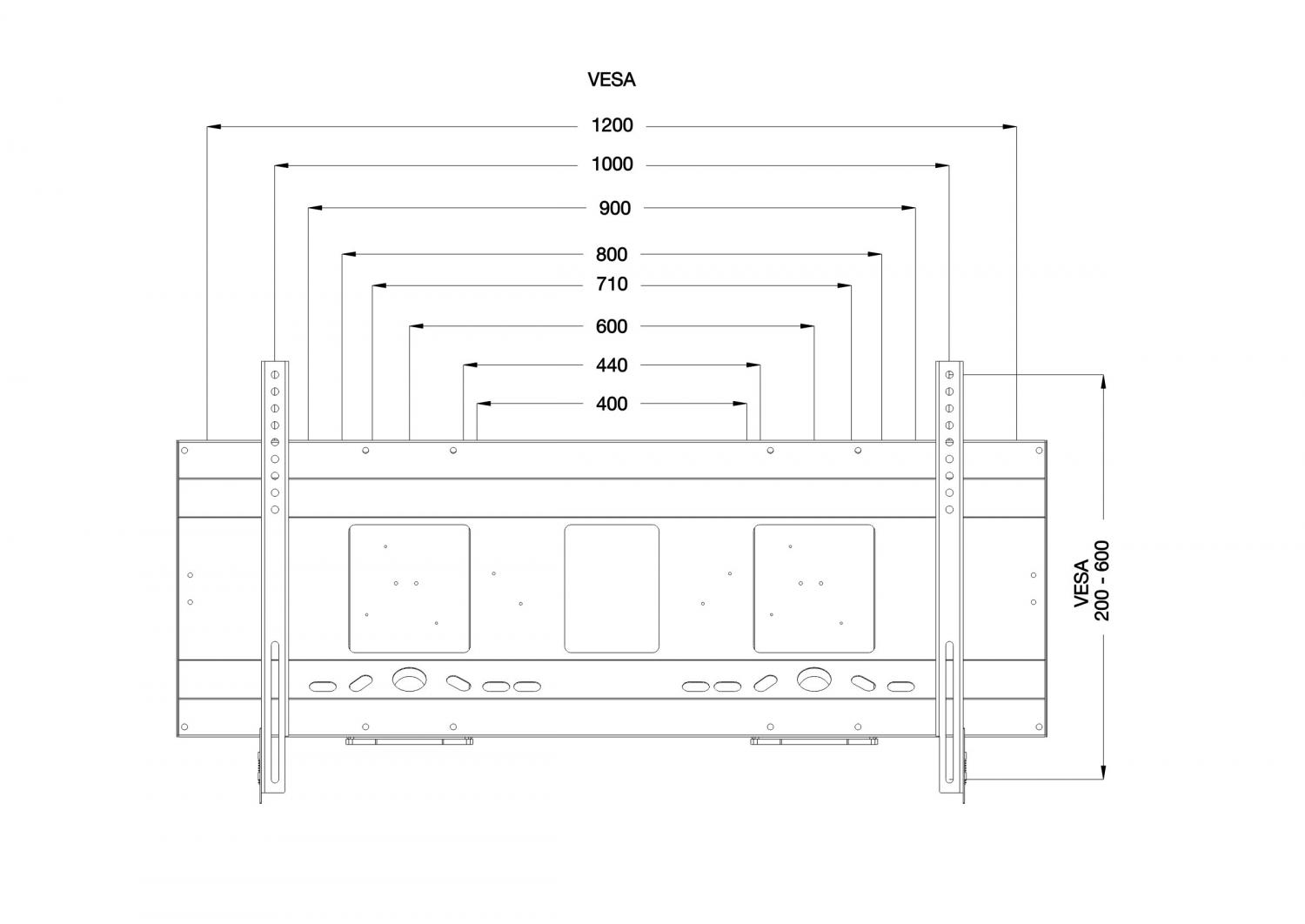

Display mount XL for displays for 2 pylon columns with max. VESA 1200 x 600
Detail image Display mount XL for displays for 2 pylon columns with max. VESA 1200 x 600 SCETADWBThis XL frame accommodates monitors with max. VESA 1200 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.

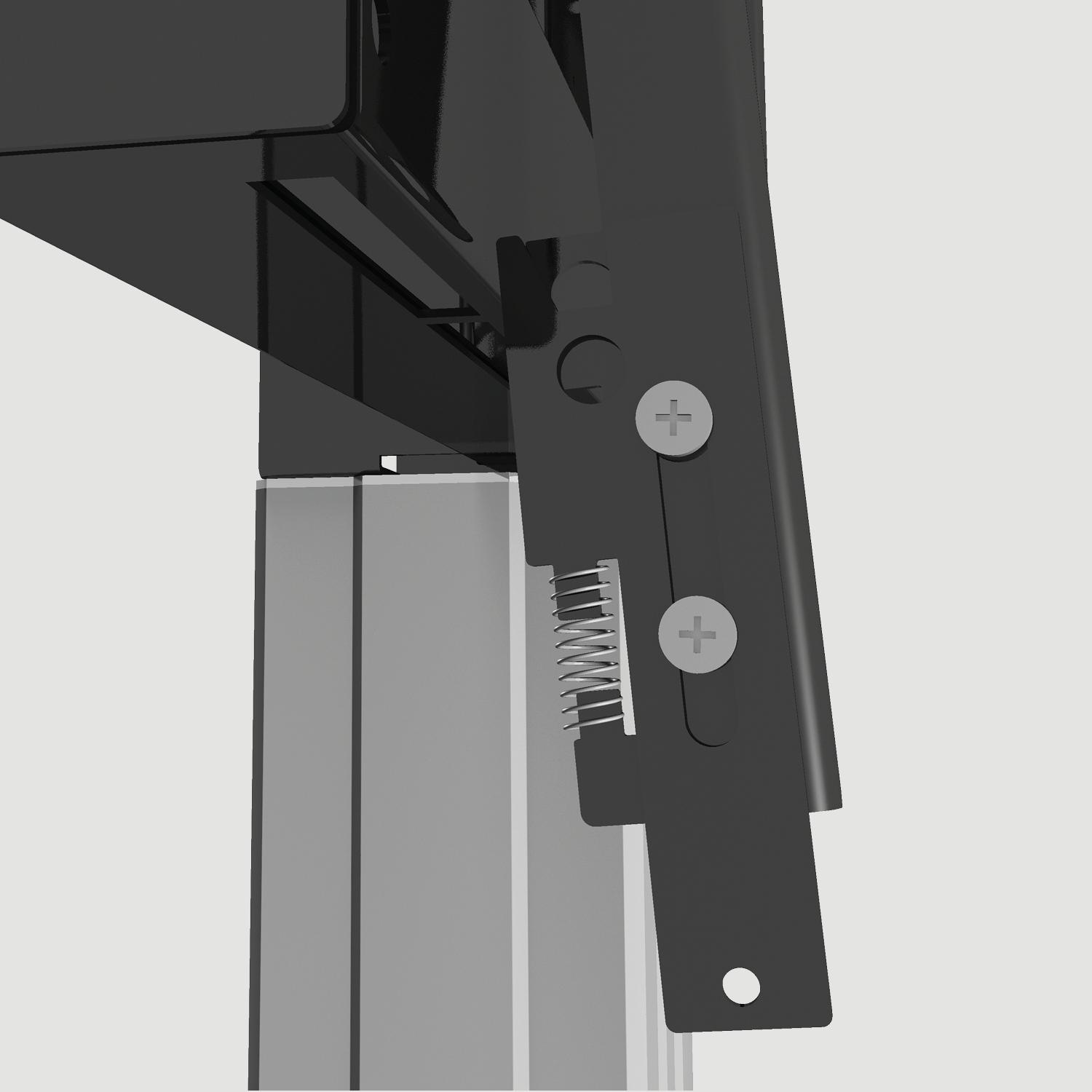

Quick snap lock
Detail image Quick snap lock SCETADWBWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.

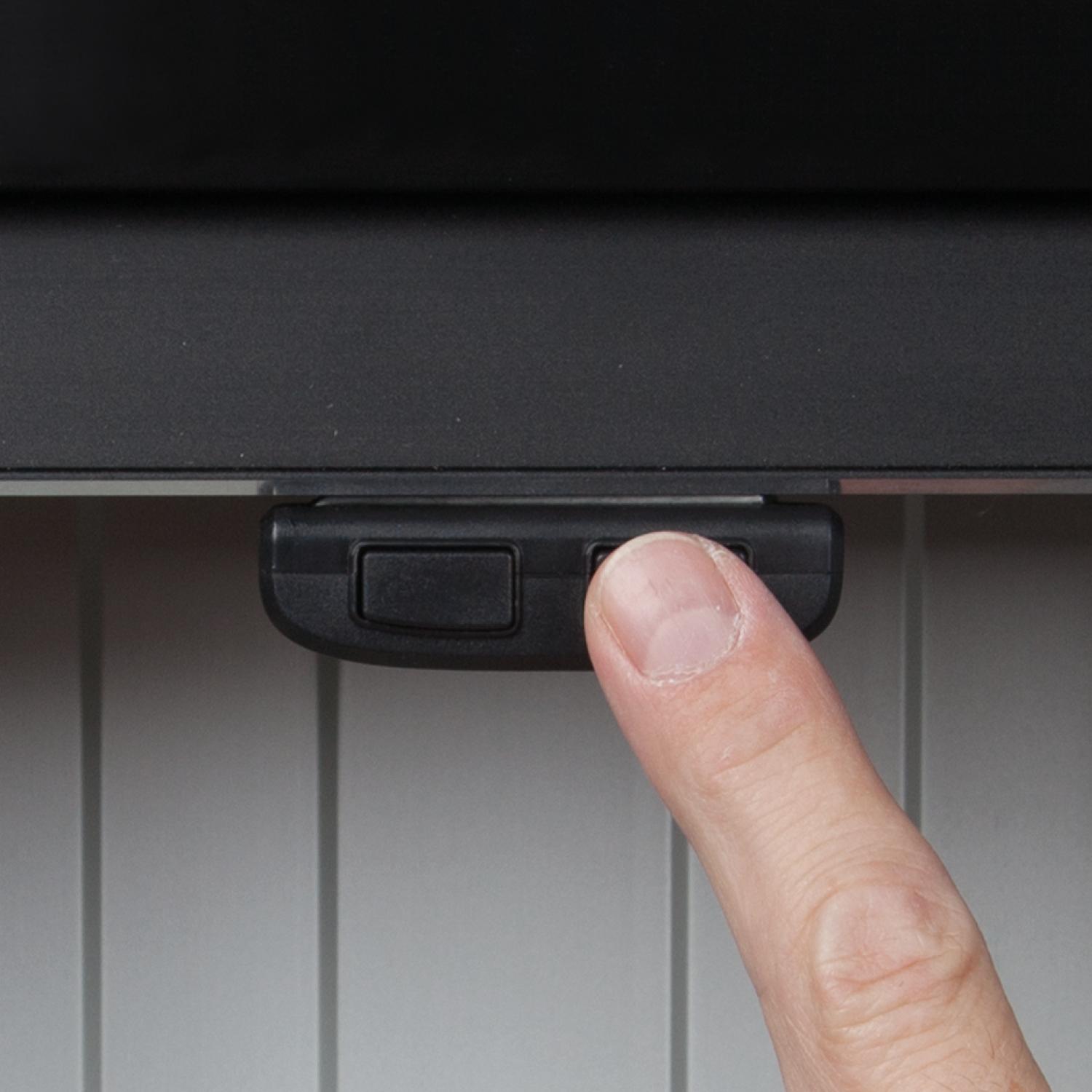

Remote control of height adjustment
Detail image Remote control of height adjustment SCETADWBThe electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.
Four leveling feet
Detail image Four leveling feet SCETADWBThese four leveling feet allow you to level out any unevenness in the floor so that the monitor wall mount can transfer the weight of the monitor over the column to the floor. For this purpose, the individual ground leveling foot can be turned in or out.

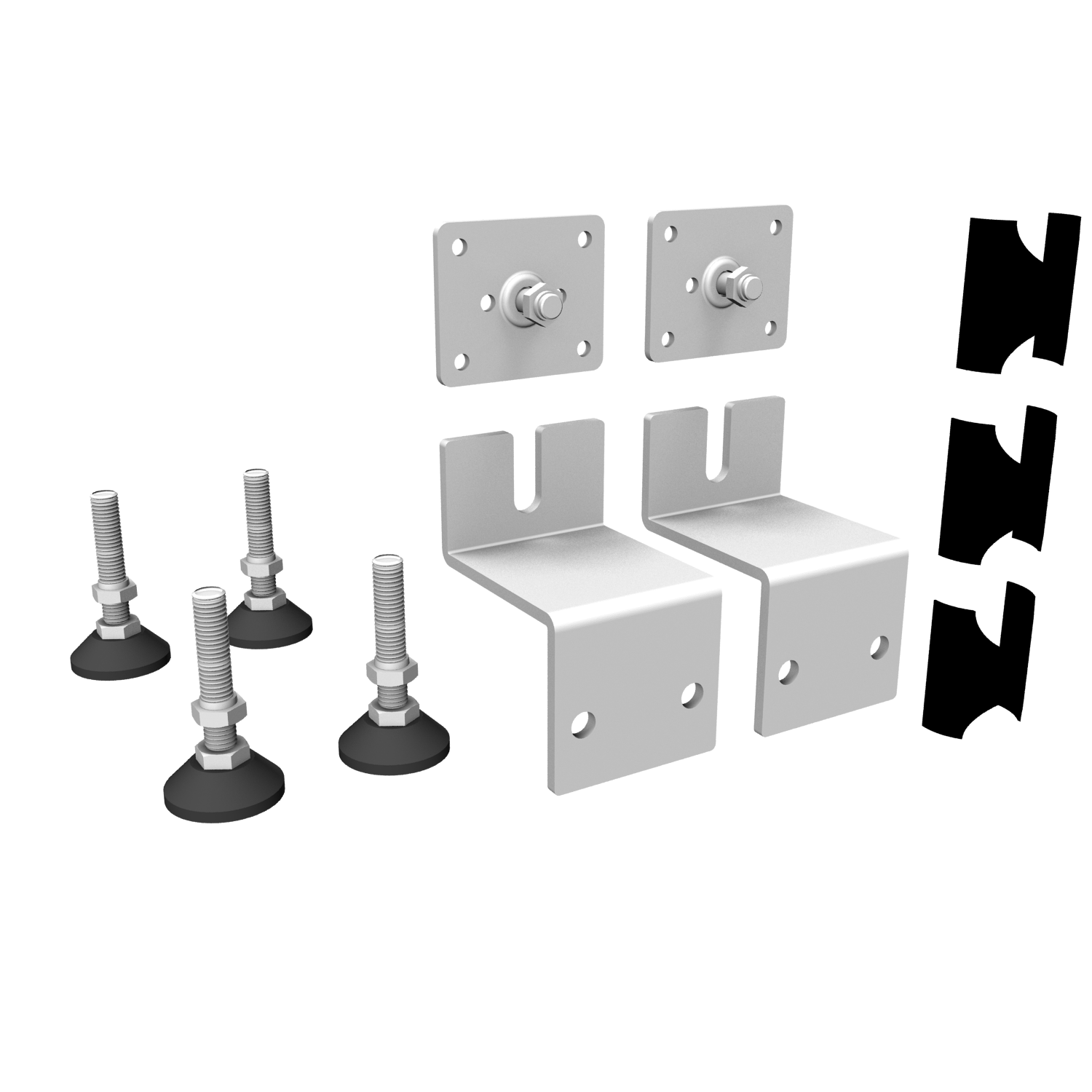

Wall mounting kit
Detail image Wall mounting kit SCETADWBThe system includes a wall mounting set consisting of: two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm, Two sliding blocks incl. nut to attach the brackets to the column, four floor leveling feet and 3 cable clips.

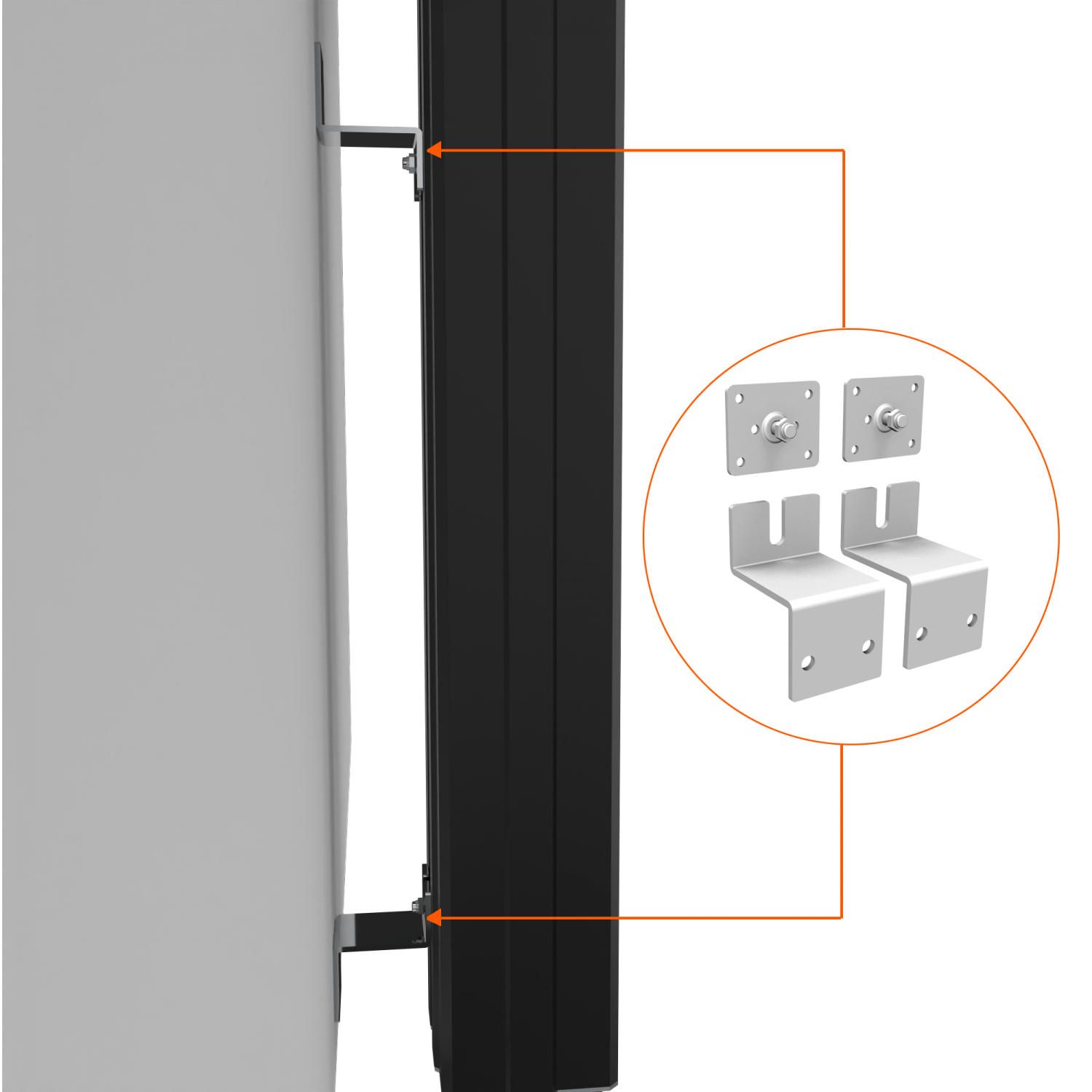

7 cm (2.76 inch) Z-brackets
Detail image 7 cm (2.76 inch) Z-brackets SCETADWBBy default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm (2.76 inch). Further wall mounting solutions are available as accessories.
