Electrically height-adjustable TV trolley, mobile monitor stand, 50 cm stroke

Silver anodized column, H-shaped castor frame

Item number: SCETA

Product description

Electrically height-adjustable mobile monitor stand & TV trolley suitable for use with all touchscreen monitors from 42"-100" screen diagonal.

The SCETA mobile monitor stand is known for its stability and versatility and has been one of Conen Mounts' worldwide bestsellers for many years. The monitor stand is designed for intensive daily use and to securely hold touchscreen displays up to 100" screen diagonal or 136 kg. The SCETA mobile mounting system is equipped with a central pylon column and 50 cm stroke.

The option of connecting numerous accessories such as PC shelves, transport handles and whiteboard side wings further enhances user-friendliness and improves the range of applications in the training sector.

The product is delivered disassembled in three packages. All packaging units are suitable for parcel service.

Features

Mobile heavy-duty stand for (interactive) displays up to 100"
Extremely easy mounting thanks to suspension rails with quick-release device
Display frame offers integrated cable management outlets
A wide selection of accessories is available
The motor system is concealed in the central aluminum lifting column and offers a height adjustment range of 50 cm
A cable control unit with two buttons is included in the scope of delivery
The robust H-shaped castor frame is designed for intensive daily use

Product image Electrically height-adjustable TV trolley, mobile monitor stand, 50 cm stroke SCETA

Item number	SCETA

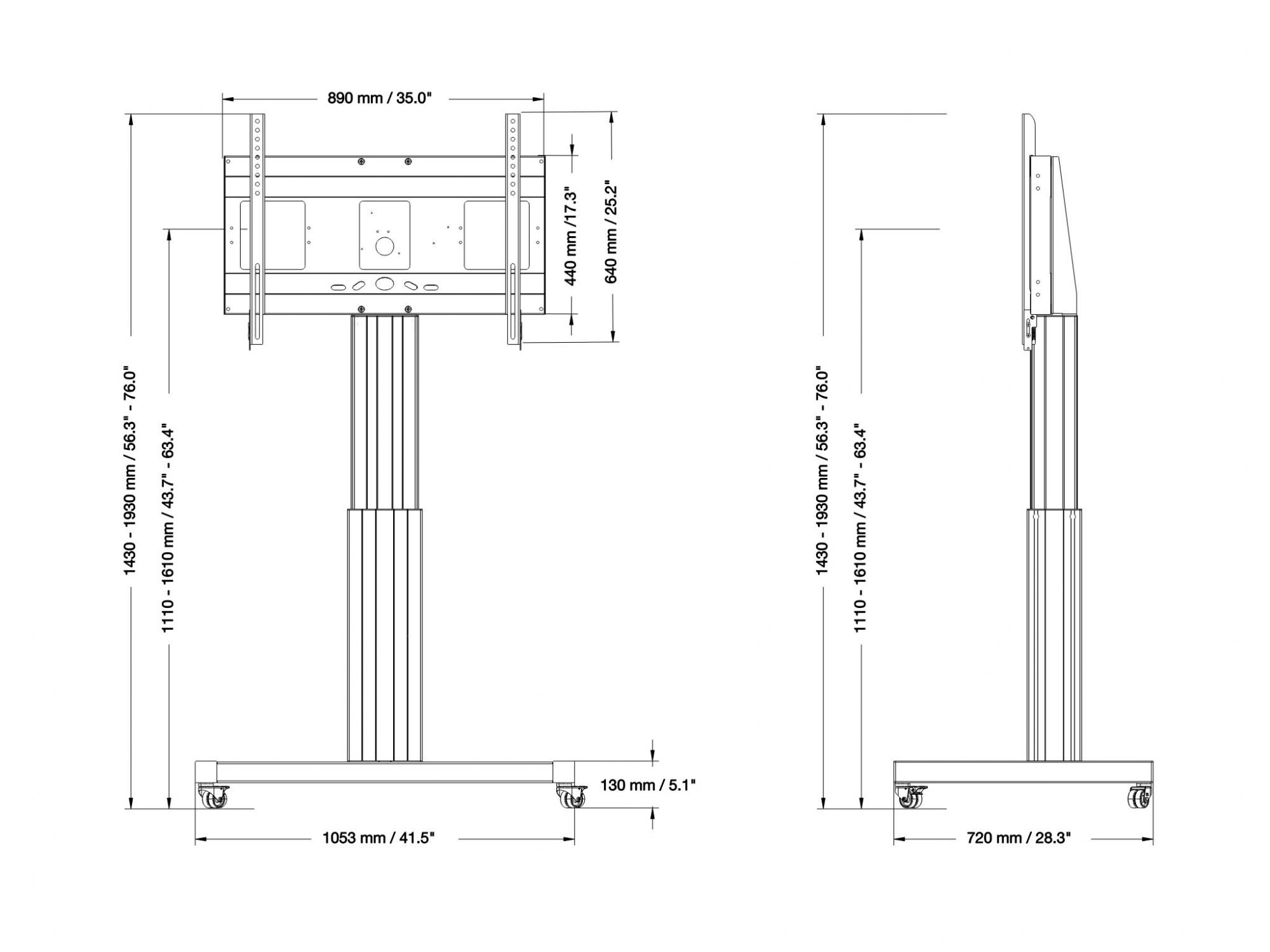

Vesa horizontal	300 mm - 800 mm
Vesa vertical	200 mm - 600 mm
Frame for all	42" - 100"
Vertical travel	50 cm
Center to floor distance	1110 mm - 1610 mm	43.7" - 63.4"
Load capacity	136 kg	299.8 lbs
Width	1053 mm	41.5"
Height	1430 mm - 1930 mm	56.3" - 76"
Depth	720 mm	28.3"
Weight	55,3 kg	121.9 lbs
Warranty	5 years limited warranty
Frame color	RAL 9005 deep black
Column color	Silver anodized
Base color	RAL 9006 white aluminum
Packages	Package dimensions WxHxD	Package weight
AF-SCETA-N	900 x 160 x 450 mm / 35.4 x 6.3 x 17.7"	13,6 kg / 30 lbs
CCE-50	970 x 270 x 220 mm / 38.2 x 10.6 x 8.7"	19,5 kg / 43 lbs
MST-SCETA	1140 x 780 x 150 mm / 44.9 x 30.7 x 5.9"	24,2 kg / 53.4 lbs
Total weight		57,3 kg / 126.4 lbs

Productimage Two large and sturdy handles including laptop shelf

Productimage Brackets and wing lock for locking the side wings in front of the display

Productimage Video conference camera top shelf LITE series for displays from 65 - 86 inch

Display mount for displays with max. VESA 800 x 600

This frame accommodates monitors with max. VESA 800 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.

Quick snap lock

With the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.

Remote control of height adjustment

The electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.

H-mobile stand

Our white H chassis has 4 smooth castors, two of which are lockable to fix the tv cart & mobile monitor stand in place. Due to the special H shape even wheelchair users can approach very close to the display.

Double-castor mobile stand

The smooth-running wheels on our chassis make it easy to move the mobile monitor stand and flat screen tv cart even with heavy displays. The castors have a diameter of 50 mm.
