Motorized mobile flat screen tv cart, 50 cm of vertical travel

column black anodized, V-style base
Item number: SCETAVB

Product description

Motorized mobile flat screen tv cart for 42"-100" (interactive) flat-panels.

Renowned for its stability and versatility the SCETAVB mobile monitor stand has been Conen Mounts worldwide best-selling mobile stand for many years. The stand is designed to withstand intensive daily use and to safely support displays up to 100" or 136 kg. The SCETAVB monitor cart features the standard center column, offering 50 cm of smooth motorized height adjustment.

For user convenience and to enhance the teaching experience the stand allows for several accessories to be mounted, including PC shelves, handles and whiteboard side wings.

Product ships flat-packed. Cartons are courier shippable.


Features

  • Heavy duty mobile monitor cart for displays up to 100"
  • Easy mounting of display thanks to "pull & release" brackets
  • Display mount with integrated cable management
  • Wide range of accessories available
  • Actuator safely concealed in center column offering 50 cm of vertical travel
  • Wired remote is standard included
  • Robust V-style base designed to withstand intensive daily use

UL certificate

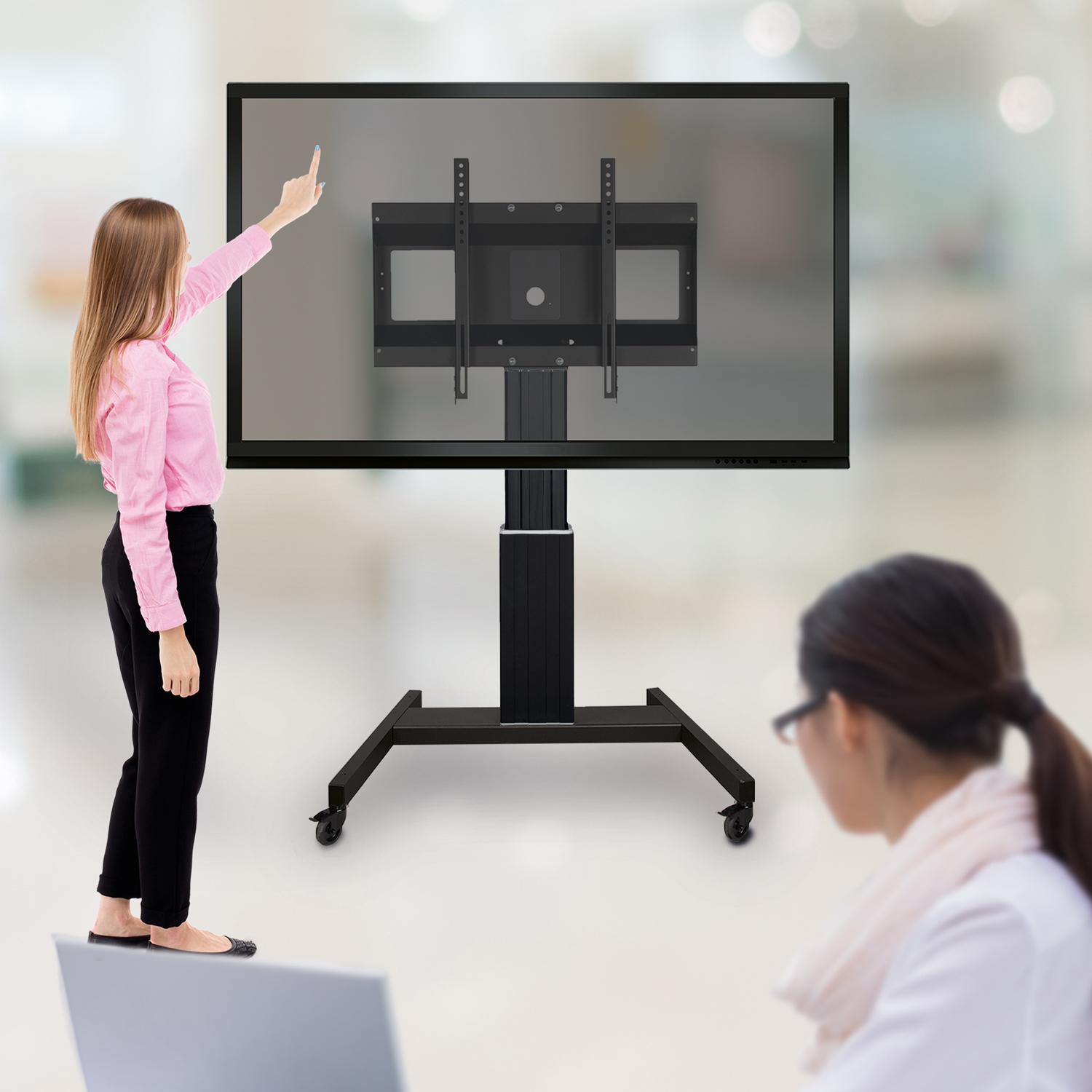

Product image Motorized mobile flat screen tv cart, 50 cm of vertical travel SCETAVB
Product image Motorized mobile flat screen tv cart, 50 cm of vertical travel SCETAVB Product image Motorized mobile flat screen tv cart, 50 cm of vertical travel SCETAVB Product image Motorized mobile flat screen tv cart, 50 cm of vertical travel SCETAVB Product image Motorized mobile flat screen tv cart, 50 cm of vertical travel SCETAVB Product image Motorized mobile flat screen tv cart, 50 cm of vertical travel SCETAVB Product image Motorized mobile flat screen tv cart, 50 cm of vertical travel SCETAVB Product image Motorized mobile flat screen tv cart, 50 cm of vertical travel SCETAVB

Icon display mounts
Display mount
Icon mobile stand
Mobile
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
299.8 lbs
Icon maximal VESA
Max. Vesa
800 x 600

Accessories

Productimage Laptop side shelf Productimage Side shelf for laptop Productimage Side shelf for laptop Productimage Front shelf Productimage Front shelf Productimage Front shelf Productimage Keyboard shelf Productimage Video conference camera top shelf for displays from 42 - 70 inch Productimage Video conference camera top shelf for displays from 75 - 86 inch Productimage Universal PC bracket Productimage Lockable mini PC bracket for frame mounting Productimage Two large and sturdy handles including laptop shelf Productimage Extender for 2-part height adjustable aluminum columns Productimage Lockable notebook cabinet Productimage Two whiteboard side wings Productimage Brackets and wing lock for locking the side wings in front of the display Productimage Lockable wall brackets

Product details

Item numberSCETAVB
Vesa horizontal300 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all42" - 100"
Vertical travel50 cm

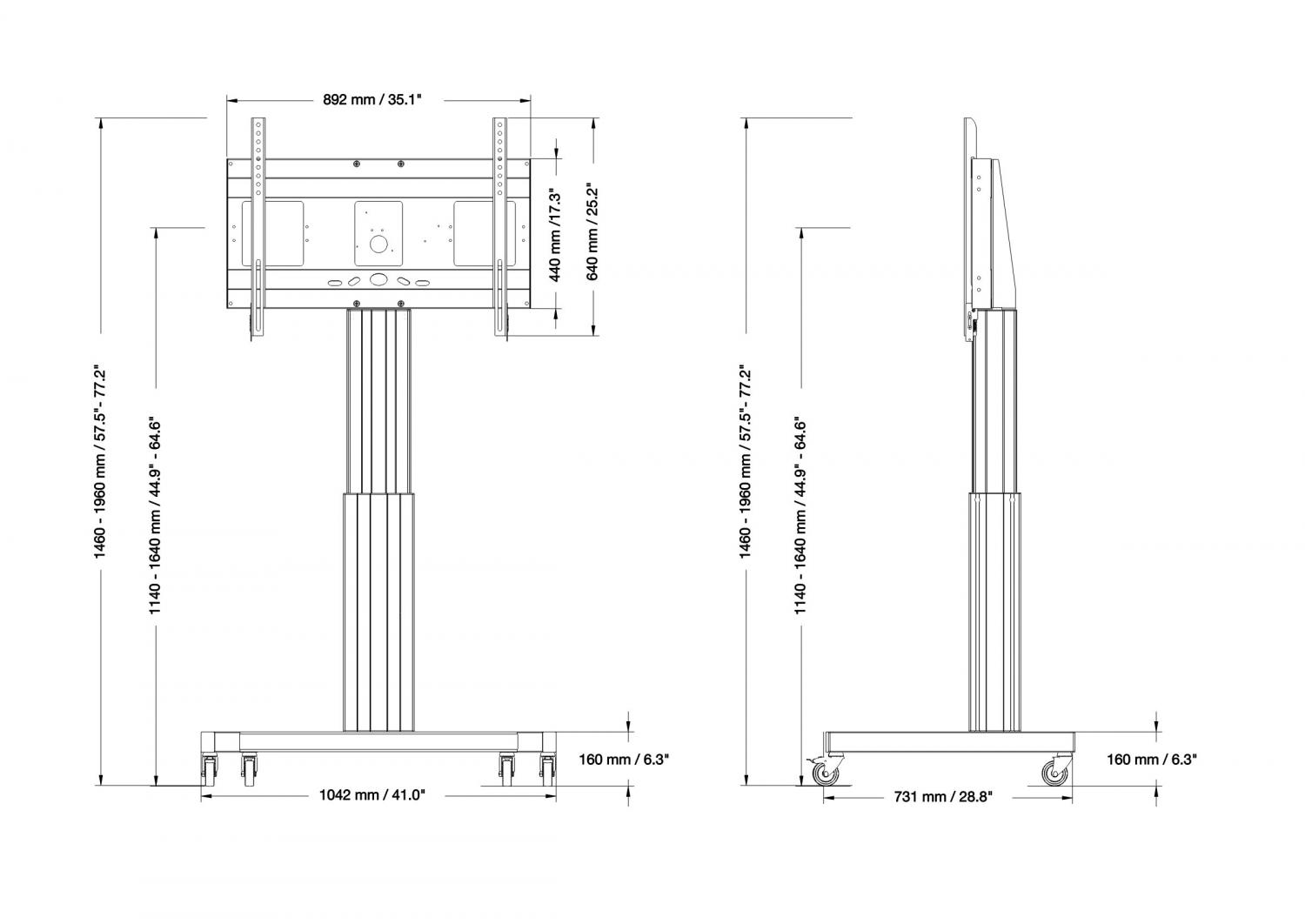

Center to floor distance 1140 mm - 1640 mm44.9" - 64.6"
Load capacity136 kg 299.8 lbs
Width 1042 mm41"
Height 1460 mm - 1960 mm57.5" - 77.2"
Depth 731 mm28.8"
Warranty5 years limited warranty
UL certificateUL Listed
Frame colorRAL 9005 deep black
Column colorBlack anodized
Base colorRAL 9005 deep black
Packages Package dimensions WxHxD Package weight
AF-SCETA-N900 x 160 x 450 mm / 35.4 x 6.3 x 17.7"13,6 kg / 30 lbs
CCE-50B970 x 270 x 220 mm / 38.2 x 10.6 x 8.7"19,5 kg / 43 lbs
MST-SCETA-V1140 x 780 x 150 mm / 44.9 x 30.7 x 5.9"16,5 kg / 36.4 lbs
Total weight 49,6 kg / 109.4 lbs
Display mount for displays with max. VESA 800 x 600
Detail image Display mount for displays with max. VESA 800 x 600 SCETAVBThis frame accommodates monitors with max. VESA 800 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
Quick snap lock
Detail image Quick snap lock SCETAVBWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Remote control of height adjustment
Detail image Remote control of height adjustment SCETAVBThe electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.
V-mobile stand
Detail image V-mobile stand SCETAVBOur black V chassis has 4 smooth castors, two of which are lockable to fix the monitor stand in place. Due to the special V shape even wheelchair users can approach very close to the display.
Castor V-mobile stand
Detail image Castor V-mobile stand SCETAVBThe smooth-running castors on our V-chassis make it easy to move the mobile monitor stand even with heavy displays. The castors have a diameter of 75 mm.
