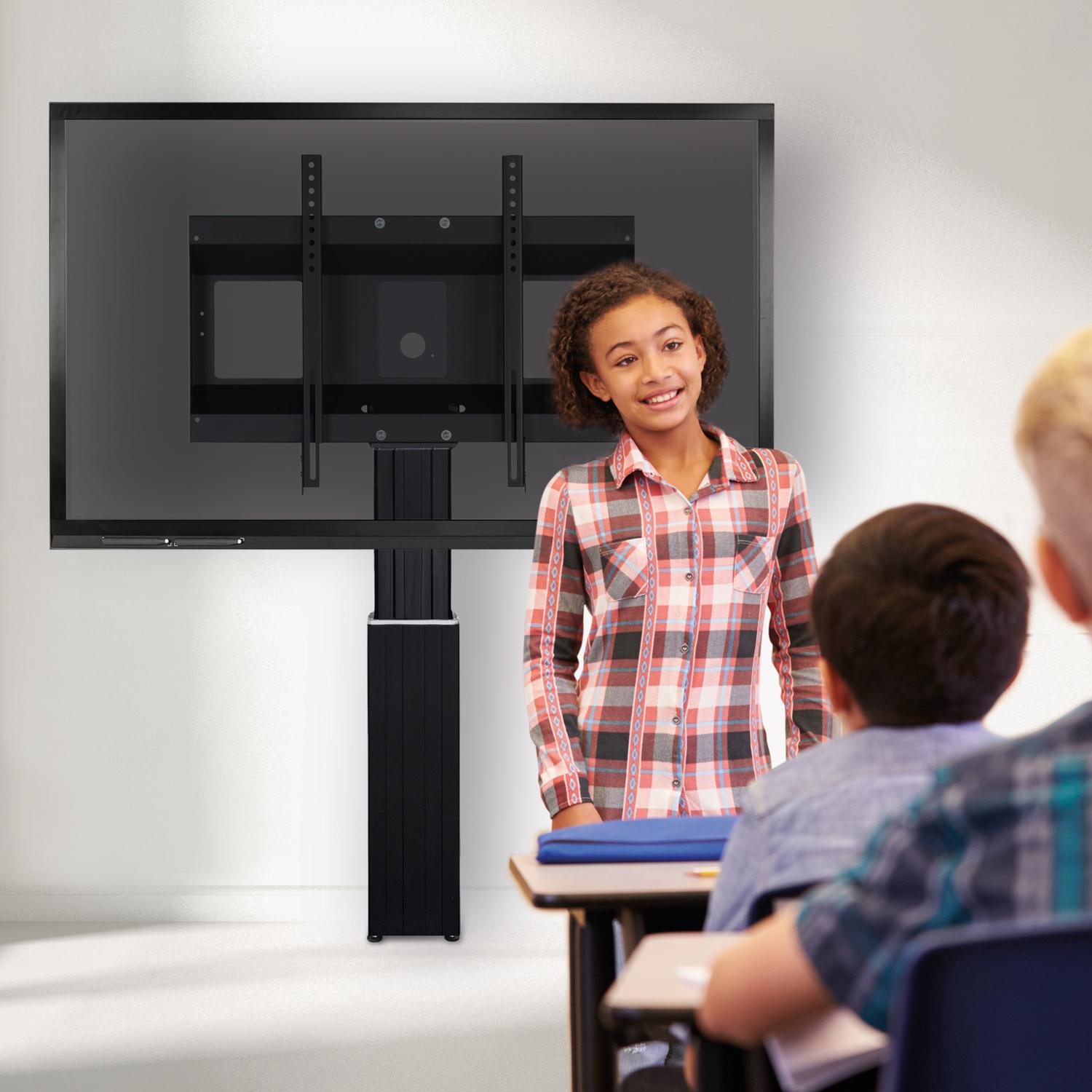

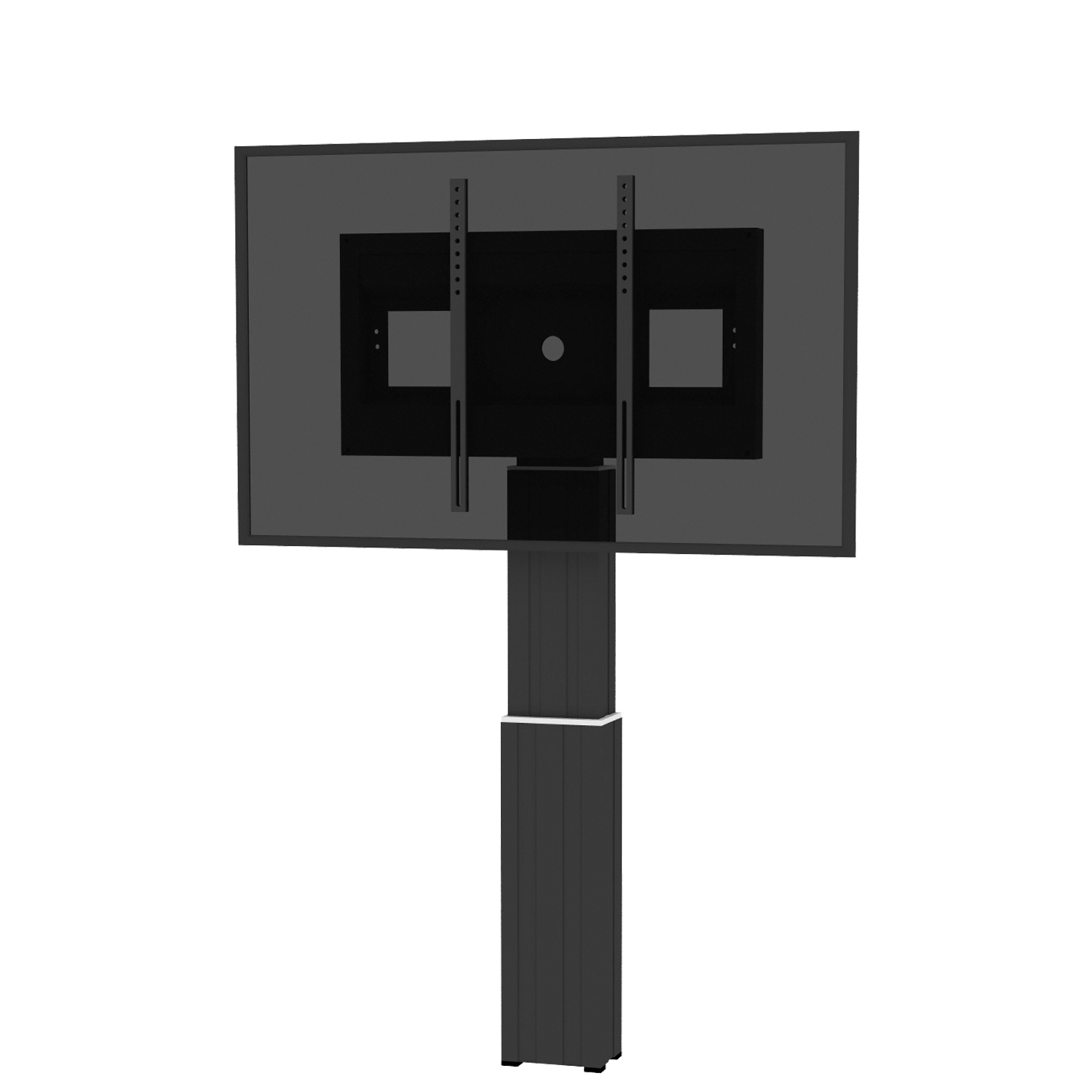

Motorized monitor wall mount, 50 cm of vertical travel

column black anodized, center of display 97 - 147 cm

Product description

Motorized monitor wall mount for 42"-100" (interactive) flat-panel displays.

The SCETAWLB is designed for flat panel displays up to 100”. The units feature a sturdy display mount with integrated cable management and "pull & release" locking brackets for quick and easy mounting of the display.

The SCETAWLB monitor wall mount comes with a column that offers 50 cm of vertical travel.

The unit comes flat-packed in 2 cartons and is courier-shippable.


Features

  • Heavy duty mount for displays up to 100"
  • "Pull & Release" brackets for easy mounting of display
  • VESA pattern, max. 800 x 600
  • Integrated cable management
  • 50 cm of smooth motorized height adjustment
  • Optimum stability thanks to 4 leveling feet and 2 wall mount brackets

UL certificate
Product image Motorized monitor wall mount, 50 cm of vertical travel SCETAWLB
Product image Motorized monitor wall mount, 50 cm of vertical travel SCETAWLB Product image Motorized monitor wall mount, 50 cm of vertical travel SCETAWLB Product image Motorized monitor wall mount, 50 cm of vertical travel SCETAWLB Product image Motorized monitor wall mount, 50 cm of vertical travel SCETAWLB

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
330.7 lbs
Icon maximal VESA
Max. Vesa
800 x 600

Accessories

Productimage Keyboard shelf Productimage Universal PC bracket Productimage Laptop side shelf Productimage Front shelf Productimage Side shelf for laptop Productimage Side shelf for laptop Productimage Side shelf for laptop Productimage Front shelf Productimage Front shelf Productimage Front shelf Productimage Video conference camera top shelf for displays from 42 - 70 inch Productimage Video conference camera top shelf for displays from 75 - 86 inch Productimage Extender for 2-part height adjustable aluminum columns Productimage Two whiteboard side wings Productimage Lockable notebook cabinet Productimage Foot remote control with 2 shifters in grey Productimage Floor plate for display brackets Productimage Floor plate for display mounts Productimage U-shaped wall mount Productimage U-shaped wall mount Productimage 2 galvanized adjustable wall mounting brackets Productimage 2 galvanized wall mounting brackets Productimage Wall mounting set for Systems with one column Productimage Safety padlock 1 piece Productimage Safety padlock 4 pieces Productimage Brackets and wing lock for locking the side wings in front of the display

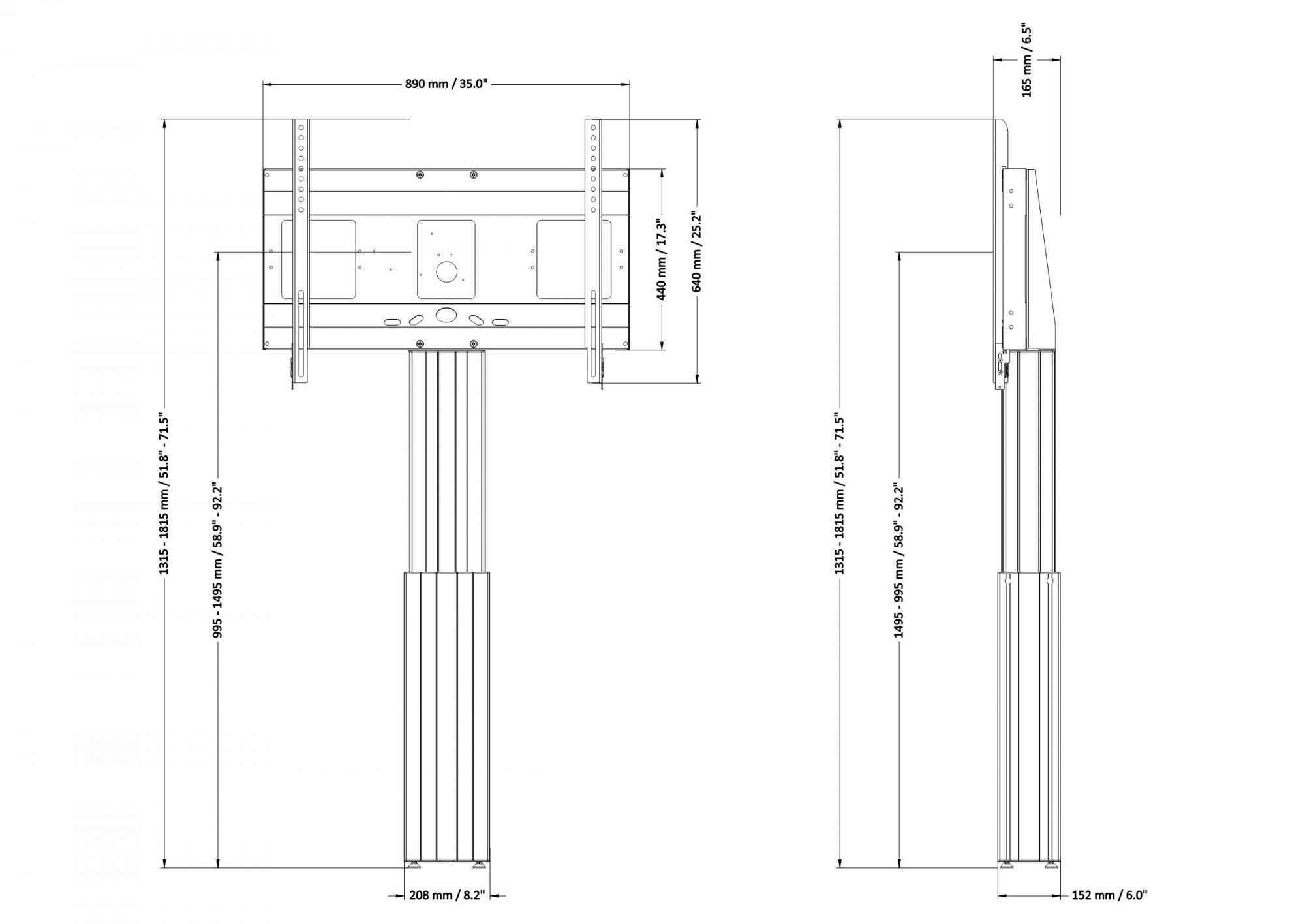

Product details

Item numberSCETAWLB
Vesa horizontal200 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all42" - 100"
Center to floor distance 989 mm - 1489 mm38.9" - 58.6"
Load capacity150 kg 330.7 lbs
Width 892 mm35.1"
Height 1317 mm - 1817 mm51.9" - 71.5"
Depth 176 mm6.9"
Warranty5 years warranty
UL certificateUL Listed
Frame colorRAL 9005 deep black
Column colorBlack anodized
Packages Package dimensions WxHxD Package weight
AF-SCETA-N900 x 160 x 450 mm / 35.4 x 6.3 x 17.7"13,6 kg / 30 lbs
CCE50-WB970 x 270 x 220 mm / 38.2 x 10.6 x 8.7"19,5 kg / 43 lbs
Total weight 33,1 kg / 73 lbs
Quick snap lock
Detail image Quick snap lock SCETAWLBWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Remote control of height adjustment
Detail image Remote control of height adjustment SCETAWLBThe electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.
Four leveling feet
Detail image Four leveling feet SCETAWLBThese four leveling feet allow you to level out any unevenness in the floor so that the monitor wall mount can transfer the weight of the monitor over the column to the floor. For this purpose, the individual ground leveling foot can be turned in or out.
2.76 inch Z-brackets
Detail image 2.76 inch Z-brackets SCETAWLBBy default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 2.76 inch (7 cm). Further wall mounting solutions are available as accessories.
