Motorized monitor wall mount, 70 cm of vertical travel

column natural anodized

Product description

Motorized display wall mount with extended 70 cm height adjustment.

The SCETAW3535 display wall mount is designed for large format displays up to 100”. The solution includes a sturdy display mount offering integrated cable management and featuring two "pull & lock" brackets for quick and easy mounting of the display.

The SCETAW3535 features a 3-tier column with extended 70 cm of height adjustment. It provides minimum clearance for small children or people in wheelchairs to access the display and maximum clearance for the teacher to present.

The unit comes flat-packed in 2 cartons and is courier shippable.


Features

  • Heavy duty mount for displays up to 100"
  • "Pull & Release" brackets for easy mounting of display
  • VESA pattern, max. 800 x 600
  • Integrated cable management
  • 70 cm of smooth motorized height adjustment
  • Optimum stability thanks to 4 leveling feet and 2 wall mount brackets

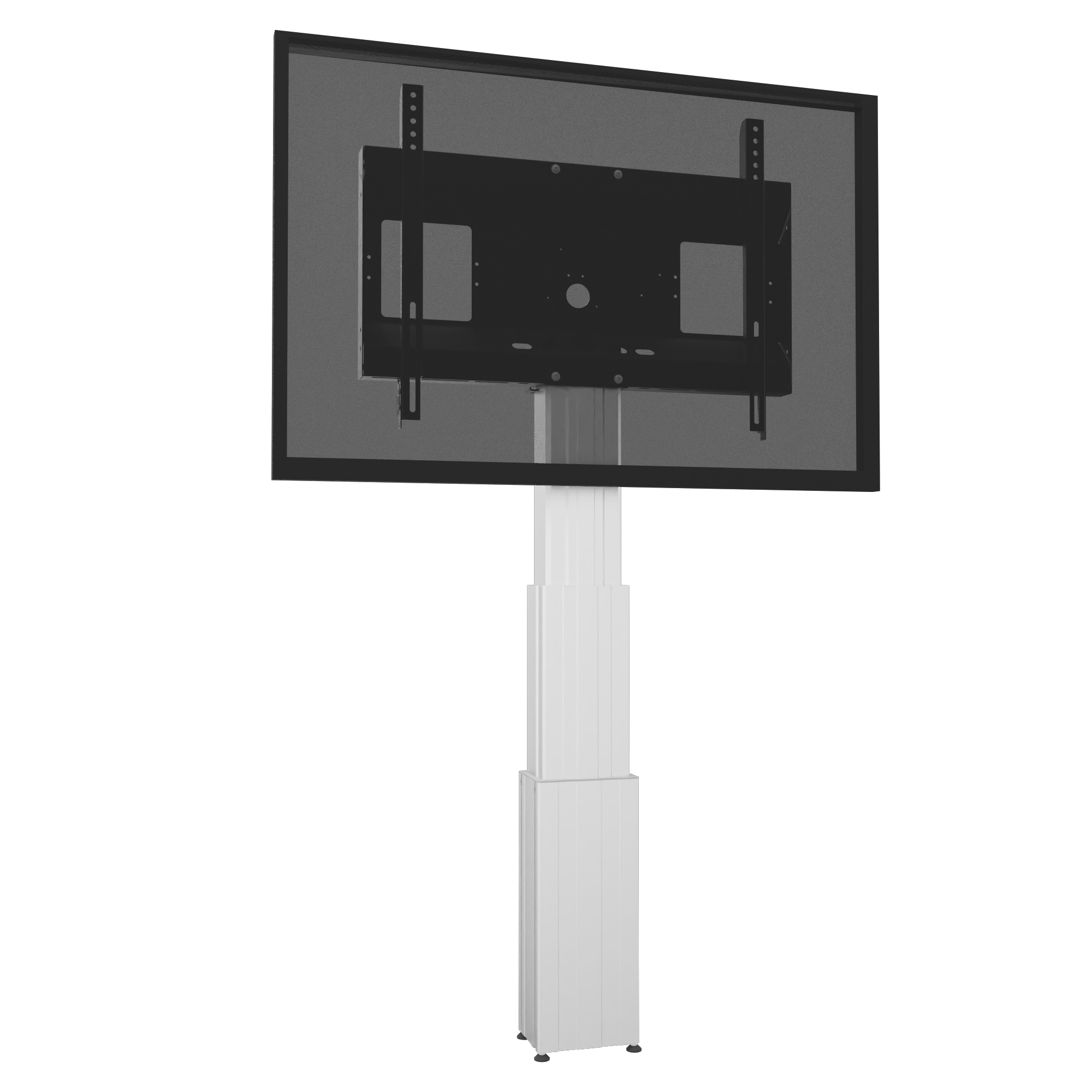

Product image Motorized monitor wall mount, 70 cm of vertical travel SCETAW3535
Product image Motorized monitor wall mount, 70 cm of vertical travel SCETAW3535 Product image Motorized monitor wall mount, 70 cm of vertical travel SCETAW3535 Product image Motorized monitor wall mount, 70 cm of vertical travel SCETAW3535 Product image Motorized monitor wall mount, 70 cm of vertical travel SCETAW3535 Product image Motorized monitor wall mount, 70 cm of vertical travel SCETAW3535

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
330.7 lbs
Icon maximal VESA
Max. Vesa
800 x 600

Accessories

Productimage Keyboard shelf Productimage Universal PC bracket Productimage Laptop side shelf Productimage Front shelf Productimage Side shelf for laptop Productimage Side shelf for laptop Productimage Side shelf for laptop Productimage Front shelf Productimage Front shelf Productimage Front shelf Productimage Video conference camera top shelf for displays from 42 - 70 inch Productimage Video conference camera top shelf for displays from 75 - 86 inch Productimage Extender for 3-part height adjustable aluminum columns Productimage Two whiteboard side wings Productimage Lockable notebook cabinet Productimage Foot remote control with 2 shifters in grey Productimage Floor plate for display brackets Productimage Floor plate for display mounts Productimage U-shaped wall mount Productimage U-shaped wall mount Productimage 2 galvanized adjustable wall mounting brackets Productimage 2 galvanized wall mounting brackets Productimage Wall mounting set for Systems with one column Productimage Safety padlock 1 piece Productimage Safety padlock 4 pieces Productimage Brackets and wing lock for locking the side wings in front of the display

Product details

Item numberSCETAW3535
Vesa horizontal200 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all42" - 100"

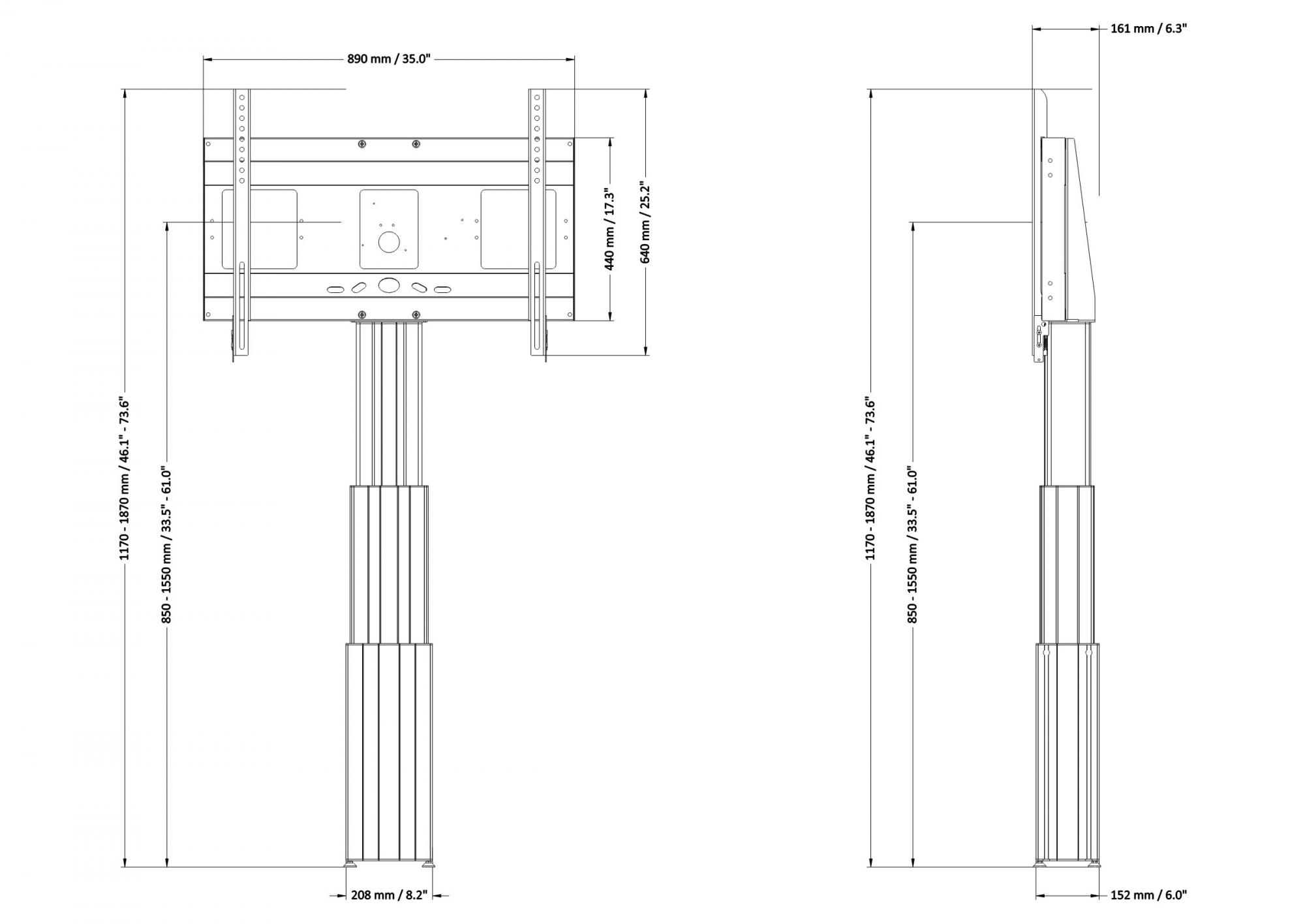

Center to floor distance 815 mm - 1515 mm32.1" - 59.6"
Load capacity150 kg 330.7 lbs
Width 890 mm35"
Height 1135 mm - 1835 mm44.7" - 72.2"
Depth 230 mm9.1"
Weight 32,9 kg72.5 lbs
Warranty5 years warranty
Frame colorRAL 9005 deep black
Column colorNatural anodized
Packages Package dimensions WxHxD Package weight
AF-SCETA-N900 x 160 x 450 mm / 35.4 x 6.3 x 17.7"13,6 kg / 30 lbs
CCE-3535W760 x 270 x 220 mm / 29.9 x 10.6 x 8.7"24 kg / 52.9 lbs
Total weight 37,6 kg / 82.9 lbs
Quick snap lock
Detail image Quick snap lock SCETAW3535With the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Remote control of height adjustment
Detail image Remote control of height adjustment SCETAW3535The electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.
Four leveling feet
Detail image Four leveling feet SCETAW3535These four leveling feet allow you to level out any unevenness in the floor so that the monitor wall mount can transfer the weight of the monitor over the column to the floor. For this purpose, the individual ground leveling foot can be turned in or out.
2.76 inch Z-brackets
Detail image 2.76 inch Z-brackets SCETAW3535By default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 2.76 inch (7 cm). Further wall mounting solutions are available as accessories.
