Motorized monitor wall mount, 70 cm of vertical travel

column black anodized
Item number: SCETAW3535B

Product description

Motorized display wall mount with extended 70 cm height adjustment.

The SCETAW3535B display & TV wall mount is designed for large format displays up to 100”. The solution includes a sturdy display mount offering integrated cable management and featuring two "pull & lock" brackets for quick and easy mounting of the display.

The SCETAW3535B features a 3-tier column with extended 70 cm of height adjustment. It provides minimum clearance for small children or people in wheelchairs to access the display and maximum clearance for the teacher to present.

The unit comes flat-packed in 2 cartons and is courier shippable.


Features

  • Heavy duty mount for displays up to 100"
  • "Pull & Release" brackets for easy mounting of display
  • VESA pattern, max. 800 x 600
  • Integrated cable management
  • 70 cm of smooth motorized height adjustment
  • Optimum stability thanks to 4 leveling feet and 2 wall mount brackets

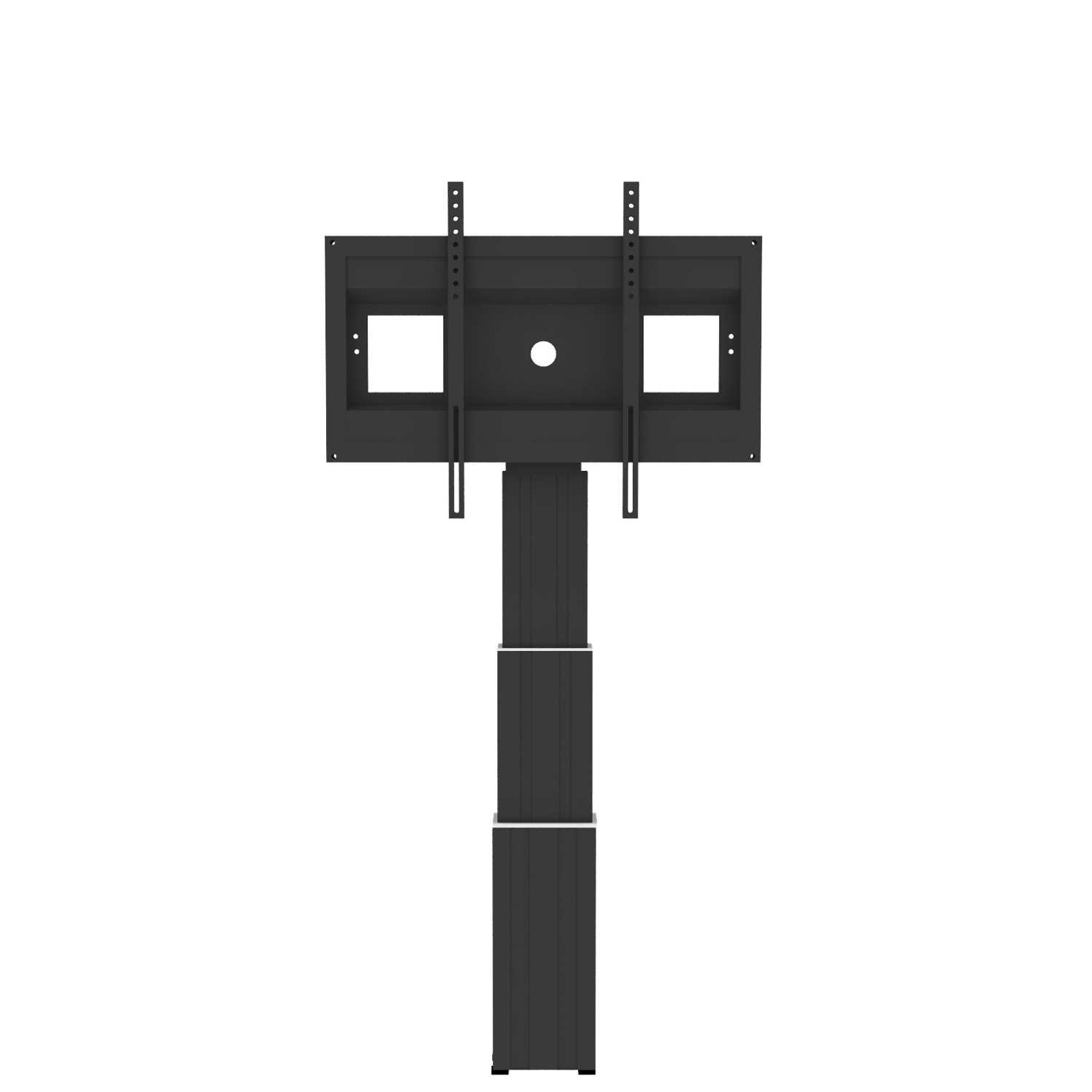

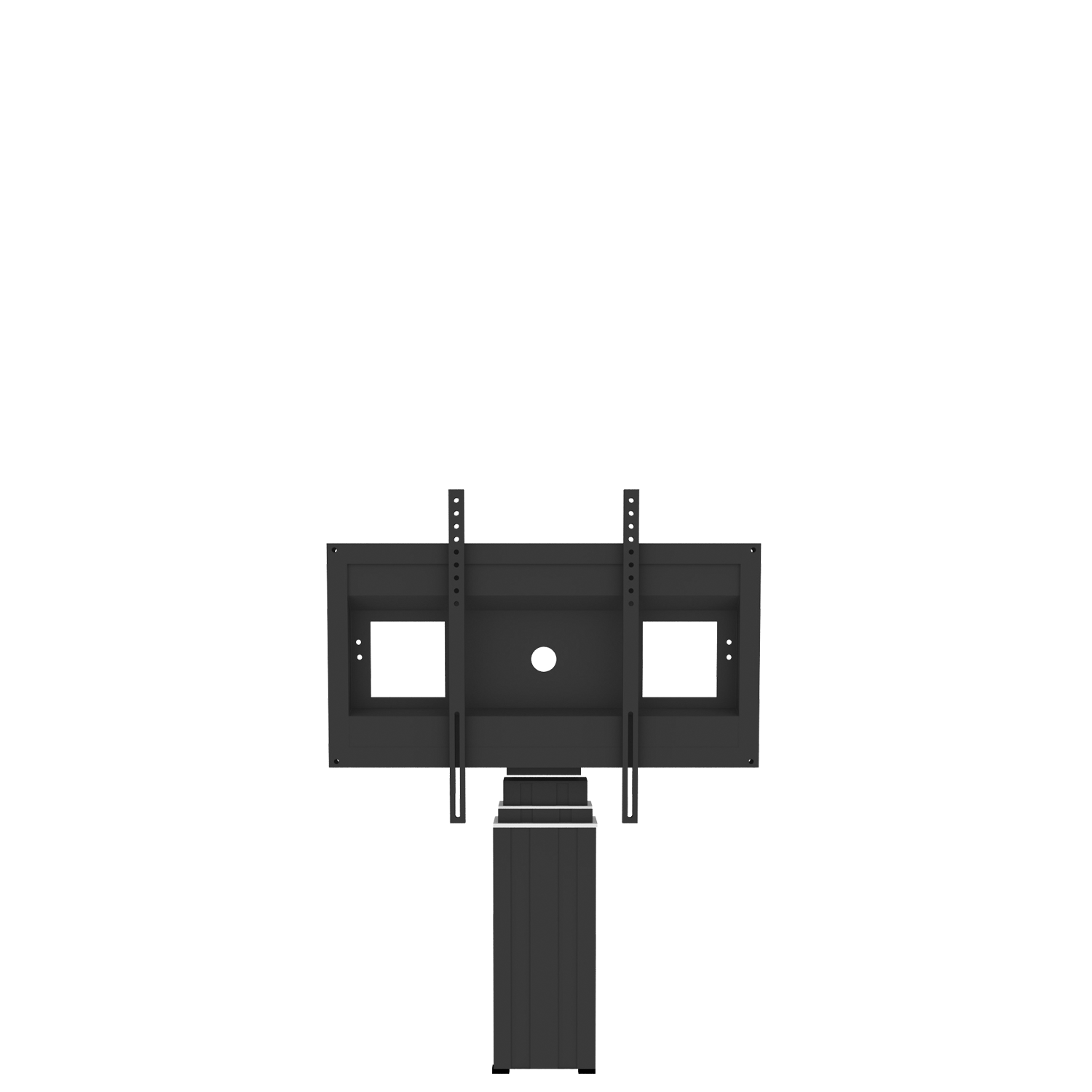

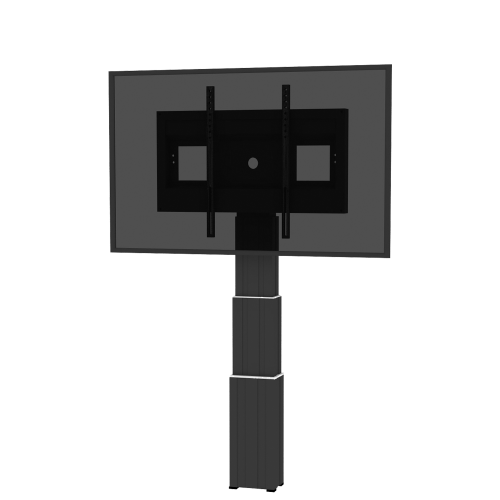

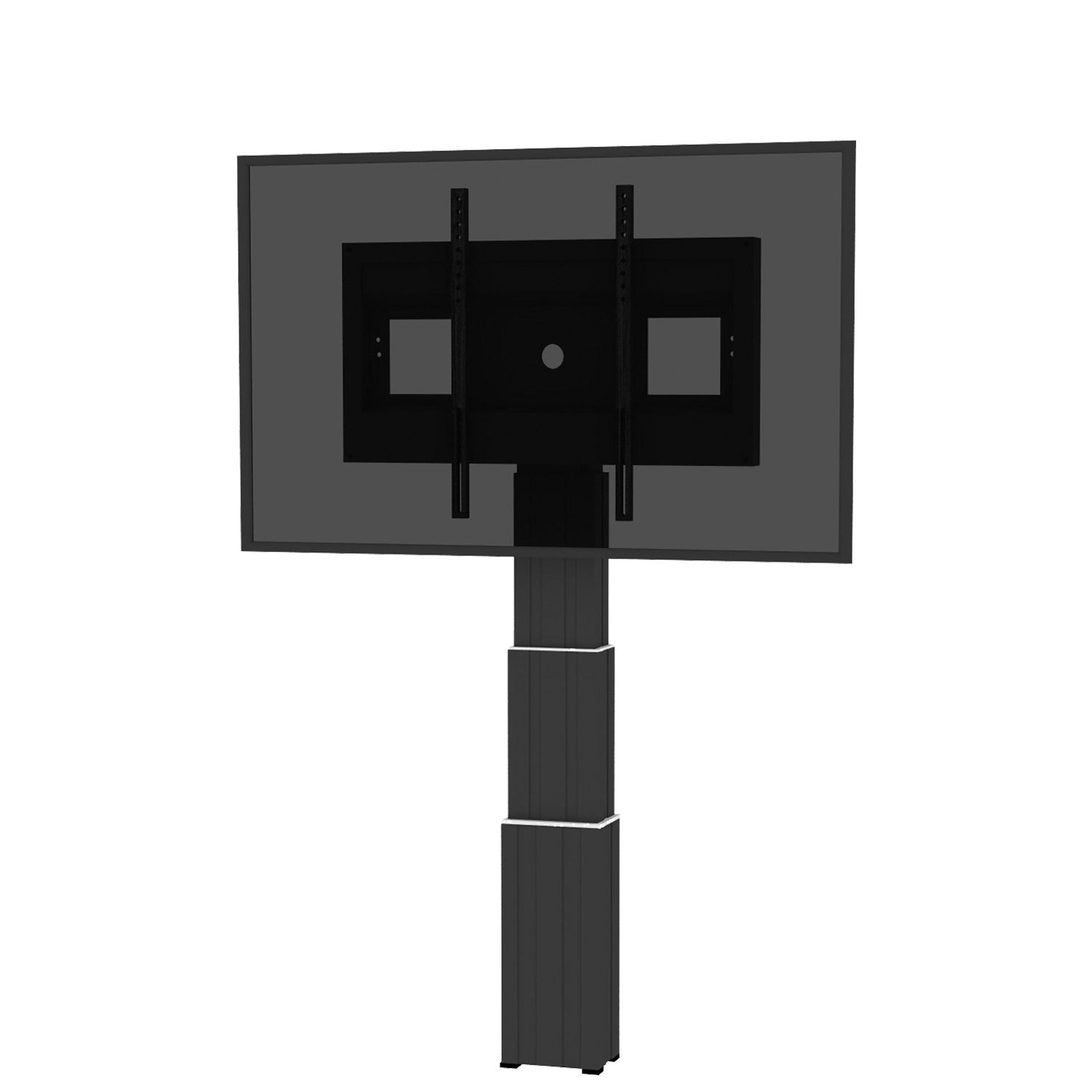

Product image Motorized monitor wall mount, 70 cm of vertical travel SCETAW3535B
Product image Motorized monitor wall mount, 70 cm of vertical travel SCETAW3535B Product image Motorized monitor wall mount, 70 cm of vertical travel SCETAW3535B Product image Motorized monitor wall mount, 70 cm of vertical travel SCETAW3535B Product image Motorized monitor wall mount, 70 cm of vertical travel SCETAW3535B Product image Motorized monitor wall mount, 70 cm of vertical travel SCETAW3535B Product image Motorized monitor wall mount, 70 cm of vertical travel SCETAW3535B

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
299.8 lbs
Icon maximal VESA
Max. Vesa
800 x 600
Item numberSCETAW3535B
Vesa horizontal300 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all42" - 100"
Vertical travel70 cm

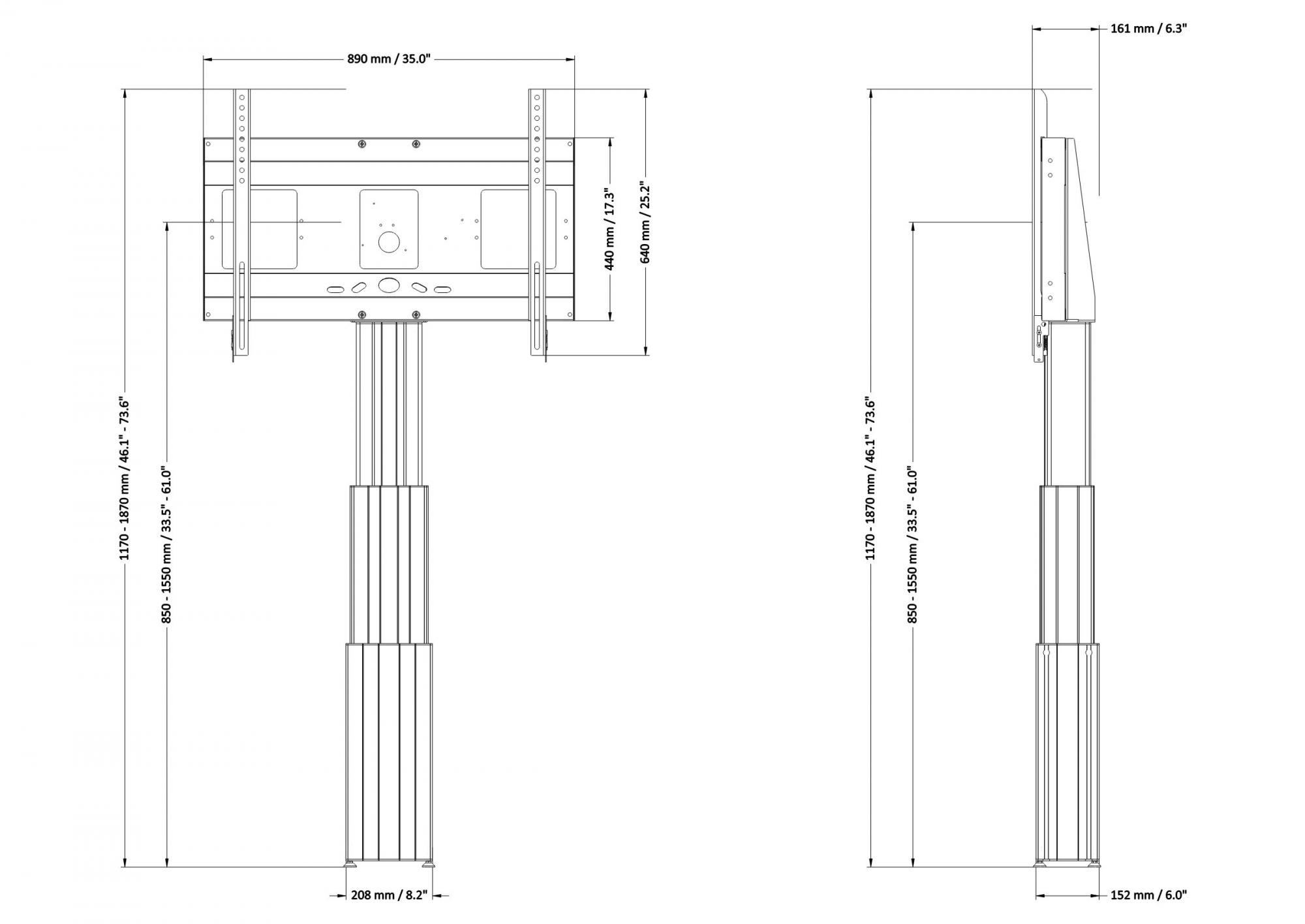

Center to floor distance 815 mm - 1515 mm32.1" - 59.6"
Load capacity136 kg 299.8 lbs
Width 890 mm35"
Height 1170 mm - 1870 mm46.1" - 73.6"
Depth 161 mm6.3"
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorBlack anodized
Packages Package dimensions WxHxD Package weight
AF-SCETA-N900 x 160 x 450 mm / 35.4 x 6.3 x 17.7"13,6 kg / 30 lbs
CCE-3535WB760 x 270 x 220 mm / 29.9 x 10.6 x 8.7"24 kg / 52.9 lbs
Total weight 37,6 kg / 82.9 lbs
Display mount for displays with max. VESA 800 x 600
Detail image Display mount for displays with max. VESA 800 x 600 SCETAW3535BThis frame accommodates monitors with max. VESA 800 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
Quick snap lock
Detail image Quick snap lock SCETAW3535BWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Remote control of height adjustment
Detail image Remote control of height adjustment SCETAW3535BThe electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.
Four leveling feet
Detail image Four leveling feet SCETAW3535BThese four leveling feet allow you to level out any unevenness in the floor so that the monitor wall mount can transfer the weight of the monitor over the column to the floor. For this purpose, the individual ground leveling foot can be turned in or out.
Wall mounting kit
Detail image Wall mounting kit SCETAW3535BThe system includes a wall mounting set consisting of: two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm, Two sliding blocks incl. nut to attach the brackets to the column, four floor leveling feet and 3 cable clips.

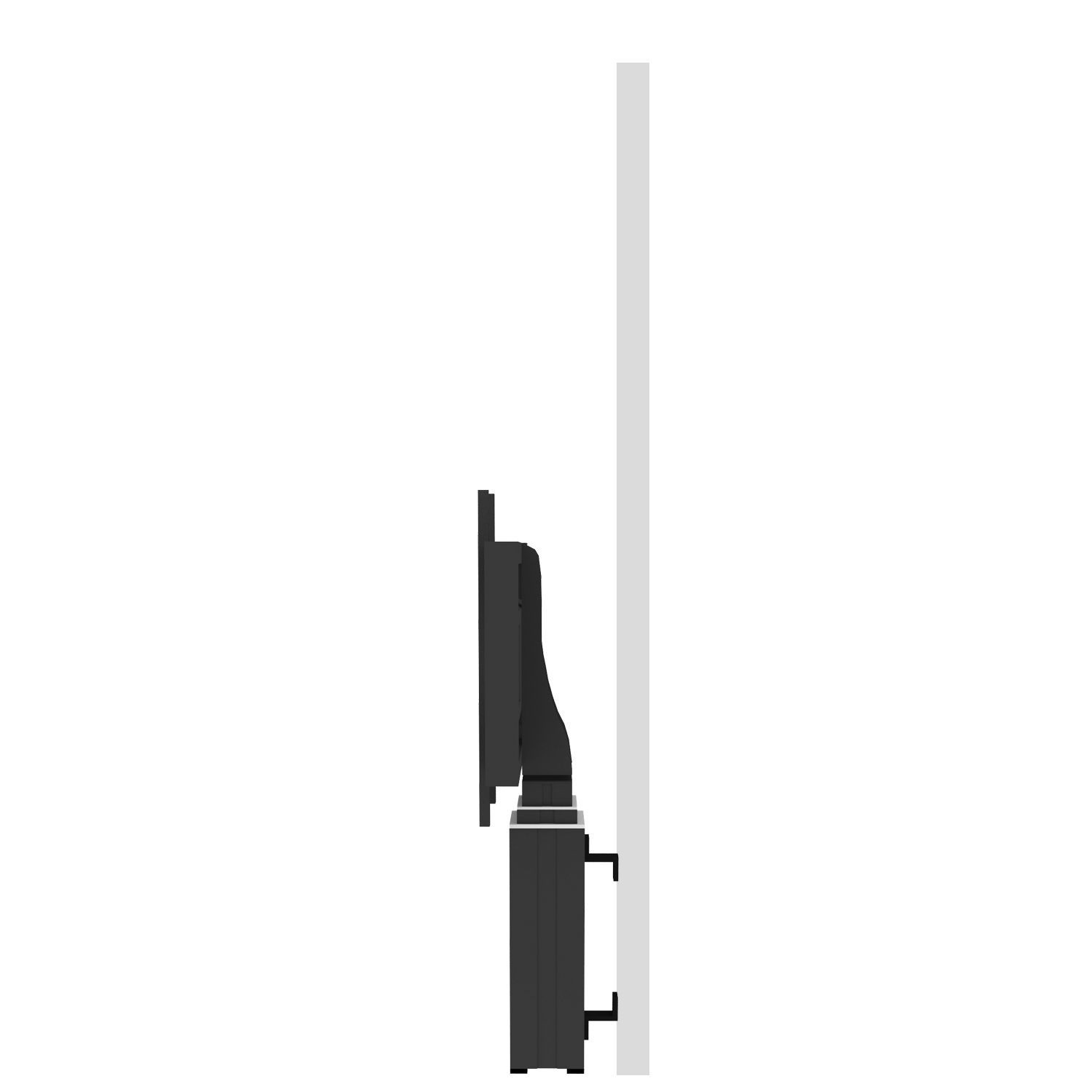

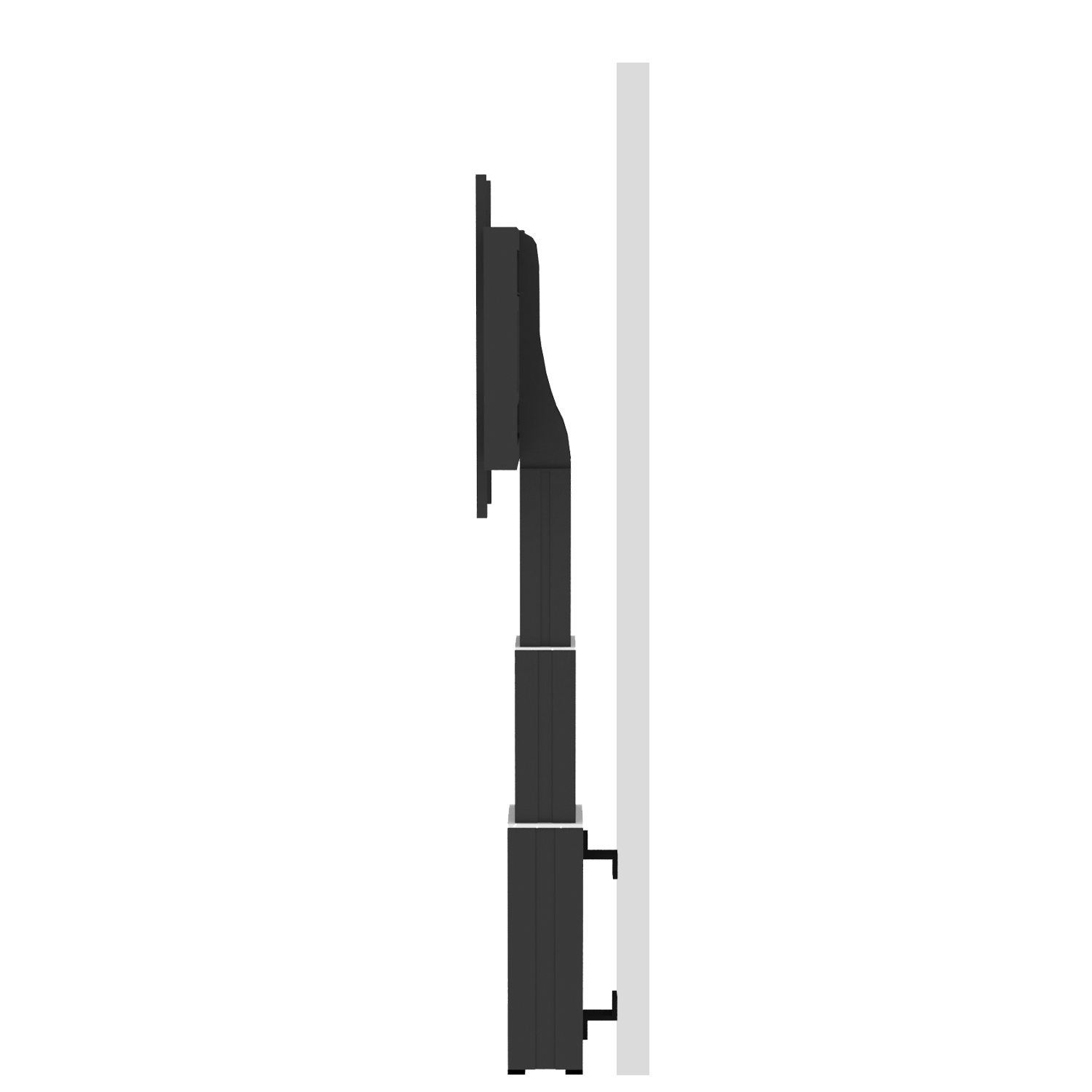

7 cm (2.76 inch) Z-brackets
Detail image 7 cm (2.76 inch) Z-brackets SCETAW3535BBy default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm (2.76 inch). Further wall mounting solutions are available as accessories.
