Motorized XL display mount & monitor stand, 70 cm of vertical travel

column silver anodized, floor plate
Item number: SCEXLP3535

Product description

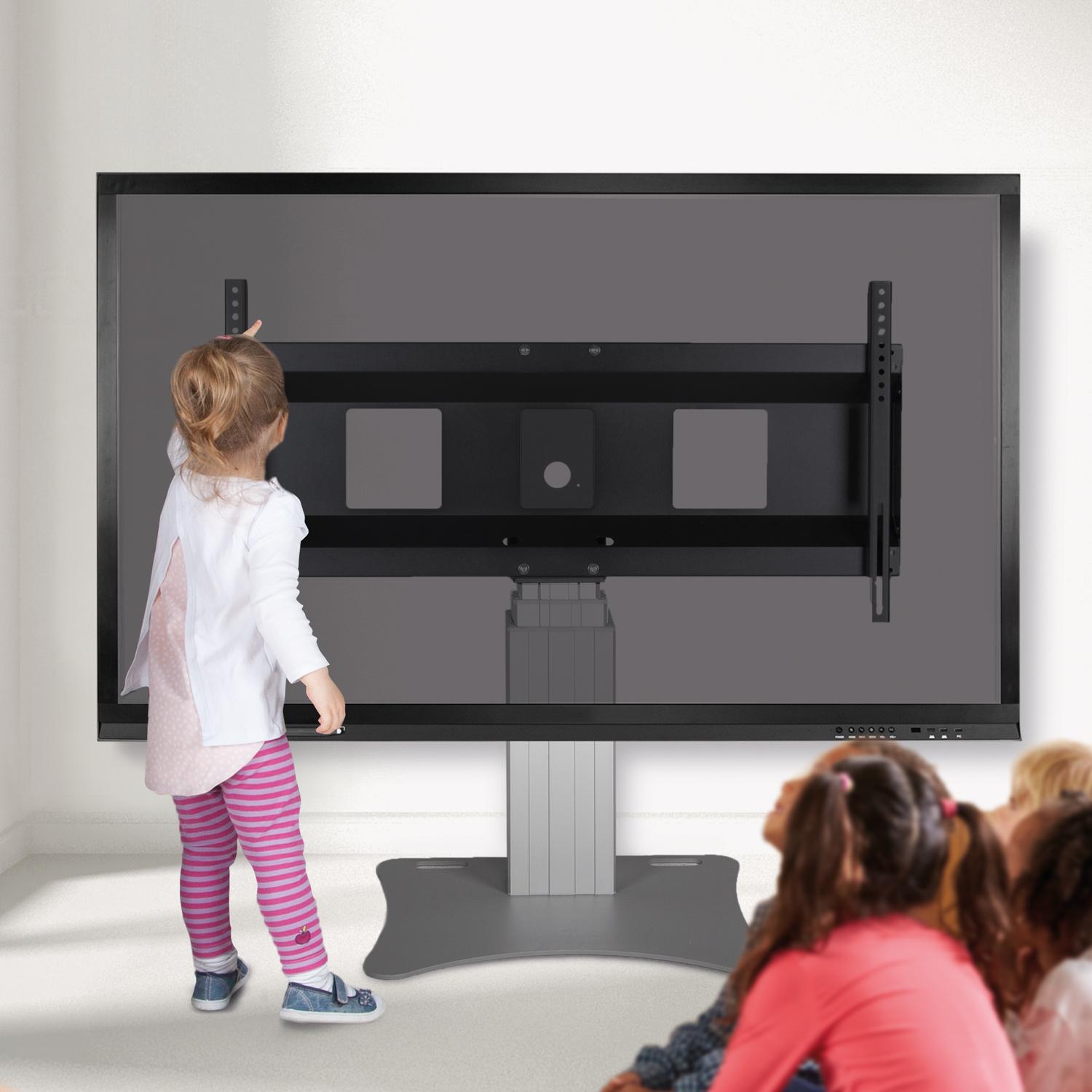

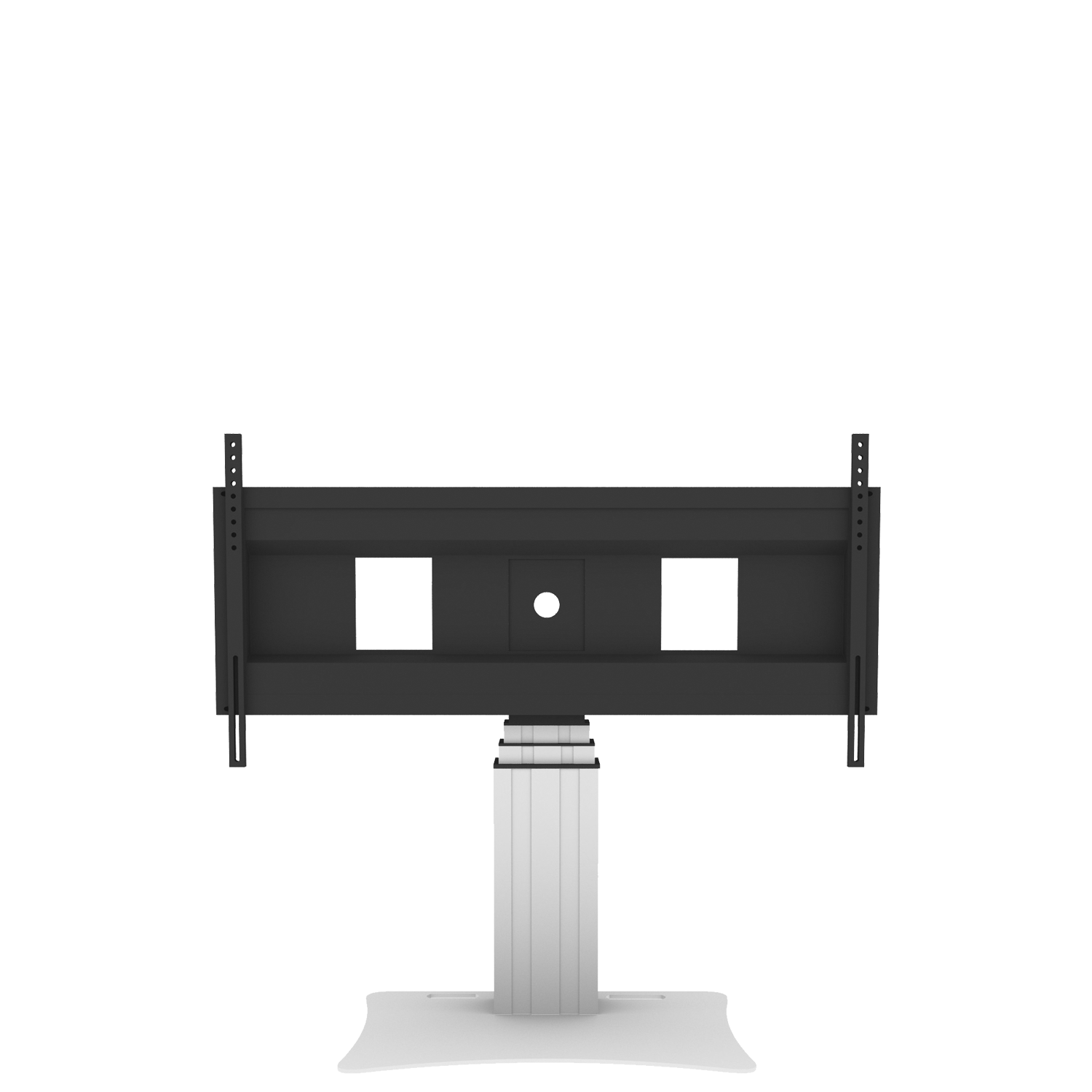

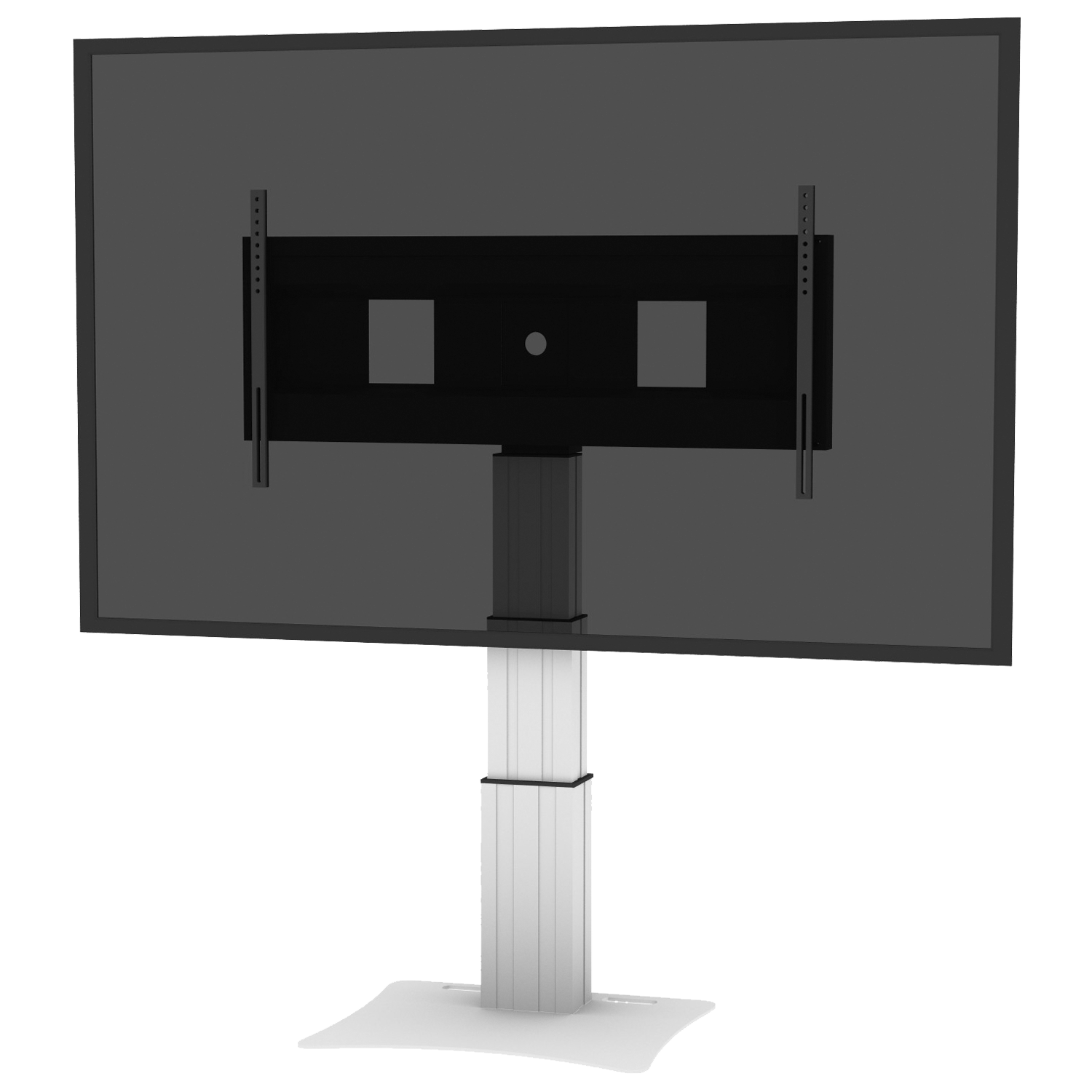

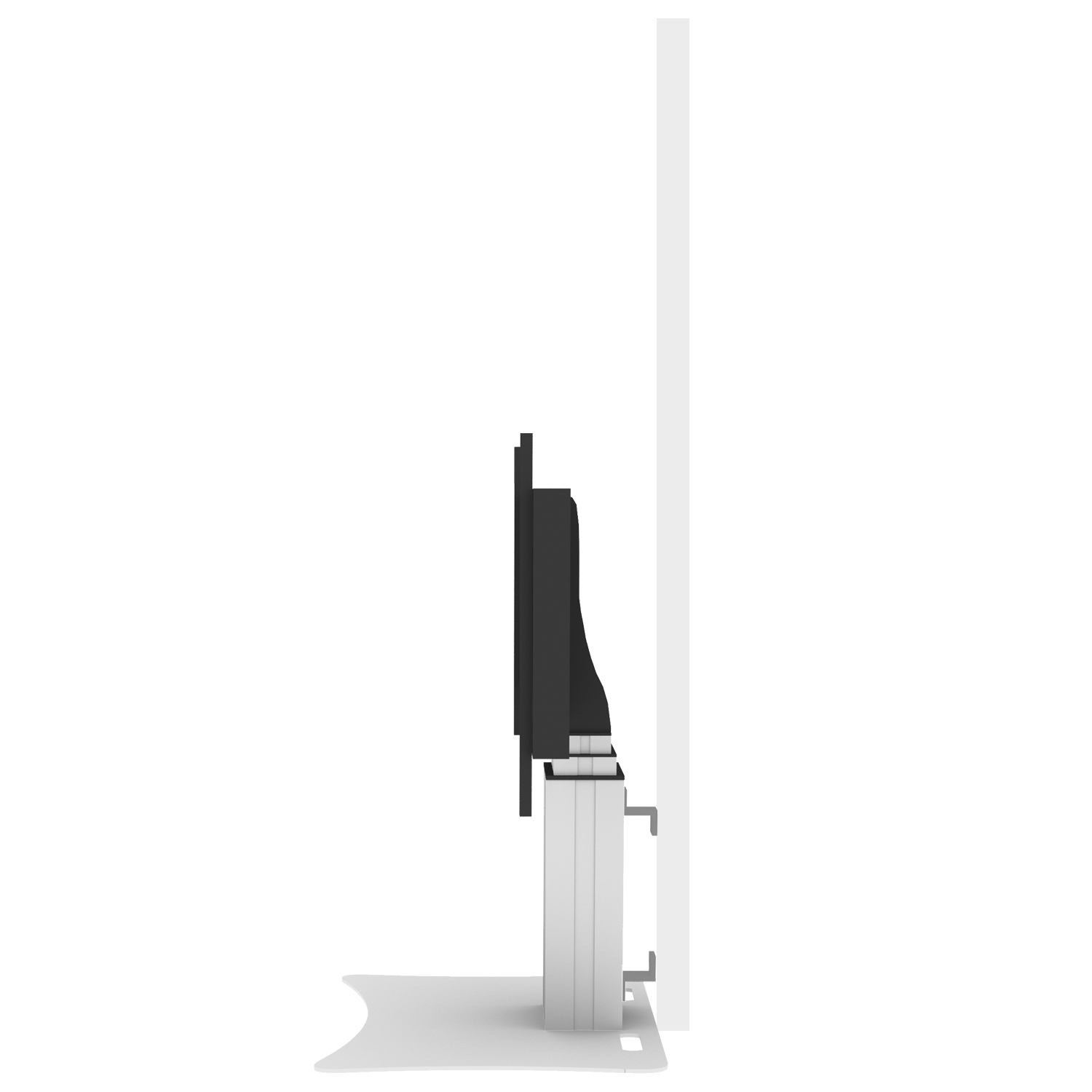

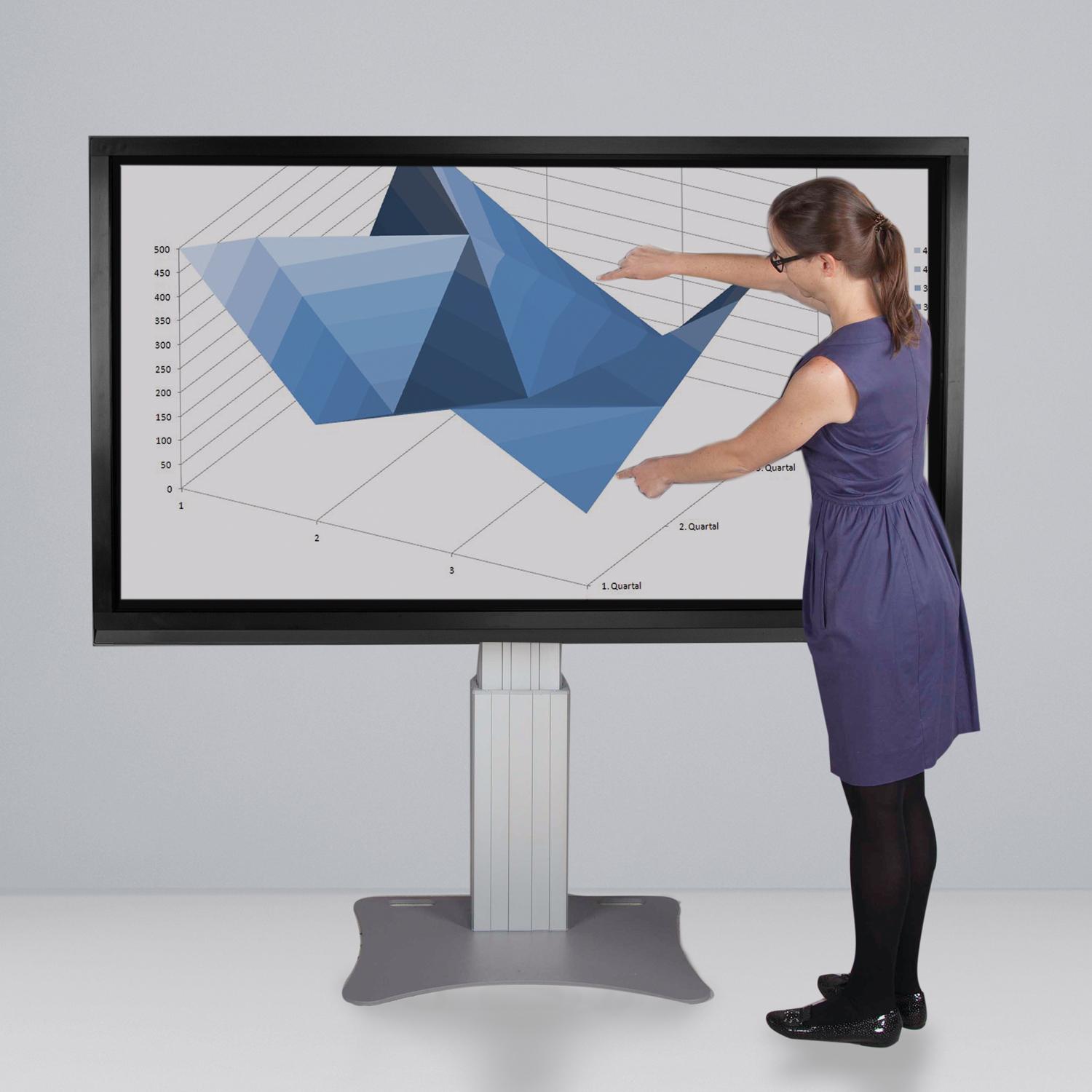

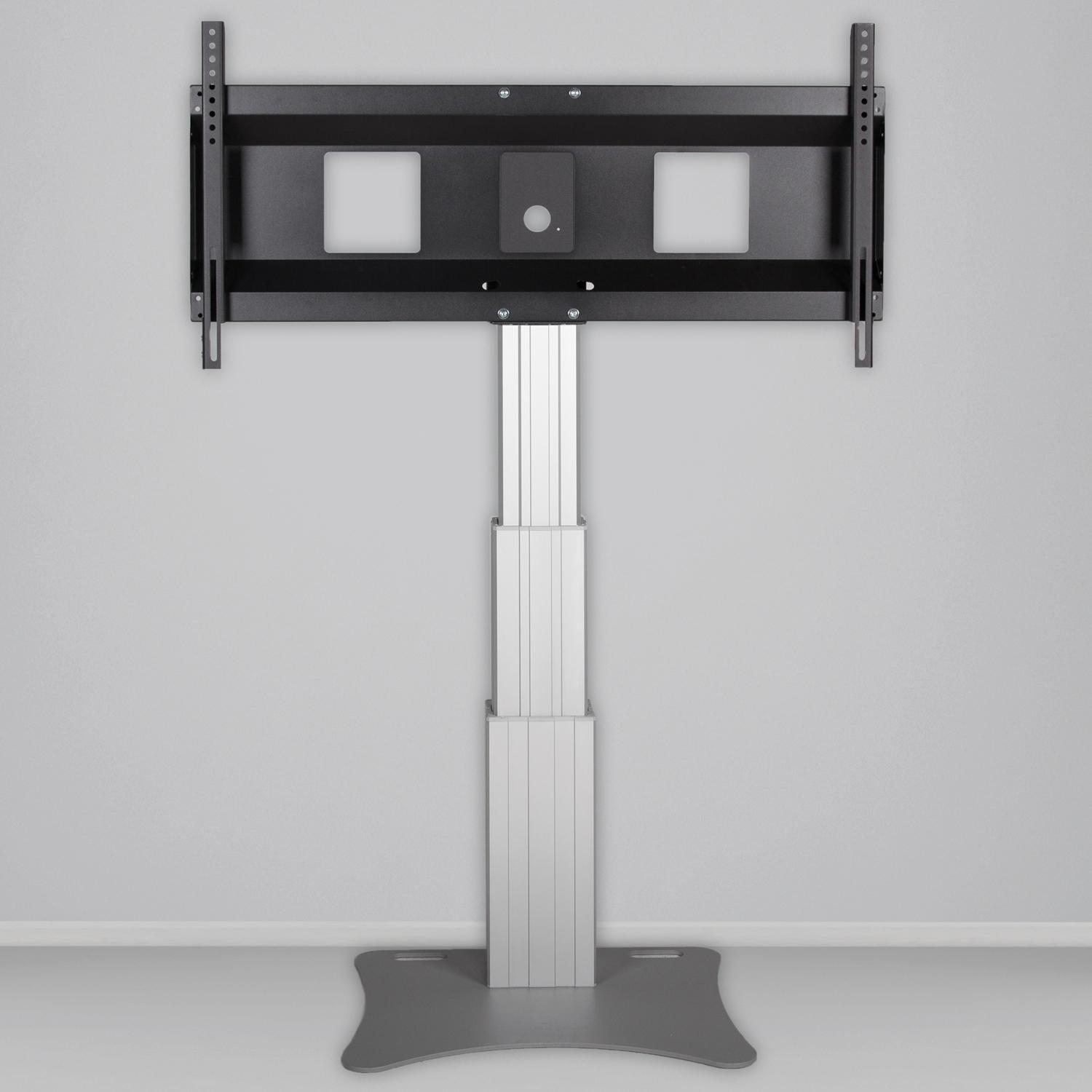

Motorized monitor stand with XL display mount. Designed specifically for use with interactive touch screen monitors, this motorized tv wall mount features an extra wide display mount. The system comes standard with the 3-tier column which offers 30” of height adjustment.

A 0.3" thick, solid steel plate secures to the motorized center column. Designed for static, freestanding applications or to add stability to monitor wall mount systems, secured to e.g. a stud wall. The floor plate features cut-outs/ handles for easy transportation. It comes powdercoated in grey aluminum.

The unit comes flat-packed in 3 cartons and is courier-shippable.


Features

  • XL wide display mount with max. VESA 1200x600
  • Designed for use with IFPDs and LFDs
  • Easy mounting of display thanks to "pull & release" brackets
  • Display mount with integrated cable management

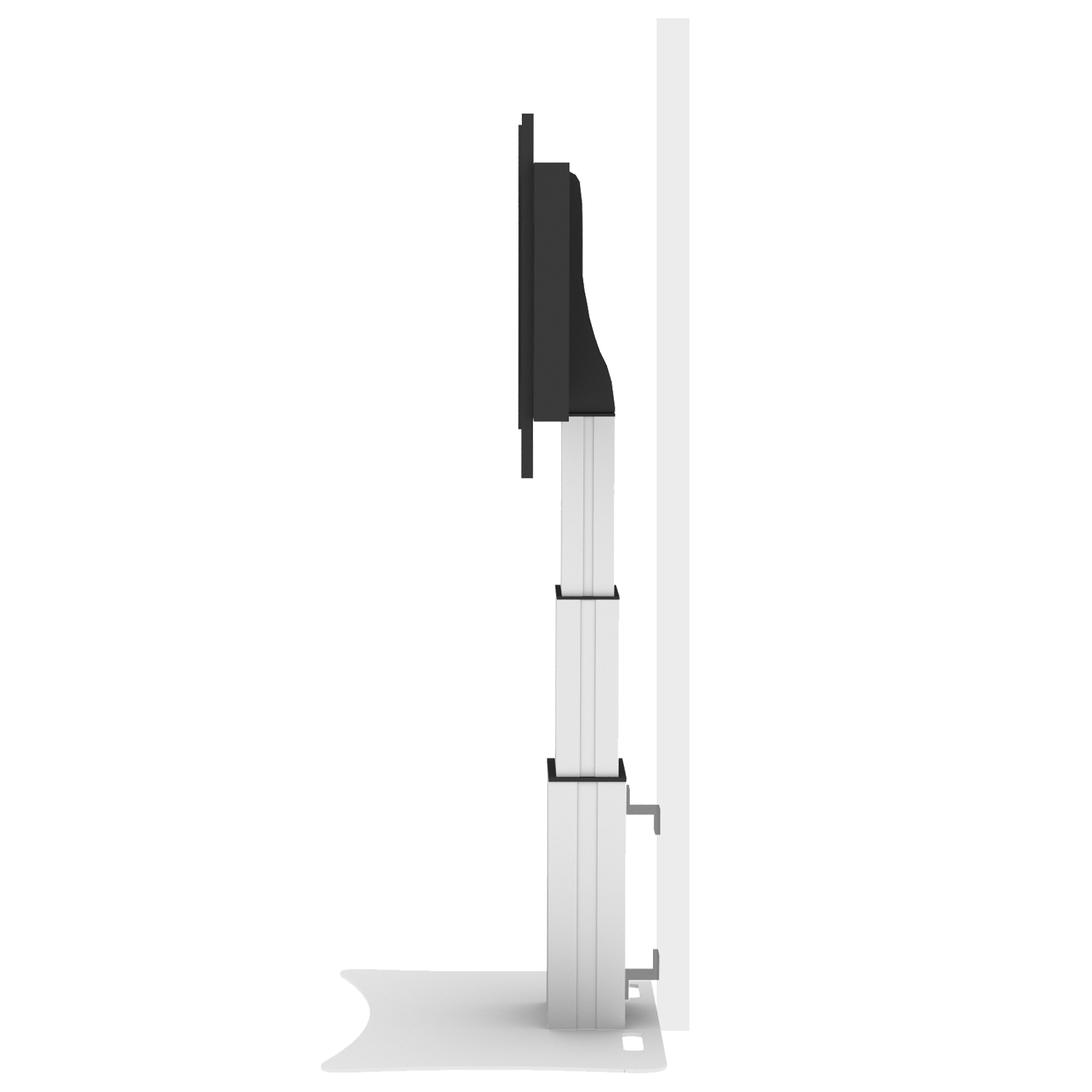

  • Actuator safely concealed in center column offering 70 cm of vertical travel
  • Wired remote is standard included
  • Optimum stability thanks to the floor plate and 2 wall mount brackets
Product image Motorized XL display mount & monitor stand, 70 cm of vertical travel SCEXLP3535
Product image Motorized XL display mount & monitor stand, 70 cm of vertical travel SCEXLP3535 Product image Motorized XL display mount & monitor stand, 70 cm of vertical travel SCEXLP3535 Product image Motorized XL display mount & monitor stand, 70 cm of vertical travel SCEXLP3535 Product image Motorized XL display mount & monitor stand, 70 cm of vertical travel SCEXLP3535 Product image Motorized XL display mount & monitor stand, 70 cm of vertical travel SCEXLP3535 Product image Motorized XL display mount & monitor stand, 70 cm of vertical travel SCEXLP3535 Product image Motorized XL display mount & monitor stand, 70 cm of vertical travel SCEXLP3535

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
299.8 lbs
Icon maximal VESA
Max. Vesa
1200 x 600
Item numberSCEXLP3535
Vesa horizontal400 mm - 1200 mm
Vesa vertical200 mm - 600 mm
Frame for all70" - 120"
Vertical travel70 cm
Center to floor distance 843 mm - 1543 mm33.2" - 60.7"
Load capacity136 kg 299.8 lbs
Width 1290 mm50.8"
Height 1163 mm - 1863 mm45.8" - 73.3"
Depth 530 mm20.9"
Weight 60,8 kg134 lbs
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorSilver anodized
Base colorRAL 9006 white aluminum
Packages Package dimensions WxHxD Package weight
AFSCETAN121300 x 450 x 160 mm / 51.2 x 17.7 x 6.3"17 kg / 37.5 lbs
CCE-3535W760 x 270 x 220 mm / 29.9 x 10.6 x 8.7"24 kg / 52.9 lbs
PSTSCETA750 x 20 x 600 mm / 29.5 x 0.8 x 23.6"21,8 kg / 48.1 lbs
Total weight 62,8 kg / 138.5 lbs
Display mount XL for displays with max. VESA 1200 x 600
Detail image Display mount XL for displays with max. VESA 1200 x 600 SCEXLP3535This XL frame accommodates monitors with max. VESA 1200 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
Quick snap lock
Detail image Quick snap lock SCEXLP3535With the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Remote control of height adjustment
Detail image Remote control of height adjustment SCEXLP3535The electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.
8 mm strong floor plate
Detail image 8 mm strong floor plate SCEXLP3535The 8 mm strong base plate allows the mounting of our monitor mounts on lightweight walls or a freestanding installation in the room. The weight of the monitor is transmitted through the column to the floor plate and thus to the floor, maximizing stability.
7 cm (2.76 inch) Z-brackets
Detail image 7 cm (2.76 inch) Z-brackets SCEXLP3535By default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm (2.76 inch). Further wall mounting solutions are available as accessories.
Wall mounting kit
Detail image Wall mounting kit SCEXLP3535The system includes a wall mounting set consisting of: two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm, Two sliding blocks incl. nut to attach the brackets to the column, four floor leveling feet and 3 cable clips.
