Motorized XL monitor wall mount, 50 cm of vertical travel

column black anodized, center of display 97 - 147 cm
Item number: SCEXLWLB

Product description

Motorized monitor & TV wall mount with XL display mount. Designed specifically for use with interactive touch screen monitors, this motorized tv wall mount features an extra wide display mount. The system comes standard with the 2-tier column which offers 20” of height adjustment.

Product ships flat-packed. Cartons are courier shippable.


Features

  • XL wide monitor & TV wall mount with max. VESA 1200x600
  • Designed for use with IFPDs and LFDs
  • Easy mounting of display thanks to "pull & release" brackets
  • Display mount with integrated cable management
  • Actuator safely concealed in center column offering 50 cm of vertical travel
  • Wired remote is standard included
Product image Motorized XL monitor wall mount, 50 cm of vertical travel SCEXLWLB
Product image Motorized XL monitor wall mount, 50 cm of vertical travel SCEXLWLB Product image Motorized XL monitor wall mount, 50 cm of vertical travel SCEXLWLB Product image Motorized XL monitor wall mount, 50 cm of vertical travel SCEXLWLB Product image Motorized XL monitor wall mount, 50 cm of vertical travel SCEXLWLB Product image Motorized XL monitor wall mount, 50 cm of vertical travel SCEXLWLB

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
330.7 lbs
Icon maximal VESA
Max. Vesa
1200 x 600

Accessories

Productimage Keyboard shelf Productimage Universal PC bracket Productimage Laptop side shelf Productimage Front shelf Productimage Side shelf for laptop Productimage Side shelf for laptop Productimage Side shelf for laptop Productimage Front shelf Productimage Front shelf Productimage Front shelf Productimage Video conference camera top shelf for displays from 42 - 70 inch Productimage Video conference camera top shelf for displays from 75 - 86 inch Productimage Extender for 3-part height adjustable aluminum columns Productimage Lockable notebook cabinet Productimage Foot remote control with 2 shifters in grey Productimage Floor plate for display mounts Productimage Floor plate for display brackets Productimage U-shaped wall mount Productimage U-shaped wall mount Productimage Wall mounting set for Systems with one column Productimage 2 galvanized adjustable wall mounting brackets Productimage 2 galvanized wall mounting brackets Productimage Safety padlock 1 piece Productimage Safety padlock 4 pieces

Product details

Item numberSCEXLWLB
Vesa horizontal400 mm - 1200 mm
Vesa vertical200 mm - 600 mm
Frame for all70" - 120"
Center to floor distance 970 mm - 1470 mm38.2" - 57.9"
Load capacity150 kg 330.7 lbs
Warranty5 years warranty
Frame colorRAL 9005 deep black
Column colorBlack anodized
Packages Package dimensions WxHxD Package weight
AFSCETAN121300 x 450 x 160 mm / 51.2 x 17.7 x 6.3"17 kg / 37.5 lbs
CCE50-WB970 x 270 x 220 mm / 38.2 x 10.6 x 8.7"19,5 kg / 43 lbs
Total weight 36,5 kg / 80.5 lbs

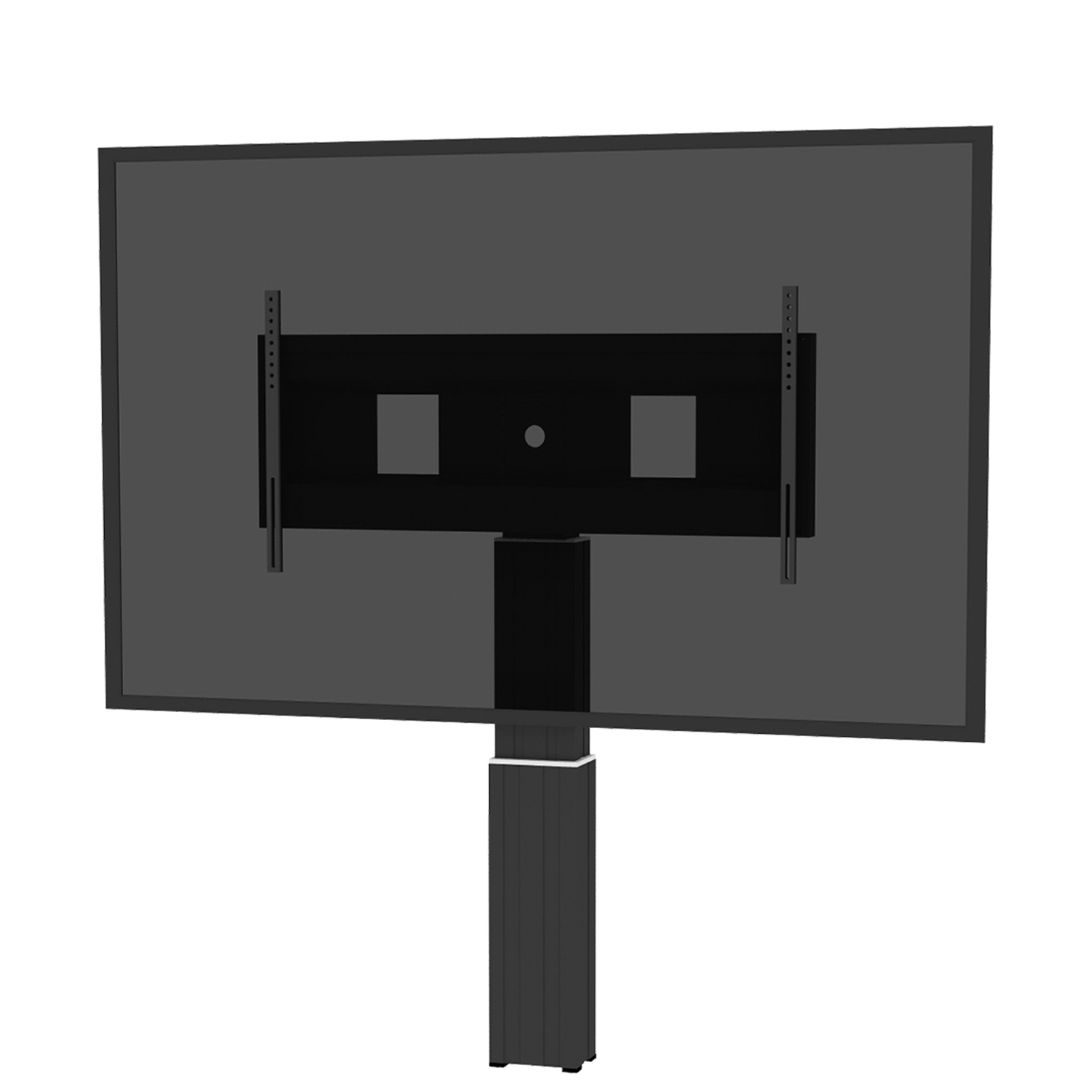

Display mount XL for 70" to 120" displays
Detail image Display mount XL for 70This XL frame accommodates 70 to 120 inch monitors. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
Quick snap lock
Detail image Quick snap lock SCEXLWLBWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Remote control of height adjustment
Detail image Remote control of height adjustment SCEXLWLBThe electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.
Four leveling feet
Detail image Four leveling feet SCEXLWLBThese four leveling feet allow you to level out any unevenness in the floor so that the monitor wall mount can transfer the weight of the monitor over the column to the floor. For this purpose, the individual ground leveling foot can be turned in or out.
2.76 inch Z-brackets
Detail image 2.76 inch Z-brackets SCEXLWLBBy default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 2.76 inch (7 cm). Further wall mounting solutions are available as accessories.
