Motorized XL monitor wall mount, 70 cm of vertical travel

column black anodized
Item number: SCEXLW3535B

Product description

Motorized tv & monitor wall mount with XL display mount. Designed specifically for use with interactive touch screen displays, this motorized tv wall mount features an extra wide display mount. The system comes standard with the 3-tier column which offers 30” of height adjustment.

Product ships flat-packed. Cartons are courier shippable.


Features

  • XL wide monitor wall mount with max. VESA 1200x600
  • Designed for use with IFPDs and LFDs
  • Easy mounting of display thanks to "pull & release" brackets
  • Display mount with integrated cable management
  • Actuator safely concealed in center column offering 70 cm of vertical travel
  • Wired remote is standard included

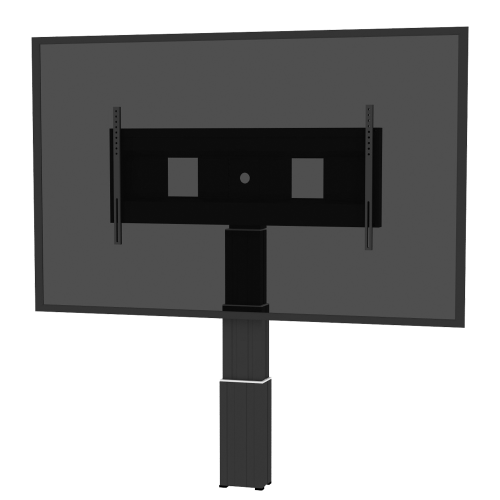

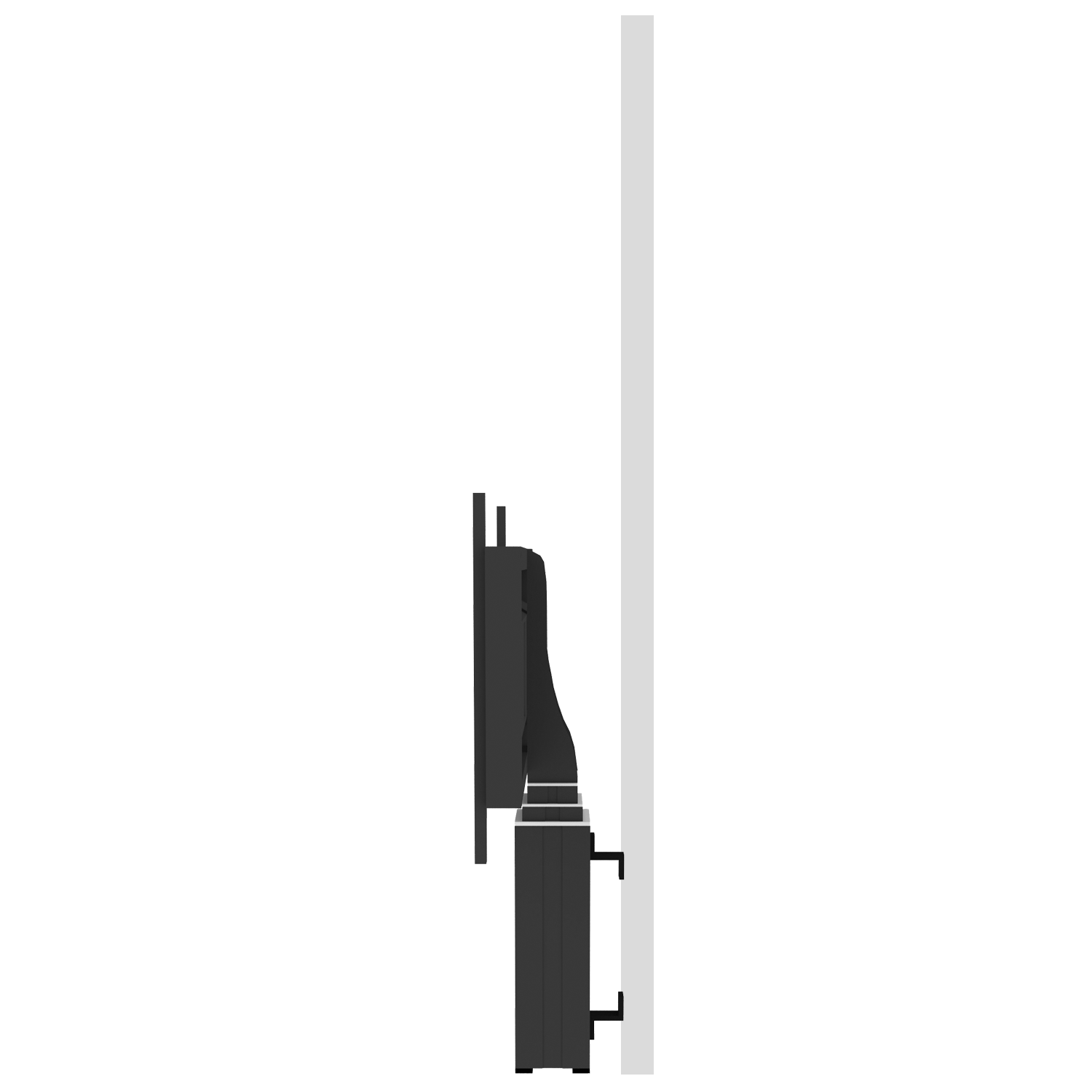

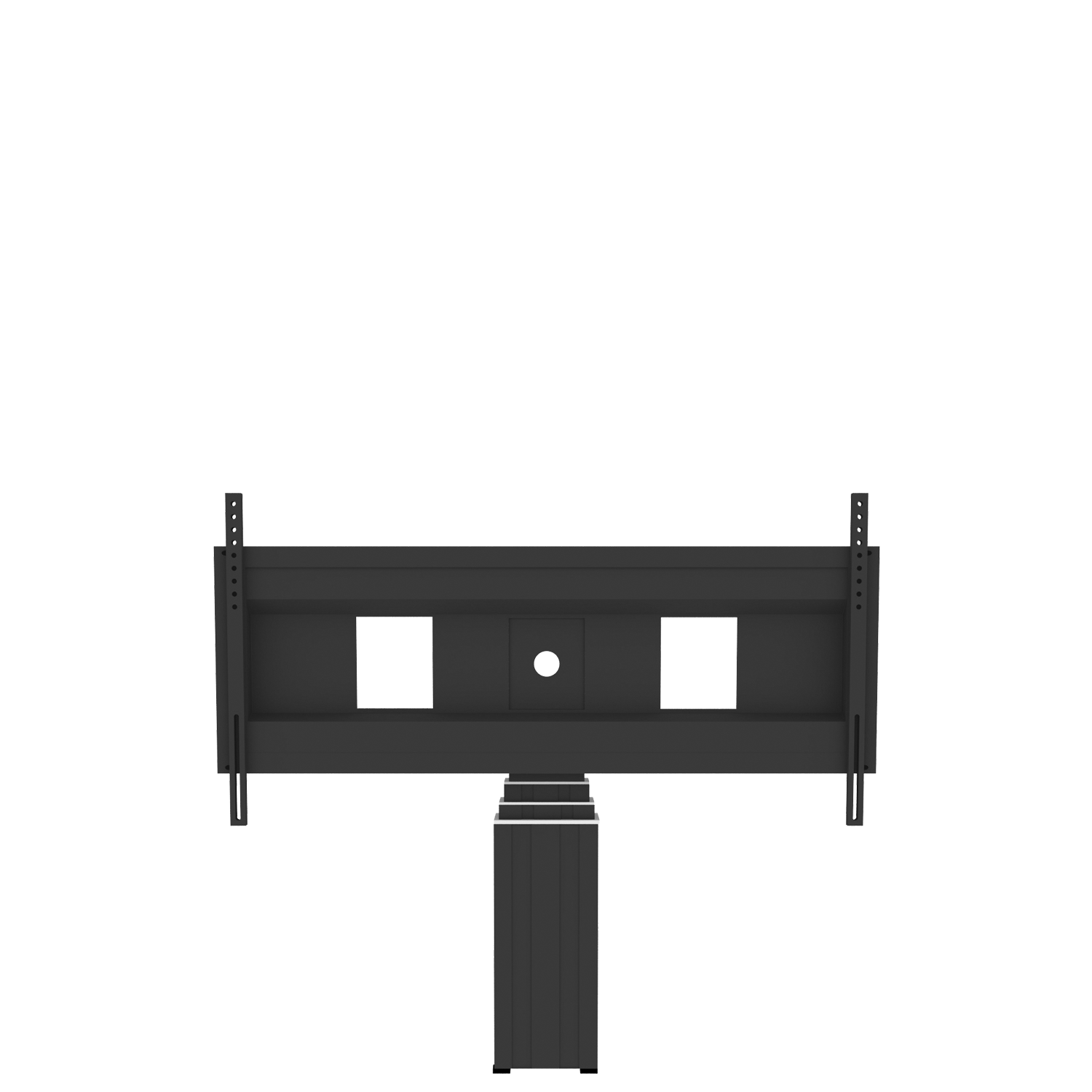

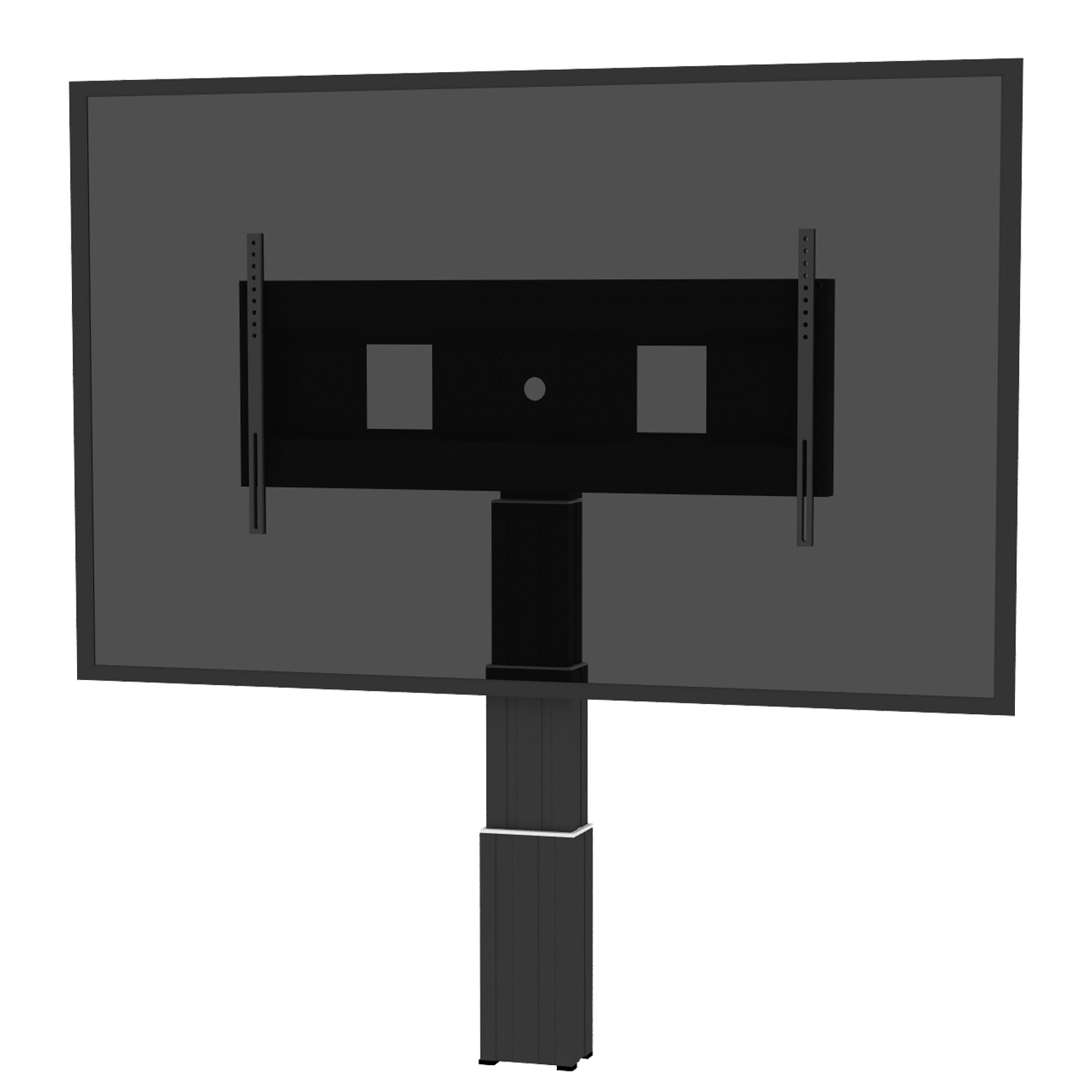

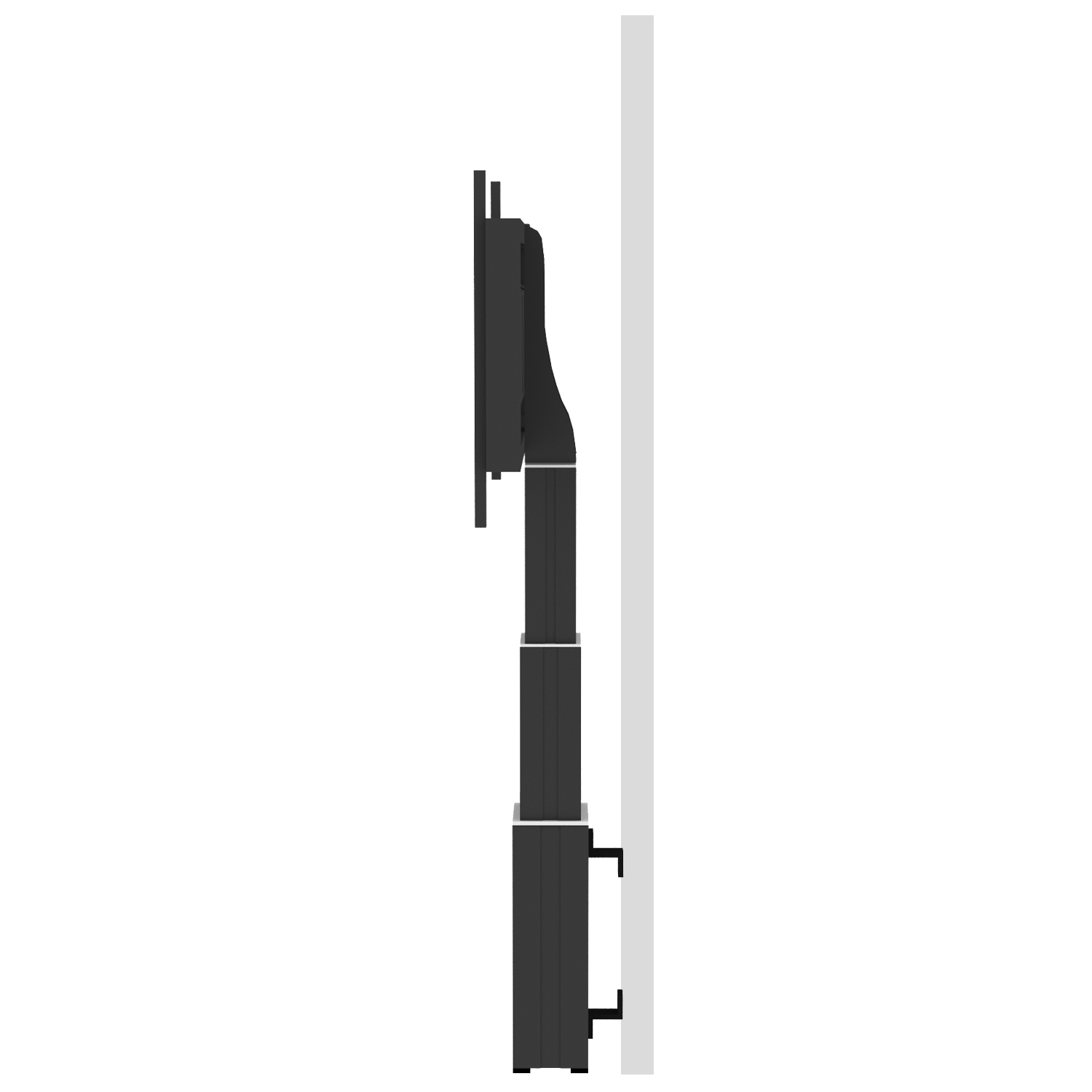

Product image Motorized XL monitor wall mount, 70 cm of vertical travel SCEXLW3535B
Product image Motorized XL monitor wall mount, 70 cm of vertical travel SCEXLW3535B Product image Motorized XL monitor wall mount, 70 cm of vertical travel SCEXLW3535B Product image Motorized XL monitor wall mount, 70 cm of vertical travel SCEXLW3535B Product image Motorized XL monitor wall mount, 70 cm of vertical travel SCEXLW3535B Product image Motorized XL monitor wall mount, 70 cm of vertical travel SCEXLW3535B

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
299.8 lbs
Icon maximal VESA
Max. Vesa
1200 x 600

Accessories

Productimage Floor plate for display brackets Productimage Floor plate for display mounts Productimage Laptop side shelf Productimage Side shelf for laptop Productimage Side shelf for laptop Productimage Front shelf Productimage Front shelf Productimage Front shelf Productimage Keyboard shelf Productimage Video conference camera top shelf for displays from 42 - 70 inch Productimage Video conference camera top shelf for displays from 75 - 86 inch Productimage Universal PC bracket Productimage Extender for 3-part height adjustable aluminum columns Productimage Lockable notebook cabinet Productimage U-shaped wall mount Productimage U-shaped wall mount Productimage Wall mounting set for Systems with one column Productimage 2 galvanized wall mounting brackets Productimage 2 galvanized adjustable wall mounting brackets Productimage Foot remote control with 2 shifters in grey

Product details

Item numberSCEXLW3535B
Vesa horizontal400 mm - 1200 mm
Vesa vertical200 mm - 600 mm
Frame for all70" - 120"
Vertical travel70 cm
Center to floor distance 850 mm - 1550 mm33.5" - 61"
Load capacity136 kg 299.8 lbs
Width 1290 mm50.8"
Height 1170 mm - 1870 mm46.1" - 73.6"
Depth 169 mm6.7"
Weight 40 kg88.2 lbs
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorBlack anodized
Packages Package dimensions WxHxD Package weight
AFSCETAN121300 x 450 x 160 mm / 51.2 x 17.7 x 6.3"17 kg / 37.5 lbs
CCE-3535WB760 x 270 x 220 mm / 29.9 x 10.6 x 8.7"24 kg / 52.9 lbs
Total weight 41 kg / 90.4 lbs
Display mount XL for displays with max. VESA 1200 x 600
Detail image Display mount XL for displays with max. VESA 1200 x 600 SCEXLW3535BThis XL frame accommodates monitors with max. VESA 1200 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
Quick snap lock
Detail image Quick snap lock SCEXLW3535BWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Remote control of height adjustment
Detail image Remote control of height adjustment SCEXLW3535BThe electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.
Four leveling feet
Detail image Four leveling feet SCEXLW3535BThese four leveling feet allow you to level out any unevenness in the floor so that the monitor wall mount can transfer the weight of the monitor over the column to the floor. For this purpose, the individual ground leveling foot can be turned in or out.
Wall mounting kit
Detail image Wall mounting kit SCEXLW3535BThe system includes a wall mounting set consisting of: two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm, Two sliding blocks incl. nut to attach the brackets to the column, four floor leveling feet and 3 cable clips.
7 cm (2.76 inch) Z-brackets
Detail image 7 cm (2.76 inch) Z-brackets SCEXLW3535BBy default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm (2.76 inch). Further wall mounting solutions are available as accessories.
