TV and monitor wall mount, center of display 162 cm

column silver anodized, fixed height
Item number: SCETANHVW14

Product description

Fixed height TV & monitor wall mount for 42"-100" flat-panel displays.

For applications that do not necessarily require height adjustment or where price is key, Conen Mounts offers a series of fixed height solutions. The tv wall mounts feature a sturdy aluminum center column that comes in different heights. Mounted atop the center column is the display mount which allows for cables to be stowed away neatly behind the display.

The unit ships flat-packed in 2 cartons and is courier-shippable.


Features

  • Entry model, fixed height tv wall mount
  • Mount with integrated VESA pattern, max. 800 x 600
  • Mount allows for cables to be neatly stowed behind the display
  • Safe and stylish design: with the stylish aluminum center column supporting the weight of the display
  • Comes standard with 2 wall mount brackets for secure mounting to the wall

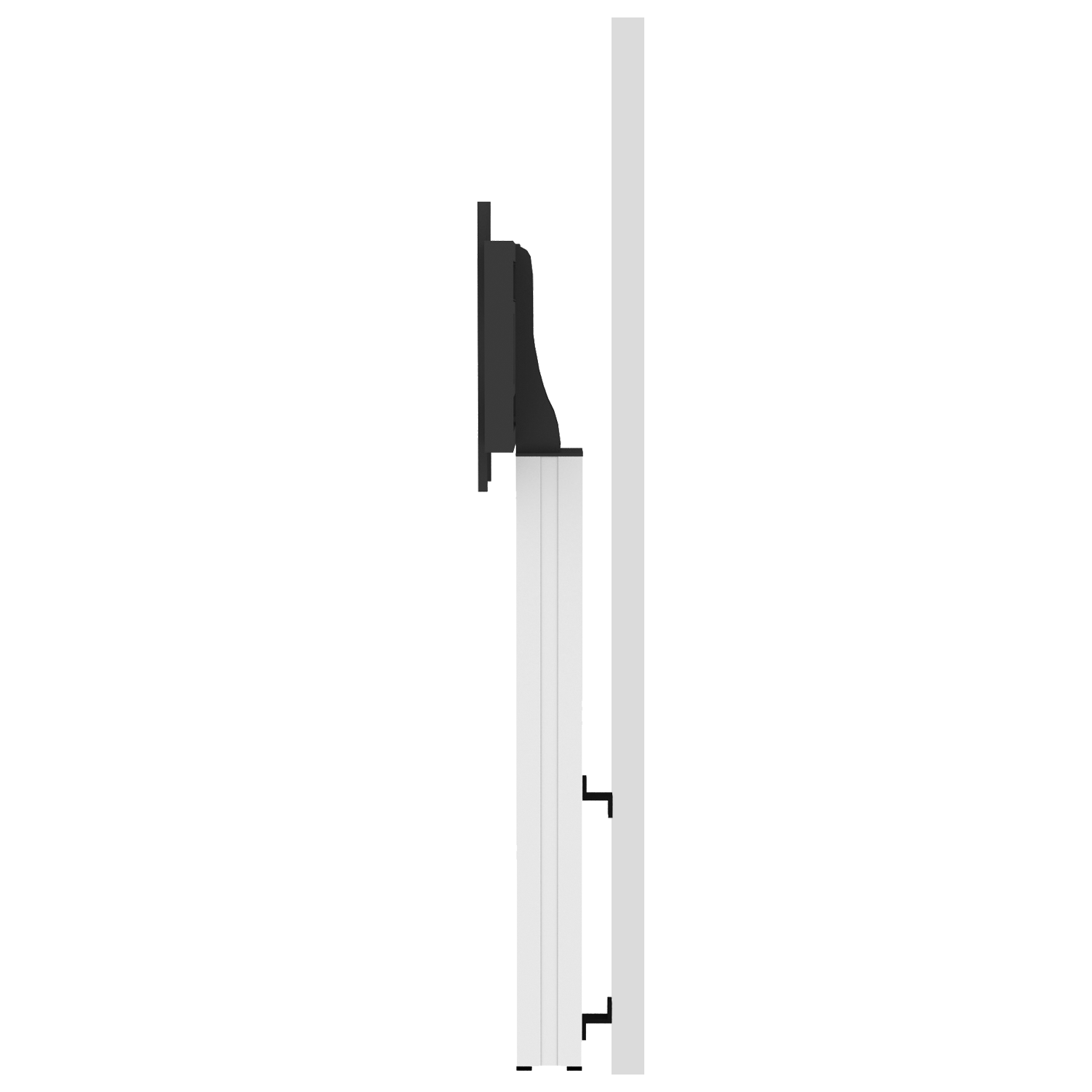

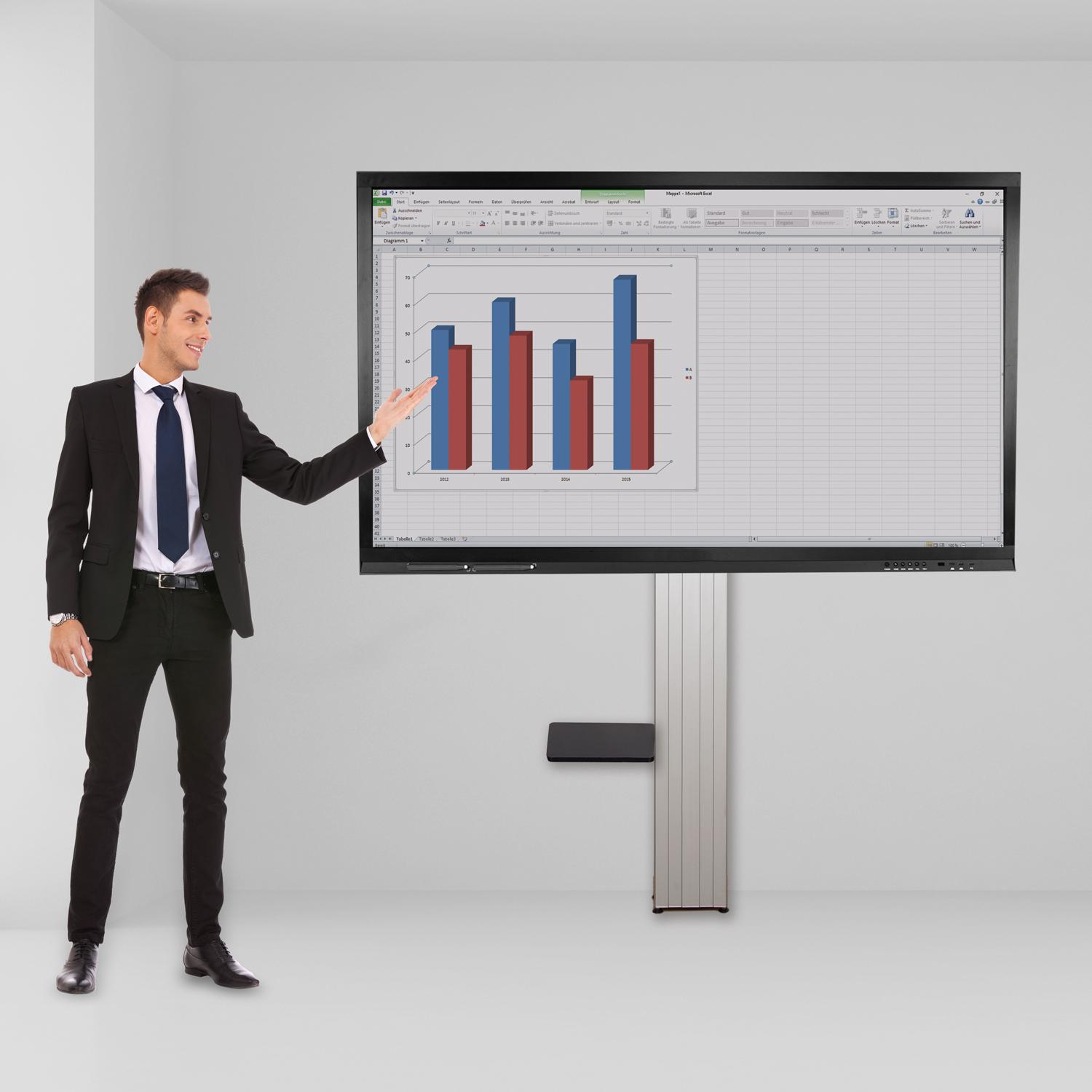

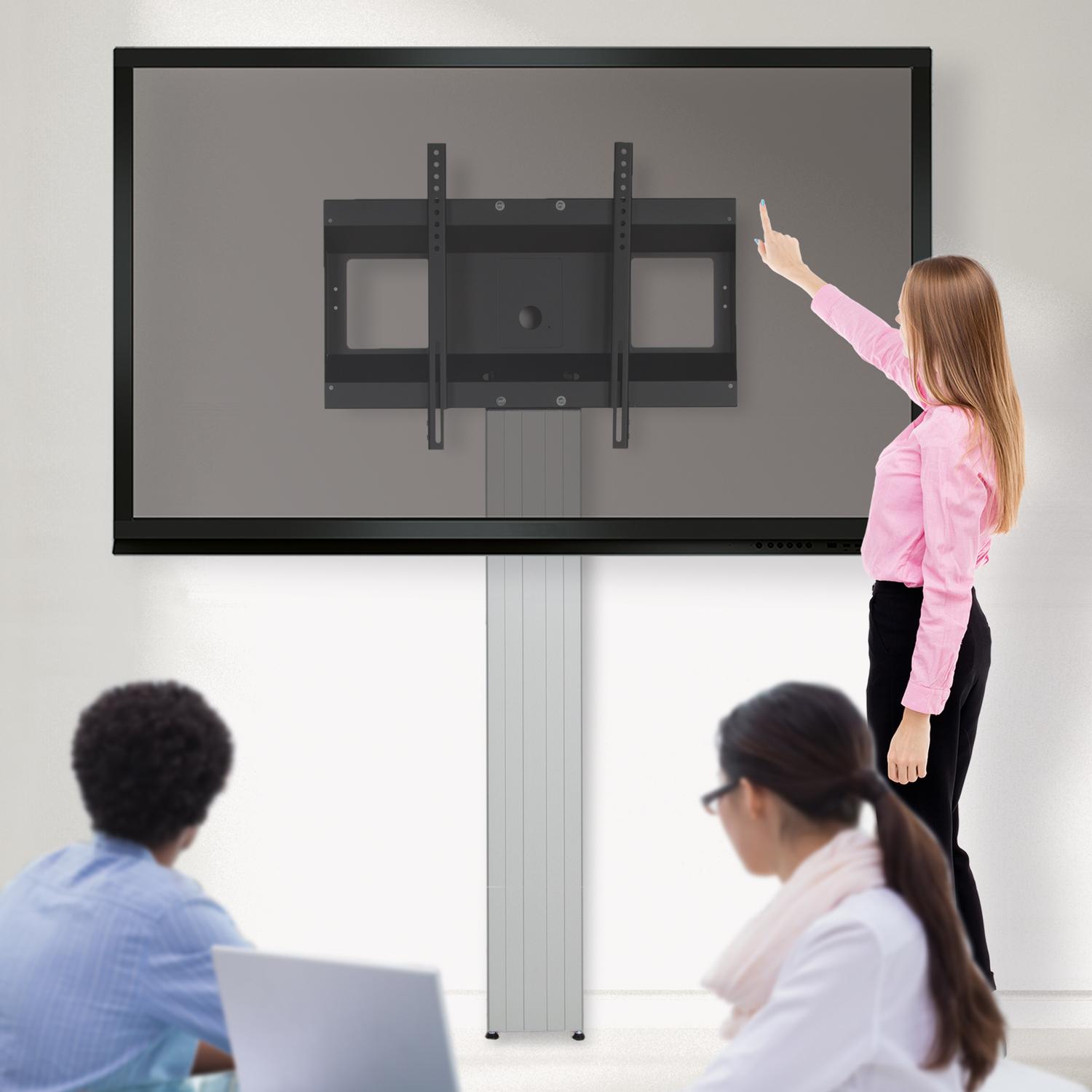

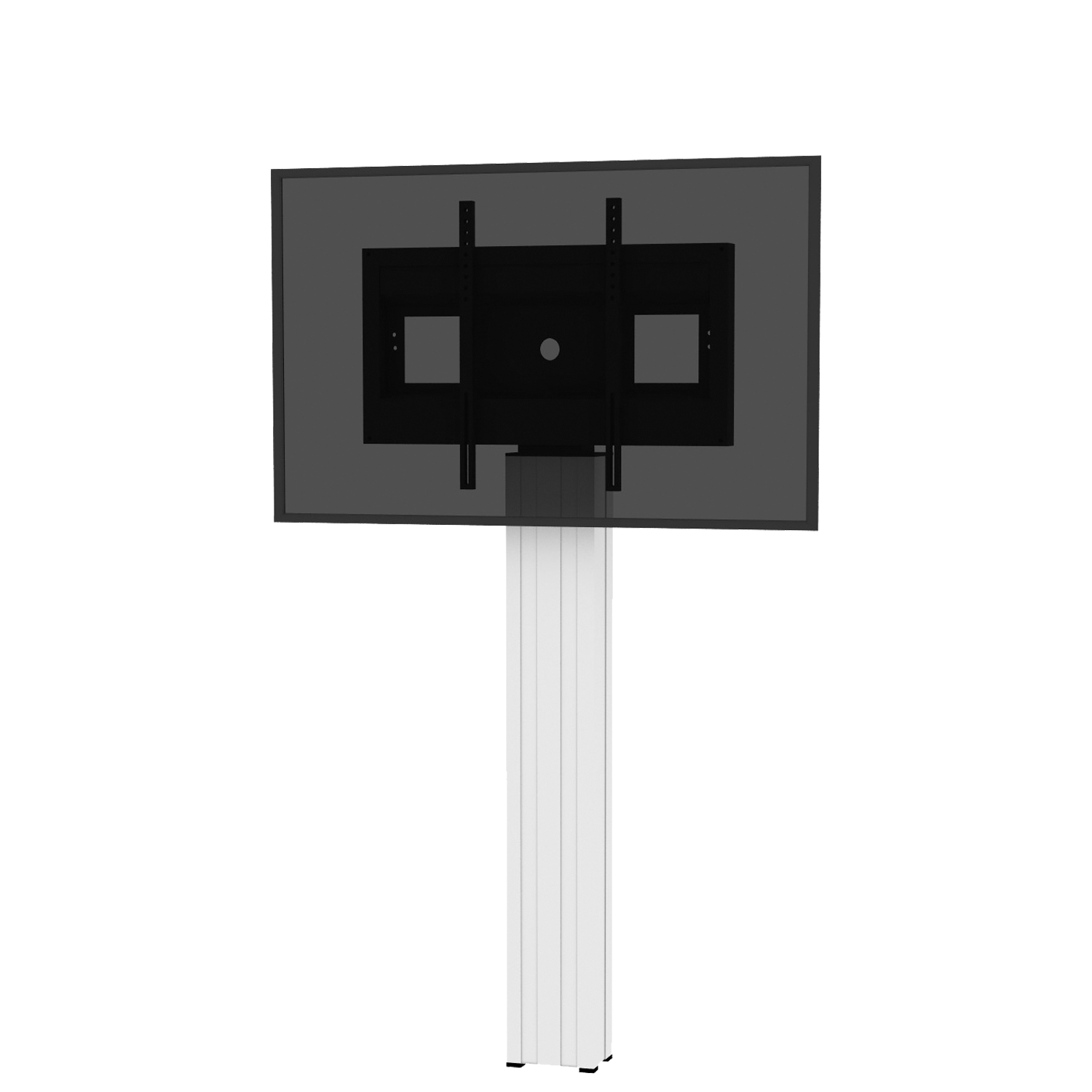

Product image TV and monitor wall mount, center of display 162 cm SCETANHVW14
Product image TV and monitor wall mount, center of display 162 cm SCETANHVW14 Product image TV and monitor wall mount, center of display 162 cm SCETANHVW14 Product image TV and monitor wall mount, center of display 162 cm SCETANHVW14 Product image TV and monitor wall mount, center of display 162 cm SCETANHVW14

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon fixed height
Fixed height
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
551.2 lbs
Icon maximal VESA
Max. Vesa
800 x 600

Accessories

Productimage Keyboard shelf Productimage Universal PC bracket Productimage Laptop side shelf Productimage Front shelf Productimage Side shelf for laptop Productimage Side shelf for laptop Productimage Side shelf for laptop Productimage Front shelf Productimage Front shelf Productimage Front shelf Productimage Video conference camera top shelf for displays from 42 - 70 inch Productimage Video conference camera top shelf for displays from 75 - 86 inch Productimage Lockable notebook cabinet Productimage Floor plate for display mounts Productimage Floor plate for display brackets Productimage U-shaped wall mount Productimage U-shaped wall mount Productimage Wall mounting set for Systems with one column Productimage 2 galvanized adjustable wall mounting brackets Productimage 2 galvanized wall mounting brackets Productimage Safety padlock 1 piece Productimage Safety padlock 4 pieces

Product details

Item numberSCETANHVW14
Vesa horizontal200 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all42" - 100"
Center to floor distance 1620 mm63.8"
Load capacity250 kg 551.2 lbs
Warranty5 years warranty
Frame colorRAL 9005 deep black
Column colorSilver anodized
Packages Package dimensions WxHxD Package weight
AF-SCETA-N900 x 160 x 450 mm / 35.4 x 6.3 x 17.7"13,6 kg / 30 lbs
CC140W1685 x 270 x 200 mm / 66.3 x 10.6 x 7.9"23,5 kg / 51.8 lbs
Total weight 37,1 kg / 81.8 lbs
Display mount for 42" to 100" displays
Detail image Display mount for 42This frame accommodates 42 to 100 inch monitors. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
Quick snap lock
Detail image Quick snap lock SCETANHVW14With the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Four leveling feet
Detail image Four leveling feet SCETANHVW14These four leveling feet allow you to level out any unevenness in the floor so that the monitor wall mount can transfer the weight of the monitor over the column to the floor. For this purpose, the individual ground leveling foot can be turned in or out.
2.76 inch Z-brackets
Detail image 2.76 inch Z-brackets SCETANHVW14By default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 2.76 inch (7 cm). Further wall mounting solutions are available as accessories.
