TV and monitor wall mount, center of display 192 cm

column silver anodized, fixed height
Item number: SCETANHVW17

Product description

Fixed height TV & monitor wall mount for 55"-100" touch screen displays.

For applications that do not necessarily require height adjustment or where price is key, Conen Mounts offers a series of fixed height solutions. The wall mounts feature a sturdy aluminum center column that comes in different heights. Mounted atop the center column is the display mount which allows for cables to be stowed away neatly behind the display.

The unit ships flat-packed in 2 cartons and is courier-shippable.


Features

  • Entry model, fixed height tv wall mount
  • Mount with integrated VESA pattern, max. 800 x 600
  • Mount allows for cables to be neatly stowed behind the display
  • Safe and stylish design: with the stylish aluminum center column supporting the weight of the display
  • Comes standard with 2 wall mount brackets for secure mounting to the wall

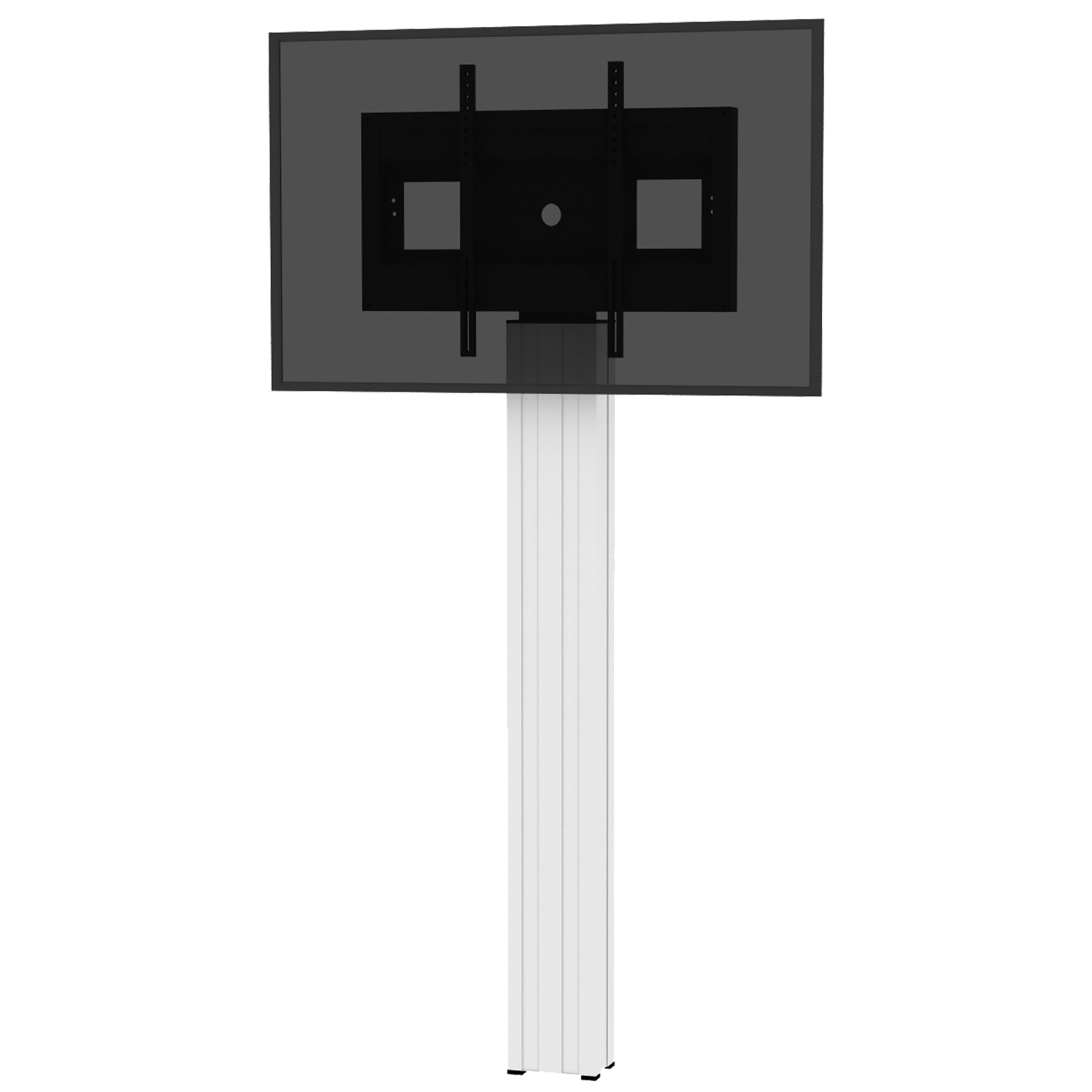

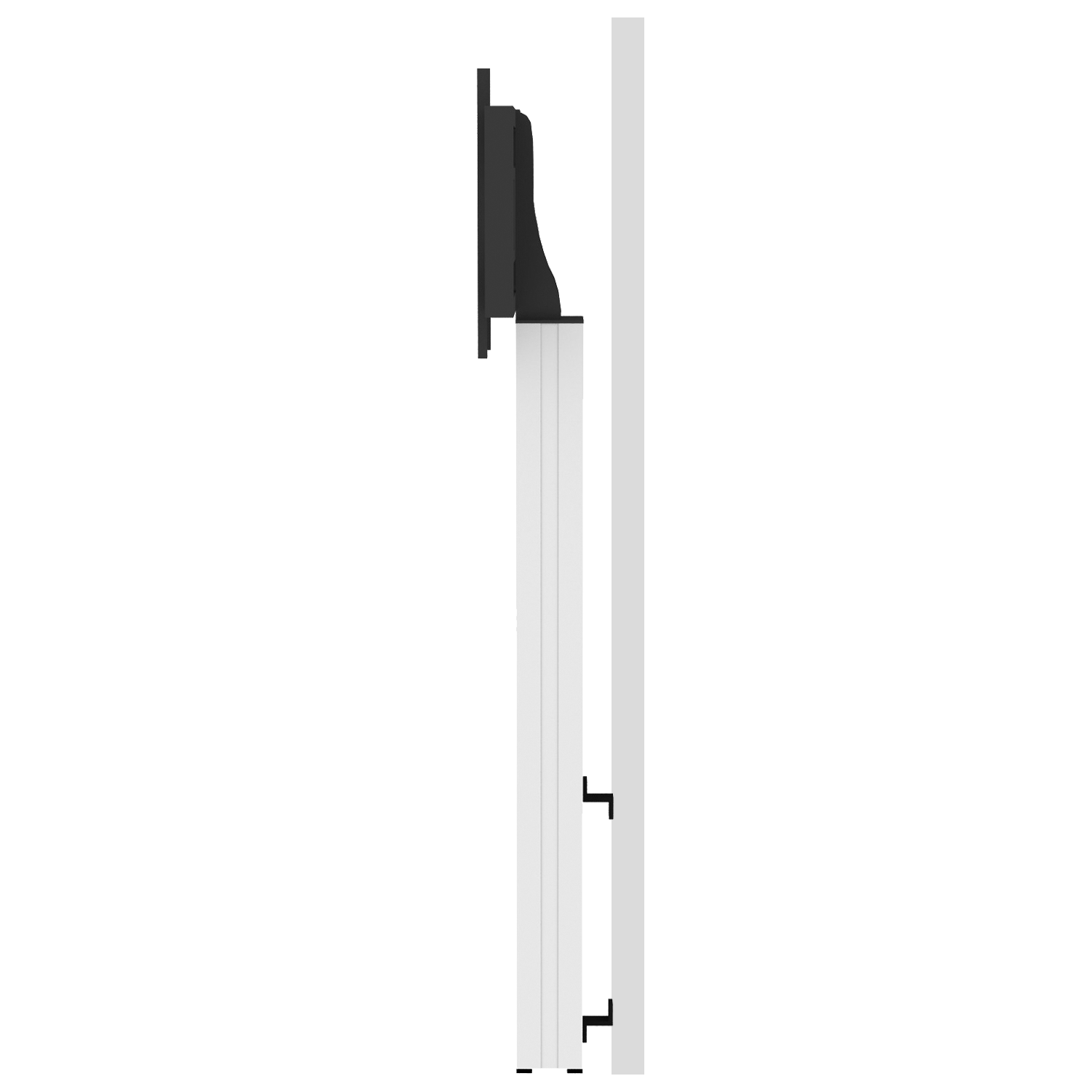

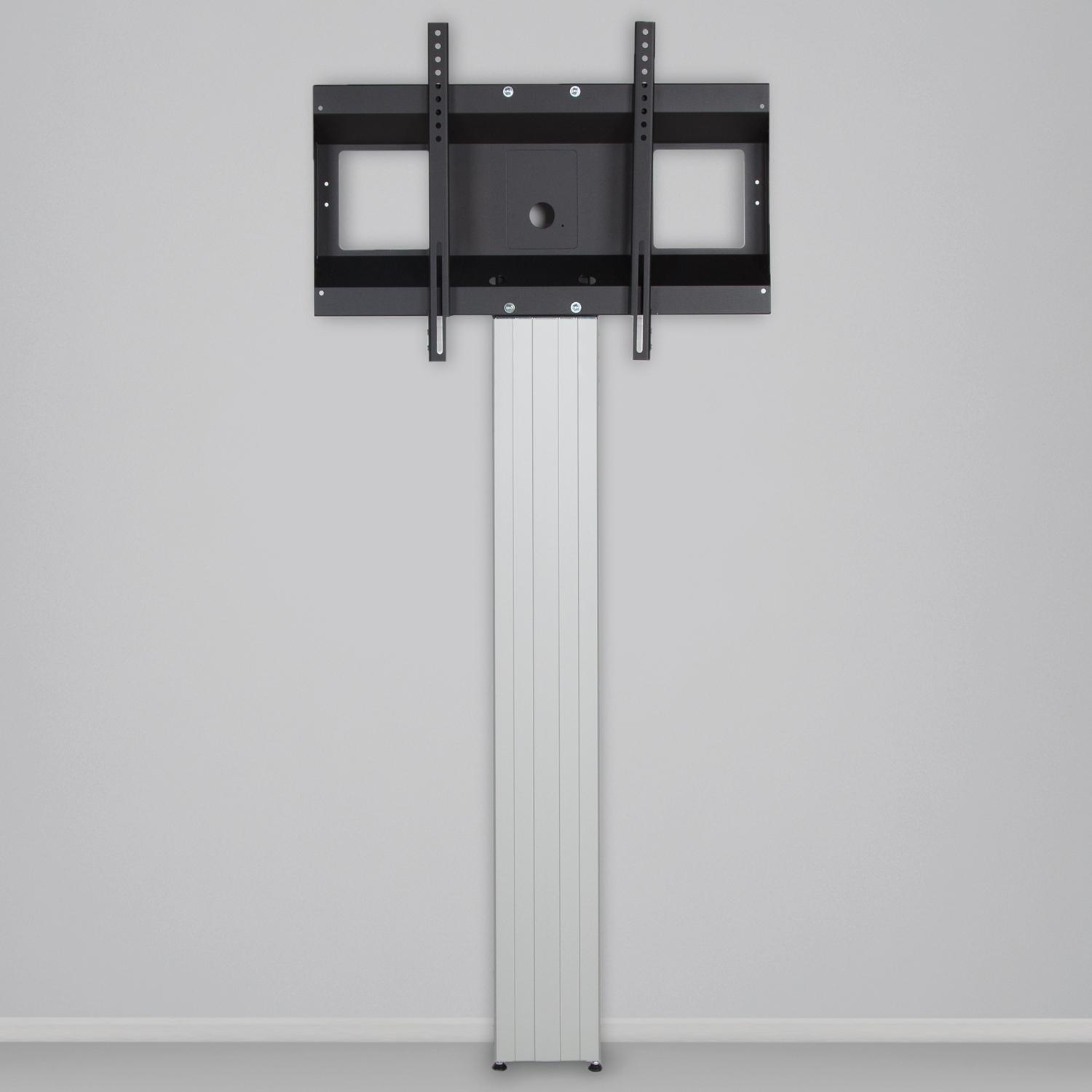

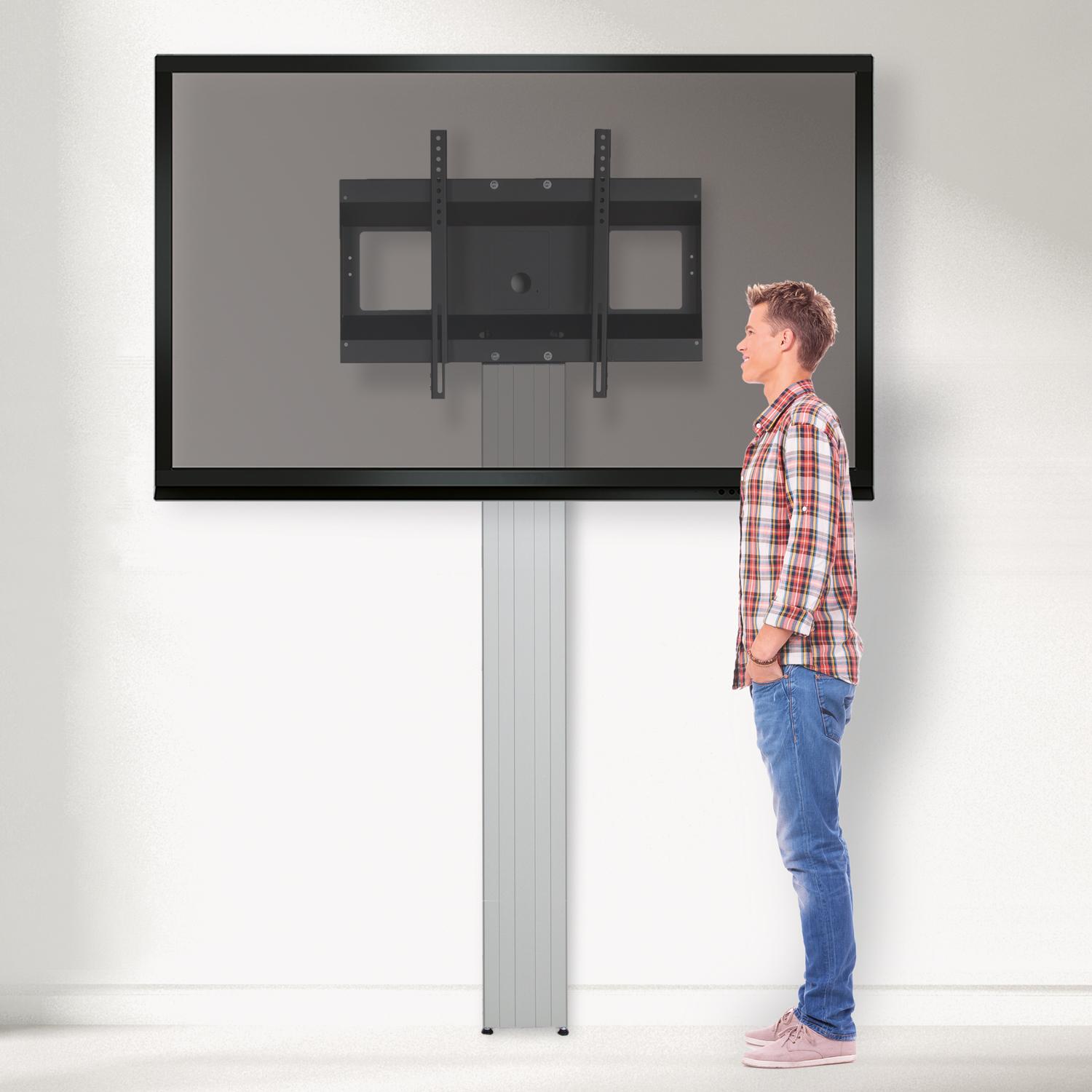

Product image TV and monitor wall mount, center of display 192 cm SCETANHVW17
Product image TV and monitor wall mount, center of display 192 cm SCETANHVW17 Product image TV and monitor wall mount, center of display 192 cm SCETANHVW17 Product image TV and monitor wall mount, center of display 192 cm SCETANHVW17 Product image TV and monitor wall mount, center of display 192 cm SCETANHVW17

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon fixed height
Fixed height
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
551.2 lbs
Icon maximal VESA
Max. Vesa
800 x 600
Item numberSCETANHVW17
Vesa horizontal300 mm - 800 mm
Vesa vertical200 mm - 600 mm
Center to floor distance 1955 mm77"
Load capacity250 kg 551.2 lbs
Width 890 mm35"
Height 2275 mm89.6"
Depth 165 mm6.5"
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorSilver anodized
Packages Package dimensions WxHxD Package weight
AF-SCETA-N900 x 160 x 450 mm / 35.4 x 6.3 x 17.7"14 kg / 30.9 lbs
CC170W1985 x 270 x 200 mm / 78.1 x 10.6 x 7.9"29,9 kg / 65.9 lbs
Total weight 43,9 kg / 96.8 lbs
Display mount for displays with max. VESA 800 x 600
Detail image Display mount for displays with max. VESA 800 x 600 SCETANHVW17This frame accommodates monitors with max. VESA 800 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
Quick snap lock
Detail image Quick snap lock SCETANHVW17With the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Four leveling feet
Detail image Four leveling feet SCETANHVW17These four leveling feet allow you to level out any unevenness in the floor so that the monitor wall mount can transfer the weight of the monitor over the column to the floor. For this purpose, the individual ground leveling foot can be turned in or out.
7 cm (2.76 inch) Z-brackets
Detail image 7 cm (2.76 inch) Z-brackets SCETANHVW17By default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm (2.76 inch). Further wall mounting solutions are available as accessories.
Wall mounting kit
Detail image Wall mounting kit SCETANHVW17The system includes a wall mounting set consisting of: two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm, Two sliding blocks incl. nut to attach the brackets to the column, four floor leveling feet and 3 cable clips.
