TV and Monitor wall mount up to VESA 800 x 600

for heavy monitors and touch screen displays

Product description

The stable Conen Mounts TV & monitor wall mount allows the installation of a TV or monitor on solid masonry. In the base plate, which is mounted on the wall, you can snap-in the two mounting brackets, which are previously mounted on the touch screen display. By means of adjusting screws you can align the touch screen display after mounting in the horizontal. It is possible to lock the display after hanging it up with a padlock.


Features

  • TV & Monitor wall mount for holding all 42 - 100 "displays with a maximum VESA 800 x 600
  • For touch screen displays higher VESA 800 x 600, a larger version is available on request
  • Quick release securing clips for easy on and off of the screen

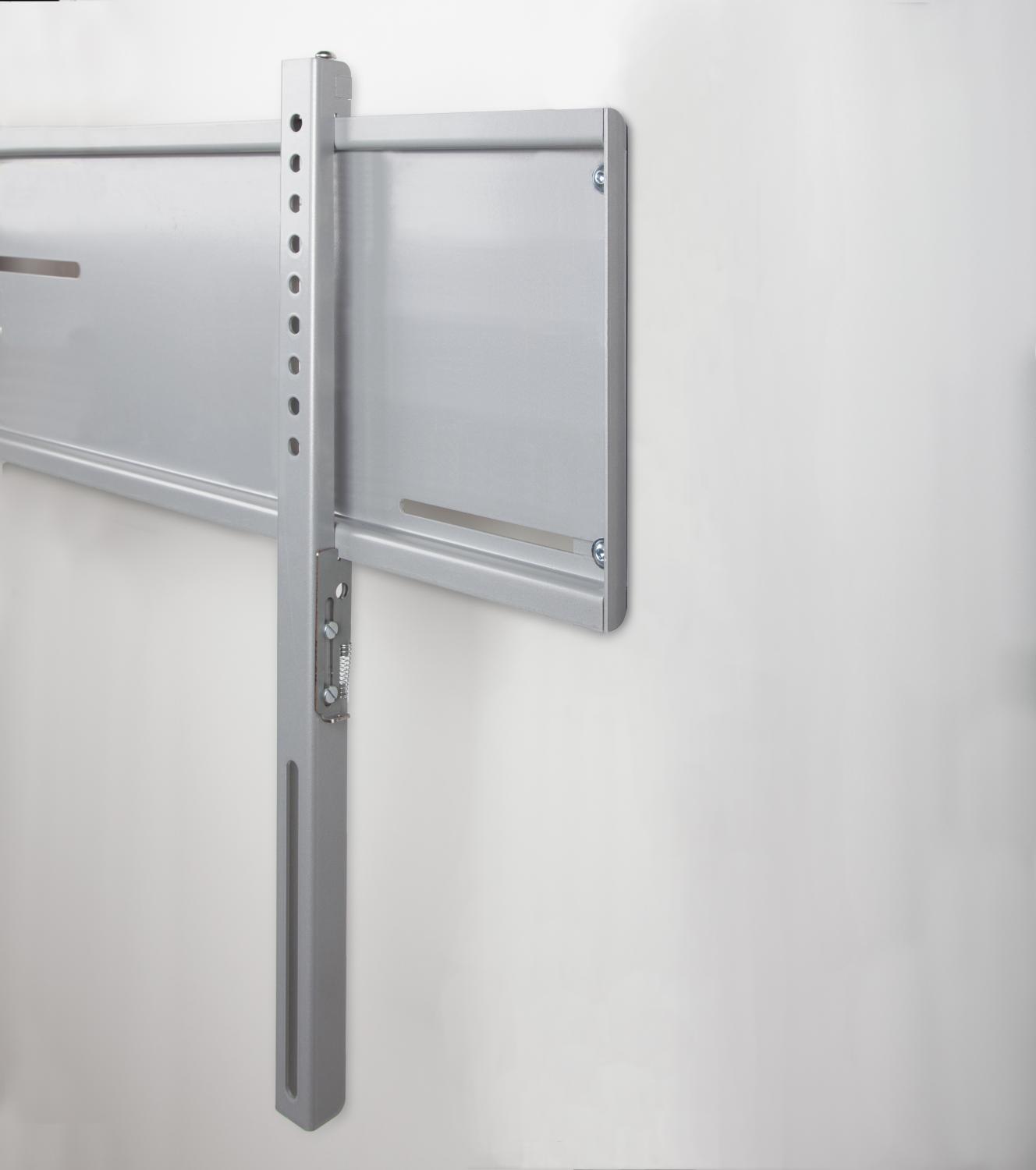

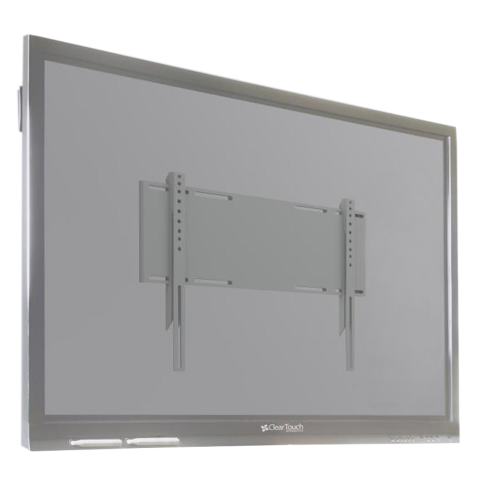

Product image TV and Monitor wall mount up to VESA 800 x 600 WM-FRAME
Product image TV and Monitor wall mount up to VESA 800 x 600 WM-FRAME

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon maximum load
Max. load
330.7 lbs
Icon maximal VESA
Max. Vesa
800 x 600

Product details

Item numberWM-FRAME
Vesa horizontal200 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all42" - 100"
Load capacity150 kg 330.7 lbs

Downloads

There are currently no downloads available for this product.

Catalog pages
