TV cart, monitor cart with display mount, center of display 160 cm

column silver anodized, fixed height, V-stand
Item number: SCETANHVV12

Product description

Fixed height mobile tv & monitor cart for 55 - 105" touch screen displays.

For applications that do not necessarily require height adjustment or where price is key, Conen Mounts offers a series of fixed height solutions. The tv & monitor cart feature a sturdy aluminum center column that comes in different heights. Mounted atop the center column is the display bracket which allows for cables to be stowed away neatly behind the display. The mobile solution features the contemporary black, V-shaped, base with sturdy 2” casters.

The stand ships flat-packed in 3 cartons and is courier-shippable.


Features

  • Attractively priced fixed height tv & monitor cart
  • Designed for touch screen displays up to 105"
  • Mount with integrated VESA pattern offering plenty storage space for cables
  • VESA pattern, max. 800 x 600
  • Contemporary design thanks to V-shape base and aluminum center column
  • Wide V-style base for easy access to the display

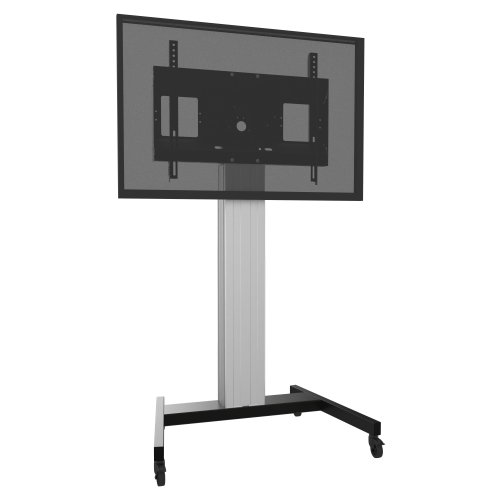

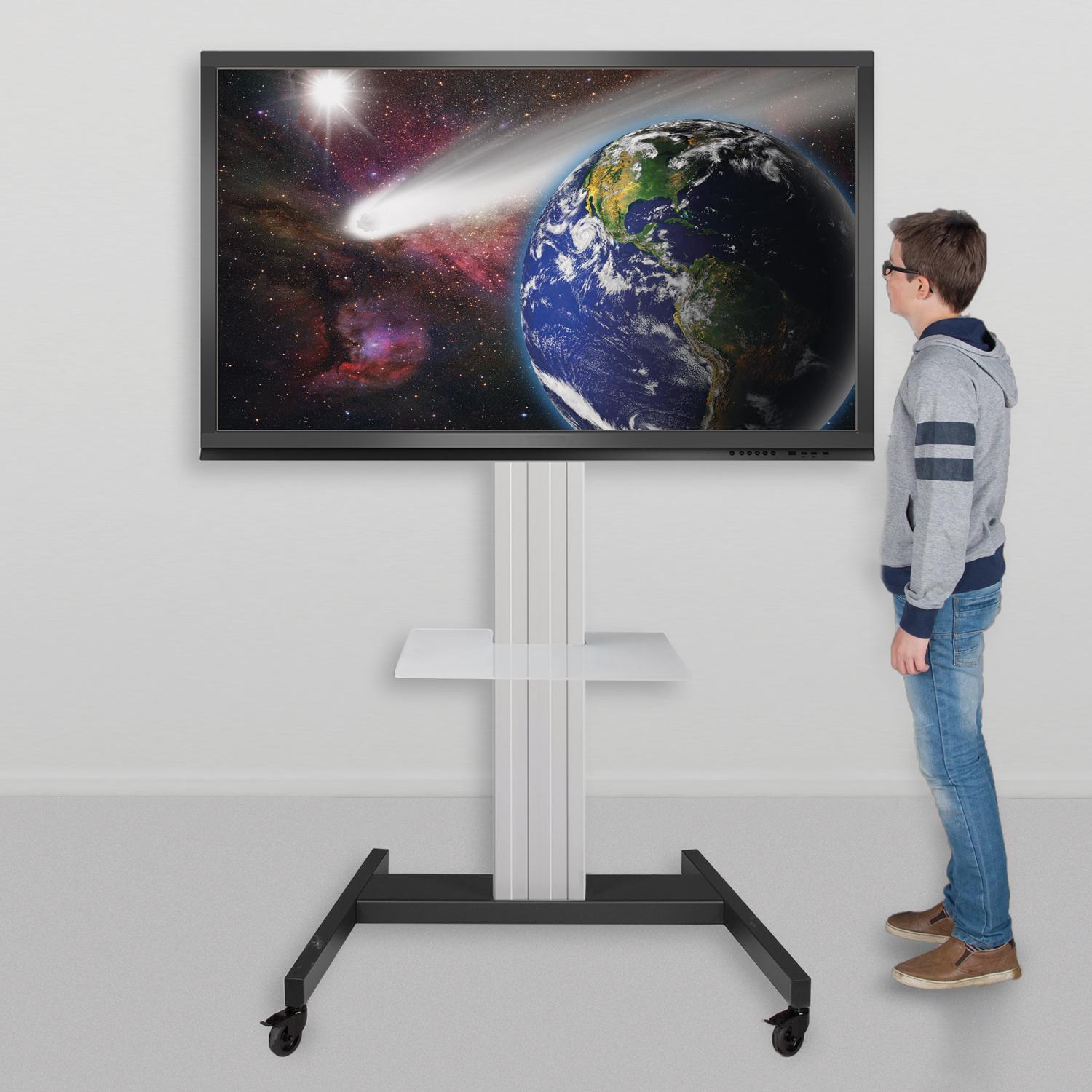

Product image TV cart, monitor cart with display mount, center of display 160 cm SCETANHVV12
Product image TV cart, monitor cart with display mount, center of display 160 cm SCETANHVV12 Product image TV cart, monitor cart with display mount, center of display 160 cm SCETANHVV12 Product image TV cart, monitor cart with display mount, center of display 160 cm SCETANHVV12 Product image TV cart, monitor cart with display mount, center of display 160 cm SCETANHVV12

Icon display mounts
Display mount
Icon mobile stand
Mobile
Icon fixed height
Fixed height
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
330.7 lbs
Icon maximal VESA
Max. Vesa
800 x 600
Item numberSCETANHVV12
Vesa horizontal300 mm - 800 mm
Vesa vertical200 mm - 600 mm

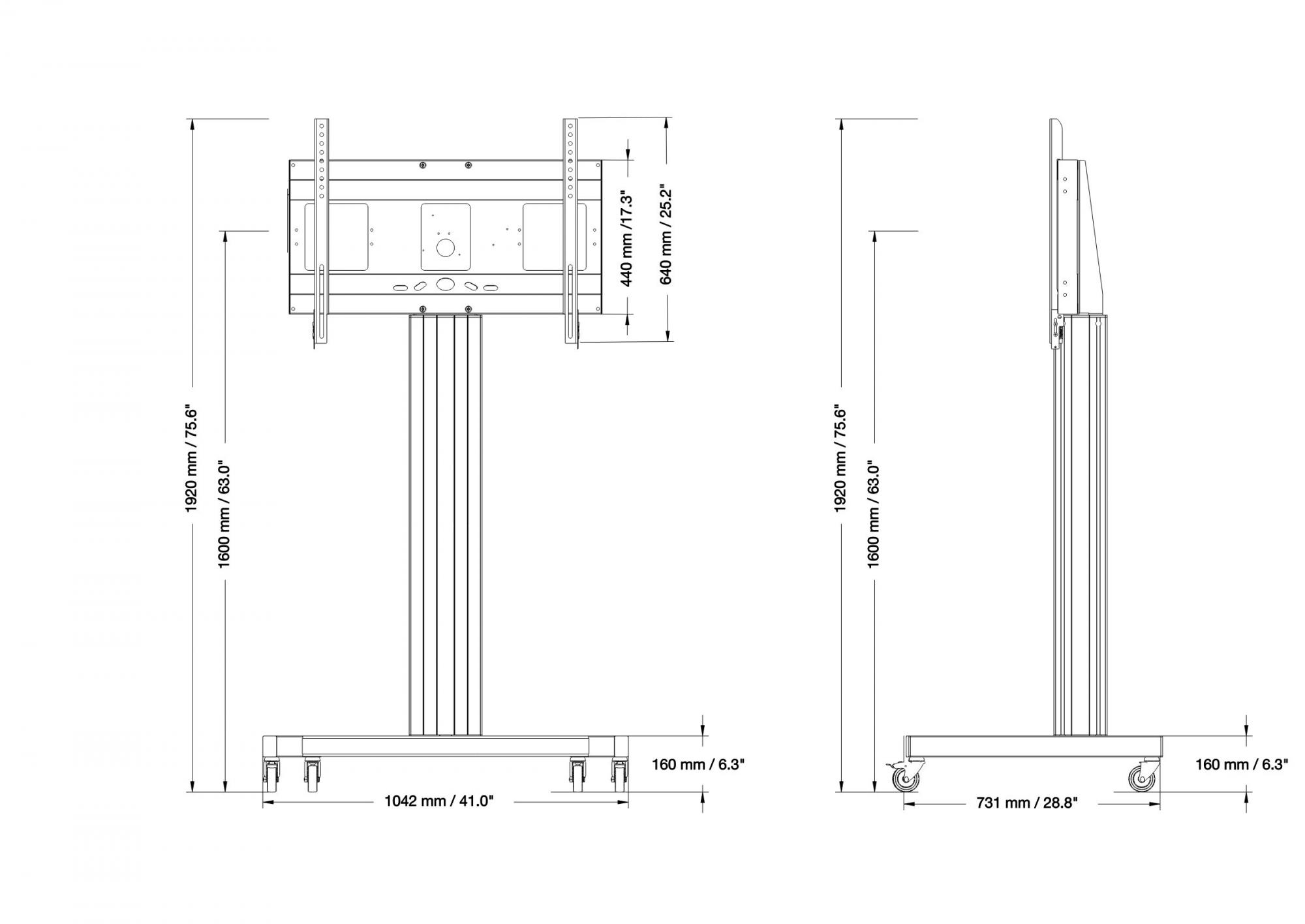

Center to floor distance 1600 mm63"
Load capacity150 kg 330.7 lbs
Width 1042 mm41"
Height 1920 mm75.6"
Depth 731 mm28.8"
Weight 46 kg101.4 lbs
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorSilver anodized
Base colorRAL 9005 deep black
Packages Package dimensions WxHxD Package weight
AF-SCETA-N900 x 160 x 450 mm / 35.4 x 6.3 x 17.7"14 kg / 30.9 lbs
CC1201380 x 250 x 200 mm / 54.3 x 9.8 x 7.9"19 kg / 41.9 lbs
MST-SCETA-VB1140 x 780 x 150 mm / 44.9 x 30.7 x 5.9"24,2 kg / 53.4 lbs
Total weight 57,2 kg / 126.2 lbs

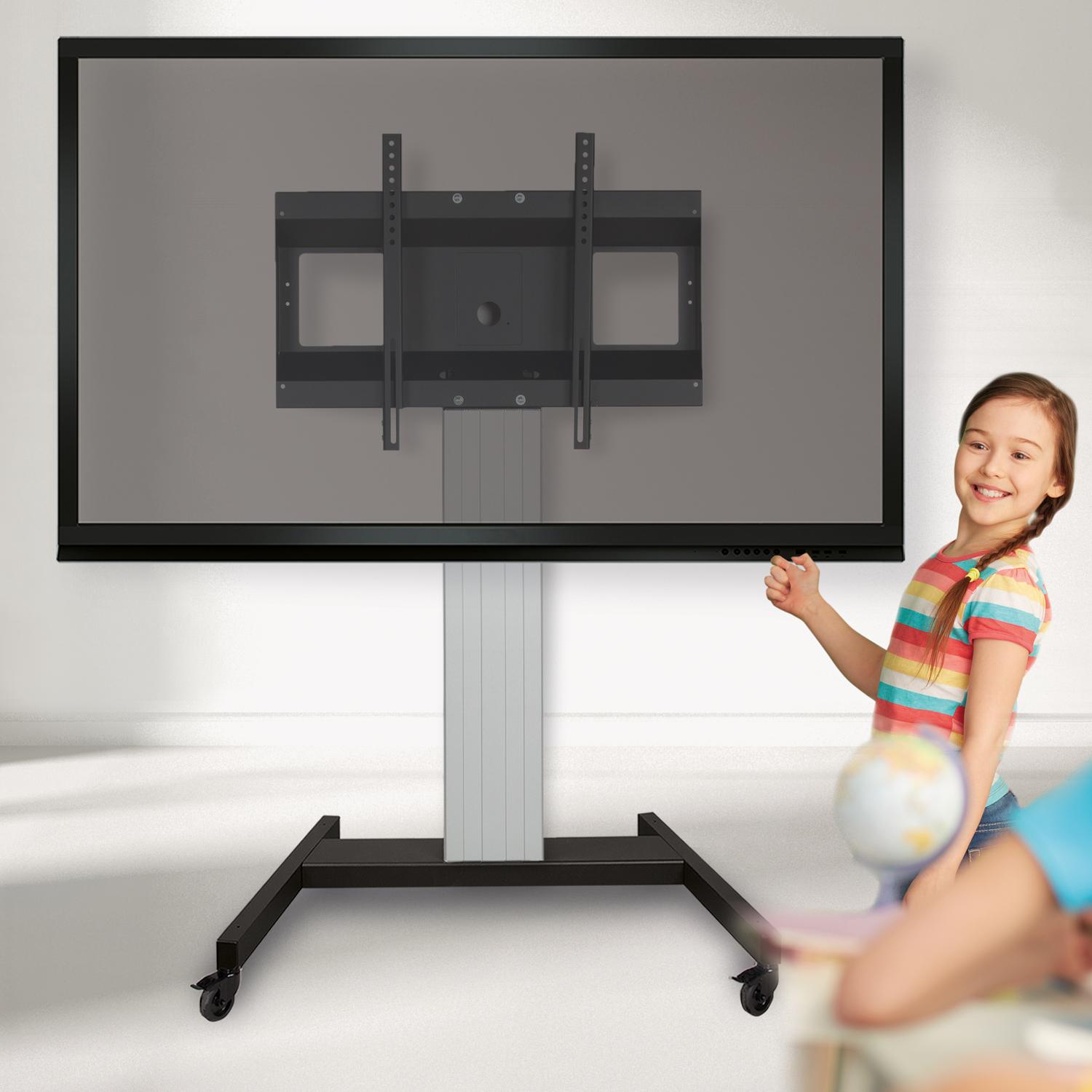

Display mount for displays with max. VESA 800 x 600
Detail image Display mount for displays with max. VESA 800 x 600 SCETANHVV12This frame accommodates monitors with max. VESA 800 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
Quick snap lock
Detail image Quick snap lock SCETANHVV12With the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
V-mobile stand
Detail image V-mobile stand SCETANHVV12Our black V chassis has 4 smooth castors, two of which are lockable to fix the monitor stand in place. Due to the special V shape even wheelchair users can approach very close to the display.
Castor V-mobile stand
Detail image Castor V-mobile stand SCETANHVV12The smooth-running castors on our V-chassis make it easy to move the mobile monitor stand even with heavy displays. The castors have a diameter of 75 mm.
