Wall mounted 2 pylon system for displays from 65-86"

electrical height adjustable, 70 cm stroke, with wideboard side wings
Item number: PYKLE-IFPD-W

Product description

This electrically height-adjustable pylon-sytem with 2 whiteboard side wings is compatible with all touch screen displays available on the market, from 65" to 86" screens. The adjustable pylon-system consists of two aluminum profiles mounted on the wall and floor, in which the motor is concealed.

The two side wings allows you to have both a digital tocuh panel and a traditional writing surface. The 2 double-sided pivoting whiteboard surfaces can be written on with whiteboard markers are dry wipeable and come with an magnetic surface.

By using the two button remote attached to the system, you can adjust the display to the desired working height . This ensures that every user can work and present at their ergonomically best height.

Advantage of the electrical height adjustment: It increases the lifespan of the display, because controlled movement protects the technology.


Features

  • Electrically height adjustable system with 2 pylons for floor and wall mounting
  • Pylon length 2600 mm
  • 70 cm of motorized height adjustment
  • All connections on the display are freely accessible
  • With whitboard side wings

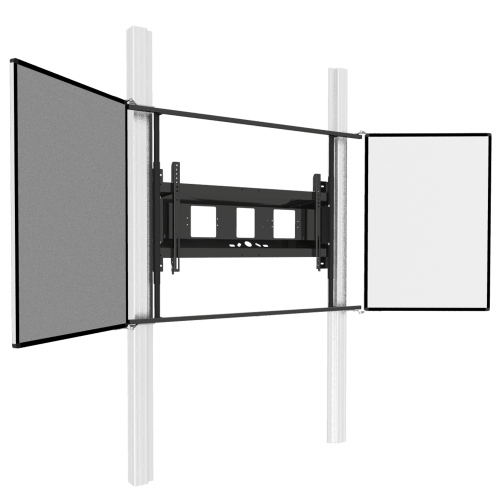

Product image Wall mounted 2 pylon system for displays from 65-86

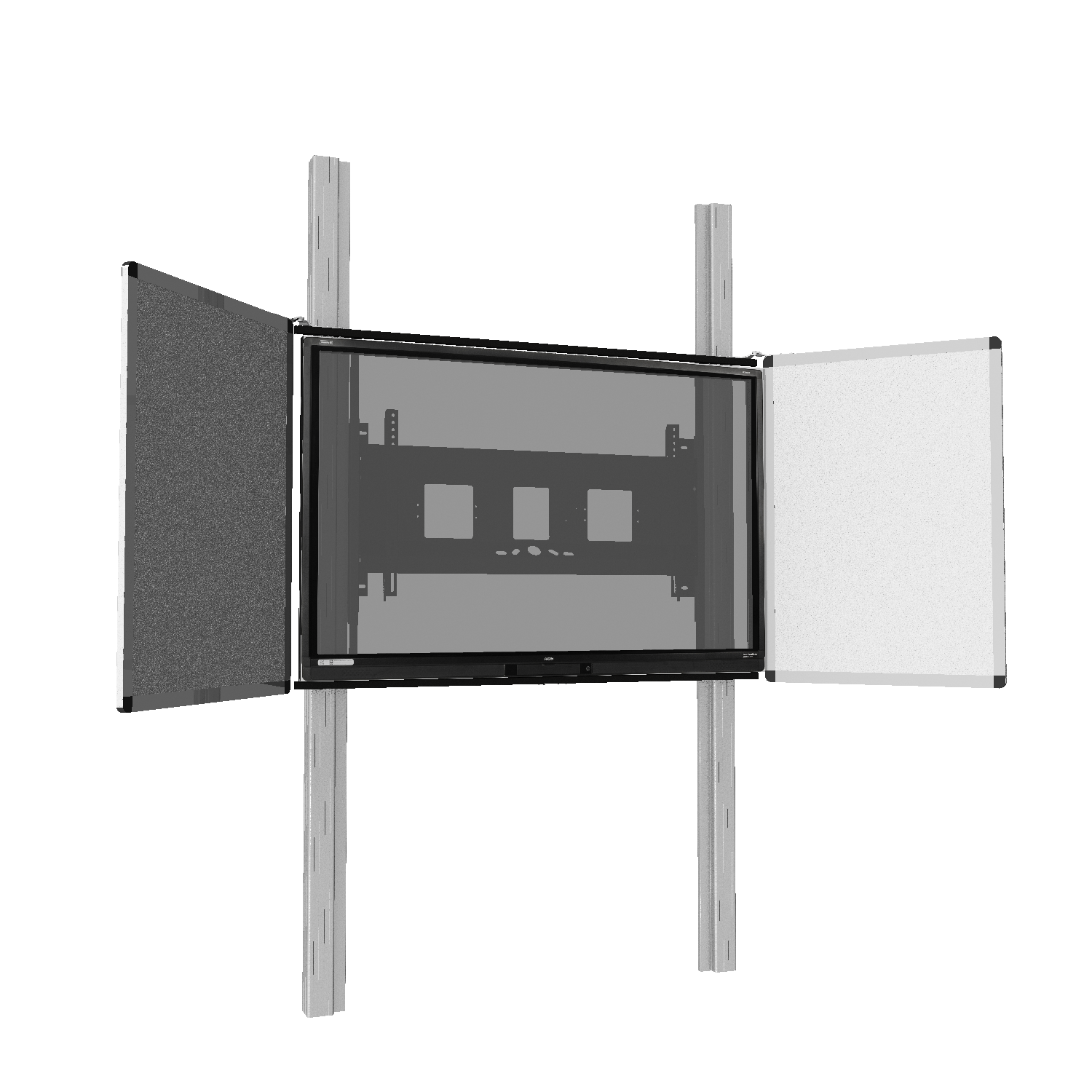

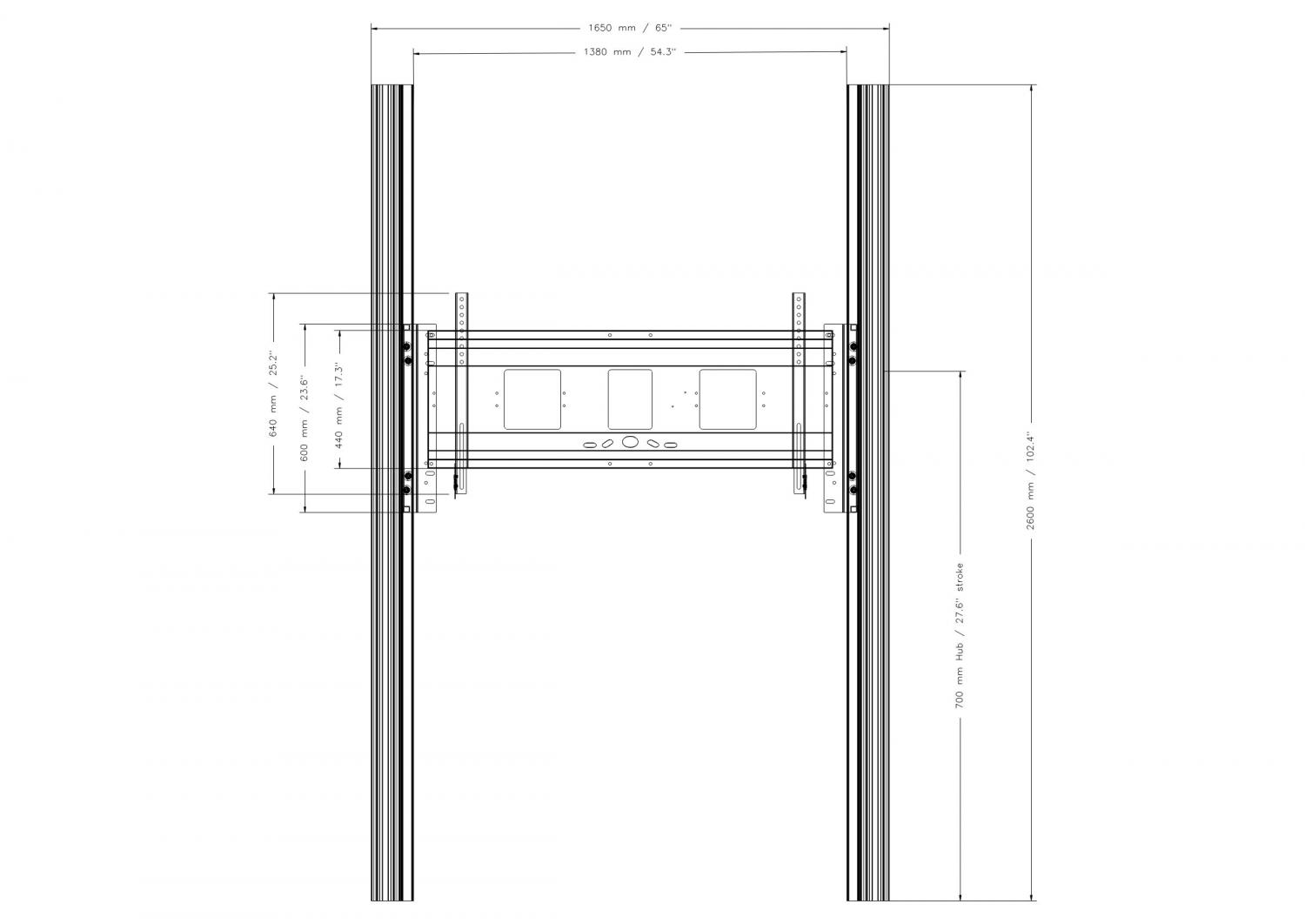

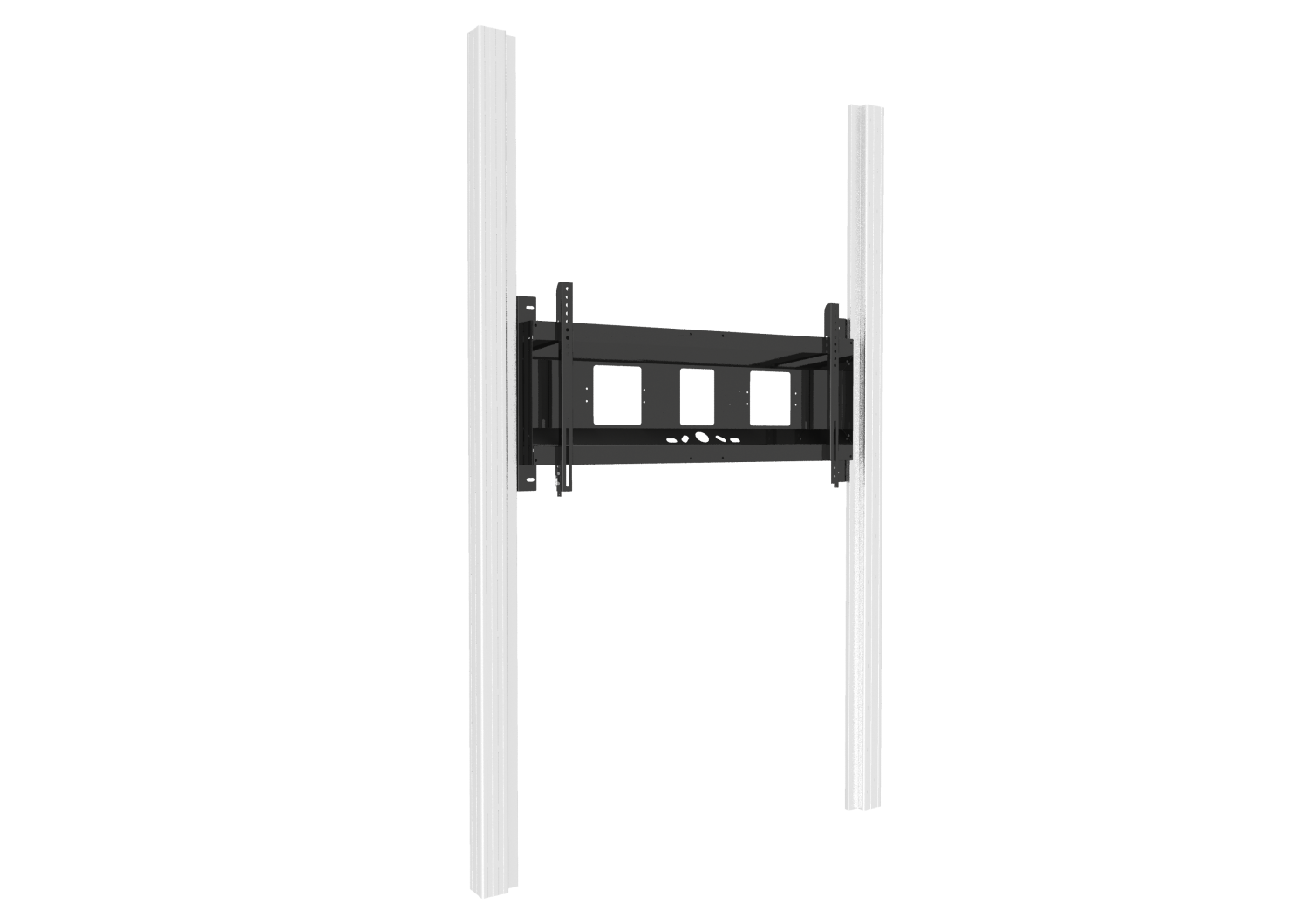

Product image Wall mounted 2 pylon system for displays from 65-86 Product image Wall mounted 2 pylon system for displays from 65-86 Product image Wall mounted 2 pylon system for displays from 65-86

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon maximum load
Max. load
264.6 lbs
Icon maximal VESA
Max. Vesa
800 x 600
Item numberPYKLE-IFPD-W
Vesa horizontal200 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all65" - 86"
Vertical travel70 cm
Load capacity120 kg 264.6 lbs
Width 1650 mm65"
Height 2600 mm102.4"
Depth 134 mm5.3"
Frame colorRAL 9005 deep black
Column colorSilver anodized
Packages Package dimensions WxHxD Package weight
AF-PY-N12460 x 1300 x 70 mm / 18.1 x 51.2 x 2.8"12,1 kg / 26.7 lbs
BP-PYE1050 x 200 x 150 mm / 41.3 x 7.9 x 5.9"15 kg / 33.1 lbs
CO10284
SLWBW..
Display mount for displays with max. VESA 800 x 600
Detail image Display mount for displays with max. VESA 800 x 600 PYKLE-IFPD-WThis frame accommodates monitors with max. VESA 800 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
Display mount XL for displays with max. VESA 1200 x 600
Detail image Display mount XL for displays with max. VESA 1200 x 600 PYKLE-IFPD-WThis XL frame accommodates monitors with max. VESA 1200 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
