Wallmounted 2 pylon system for displays from 65-86"

electrical height adustable, 70 cm stroke
Item number: PY1E-IFPD-W

Product description

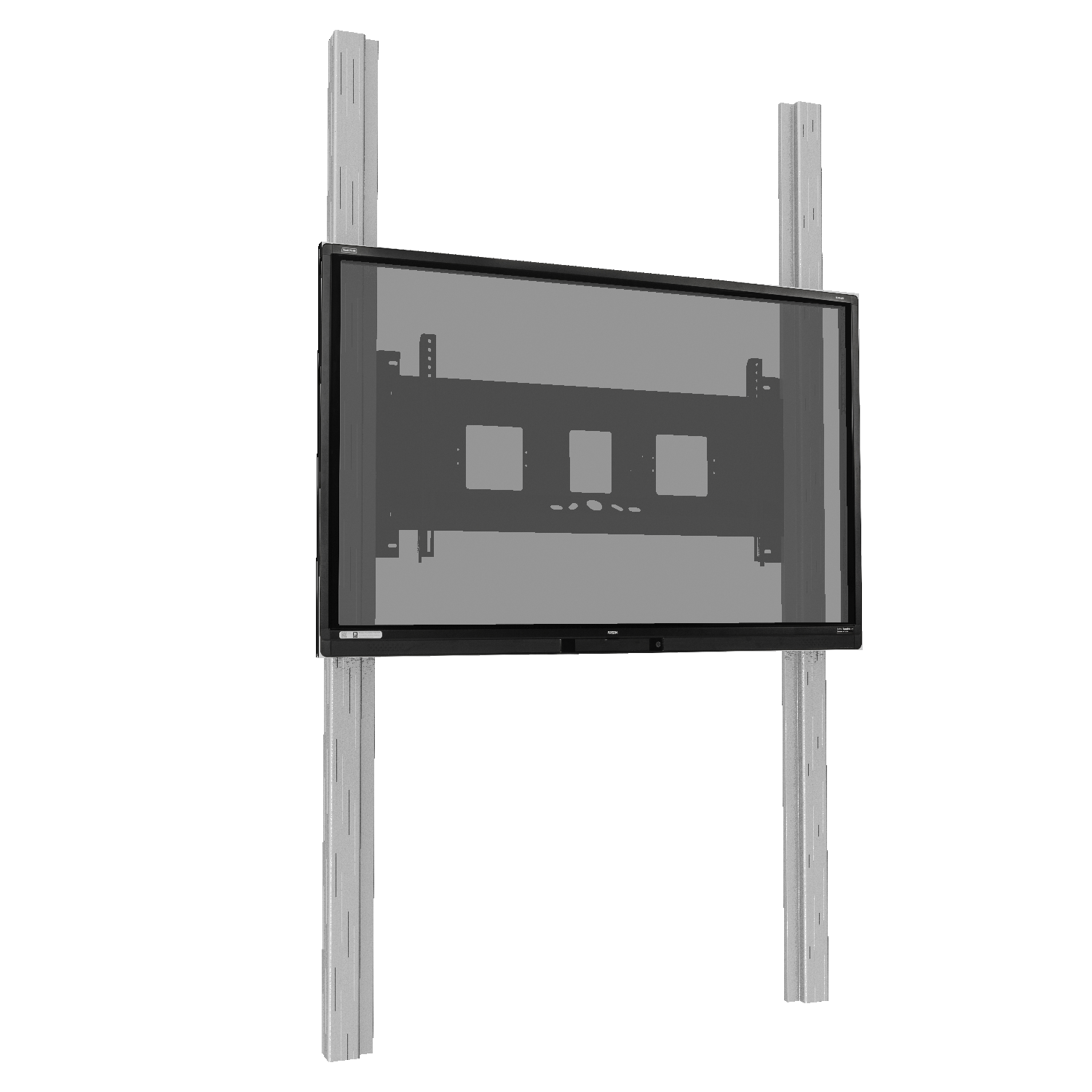

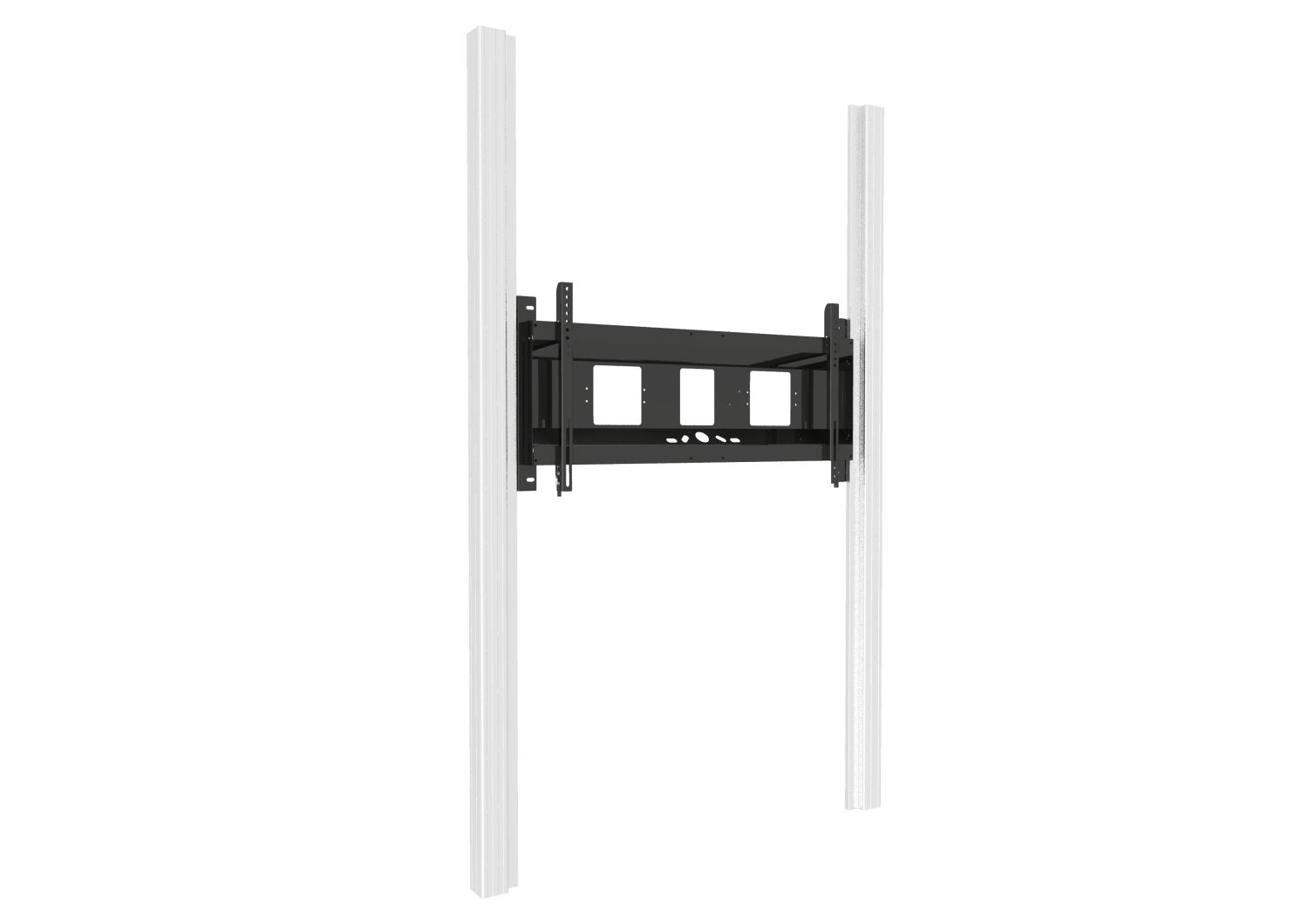

This electrically height-adjustable pylon-sytem is compatible with all touch screen displays available on the market from 65" to 86" screens. The adjustable pylon-system consists of two aluminum profiles mounted on the wall and floor, in which the motor is concealed.

By using the two button remote attached to the system, you can adjust the display to the desired working height . This ensures that every user can work and present at their ergonomically best height.

Advantage of the electrical height adjustment: It increases the lifespan of the display, because controlled movement protects the technology.


Features

  • Electrically height adjustable system with 2 pylons for floor and wall mounting
  • Pylon length 2600 mm
  • 70 cm of motorized height adjustment
  • All connections on the display are freely accessible

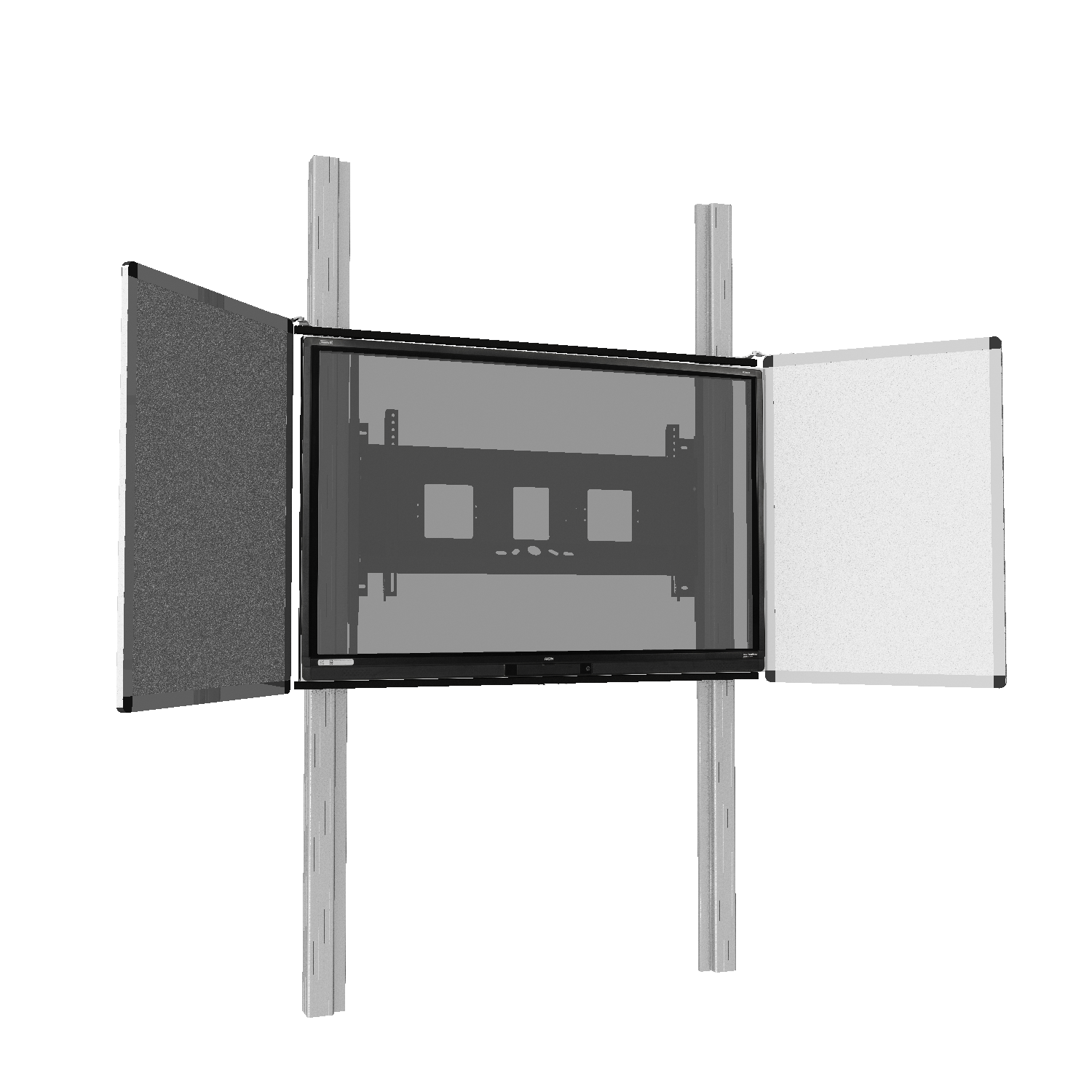

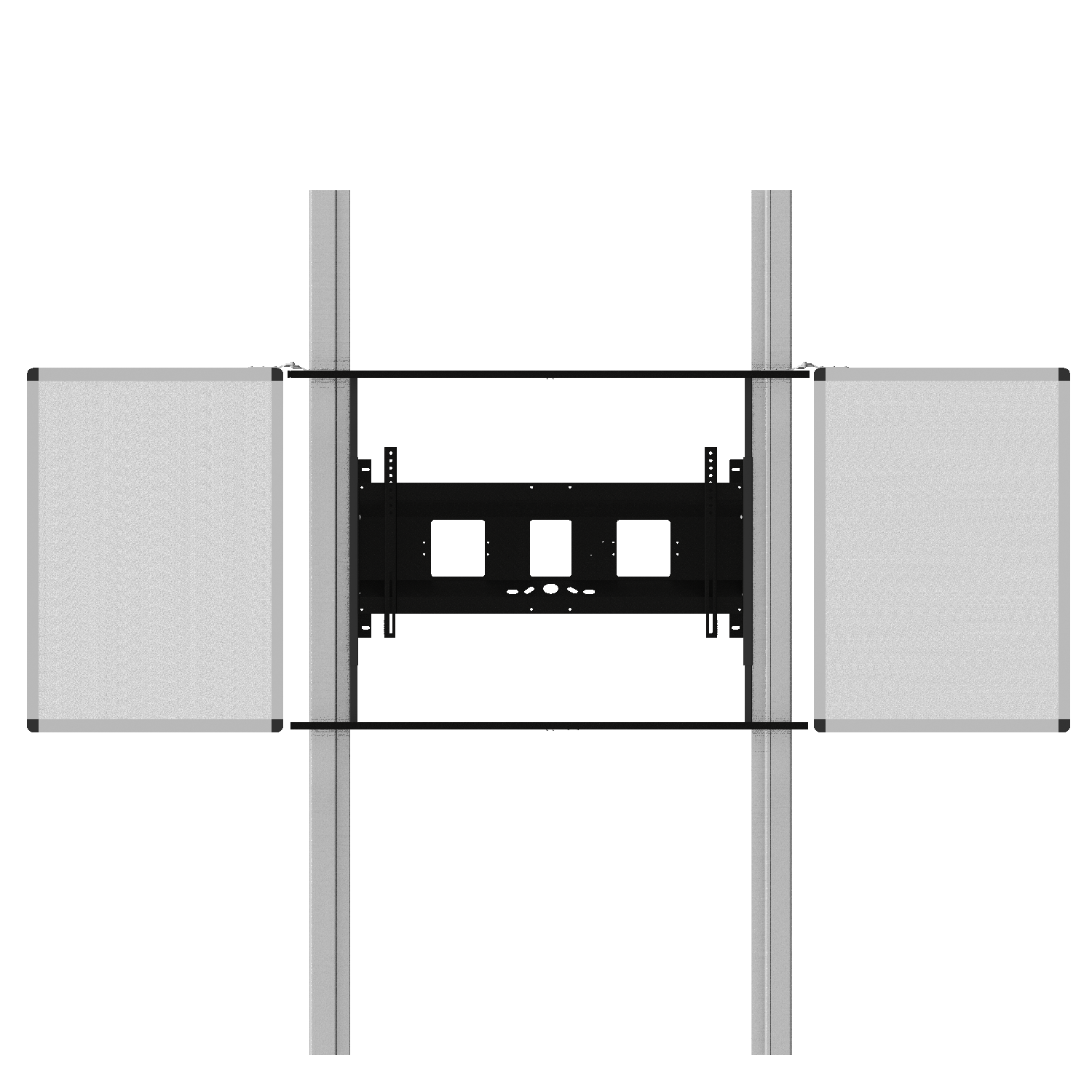

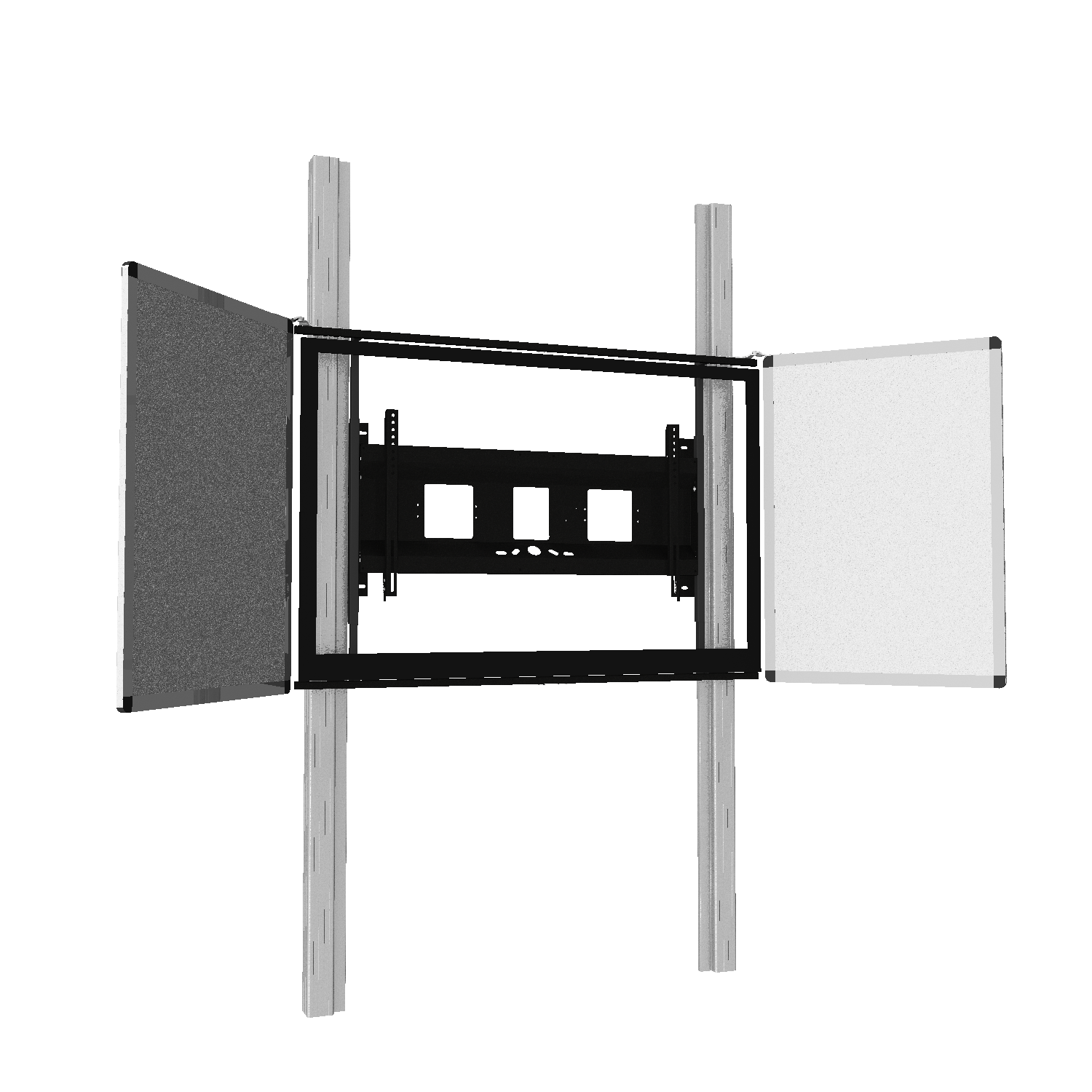

  • Optionally with whitboard side wings
Product image Wallmounted 2 pylon system for displays from 65-86
Product image Wallmounted 2 pylon system for displays from 65-86 Product image Wallmounted 2 pylon system for displays from 65-86 Product image Wallmounted 2 pylon system for displays from 65-86 Product image Wallmounted 2 pylon system for displays from 65-86 Product image Wallmounted 2 pylon system for displays from 65-86 Product image Wallmounted 2 pylon system for displays from 65-86

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon maximum load
Max. load
330.7 lbs
Icon maximal VESA
Max. Vesa
1200 x 600

Accessories

Productimage Swivel arm for notebooks Productimage 2 galvanized wall mounting brackets Productimage 2 galvanized adjustable wall mounting brackets

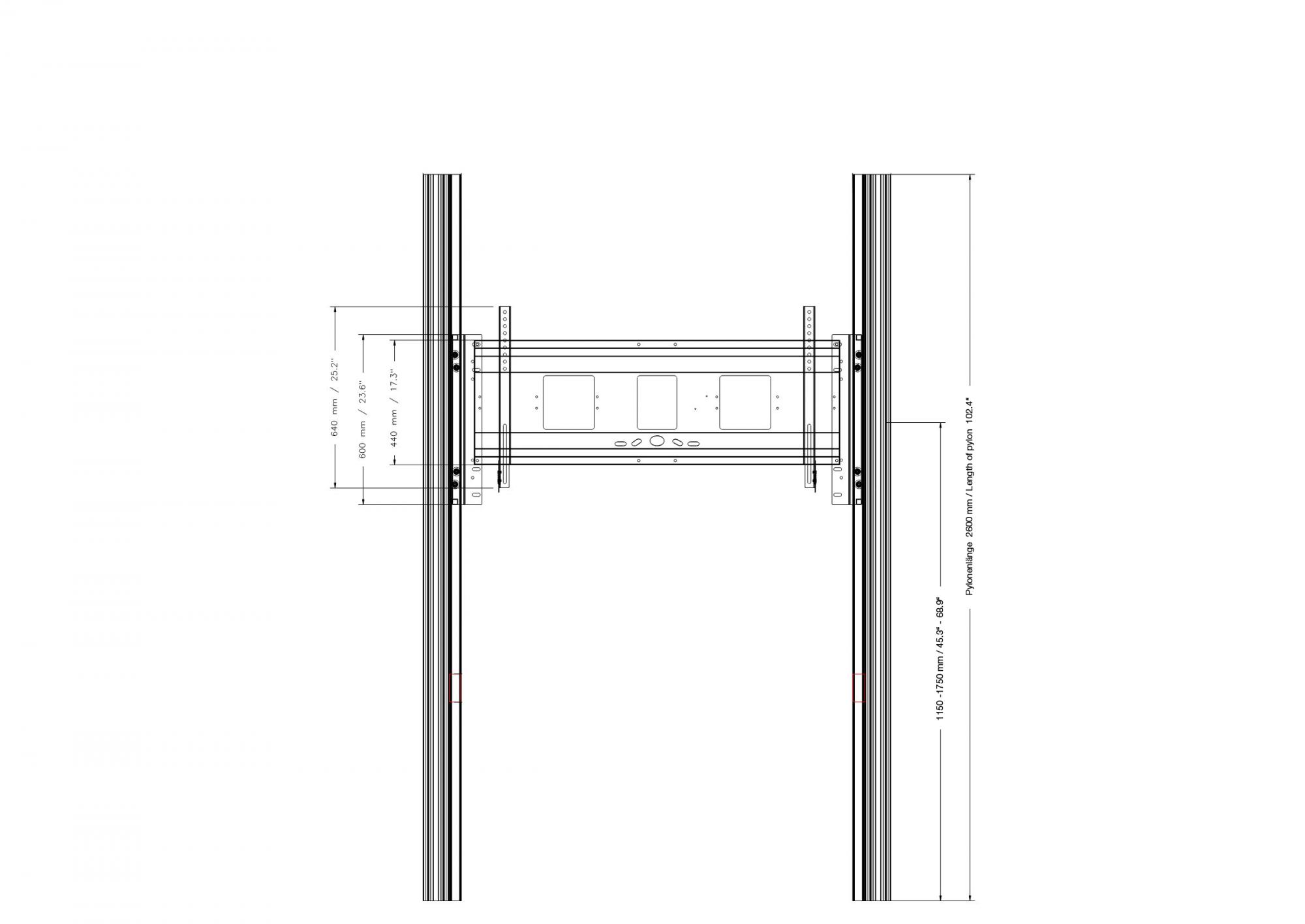

Product details

Item numberPY1E-IFPD-W
Vesa horizontal300 mm - 1200 mm
Vesa vertical200 mm - 600 mm
Frame for all65" - 86"
Vertical travel70 cm
Load capacity150 kg 330.7 lbs
Width 1650 mm65"
Height 2600 mm102.4"
Depth 134 mm5.3"
Frame colorRAL 9005 deep black
Column colorSilver anodized
Display mount for displays with max. VESA 800 x 600
Detail image Display mount for displays with max. VESA 800 x 600 PY1E-IFPD-WThis frame accommodates monitors with max. VESA 800 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
Display mount XL for displays with max. VESA 1200 x 600
Detail image Display mount XL for displays with max. VESA 1200 x 600 PY1E-IFPD-WThis XL frame accommodates monitors with max. VESA 1200 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
