Height adjustable display and monitor stand, lite series with 70 cm of vertical travel

column black, anti-collision, floor plate black
Item number: RLI10070PBK

Product description

Height adjustable display & monitor stand for 42"-86" (interactive) touch screen monitors.

The RLI10070PBK is designed for touch screen monitors up to 86". The units feature a sturdy monitor mount with integrated cable management and "pull & release" locking brackets for quick and easy mounting of the monitor.

The RLI10070PBK monitor stand comes with a slim column that offers 70 cm of vertical travel.

A 0.3" thick, solid steel plate secures to the motorized center column. Designed for static, freestanding applications or to add stability to wall mount systems, secured to e.g. a stud wall. The floor plate features cut-outs/ handles for easy transportation. It comes powder coated in black.

The unit comes flat-packed in 3 cartons and is courier-shippable.


Features

  • Heavy duty mount for touch screen monitors up to 86"
  • "Pull & release" brackets for easy mounting of the monitor
  • VESA pattern, max. 800 x 600
  • Integrated cable management
  • 70 cm of smooth motorized height adjustment, actuator 1500N, 47 mm/ 1.85" per second
  • Floor plate and 2 wall mounting brackets for extra stability
  • With anti-collision function
  • Quick and easy mounting to the wall
  • Wired remote control included

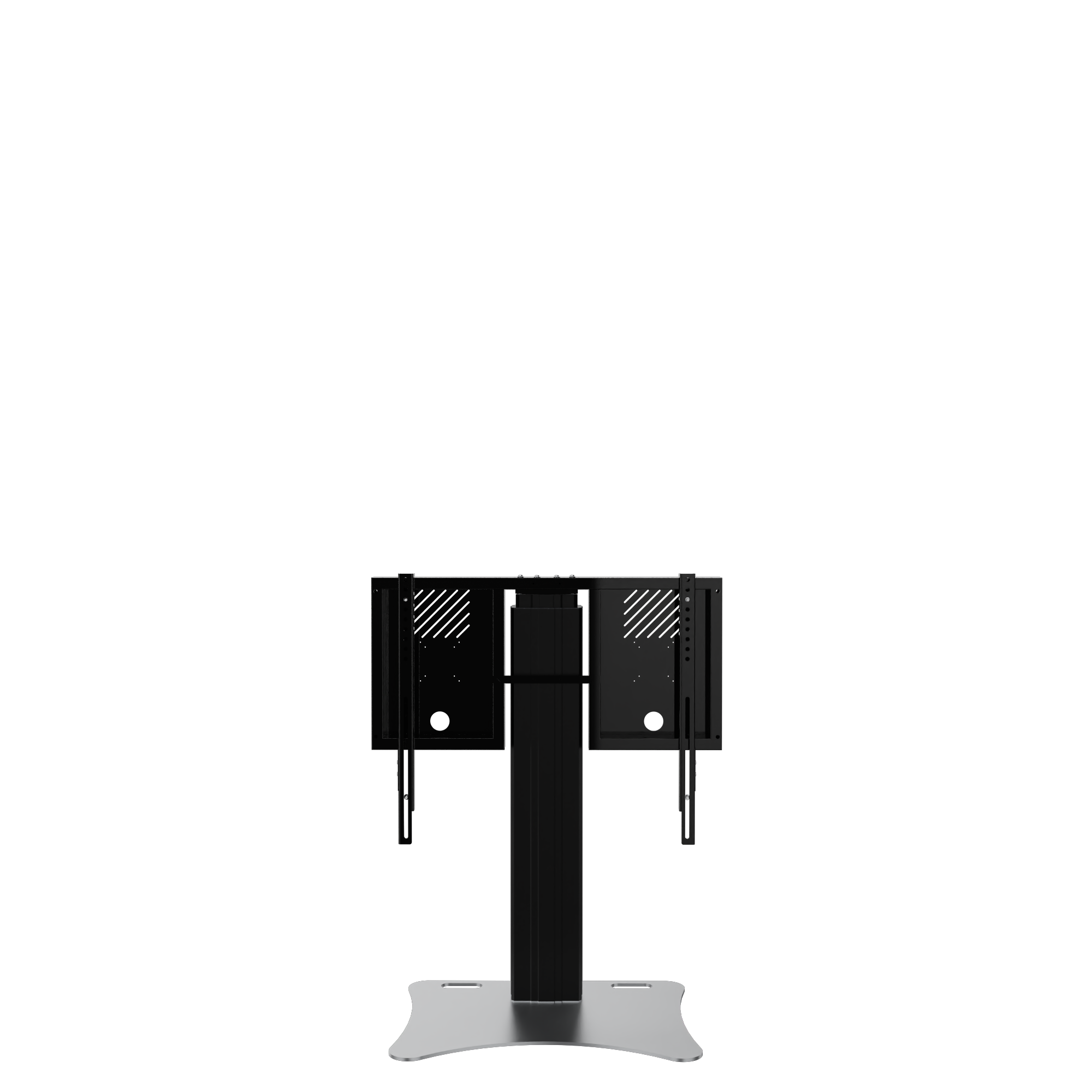

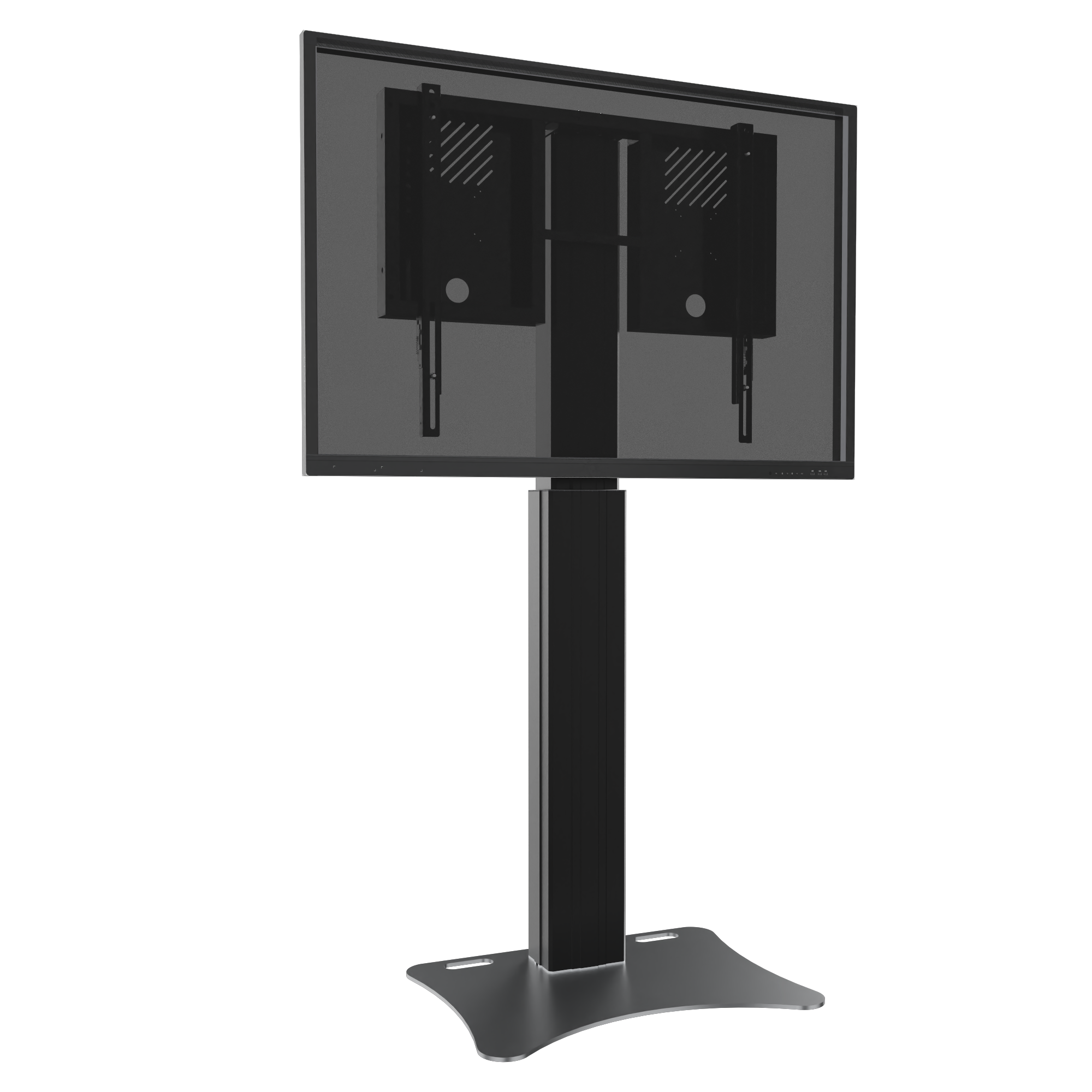

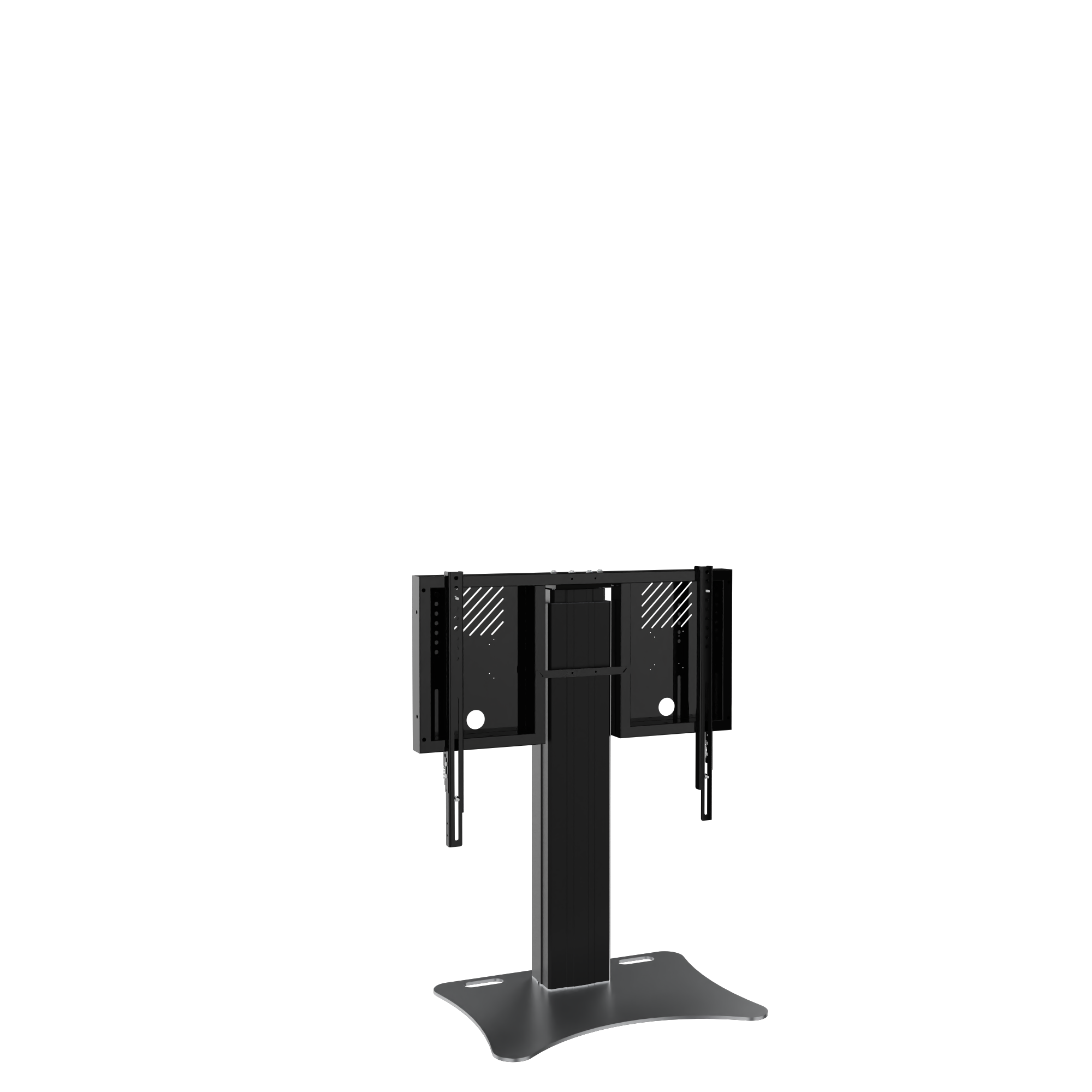

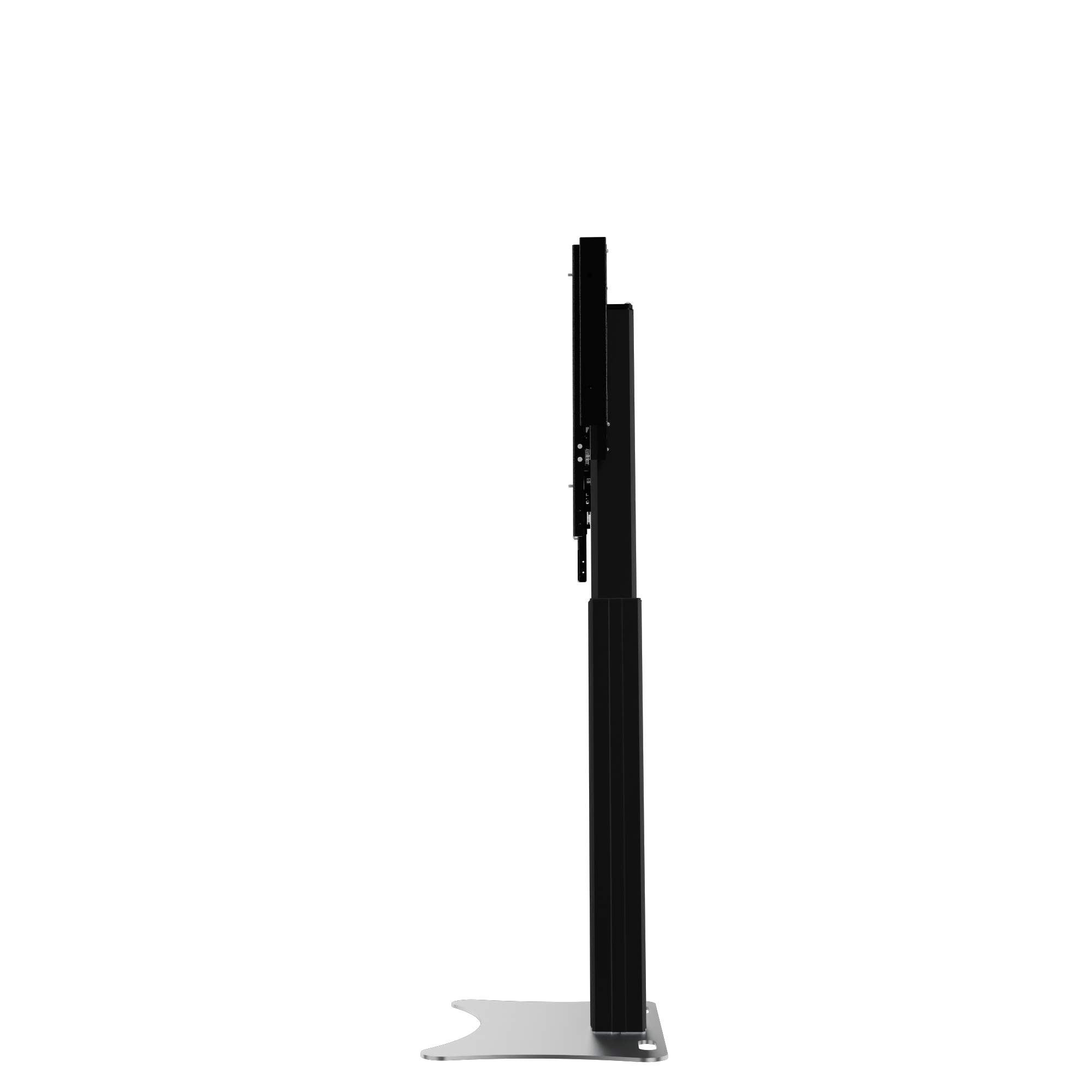

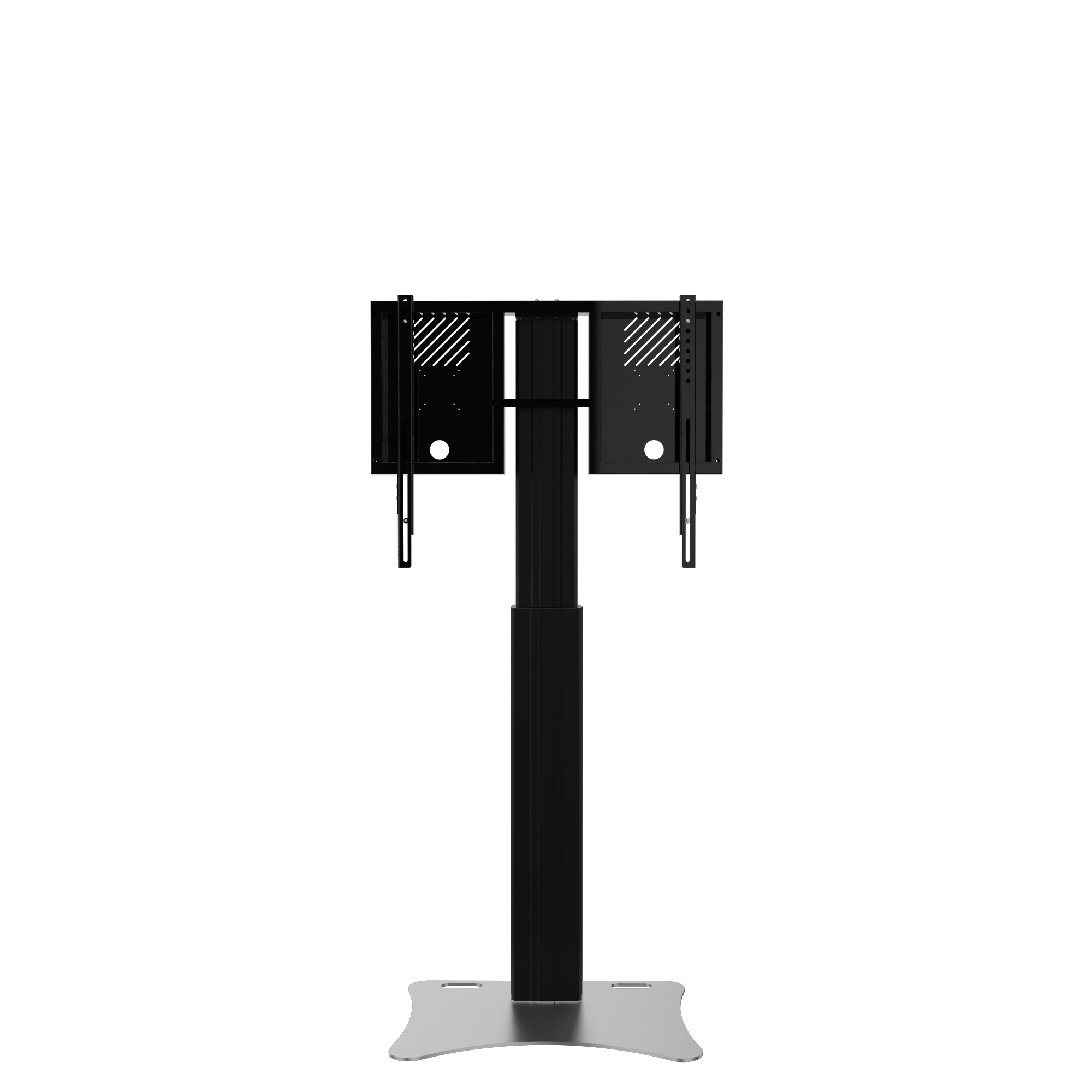

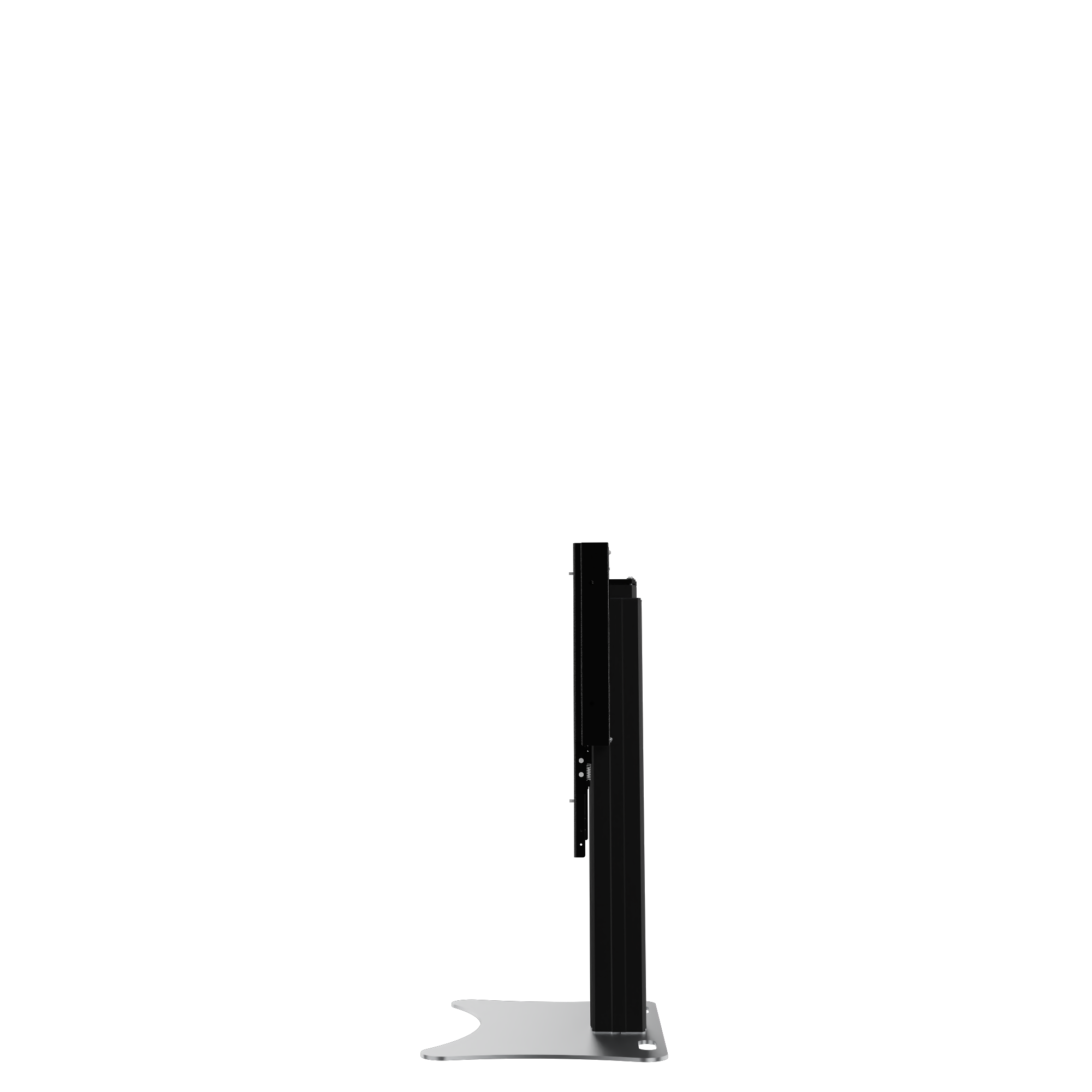

Product image Height adjustable display and monitor stand, lite series with 70 cm of vertical travel RLI10070PBK
Product image Height adjustable display and monitor stand, lite series with 70 cm of vertical travel RLI10070PBK Product image Height adjustable display and monitor stand, lite series with 70 cm of vertical travel RLI10070PBK Product image Height adjustable display and monitor stand, lite series with 70 cm of vertical travel RLI10070PBK Product image Height adjustable display and monitor stand, lite series with 70 cm of vertical travel RLI10070PBK Product image Height adjustable display and monitor stand, lite series with 70 cm of vertical travel RLI10070PBK Product image Height adjustable display and monitor stand, lite series with 70 cm of vertical travel RLI10070PBK Product image Height adjustable display and monitor stand, lite series with 70 cm of vertical travel RLI10070PBK

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
299.8 lbs
Icon maximal VESA
Max. Vesa
800 x 600

Accessories

Productimage Laptop side shelf Productimage Front shelf for LIGHT system Productimage Keyboard shelf for LITE series Productimage Universal PC bracket Productimage Two whiteboard side wings Productimage Video conference camera top shelf LITE series for displays from 65 - 86 inch

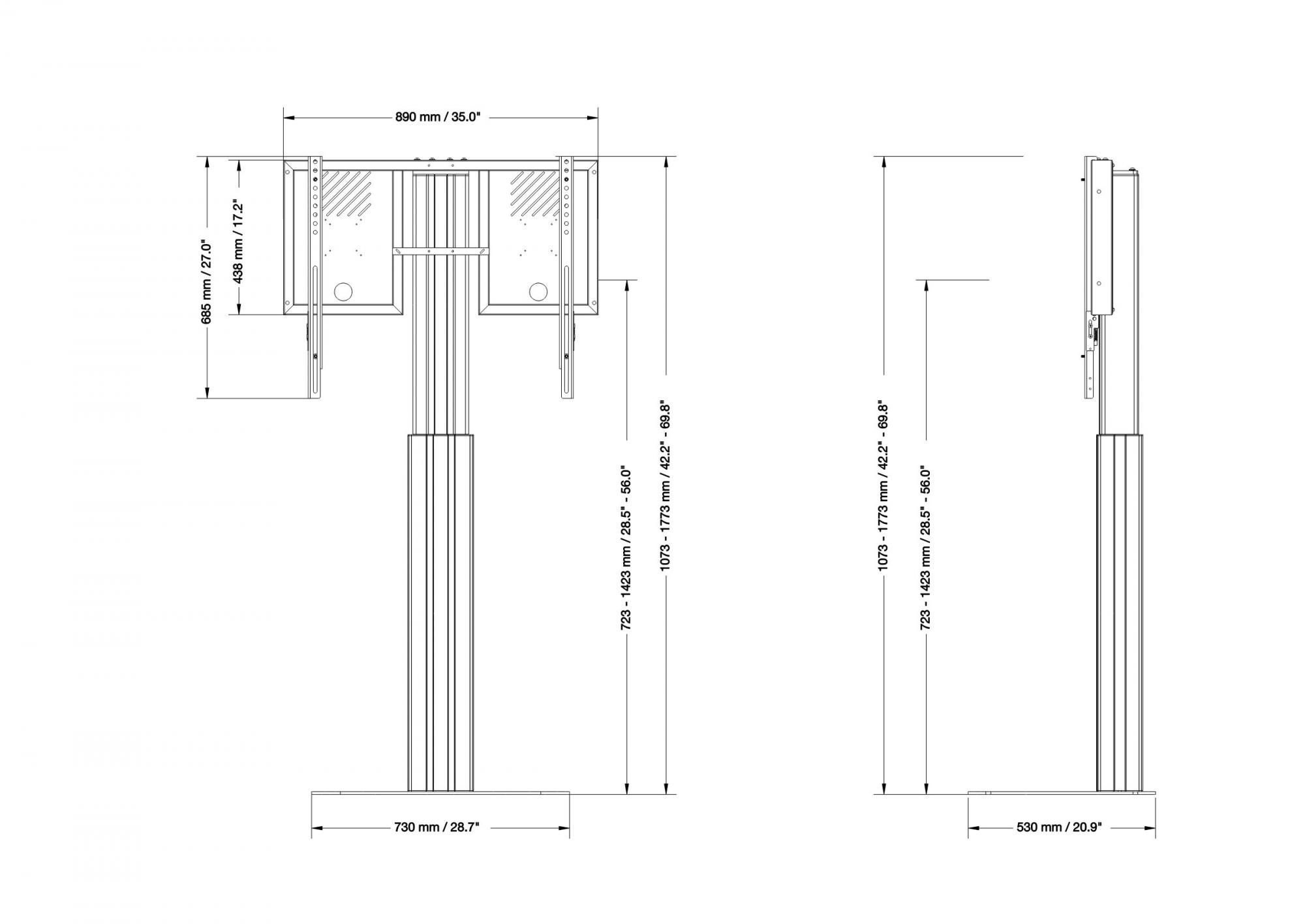

Product details

Item numberRLI10070PBK
Vesa horizontal200 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all42" - 86"
Vertical travel70 cm
Center to floor distance 723 mm - 1423 mm28.5" - 56"
Load capacity136 kg 299.8 lbs
Width 890 mm35"
Height 1073 mm - 1773 mm42.2" - 69.8"
Depth 530 mm20.9"
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorBlack anodized
Base colorRAL 9005 deep black
Packages Package dimensions WxHxD Package weight
AFSCETARLI895 x 65 x 485 mm / 35.2 x 2.6 x 19.1"14 kg / 30.9 lbs
CCEL10070WBK1190 x 195 x 245 mm / 46.9 x 7.7 x 9.6"22,3 kg / 49.2 lbs
PSTSCETABLI750 x 20 x 600 mm / 29.5 x 0.8 x 23.6"21,8 kg / 48.1 lbs
Total weight 58,1 kg / 128.2 lbs
Display mount for displays with max. VESA 800 x 600
Detail image Display mount for displays with max. VESA 800 x 600 RLI10070PBKThis frame accommodates monitors with max. VESA 800 x 600. The sturdy construction consists of 2 mm powder coated steel.
Quick snap lock
Detail image Quick snap lock RLI10070PBKWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Remote control of height adjustment
Detail image Remote control of height adjustment RLI10070PBKThe electrically height-adjustable tv & monitor stands come standard with a wired remote control. With two buttons, the monitor stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen monitors.
8 mm strong floor plate
Detail image 8 mm strong floor plate RLI10070PBKThe 8 mm strong base plate allows the mounting of our monitor mounts on lightweight walls or a freestanding installation in the room. The weight of the monitor is transmitted through the column to the floor plate and thus to the floor, maximizing stability.
Wall mounting kit
Detail image Wall mounting kit RLI10070PBKThe system includes a wall mounting set consisting of: two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm, Two sliding blocks incl. nut to attach the brackets to the column, four floor leveling feet and 3 cable clips.
7 cm (2.76 inch) Z-brackets
Detail image 7 cm (2.76 inch) Z-brackets RLI10070PBKBy default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm (2.76 inch). Further wall mounting solutions are available as accessories.
