Height adjustable monitor and TV wall mount, lite series with 50 cm of vertical travel

column silver, anti-collision, low model
Item number: RLI8050WK

Product description

Adjustable TV & monitor wall mount for 42"-75" (interactive) touch screen monitors.

The RLI8050WK is designed for touch screen monitors up to 75". The units feature a sturdy monitor mount with integrated cable management and "pull & release" locking brackets for quick and easy mounting of the monitor.

The RLI8050WK comes with a slim column that offers 50 cm of vertical travel.

The unit comes flat-packed in 2 cartons and is courier-shippable.


Features

  • Heavy duty mount for touch screen monitors up to 75"
  • "Pull & release" brackets for easy mounting of the monitor
  • VESA pattern, max. 800 x 600
  • Integrated cable management
  • 50 cm of smooth motorized height adjustment, actuator 1500N, 47 mm/ 1.85" per second
  • Levelling feet and 2 wall mounting brackets for optimum stability
  • With anti-collision function
  • Quick and easy mounting to the wall
  • Wired remote control included

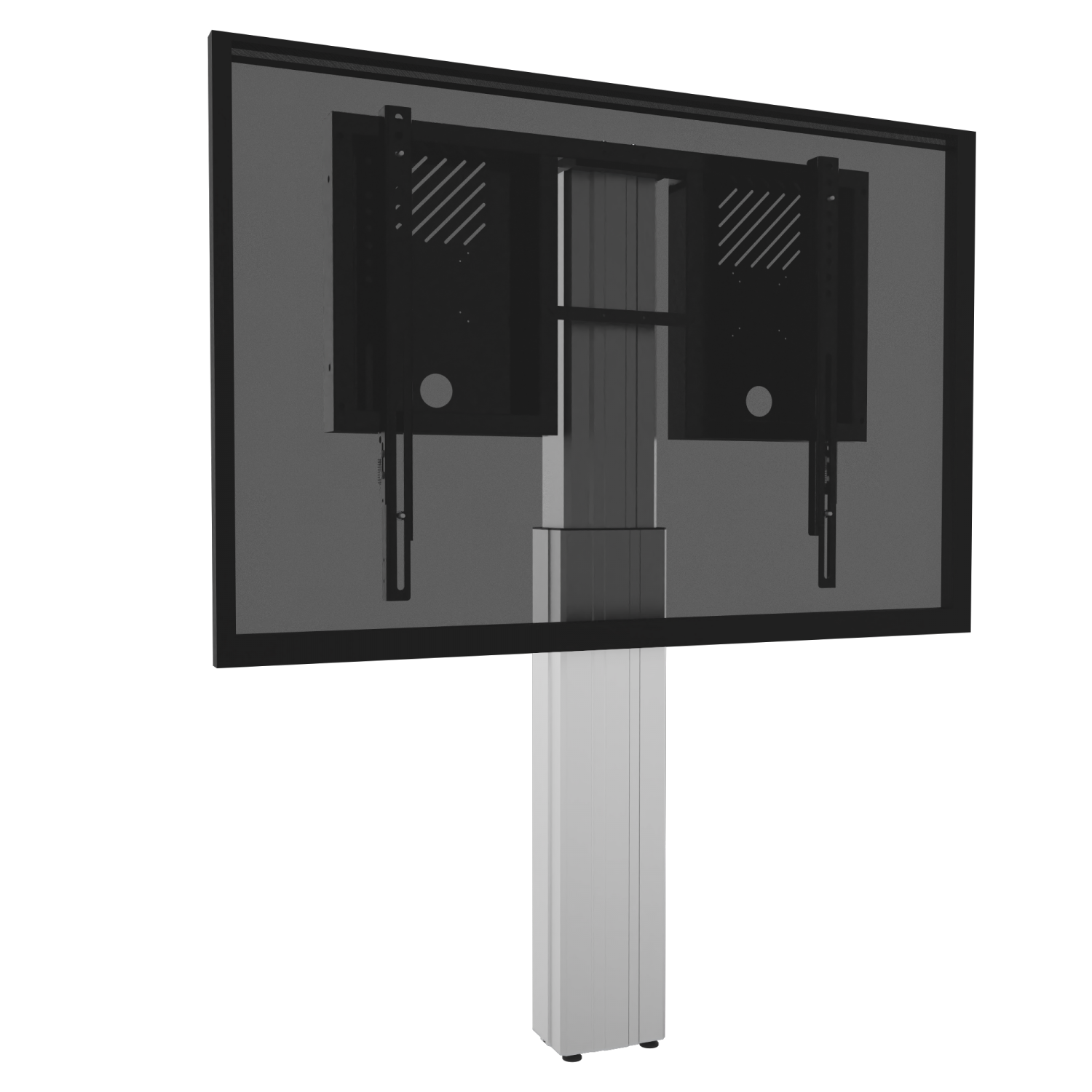

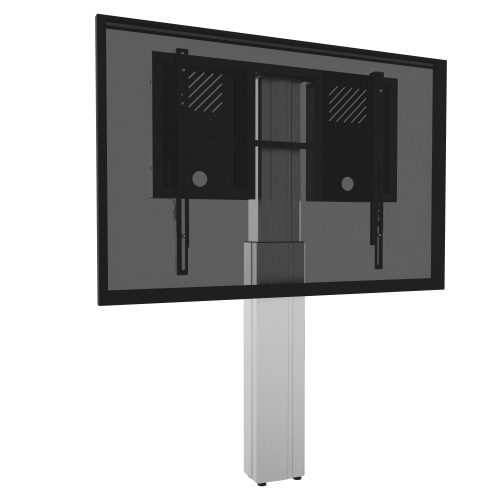

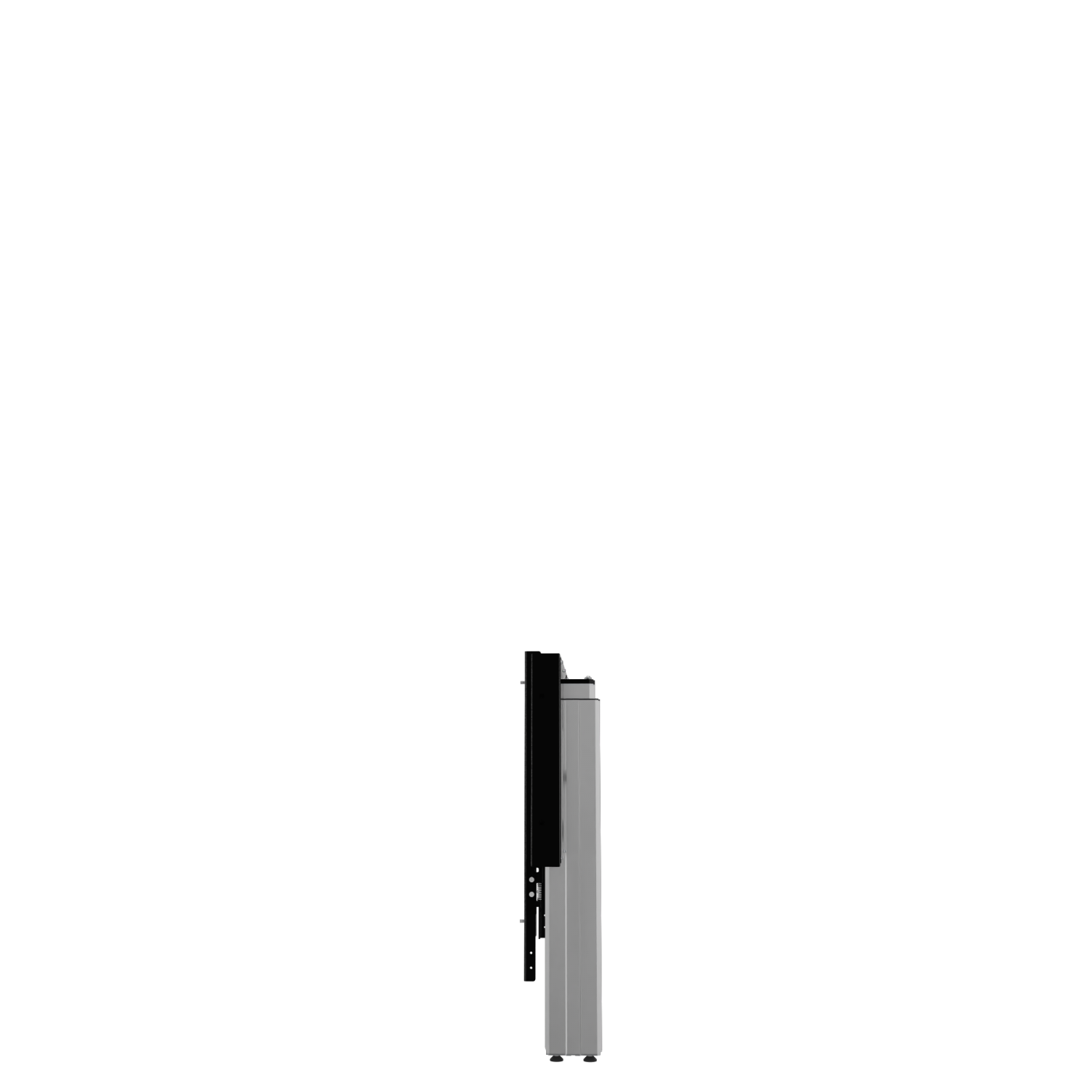

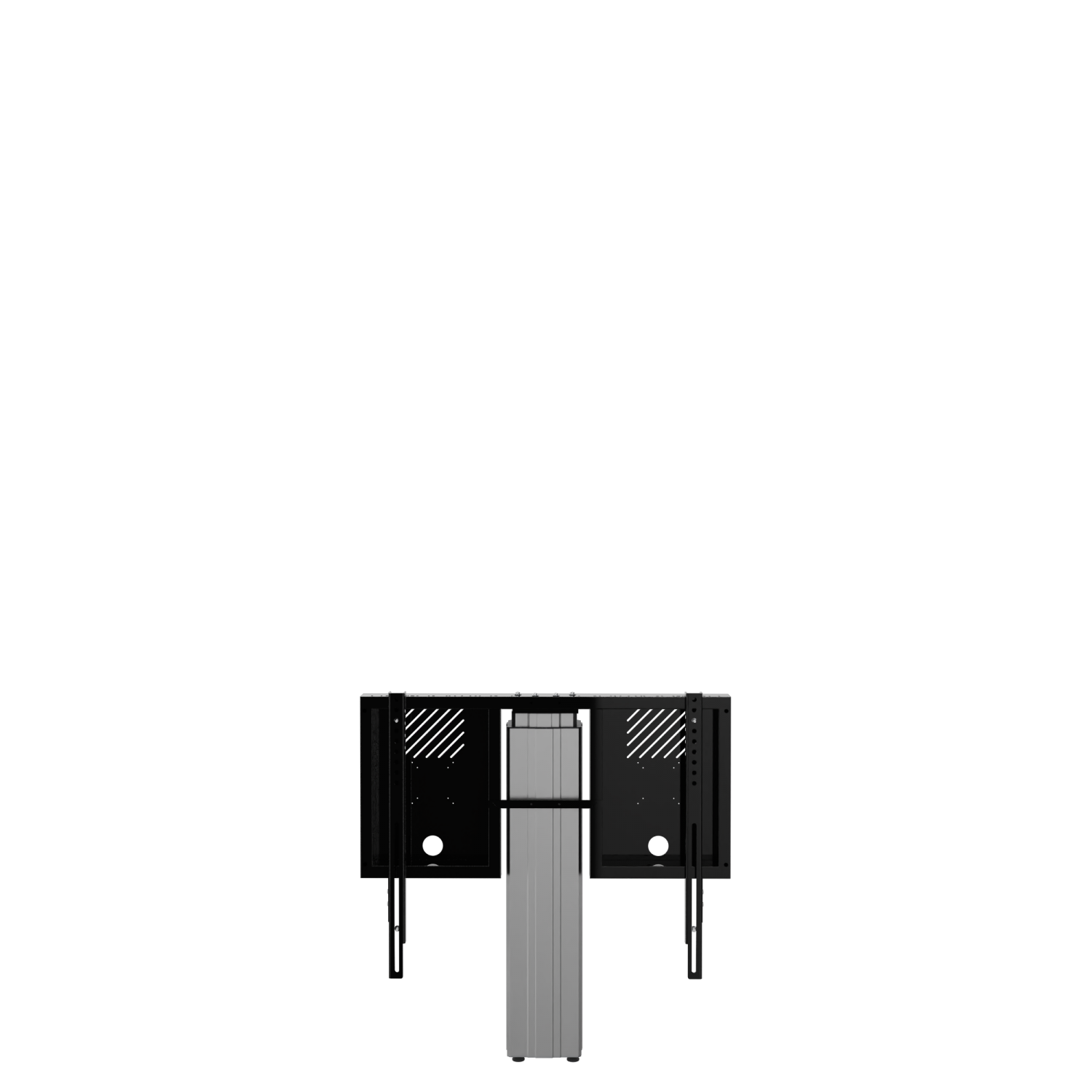

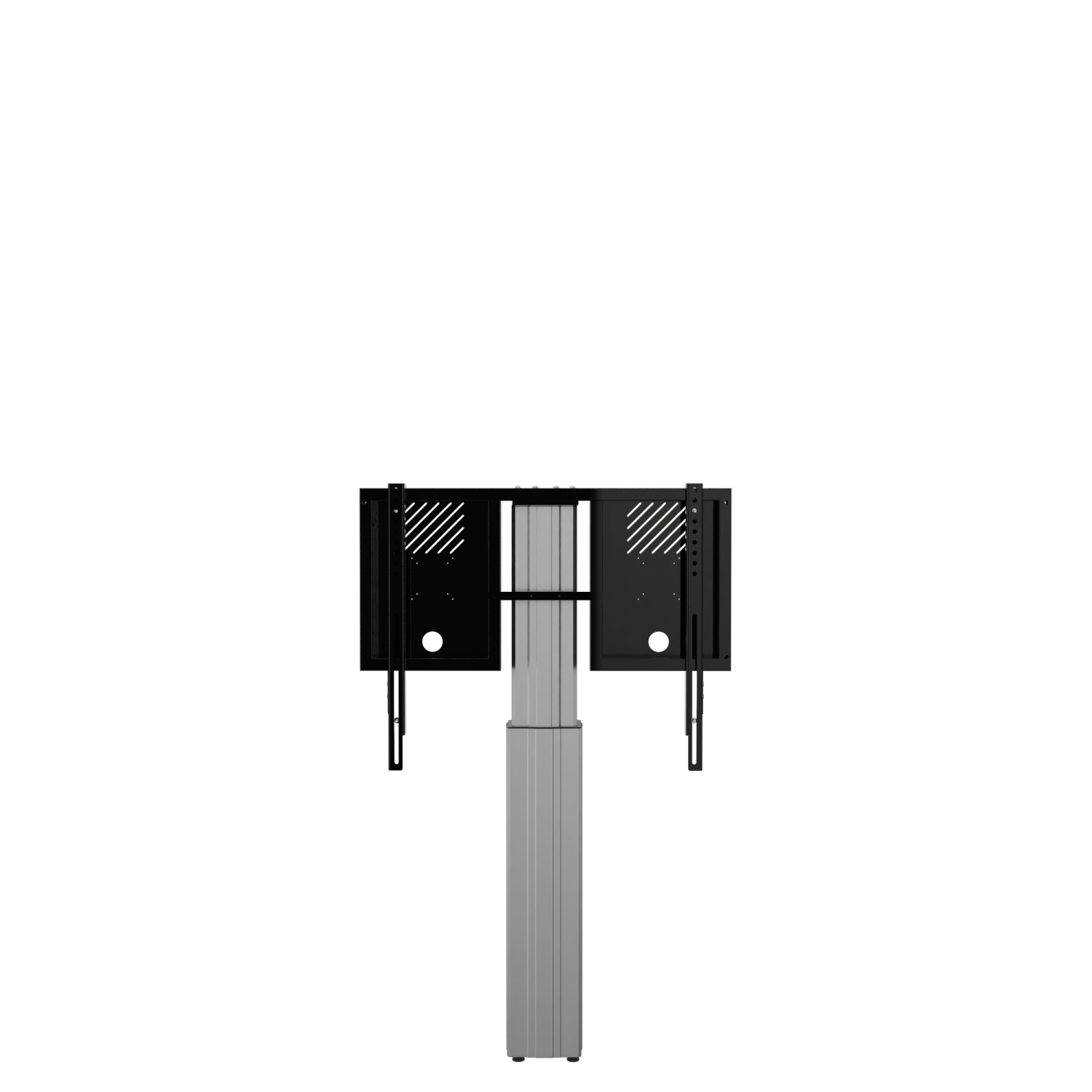

Product image Height adjustable monitor and TV wall mount, lite series with 50 cm of vertical travel RLI8050WK
Product image Height adjustable monitor and TV wall mount, lite series with 50 cm of vertical travel RLI8050WK Product image Height adjustable monitor and TV wall mount, lite series with 50 cm of vertical travel RLI8050WK Product image Height adjustable monitor and TV wall mount, lite series with 50 cm of vertical travel RLI8050WK Product image Height adjustable monitor and TV wall mount, lite series with 50 cm of vertical travel RLI8050WK Product image Height adjustable monitor and TV wall mount, lite series with 50 cm of vertical travel RLI8050WK

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
299.8 lbs
Icon maximal VESA
Max. Vesa
800 x 600

Accessories

Productimage Laptop side shelf Productimage Front shelf for LIGHT system Productimage Keyboard shelf for LITE series Productimage Universal PC bracket Productimage Floor plate for Lite series (CCELW-AF + RLI...), for fixed floor mounting Productimage Floor plate for display mounts LITE serie (CCELW-AF + RLi...)

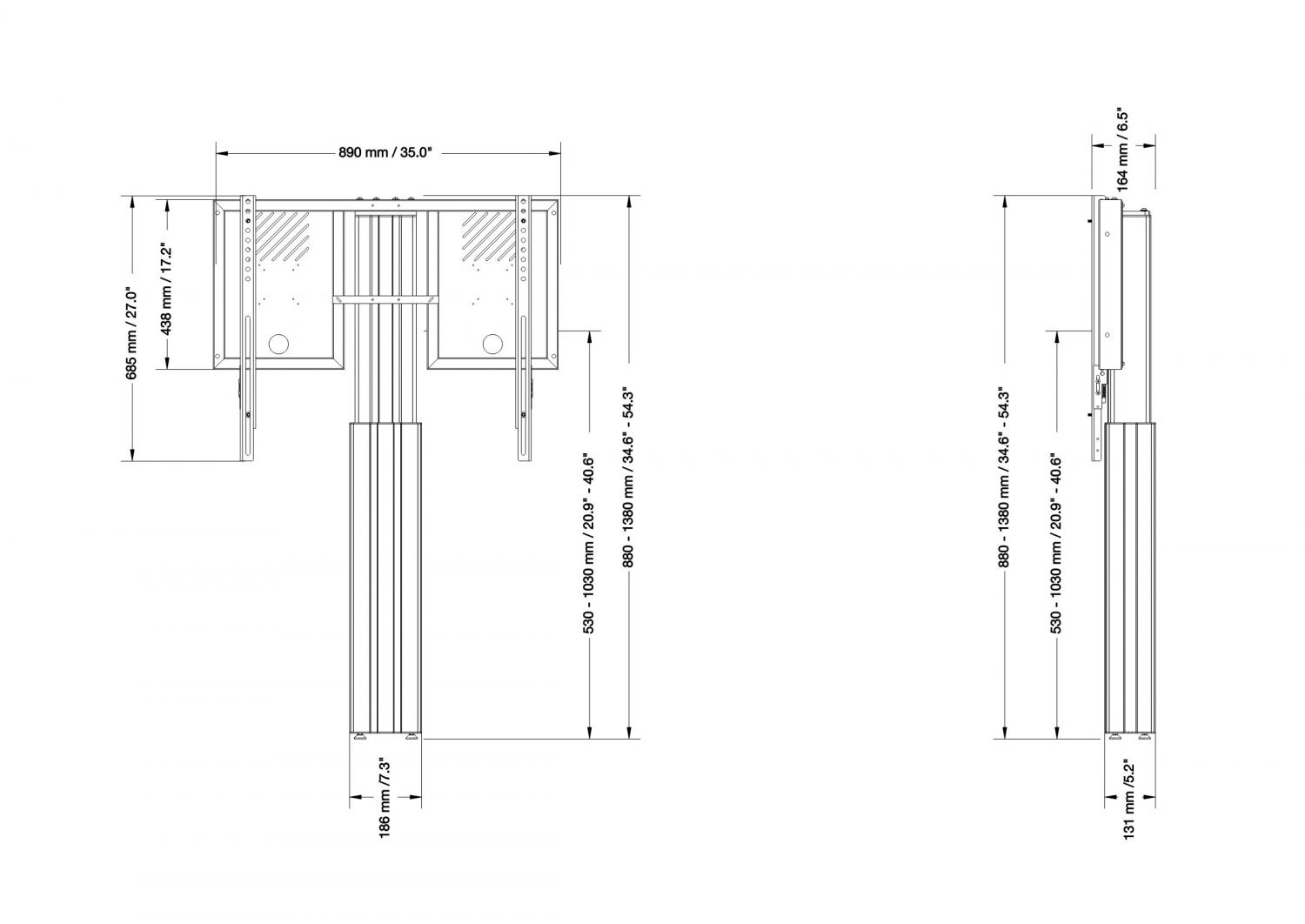

Product details

Item numberRLI8050WK
Vesa horizontal200 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all42" - 75"
Vertical travel50 cm
Center to floor distance 550 mm - 1050 mm21.7" - 41.3"
Load capacity136 kg 299.8 lbs
Width 890 mm35"
Height 880 mm - 1380 mm34.6" - 54.3"
Depth 164 mm6.5"
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorSilver anodized
Packages Package dimensions WxHxD Package weight
AFSCETARLI895 x 65 x 485 mm / 35.2 x 2.6 x 19.1"14 kg / 30.9 lbs
CCEL8050WK1005 x 245 x 195 mm / 39.6 x 9.6 x 7.7"19 kg / 41.9 lbs
Total weight 33 kg / 72.8 lbs
Display mount for displays with max. VESA 800 x 600
Detail image Display mount for displays with max. VESA 800 x 600 RLI8050WKThis frame accommodates monitors with max. VESA 800 x 600. The sturdy construction consists of 2 mm powder coated steel.
Quick snap lock
Detail image Quick snap lock RLI8050WKWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Remote control of height adjustment
Detail image Remote control of height adjustment RLI8050WKThe electrically height-adjustable tv & monitor stands come standard with a wired remote control. With two buttons, the monitor stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen monitors.
Four leveling feet
Detail image Four leveling feet RLI8050WKThese four leveling feet allow you to level out any unevenness in the floor so that the monitor wall mount can transfer the weight of the monitor over the column to the floor. For this purpose, the individual ground leveling foot can be turned in or out.
7 cm (2.76 inch) Z-brackets
Detail image 7 cm (2.76 inch) Z-brackets RLI8050WKBy default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm (2.76 inch). Further wall mounting solutions are available as accessories.
Wall mounting kit
Detail image Wall mounting kit RLI8050WKThe system includes a wall mounting set consisting of: two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm, Two sliding blocks incl. nut to attach the brackets to the column, four floor leveling feet and 3 cable clips.
