Mobile TV cabinet with electrically height adjustment "VSM electric"

column silver anodized, 50 cm of vertical travel, base cabinet
Item number: SCETASBN

Product description

Mobile TV cabinet with base cabinet including castors as well as trumpet feet.

TV cabinet including two hinged doors in the front and two adjustable shelfes, one on the left hand side and one on the right hand side. Easy cable management is granted due to two cable outlets. The whole unit comes in one carton box including 6 trumpet feet, as well as 6 castors, two of it with brakes. Feel free to place the TV cabinet close to the wall (no wall connection neccessary) or anywhere else in the room. For maximum flexibility use the 6 castors instead of the trumpet feet and move the TV cabinet wherever it is needed. The base cabinet has a aluminum finish in combination with black doors in the front.

The SCETASBN comes with an electrical height adjustable column that offers 50 cm of vertical travel.

The TV cabinet adapts 42 – 86 inch interaktive touch screen displays as well as large format displays with VESA 200 x 200 to 800 x 600 and up to 136 kg.

The unit comes flat-packed in 1 carton.


Features

  • Mobile TV cabinet with base cabinet for displays up to 86"
  • Easy mounting of display thanks to "pull & release" brackets
  • Display mount with integrated cable management
  • Wide range of accessories available
  • Actuator safely concealed in center column offering 50 cm of vertical travel
  • Wired remote is standard included
  • Cabinet including two adjustable shelves, 6 trumpet feet and 6 castors, diameter 75 mm

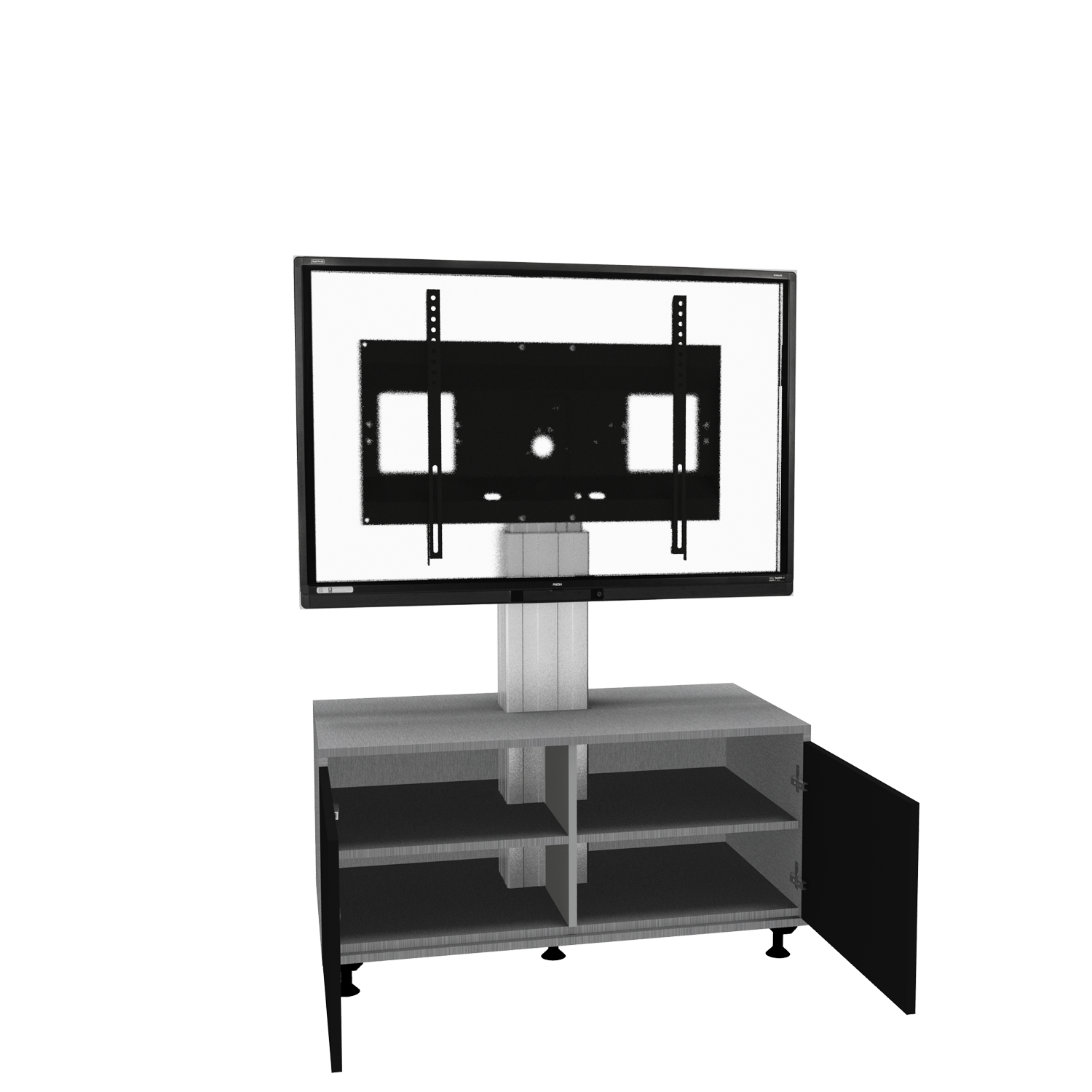

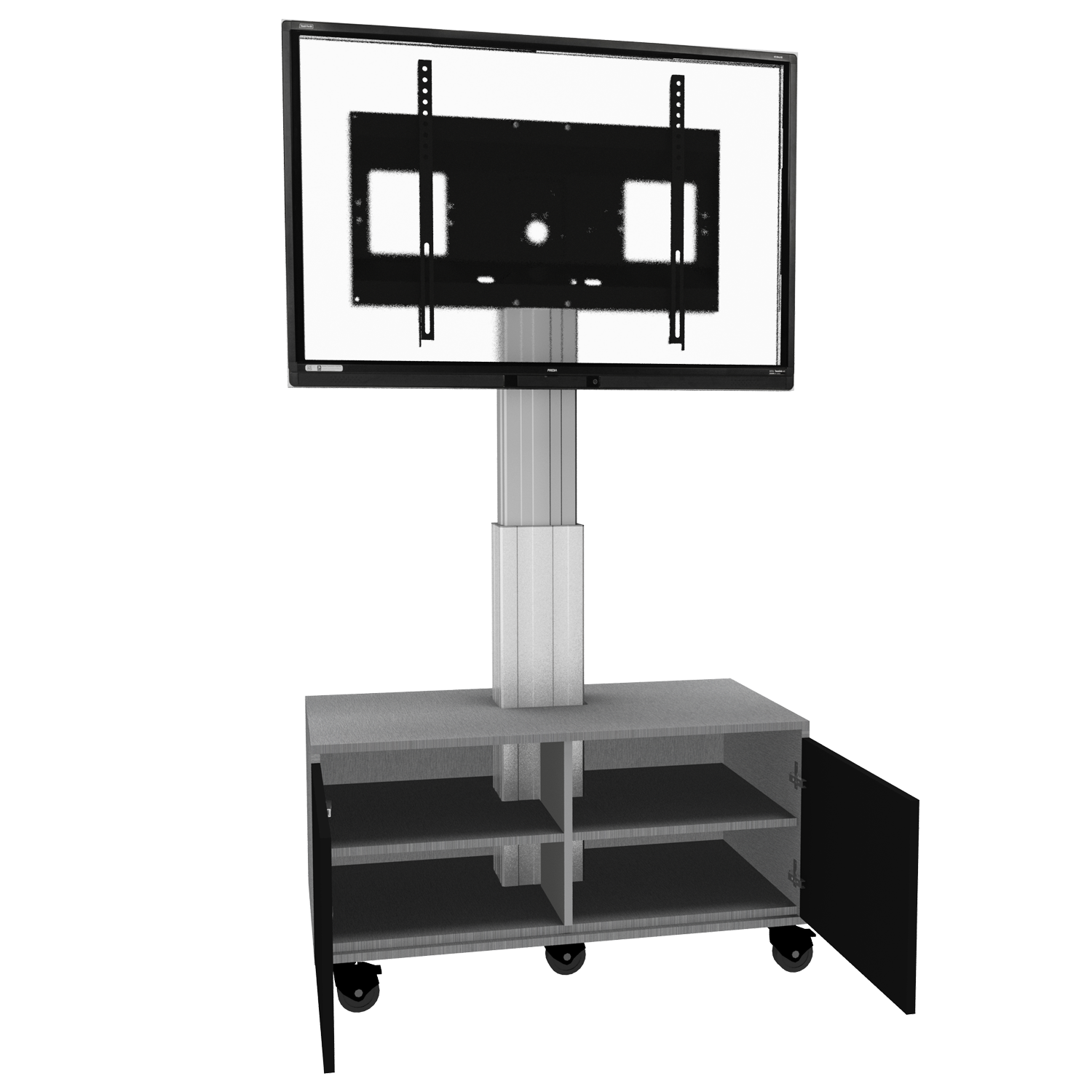

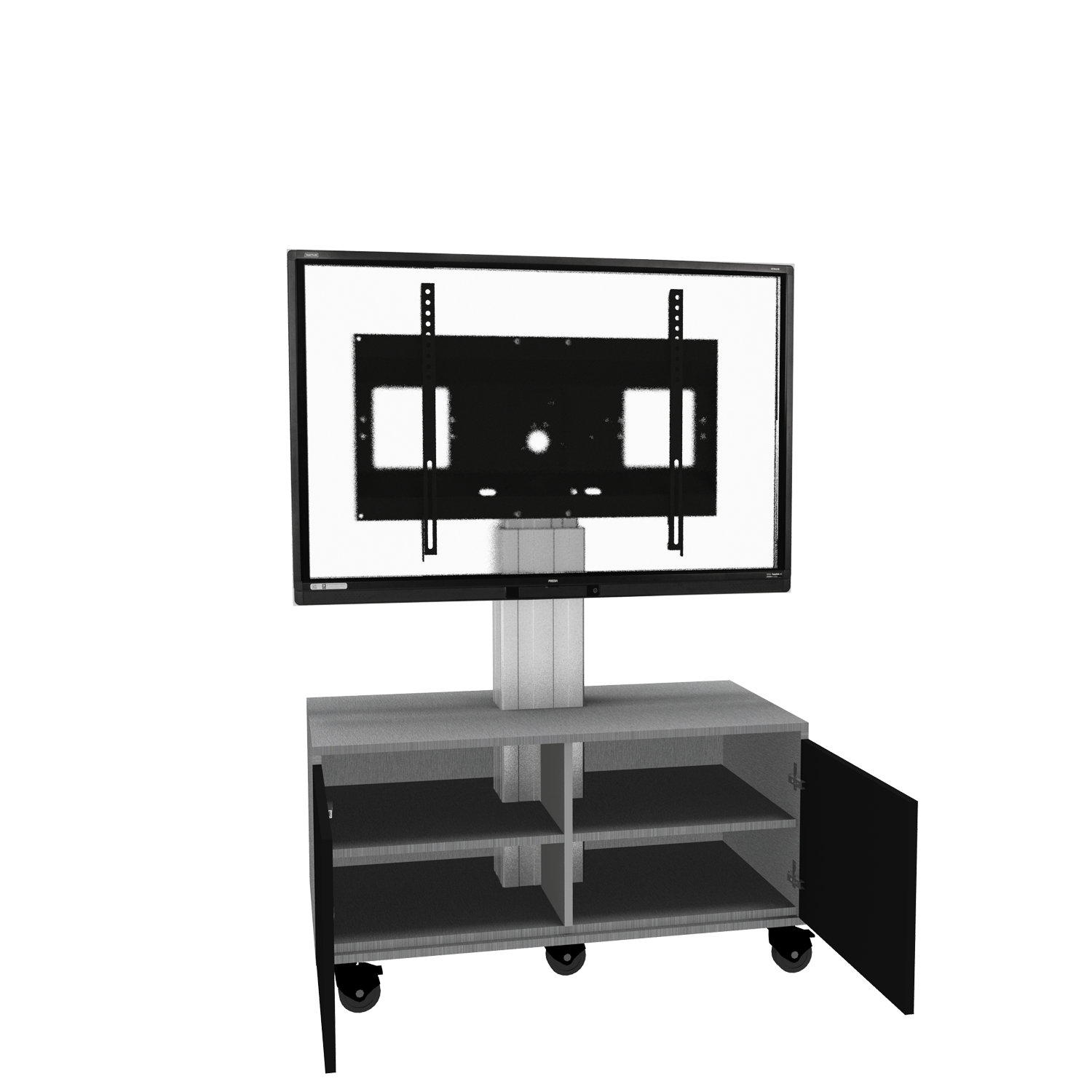

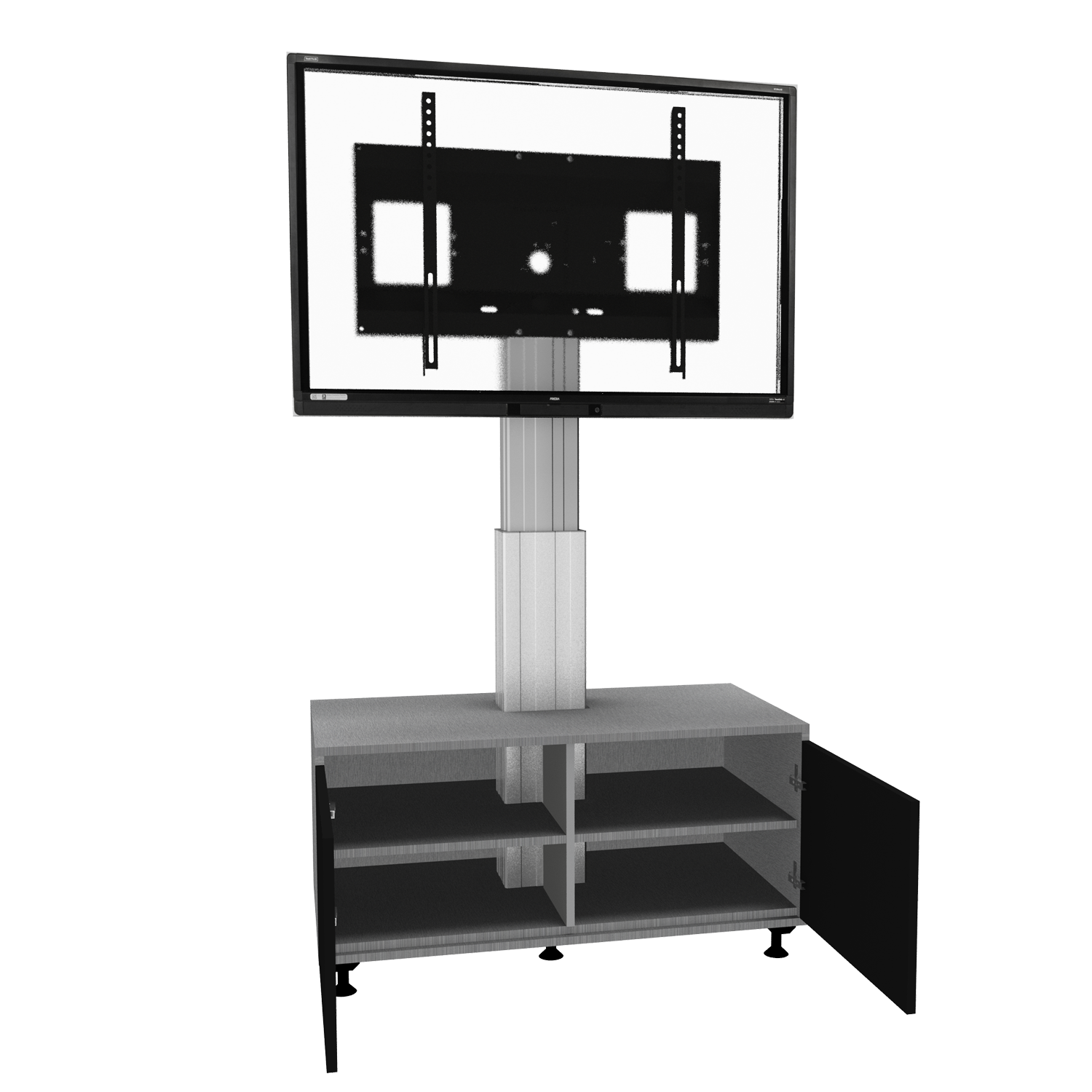

Product image Mobile TV cabinet with electrically height adjustment
Product image Mobile TV cabinet with electrically height adjustment Product image Mobile TV cabinet with electrically height adjustment Product image Mobile TV cabinet with electrically height adjustment Product image Mobile TV cabinet with electrically height adjustment Product image Mobile TV cabinet with electrically height adjustment Product image Mobile TV cabinet with electrically height adjustment Product image Mobile TV cabinet with electrically height adjustment Product image Mobile TV cabinet with electrically height adjustment

Variants


Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon platform stand
Free-standing
Icon mobile stand
Mobile
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
299.8 lbs
Icon maximal VESA
Max. Vesa
800 x 600
Item numberSCETASBN
Vesa horizontal300 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all55" - 86"
Vertical travel50 cm
Center to floor distance 1357 mm - 1857 mm53.4" - 73.1"
Load capacity136 kg 299.8 lbs
Width 893 mm35.2"
Height 1685 mm - 2185 mm66.3" - 86"
Depth 580 mm22.8"
Weight 87,7 kg193.3 lbs
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorSilver anodized
Base colorRAL 9006 white aluminum
Base colorRAL 9005 deep black
Packages Package dimensions WxHxD Package weight
AF-SCETA-N900 x 160 x 450 mm / 35.4 x 6.3 x 17.7"14 kg / 30.9 lbs
