Motorized heavy duty XL display and monitor stand with 50 cm of vertical travel

two columns black anodized, floor plate
Item number: SCETADPB

Product description

Motorized display & monitor stand with XL display mount. Designed specifically for use with interactive touch screen flat panels, this motorized monitor stand features an extra wide display mount. The system comes standard with a pair of 2-tier columns which offer 20” of height adjustment.

A 0.3" thick, solid steel plate secures to the two motorized center columns. Designed for static, freestanding applications or to add stability to wall mount systems, secured to e.g. a stud wall. The floor plate features cut-outs/ handles for easy transportation. It comes powder coated in grey aluminum.

The unit comes flat-packed in 4 cartons and is courier-shippable.


Features

  • XL wide monitor stand mount with max. VESA 1200x600
  • Designed for use with IFPDs and LFDs up to 125 kg
  • Easy mounting of display thanks to "pull & release" brackets
  • Display mount with integrated cable management
  • Actuator safely concealed in two columns offering 50 cm of vertical travel
  • Wired remote is standard included
  • Optimum stability thanks to the floor plate and four wall mount brackets

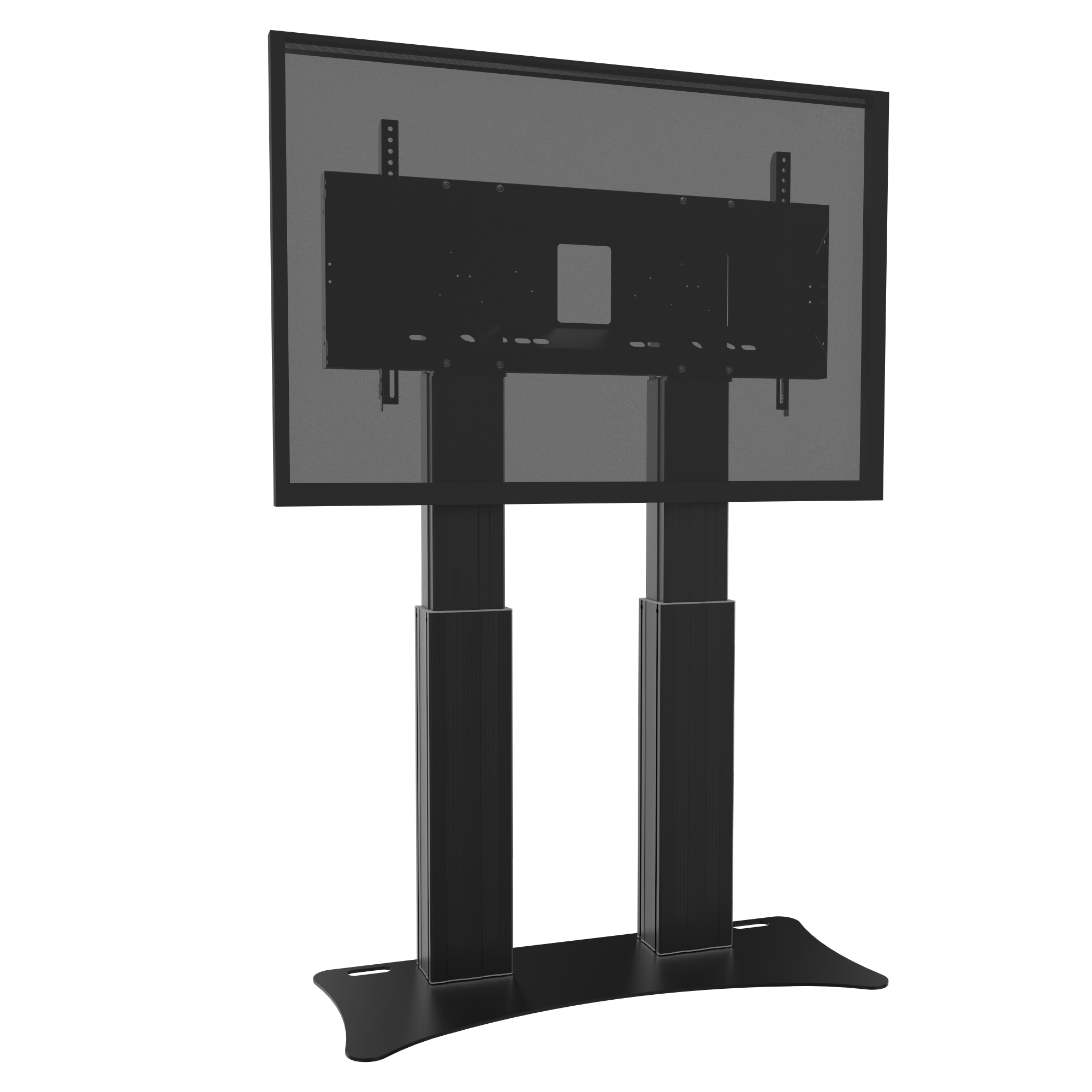

Product image Motorized heavy duty XL display and monitor stand with 50 cm of vertical travel SCETADPB
Product image Motorized heavy duty XL display and monitor stand with 50 cm of vertical travel SCETADPB Product image Motorized heavy duty XL display and monitor stand with 50 cm of vertical travel SCETADPB

Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
551.2 lbs
Icon maximal VESA
Max. Vesa
1200 x 600

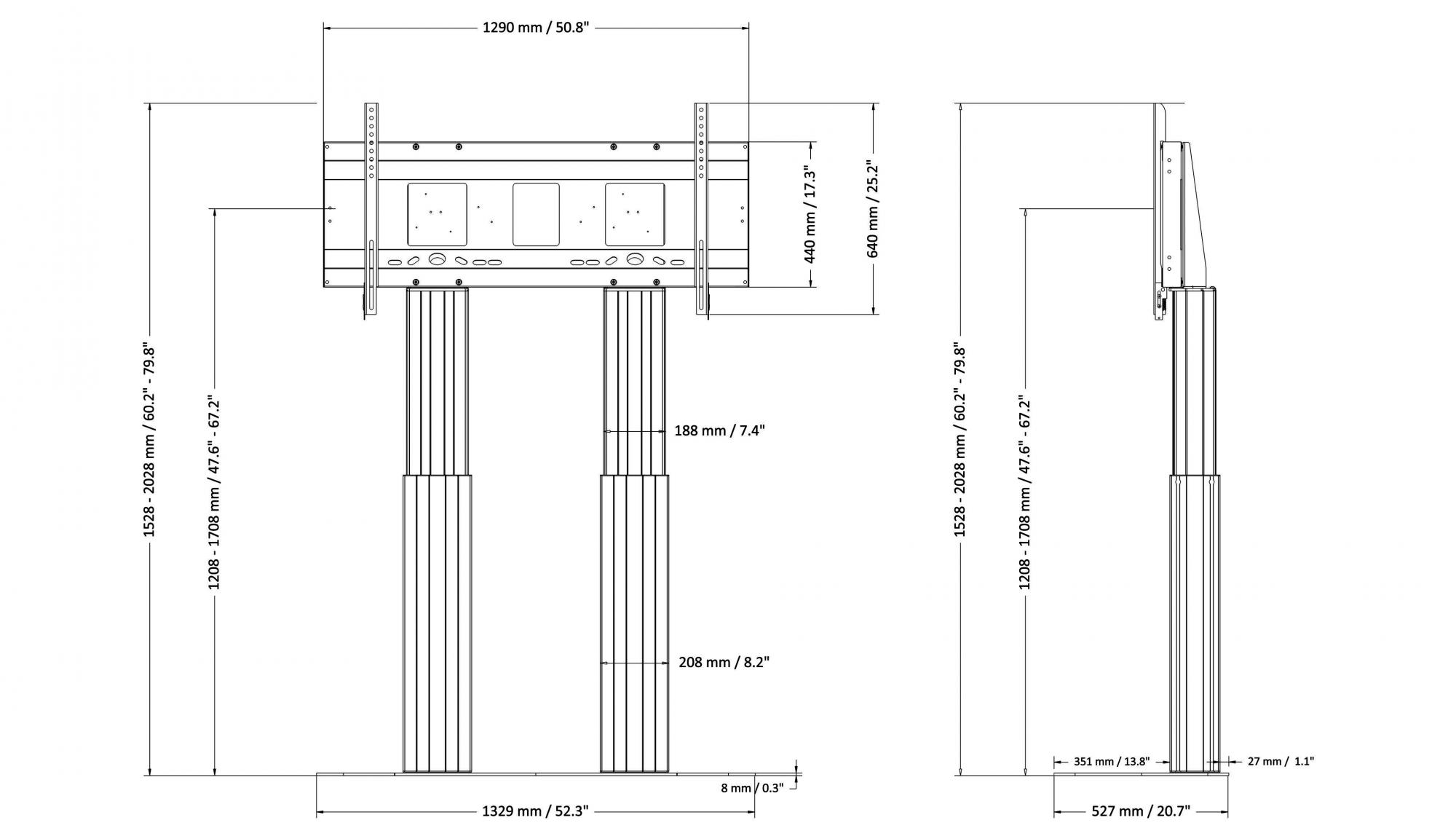

Item numberSCETADPB
Vesa horizontal400 mm - 1200 mm
Vesa vertical200 mm - 600 mm
Vertical travel50 cm
Center to floor distance 1208 mm - 1708 mm47.6" - 67.2"
Load capacity250 kg 551.2 lbs
Width 1290 mm50.8"
Height 1528 mm - 2028 mm60.2" - 79.8"
Depth 530 mm20.9"
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorBlack anodized
Base colorRAL 9005 deep black
Packages Package dimensions WxHxD Package weight
AFSCETAN121300 x 450 x 160 mm / 51.2 x 17.7 x 6.3"17 kg / 37.5 lbs
CCE70B-WSYNC
PSTSCETAD2B750 x 20 x 600 mm / 29.5 x 0.8 x 23.6"21,8 kg / 48.1 lbs
Display mount XL for displays for 2 pylon columns with max. VESA 1200 x 600
Detail image Display mount XL for displays for 2 pylon columns with max. VESA 1200 x 600 SCETADPBThis XL frame accommodates monitors with max. VESA 1200 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
Quick snap lock
Detail image Quick snap lock SCETADPBWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Remote control of height adjustment
Detail image Remote control of height adjustment SCETADPBThe electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.
8 mm strong floor plate
Detail image 8 mm strong floor plate SCETADPBThe 8 mm strong base plate allows the mounting of our monitor mounts on lightweight walls or a freestanding installation in the room. The weight of the monitor is transmitted through the column to the floor plate and thus to the floor, maximizing stability.
Wall mounting kit
Detail image Wall mounting kit SCETADPBThe system includes a wall mounting set consisting of: two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm, Two sliding blocks incl. nut to attach the brackets to the column, four floor leveling feet and 3 cable clips.
7 cm (2.76 inch) Z-brackets
Detail image 7 cm (2.76 inch) Z-brackets SCETADPBBy default, we supply wall mounting brackets with each display wall mount. This wall mounting set consists of two galvanized Z-shaped brackets, which allow a wall clearance of 7 cm (2.76 inch). Further wall mounting solutions are available as accessories.
