Motorized heavy duty XL flat screen tv & monitor cart with 50 cm of vertical travel

two columns black anodized, H-style base
Item number: SCETADB

Product description

Motorized mobile flat screen tv cart with XL display mount.

Designed specifically for use with interactive touch screen displays, this motorized mobile tv cart features an extra wide display bracket. The mobile solution comes standard with two columns which offer 50 cm of height adjustment. Large handles on each side of the display are optionally available for the mobile stand to increase mobility and to help protect the display in transport.

Product ships flat-packed. Cartons are courier shippable.


Features

  • XL wide tv cart & display mount with max. VESA 1200x600
  • Designed for use with LFDs and IFPDs
  • Easy mounting of display thanks to "pull & release" brackets
  • Display mount with integrated cable management
  • Actuator safely concealed in two columns offering 50 cm of vertical travel
  • Wired remote is standard included

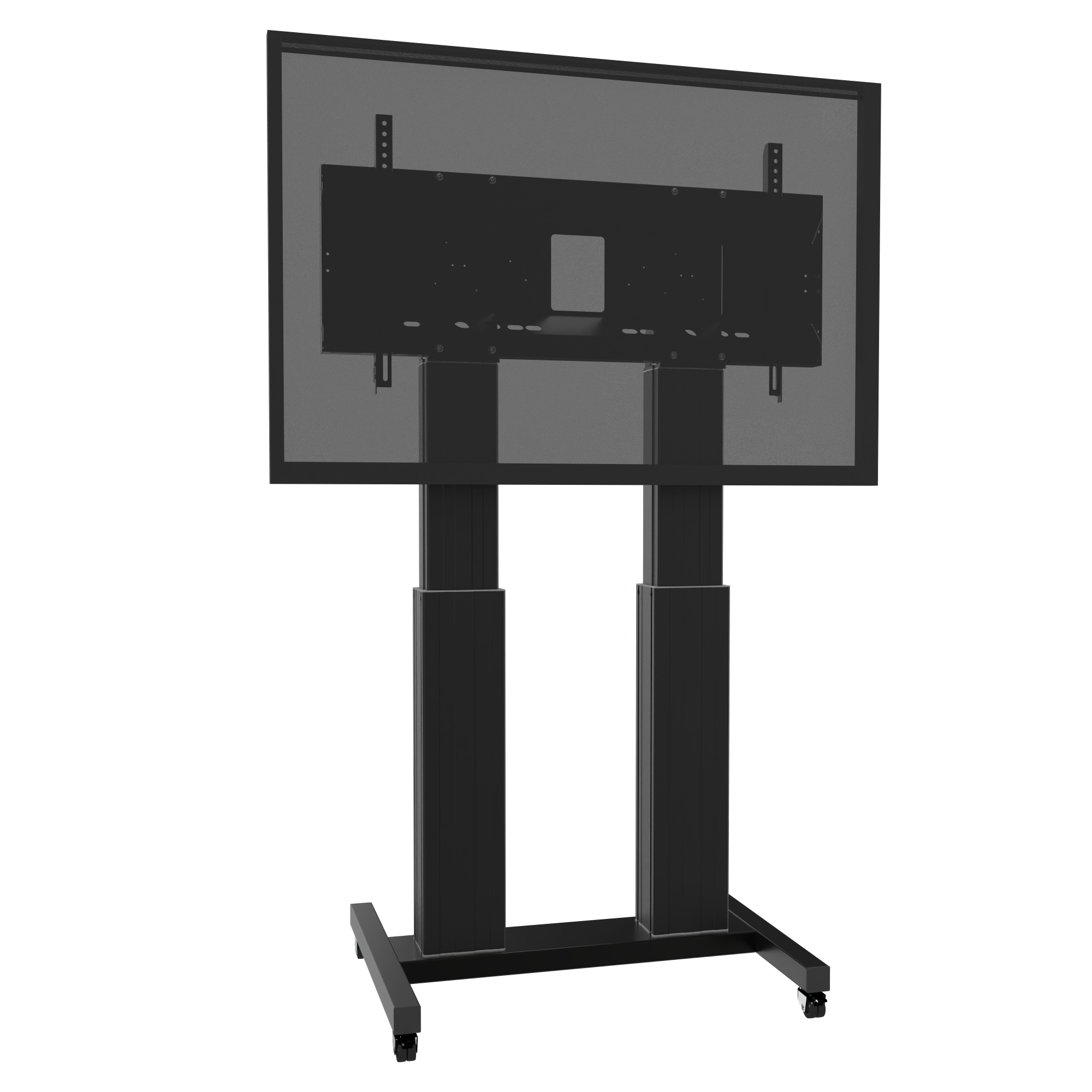

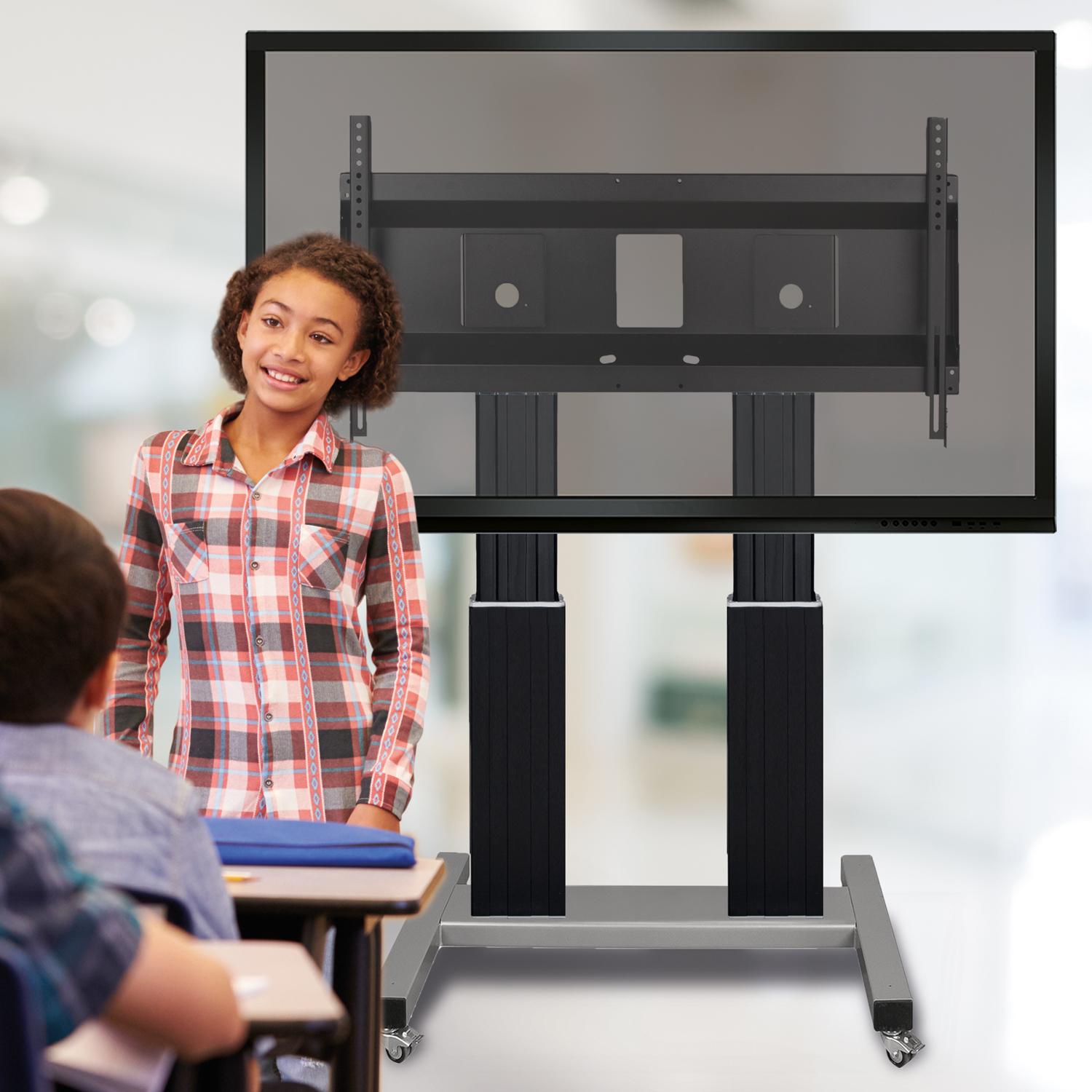

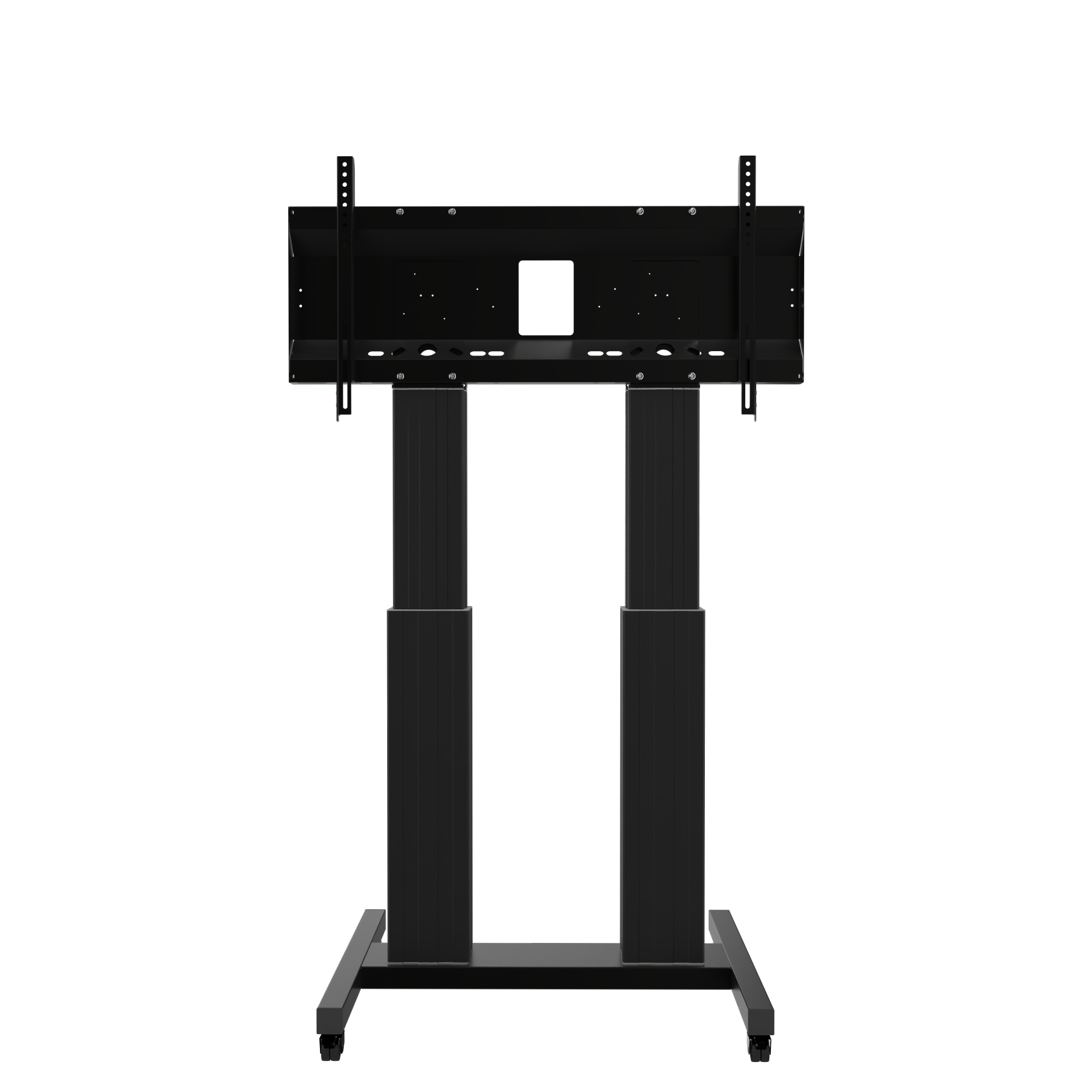

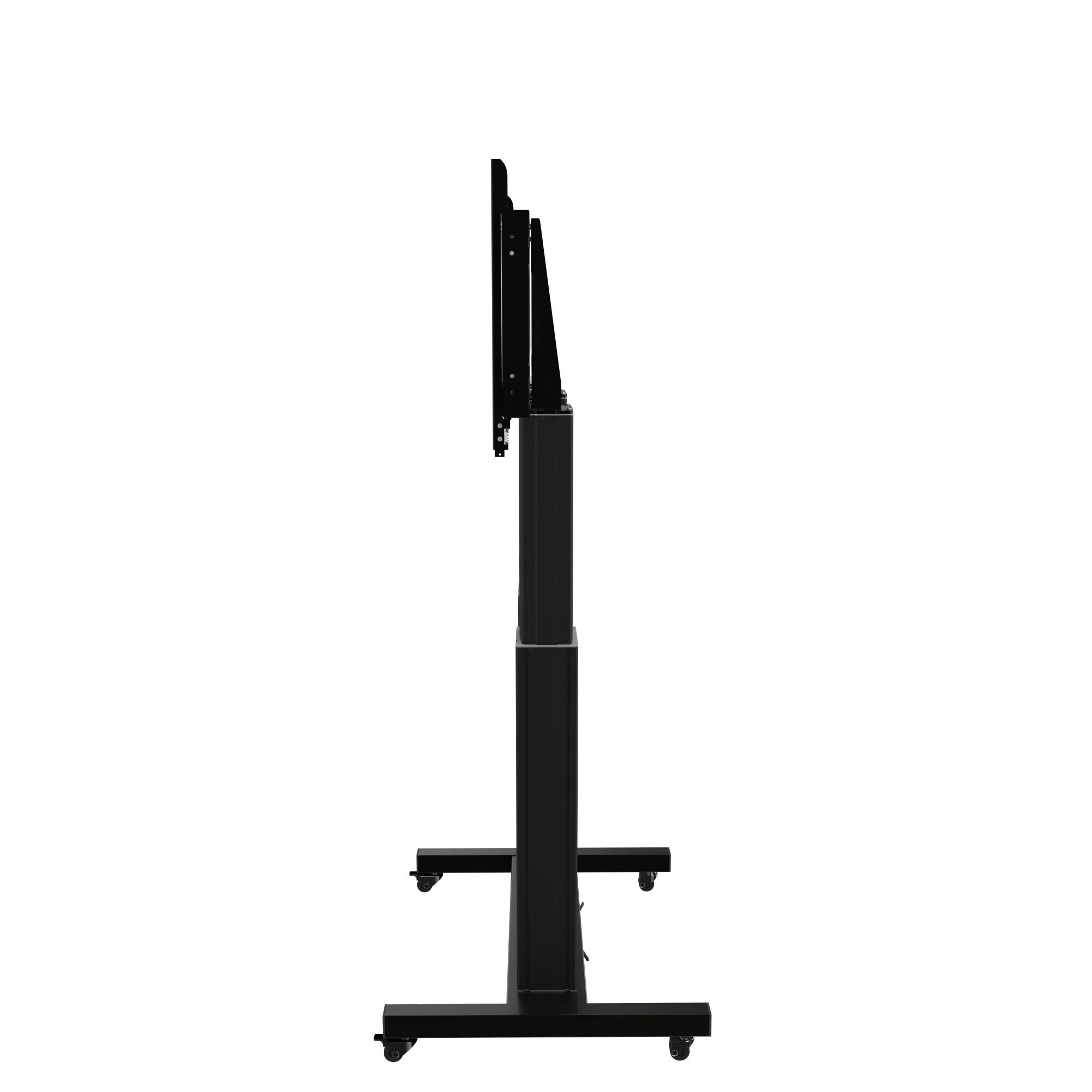

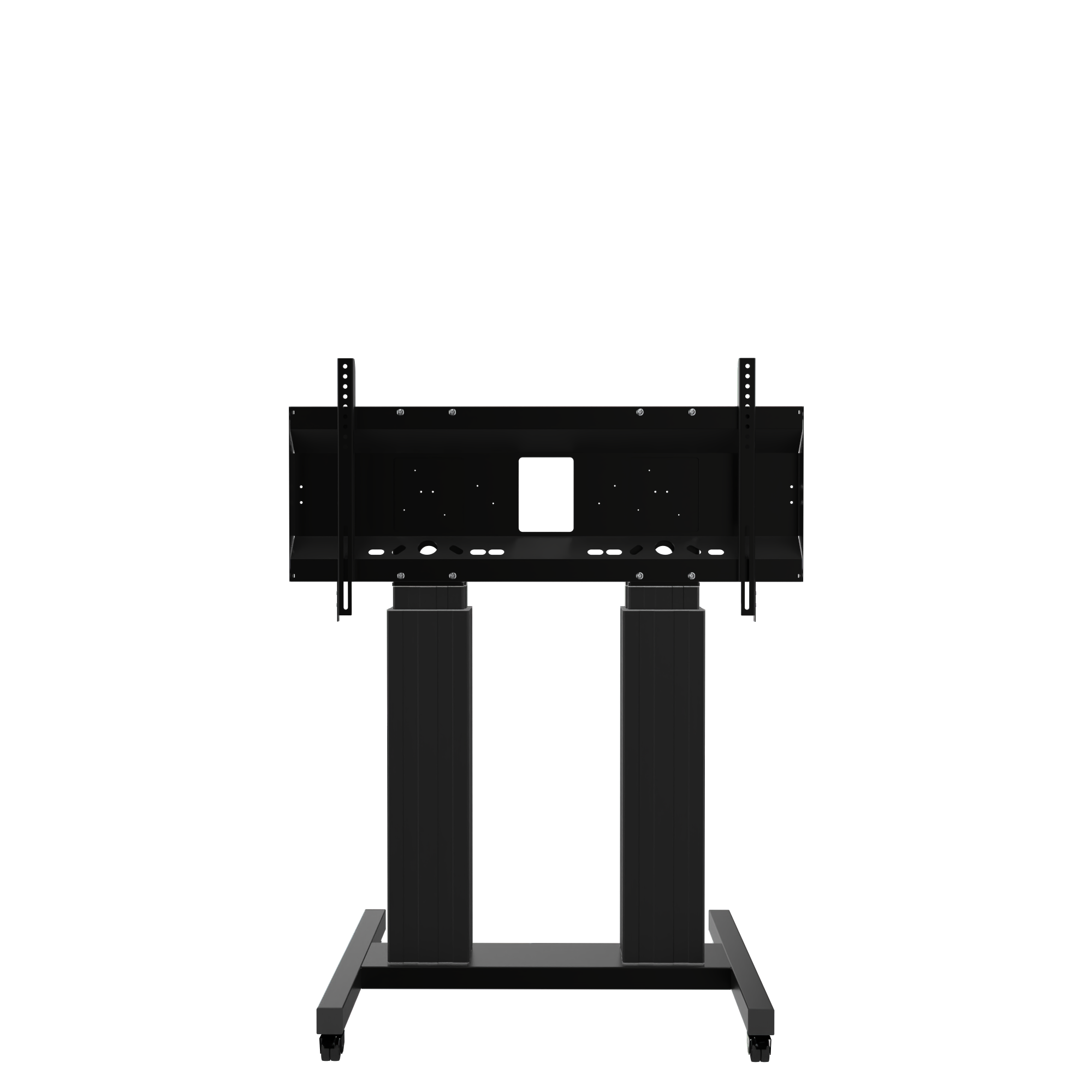

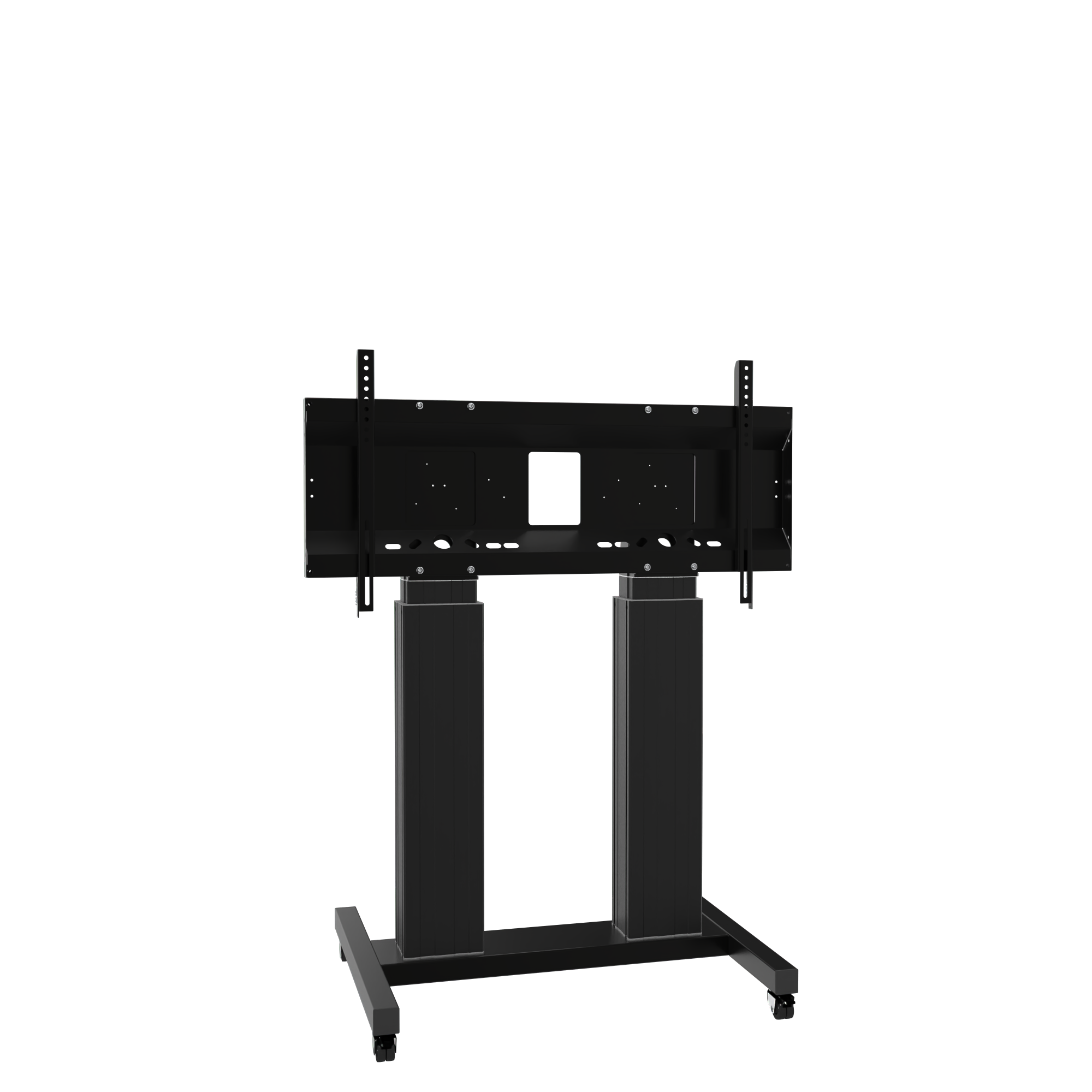

Product image Motorized heavy duty XL flat screen tv & monitor cart with 50 cm of vertical travel SCETADB
Product image Motorized heavy duty XL flat screen tv & monitor cart with 50 cm of vertical travel SCETADB Product image Motorized heavy duty XL flat screen tv & monitor cart with 50 cm of vertical travel SCETADB Product image Motorized heavy duty XL flat screen tv & monitor cart with 50 cm of vertical travel SCETADB Product image Motorized heavy duty XL flat screen tv & monitor cart with 50 cm of vertical travel SCETADB Product image Motorized heavy duty XL flat screen tv & monitor cart with 50 cm of vertical travel SCETADB Product image Motorized heavy duty XL flat screen tv & monitor cart with 50 cm of vertical travel SCETADB Product image Motorized heavy duty XL flat screen tv & monitor cart with 50 cm of vertical travel SCETADB
Request a quotation!
Icon display mounts
Display mount
Icon mobile stand
Mobile
Icon electrical height adjustable
Motorized height adjustable
Icon single display
Single display
Icon 5 years warranty
5 years warranty
Icon maximum load
Max. load
551.2 lbsIcon maximal VESA
Max. Vesa
1200 x 600
Item numberSCETADB
Vesa horizontal400 mm - 1200 mm
Vesa vertical200 mm - 600 mm
Vertical travel50 cm

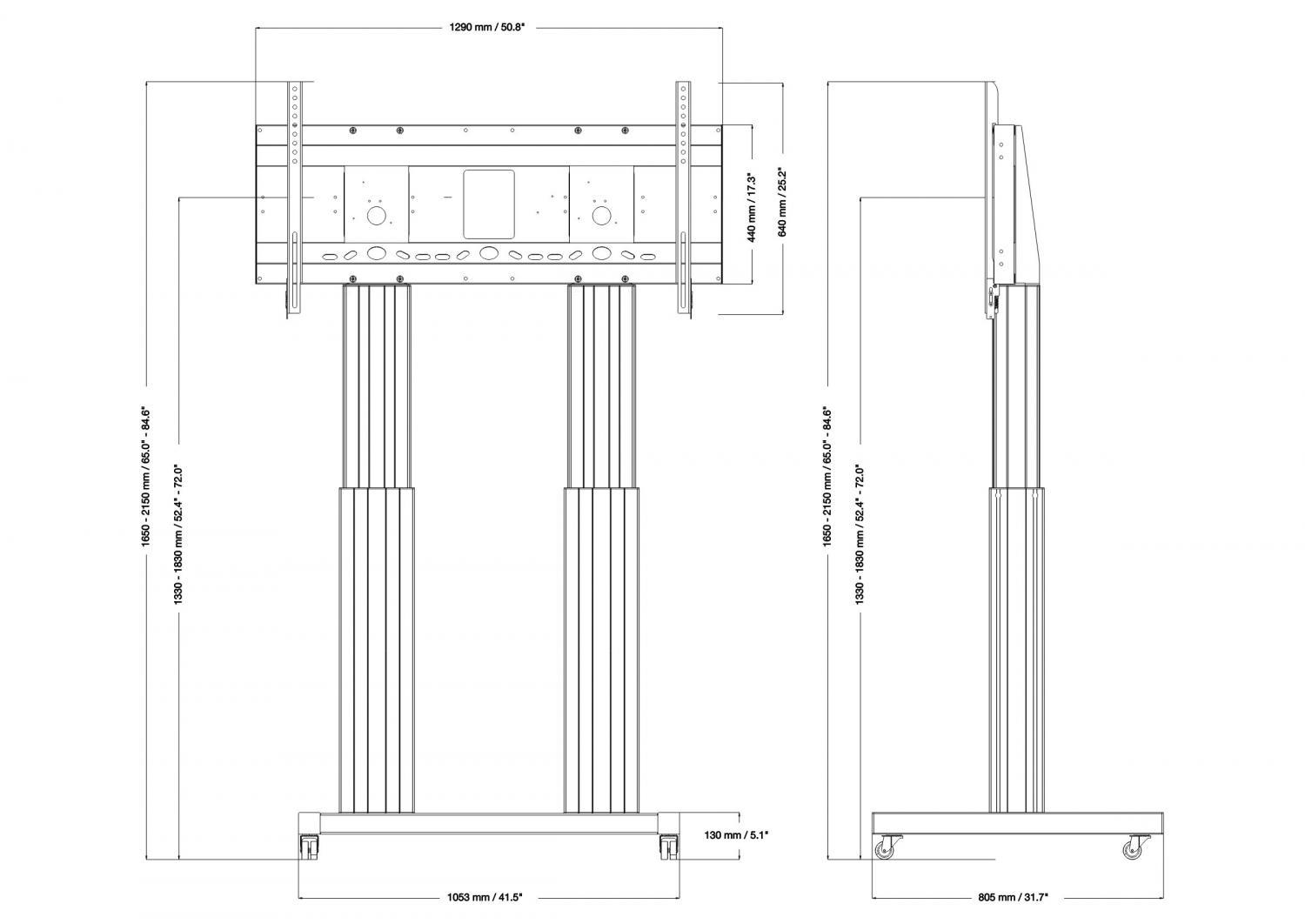

Center to floor distance 1330 mm - 1830 mm52.4" - 72"
Load capacity250 kg 551.2 lbs
Width 1290 mm50.8"
Height 1650 mm - 2150 mm65" - 84.6"
Depth 805 mm31.7"
Warranty5 years limited warranty
Frame colorRAL 9005 deep black
Column colorBlack anodized
Base colorRAL 9005 deep black
Packages Package dimensions WxHxD Package weight
AFSCETAN12D1295 x 160 x 450 mm / 51 x 6.3 x 17.7"18 kg / 39.7 lbs
CCE70B-SYNC
MST-SCETA2B1130 x 745 x 210 mm / 44.5 x 29.3 x 8.3"26 kg / 57.3 lbs
Display mount XL for displays for 2 pylon columns with max. VESA 1200 x 600
Detail image Display mount XL for displays for 2 pylon columns with max. VESA 1200 x 600 SCETADBThis XL frame accommodates monitors with max. VESA 1200 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
Quick snap lock
Detail image Quick snap lock SCETADBWith the new innovative quick snap locks the monitors can simply be hung in place on the monitor wall mount. This makes the assembly easy and fast. In addition, the monitor can be secured against theft with a standard pad lock.
Remote control of height adjustment
Detail image Remote control of height adjustment SCETADBThe electrically height-adjustable display & monitor stands come standard with a wired remote control. With two buttons, the display stand can gently be raised and lowered. Controlled movements protect the sensitive touch screen displays.
H-mobile stand
Detail image H-mobile stand SCETADBOur white H chassis has 4 smooth castors, two of which are lockable to fix the tv cart & mobile monitor stand in place. Due to the special H shape even wheelchair users can approach very close to the display.
Double-castor mobile stand
Detail image Double-castor mobile stand SCETADBThe smooth-running wheels on our chassis make it easy to move the mobile monitor stand and flat screen tv cart even with heavy displays. The castors have a diameter of 50 mm.
