Wall mounted 2 pylon sliding system for displays from 65-86"

manually height-adjustable with pulley and counter weight
Item number: PYF1-IFPD-W

Product description

This manually height-adjustable pylonsystem with pulley is compatible with all touch screen displays available on the market from 65" to 86" screen diagonal.

The two aluminum pylons are mounted on the wall and floor, the display brackets slides between these pylons by pulley and counter weight. This ensures that every user can work and present at the ergonomically best height.


Features

  • Please indicate the model of the monitor when placing your order
  • Manually height-adjustable system with 2 pylons for floor and wall mounting

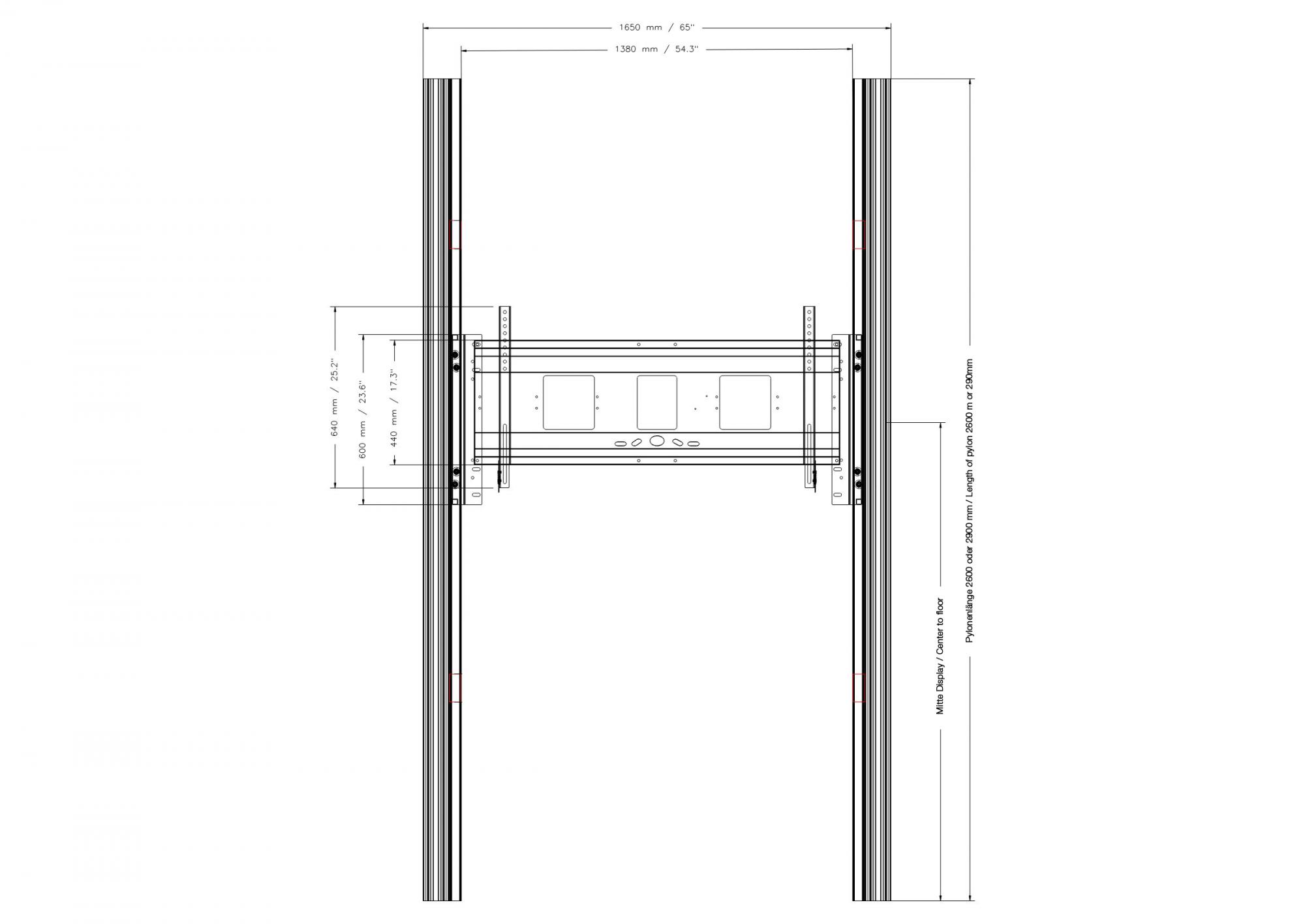

  • different pylon length available: 2600 mm or 2900 mm

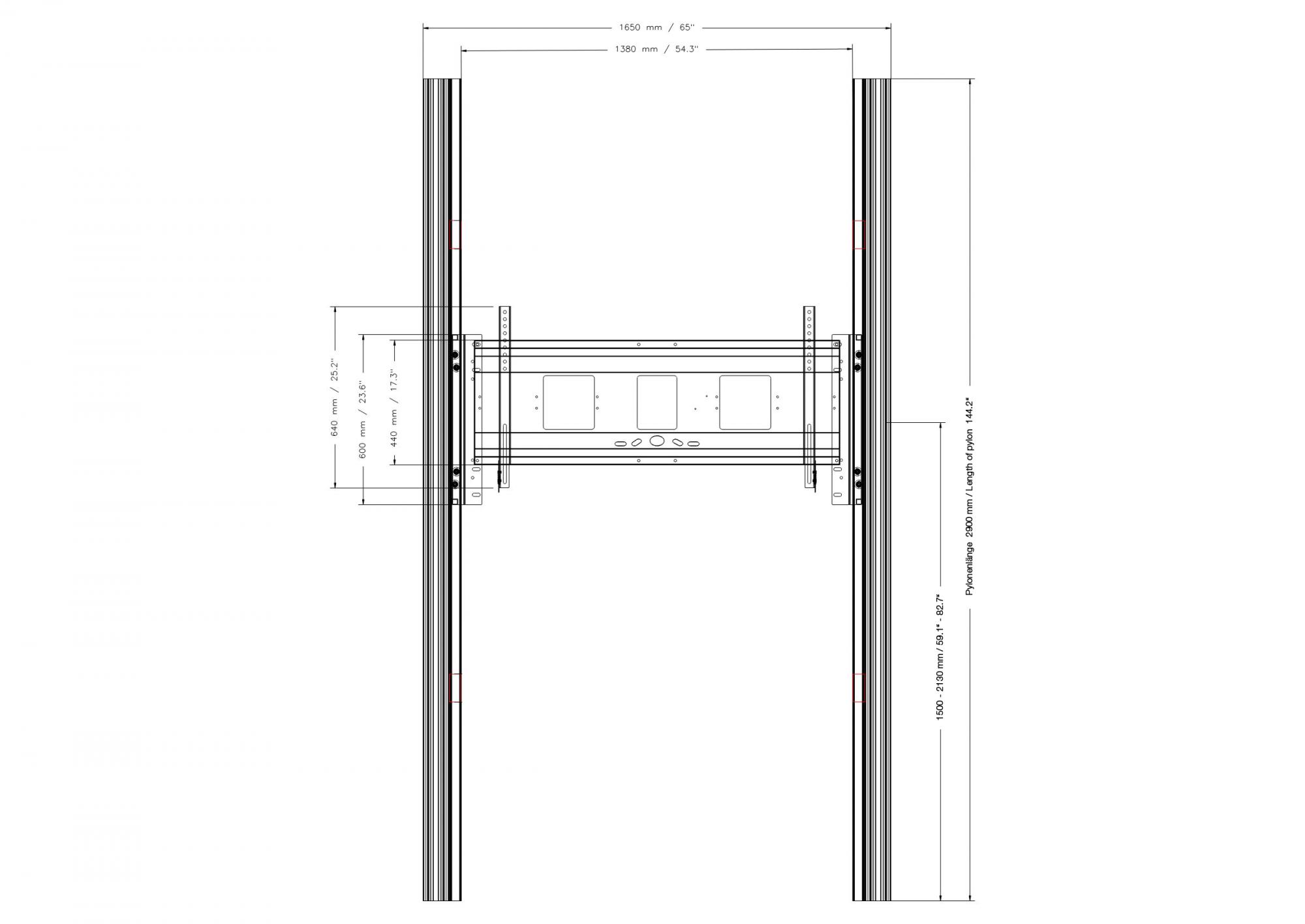

  • center to floor distance at 2900 mm lenght of pylon = approx. 1500 mm - 2100 mm

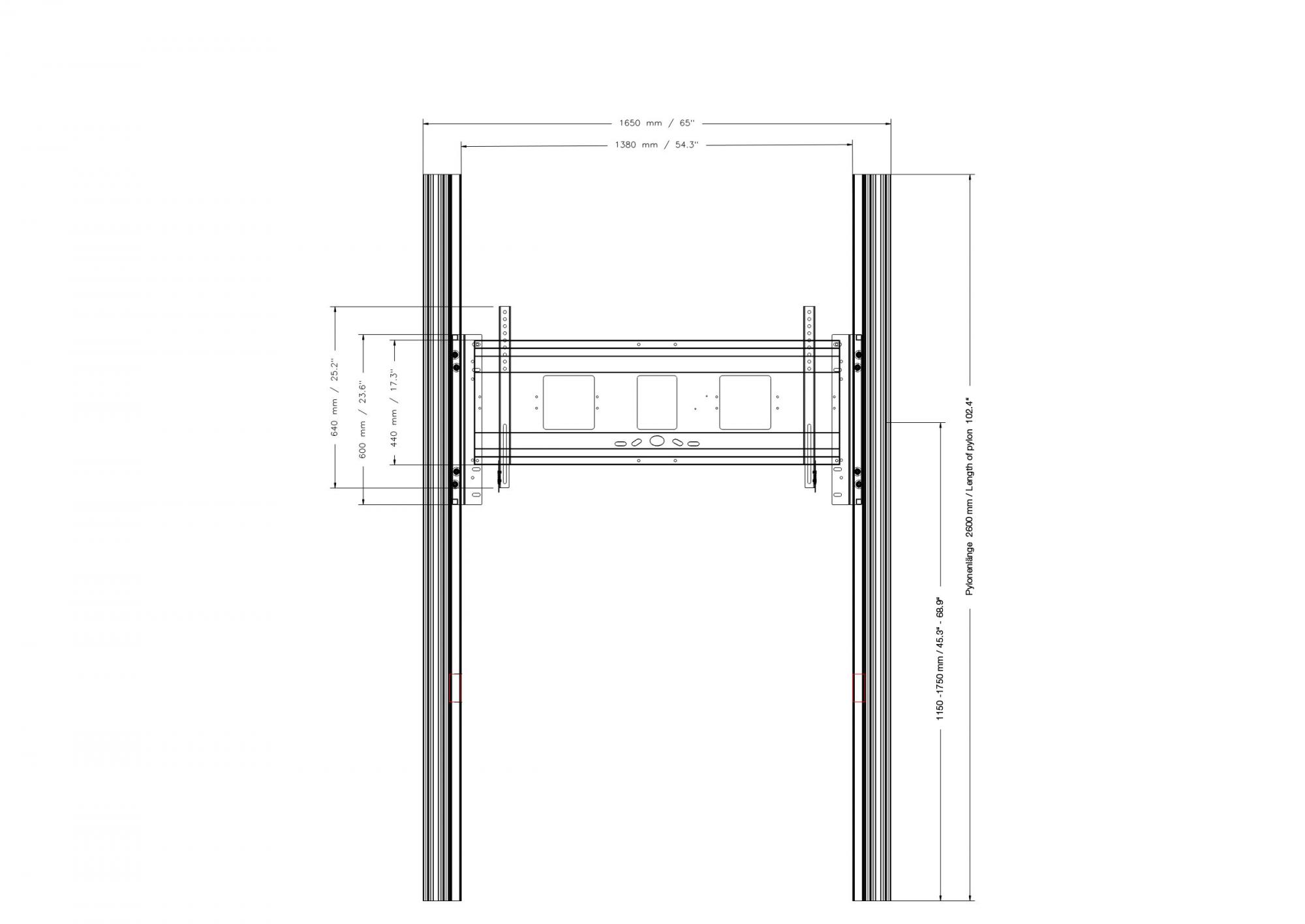

  • center to floor distance at 2600 mm lenght of pylon = approx. 1150 mm - 1750 mm
  • Height adjustment with counterweights and pulley
  • All connections on the display are freely accessible
  • at least 600 mm stroke

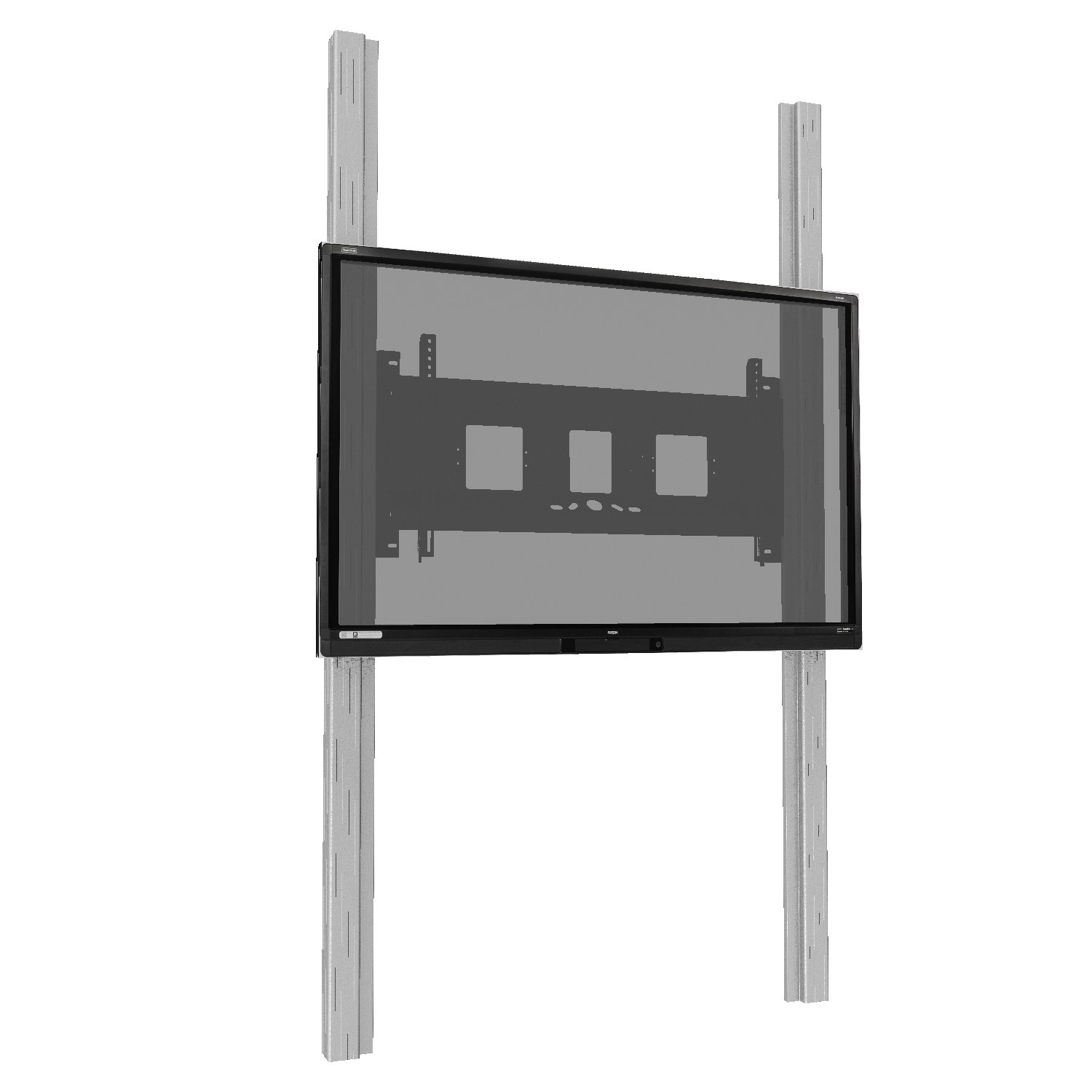

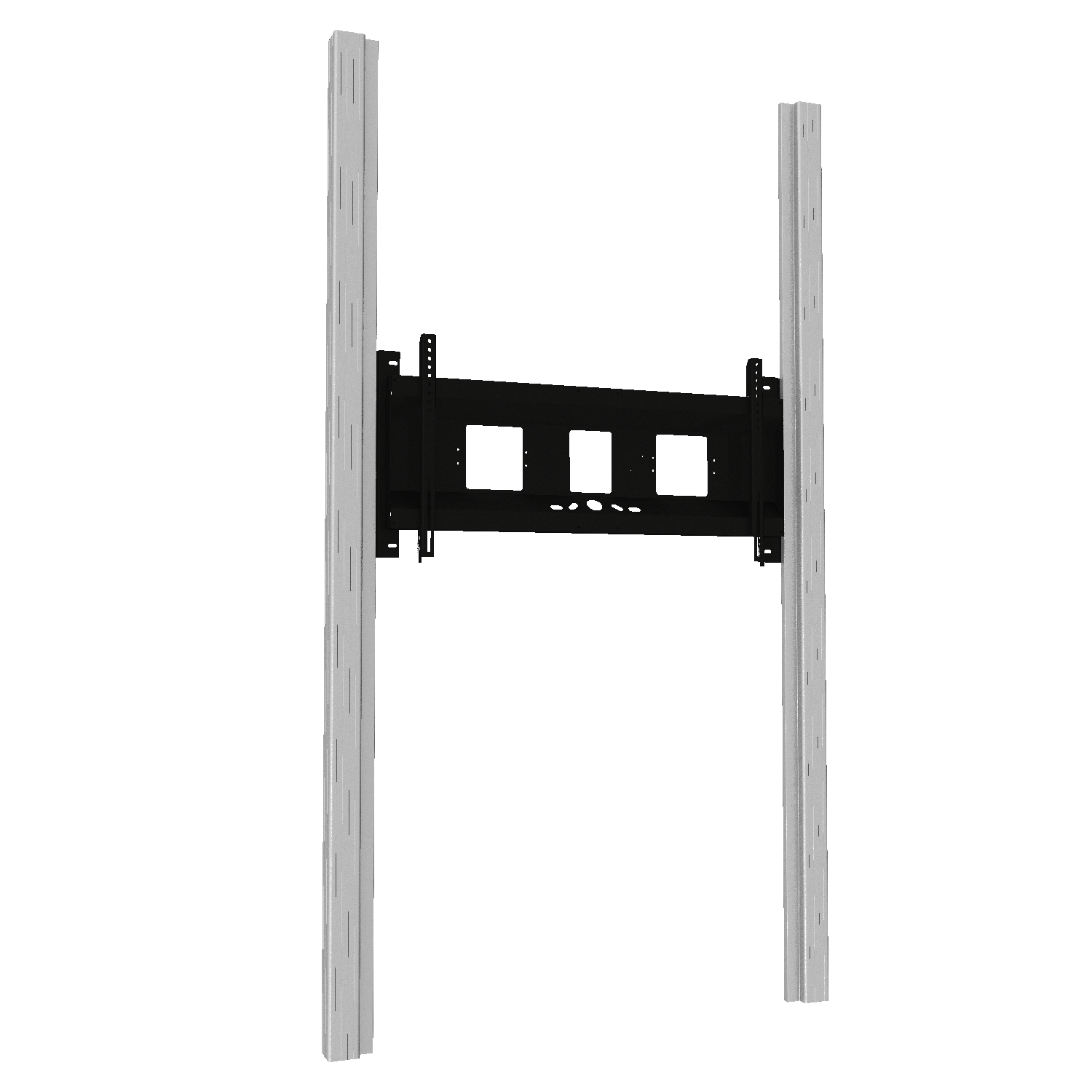

Product image Wall mounted 2 pylon sliding system for displays from 65-86
Product image Wall mounted 2 pylon sliding system for displays from 65-86 Product image Wall mounted 2 pylon sliding system for displays from 65-86 Product image Wall mounted 2 pylon sliding system for displays from 65-86 Product image Wall mounted 2 pylon sliding system for displays from 65-86 Product image Wall mounted 2 pylon sliding system for displays from 65-86
Request a quotation!
Icon display mounts
Display mount
Icon wallmounted system
Wall mounted
Icon manual height adjustable
Manual height adjustable
Icon single display
Single display
Icon maximum load
Max. load
220.5 lbsIcon maximal VESA
Max. Vesa
1200 x 600

Accessories

Productimage Swivel arm for notebooks Productimage 2 galvanized wall mounting brackets Productimage 2 galvanized adjustable wall mounting brackets

Product details

Item numberPYF1-IFPD-W
Vesa horizontal300 mm - 1200 mm
Vesa vertical200 mm - 600 mm
Frame for all65" - 86"
Center to floor distance 1500 mm - 2100 mm59.1" - 82.7"
Load capacity100 kg 220.5 lbs
Width 1650 mm65"
Height 2900 mm114.2"
Depth 136 mm5.4"
Frame colorRAL 9005 deep black
Column colorSilver anodized
Display mount for displays with max. VESA 800 x 600
Detail image Display mount for displays with max. VESA 800 x 600 PYF1-IFPD-WThis frame accommodates monitors with max. VESA 800 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
Display mount XL for displays with max. VESA 1200 x 600
Detail image Display mount XL for displays with max. VESA 1200 x 600 PYF1-IFPD-WThis XL frame accommodates monitors with max. VESA 1200 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
